SkyRC Ares Pro V4 540 SPEC 10.5T Brushless Motor
- Part No: SK400034-01
- Retail: €53.90
- EAN: 6930460008862
- Notice: SK-400034-01
Sensored 10.5T competition motor with dual sensor ports and adjustable timing The SkyRC ARES... more
Product information "SkyRC Ares Pro V4 540 SPEC 10.5T Brushless Motor"
Sensored 10.5T competition motor with dual sensor ports and adjustable timing
The SkyRC ARES PRO 4 is a sensored competition motor. Its dual sensor ports allow space-saving cable routing. The modular housing allows the endbells, stator, rotor and bearings to be cleaned or replaced with standard RC tools.
Highlights
- ROAR-approved competition motor for 1/10 on-/offroad (Stock & Modified)
- Sensor technology for linear, cog-free power delivery
- CNC-machined aluminium heatsink can for heat dissipation
- High-purity copper windings (up to 220 °C) and heat-resistant neodymium magnets (up to 150 °C)
- Precision-balanced rotor, ball bearings and durable endbells

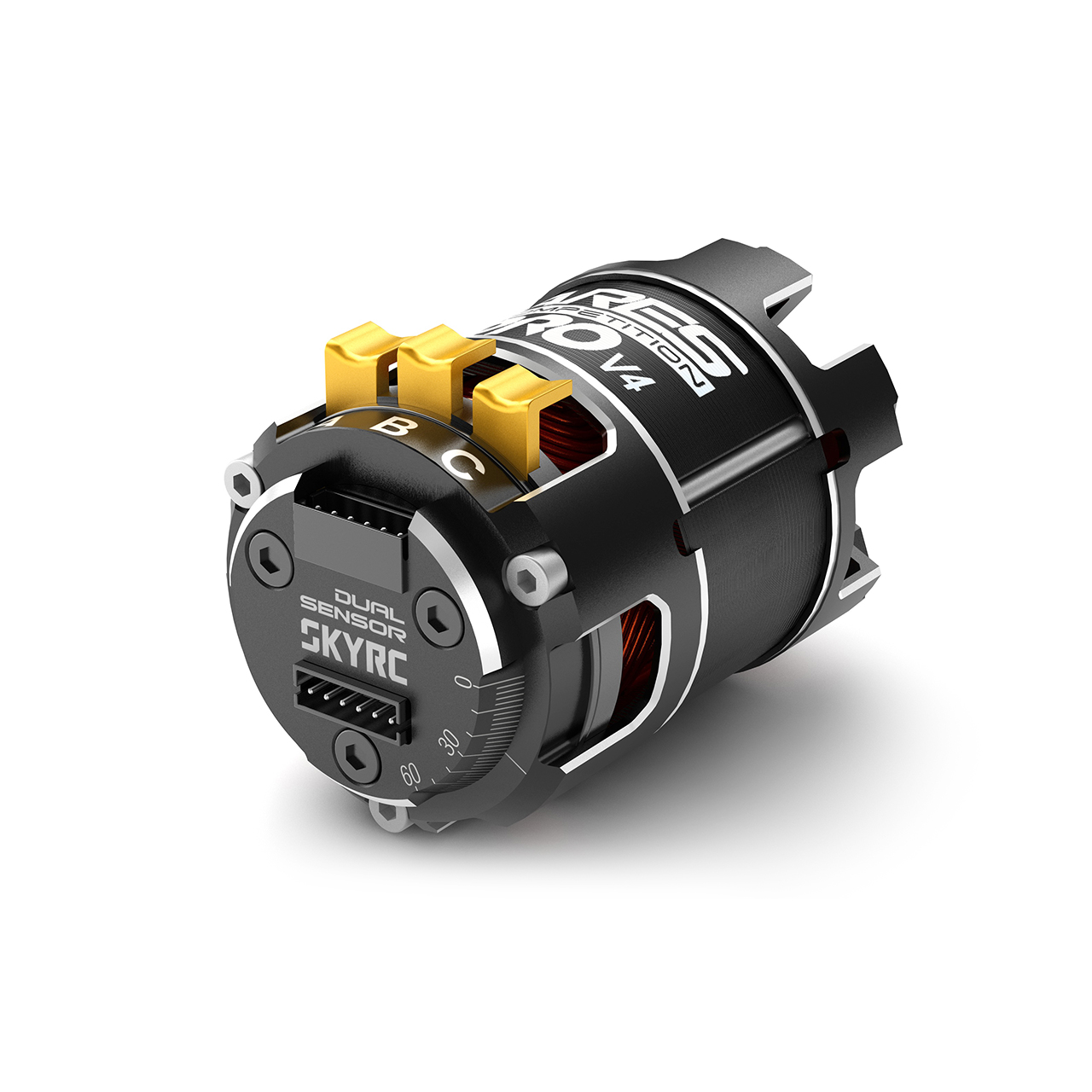

- Finely adjustable timing on the motor

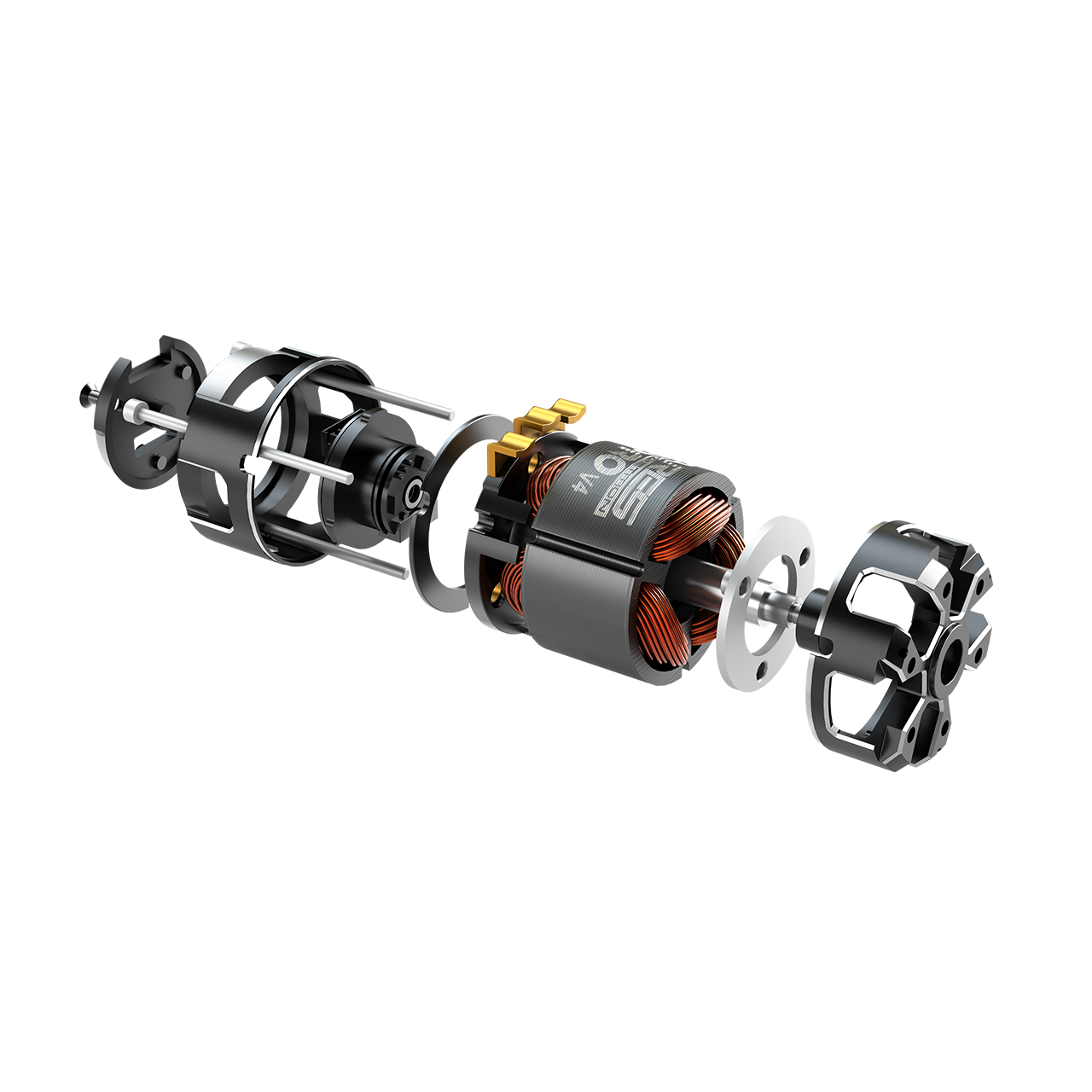

- Fully disassemblable for service and setup
Specifications
| Type | Brushless / Sensored SPEC |
| Turns | 10.5T |
| Timing | adjustable |
| Sensor Ports | 2× (Dual-Port) |
| Can Diameter | approx. 35.8 mm |
| Can Length | approx. 52 mm (without shaft) |
| Shaft Diameter / Length | 3.175 mm |
| Weight | approx. 148 g |
| Approvals | ROAR-approved |
| Application | 1/10 Stock & Modified (On-/Offroad) |
Notes
- The ARES PRO 4 is available in several turn/variant options. KV ratings, current draw and performance data vary depending on the version.
