Hobbywing QuicRun 0880 Dual Brushed ESC 80A for 1:10
- Part No: HW30120301
- Retail: €39.90
- EAN: 6938994413138
- Notice: 30120301
Dual Brushed ESC for 1:10 with two motor outputs and 80 A continuous current The QuicRun... more
Product information "Hobbywing QuicRun 0880 Dual Brushed ESC 80A for 1:10"
Dual Brushed ESC for 1:10 with two motor outputs and 80 A continuous current

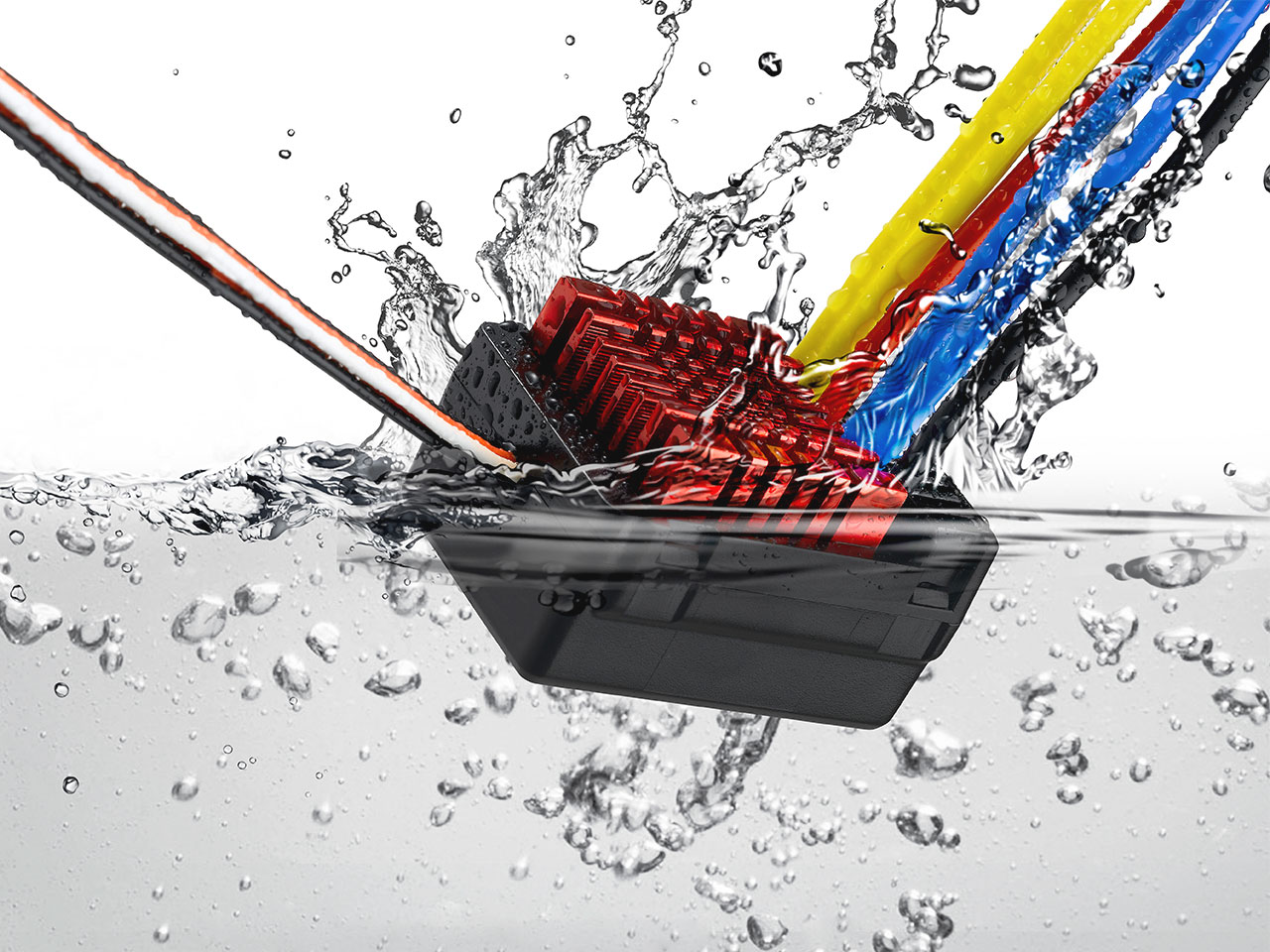

The QuicRun 0880 Dual Brushed ESC has two sets of output wires for connecting two motors that run synchronously. Its waterproof and dust-proof design allows use in all weather conditions without damage from water or debris.
Highlights
- Controls two motors simultaneously
- 6 V/4 A BEC
- 15 programmable parameter items for different vehicles and tracks
- Adjustable PWM frequency and DEO/freewheeling technology for throttle linearity and driving feel
- Separate programming port
- Compact design
Specifications
| Type and Motor Size | Brushed 540/550/775 |
| Current (Cont./Peak) | 80 A/400 A |
| Cells | 2–4S LiPo / 5–12 NiMH cells |
| Motor Limit 540/550 | 2S LiPo, 6S NiMH: > 12T or < 30000 RPM / 3S LiPo, 9S NiMH: > 18T or < 20000 RPM / 4S LiPo, 12S NiMH: > 24T or < 15000 RPM |
| BEC | Switch Mode: 6 V/4 A |
| Input Connector | No |
| Output Connectors | Bullet 4 mm (female) |
| Dimensions | 45.9 × 34.7 × 26.5 mm |
| Weight | 75 g |
| Waterproof | Yes |
| Applicable | 1/8, 1/10 Rock Crawler |
In the box
- 1× ESC
- 1× Sticker
- 1× Manual
Notes
- When driving two motors, the turns of the motors need to be increased accordingly.
- Optional accessory: HW30501003 LED-Programm box.
