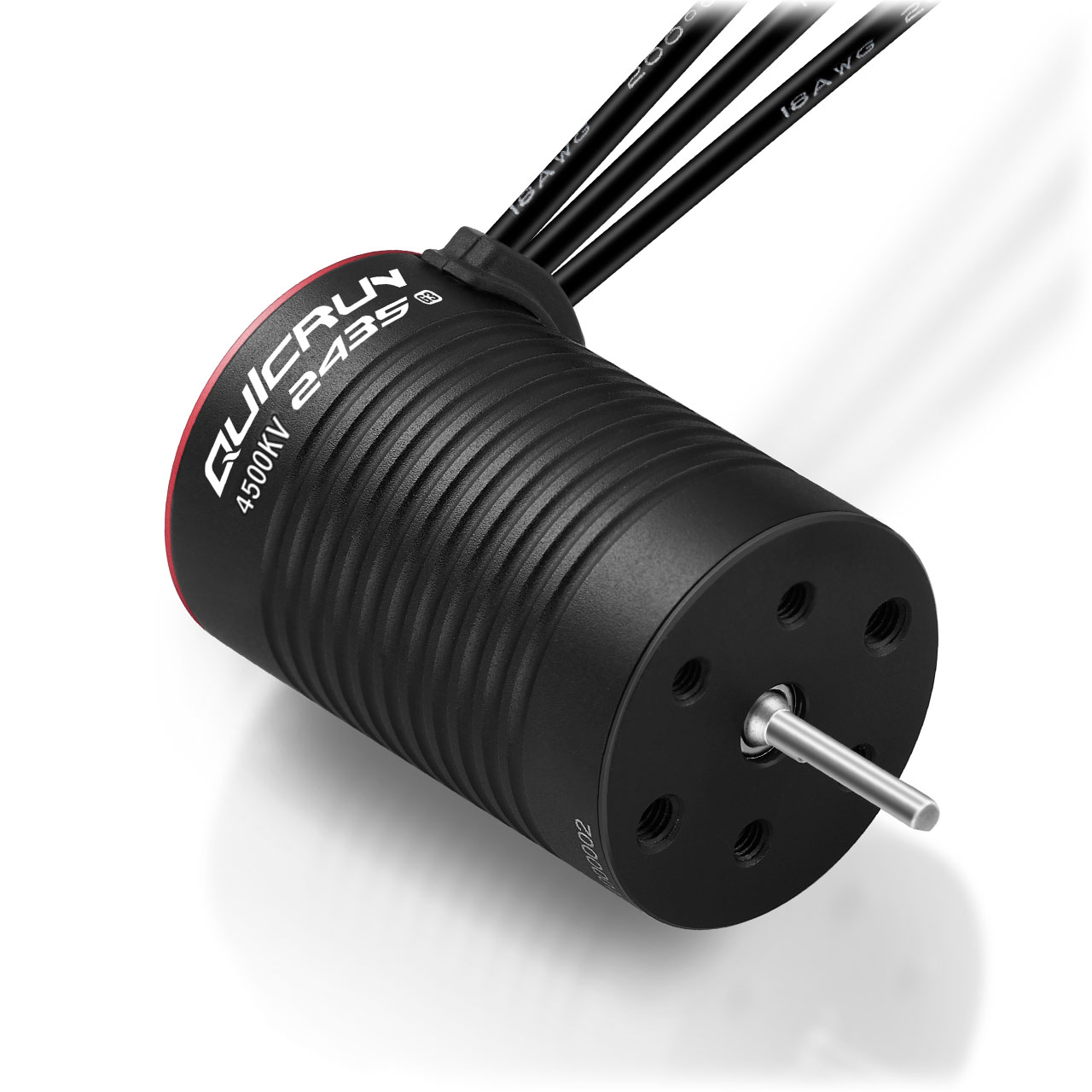

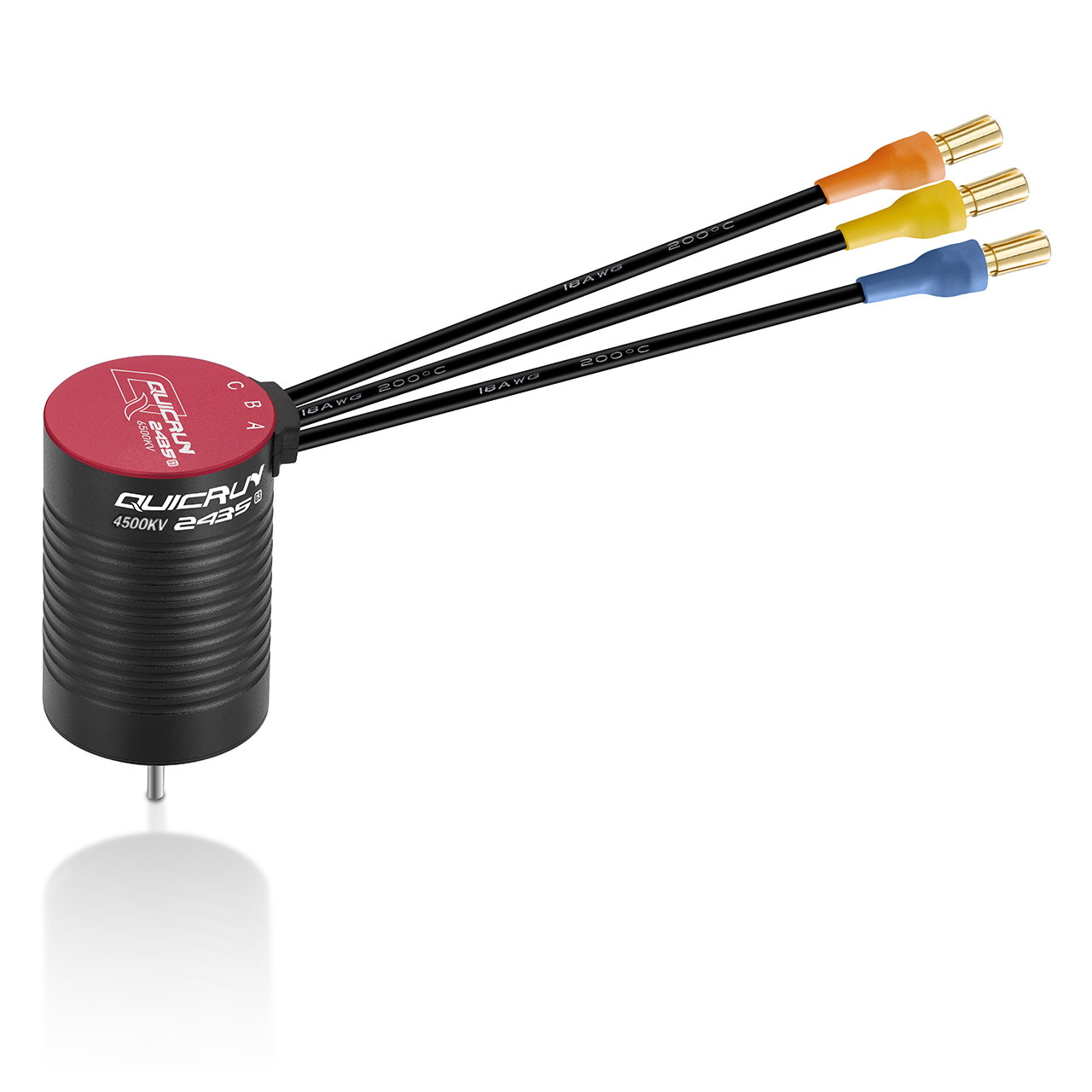

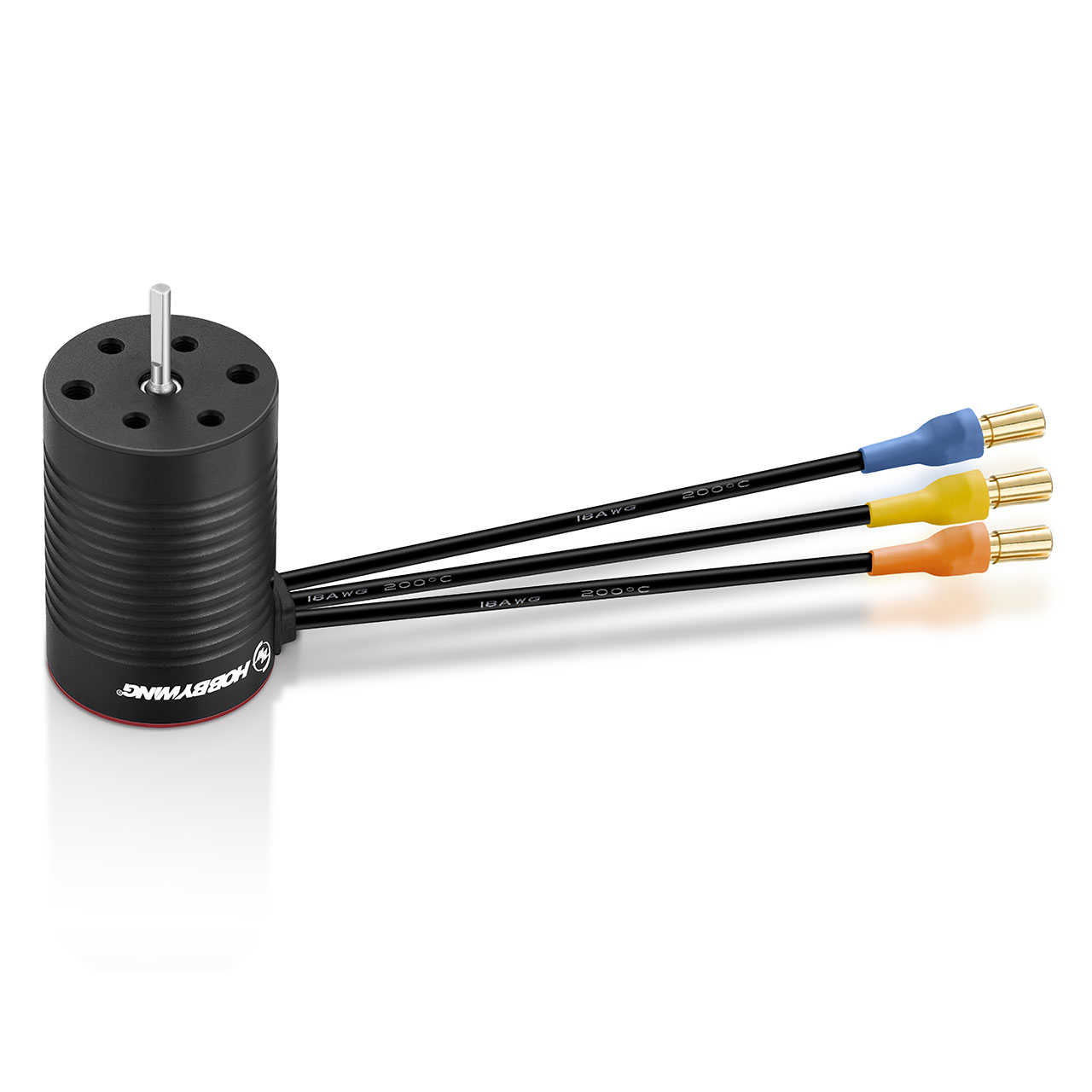

Product information "Hobbywing QuicRun 2435SL 4500kV RED G3 SE Sensorless Motor for 1:16, 1:18"
The next generation of the Quicrun 2435 series presents itself with a brand new 4-pole rotor, which has an even stronger torque and from which the power only shoots out. Compared with similar motors under the same load, the maximum output power is 60% higher and the efficiency is 5% higher, while the temperature has been lowered by almost 30 degrees. Due to the housing sealing with a silicone rubber layer, the motor is particularly suitable for driving in impassable environments on a scale of 1/16 or 1/18.
Features
4-pole rotor design.
Even more torque.
Improvement in output power, efficiency and temperature development compared to the previous generation.
Very high durability due to the used materials (e.g.: 0.2mm thick silicon steel laminations, high-strength explosion-proof rotor, high-temperature resistant coil, first-line brand, etc.).
Plug'n'Play
Technical Specifications
Type:
Brushless, Sensorless
kV Rating:
4500kV
No-Load Current:
2.1A
Cells LiPo:
2-3S
Poles:
4
Diameter:
24mm
Length:
36mm
Shaft Diameter:
2mm
Shaft Length:
12mm
Weight:
61.2g
Application:
1/16 & 1/18 On-Road & Off-Road
Delivery
1x Motor 1x Manual
