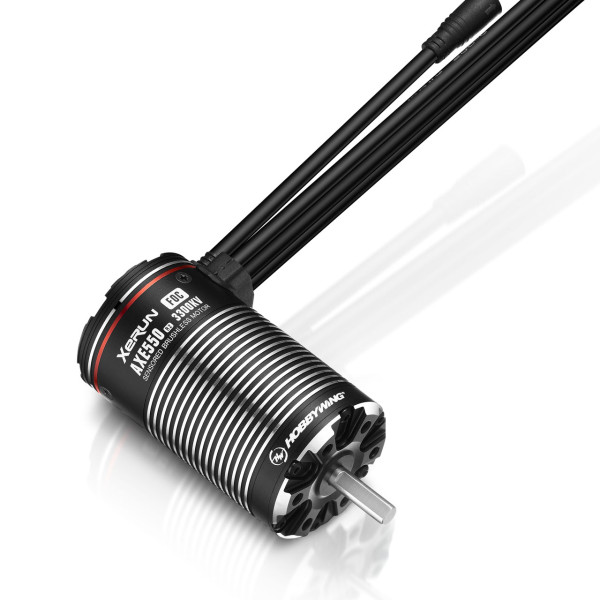

Product information "Hobbywing Xerun AXE550 R2 Motor für Rock Crawler 3300kV"
The Xerun AXE 550 motor now shines with its "R2" design and also comes with some improvements. Furthermore, the motor supports the powerful FOC technology when used with the AXE "R2" ESC. That alone ensures automatic control of torque and speed - depending on the load requirements.
With a 5mm shaft and 3300KV, this 4-pole motor also has hardly any cogging torque and thus runs smoothly under all conditions. The "Staggered Pole Rotor" design patented by Hobbywing also contributes to this.
Features
Minimal cogging torque
Soft starting behaviour
Optimized for sensitive performance development
Waterproof and dustproof for almost every situation
Including a newly designed waterproof sensor port
The built-in high-precision magnetic encoder sends more information to the ESC than before
Technical Specifications
Type:
Sensored Brushless FOC
Poles:
4
KV Rating:
3300KV
LiPo Cells:
2s-3s
No-Load Current:
4.7A
Outer Diameter:
36.0mm
Length:
63.8mm
Shaft Diameter:
5mm
Shaft Length:
16mm
Waterproof:
Ja
Weight:
247g
Application:
1/10 Rock Crawler
Delivery
1x Motor 1x Manual
Motor Typ:
Brushless Sensored
Maßstab:
1:10
Modellname:
Xerun AXE550L R2
Drehzahl spez. [KV]:
3300KV
