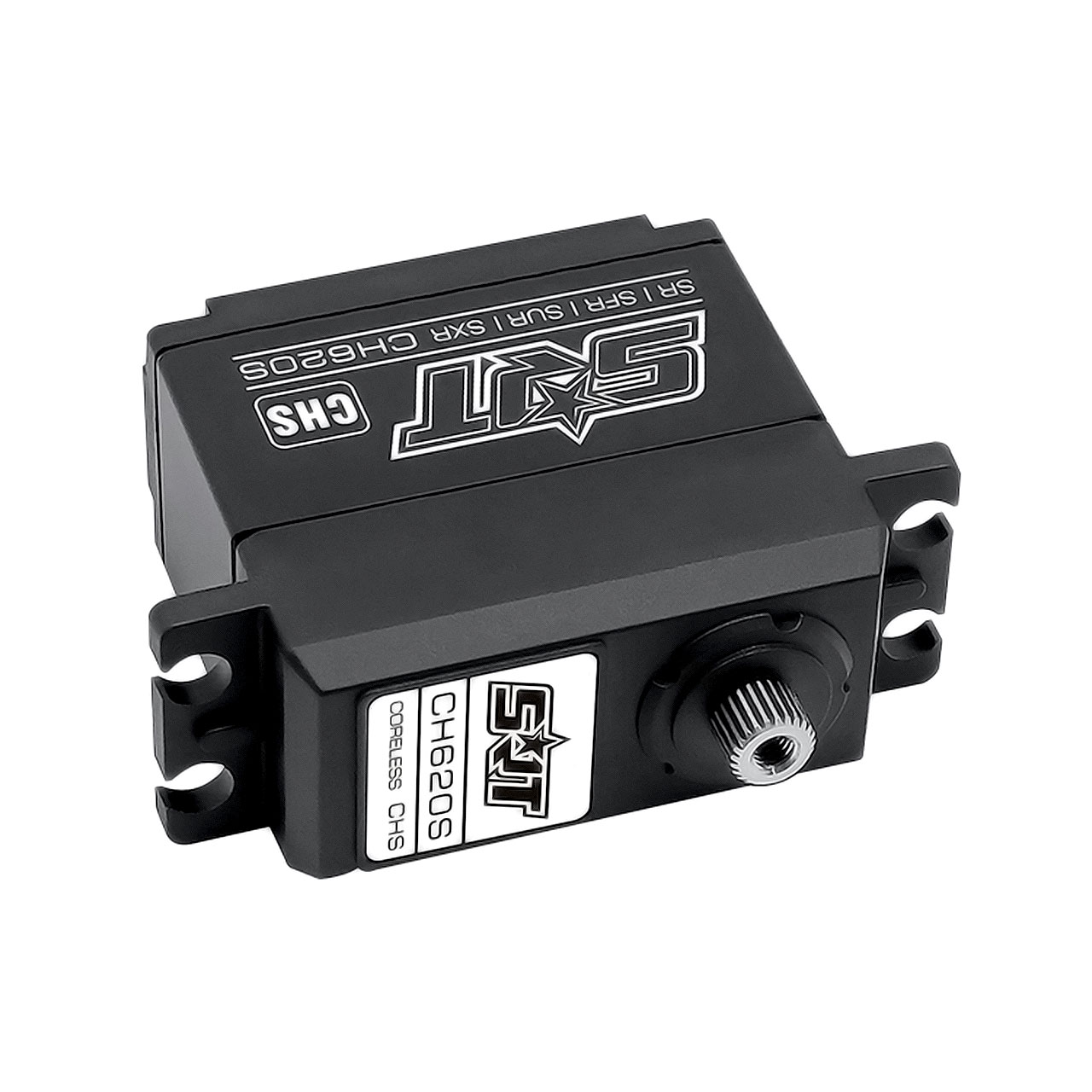

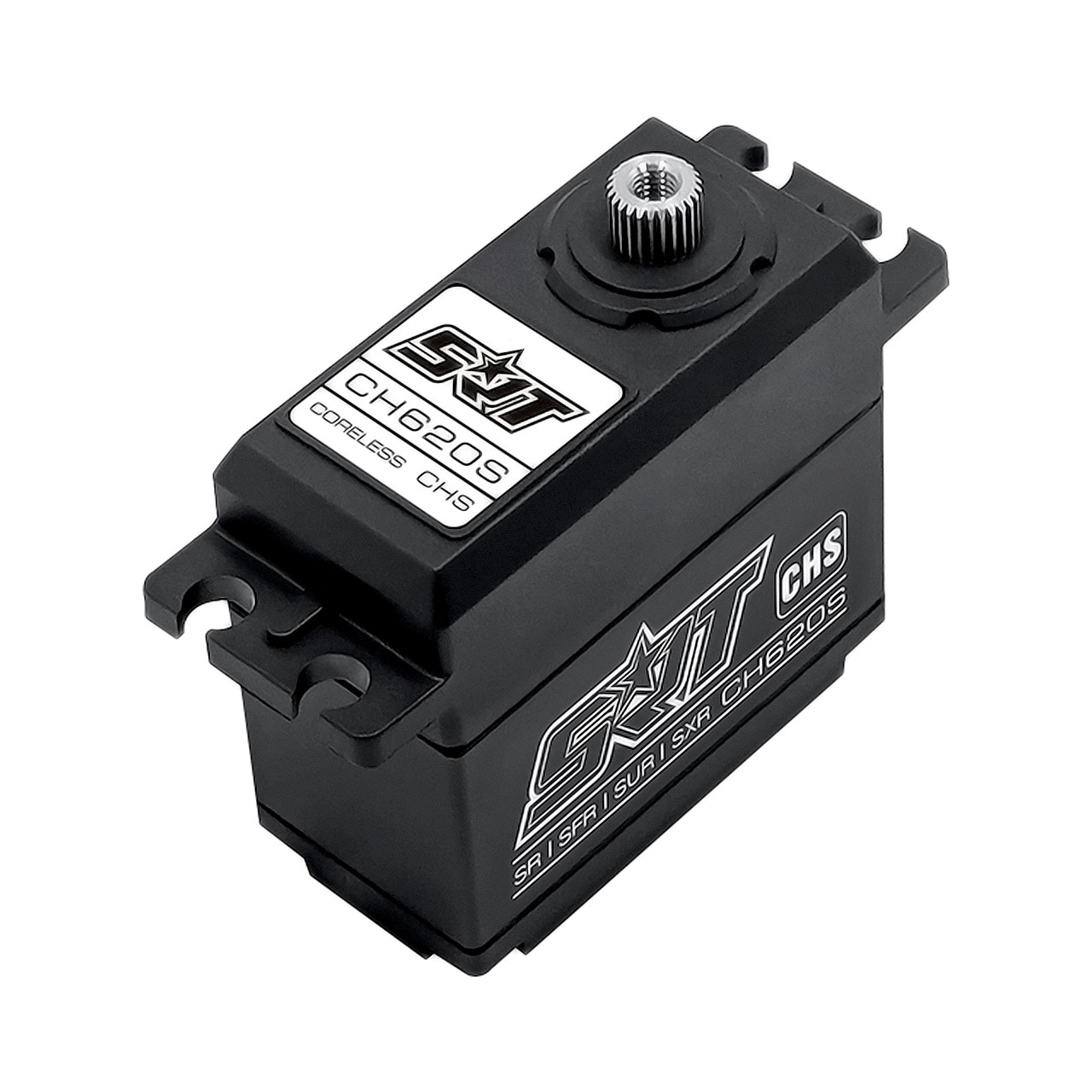

SRT Coreless HV 18.0kg/0.10sec @7.4V
- Part No: CH620S
- Retail: €50.90
- EAN: 6969006202006
- Notice: CH620S
Coreless HV servo with 18.0 kgcm torque at 7.4 V Highlights Successor to the CH6020... more
Product information "SRT Coreless HV 18.0kg/0.10sec @7.4V"
Coreless HV servo with 18.0 kgcm torque at 7.4 V
Highlights
- Successor to the CH6020 servo
- Supports high-speed modes SR, SFR, SUR and SXR
- Coreless motor
- Low power consumption
- 330 Hz operating frequency

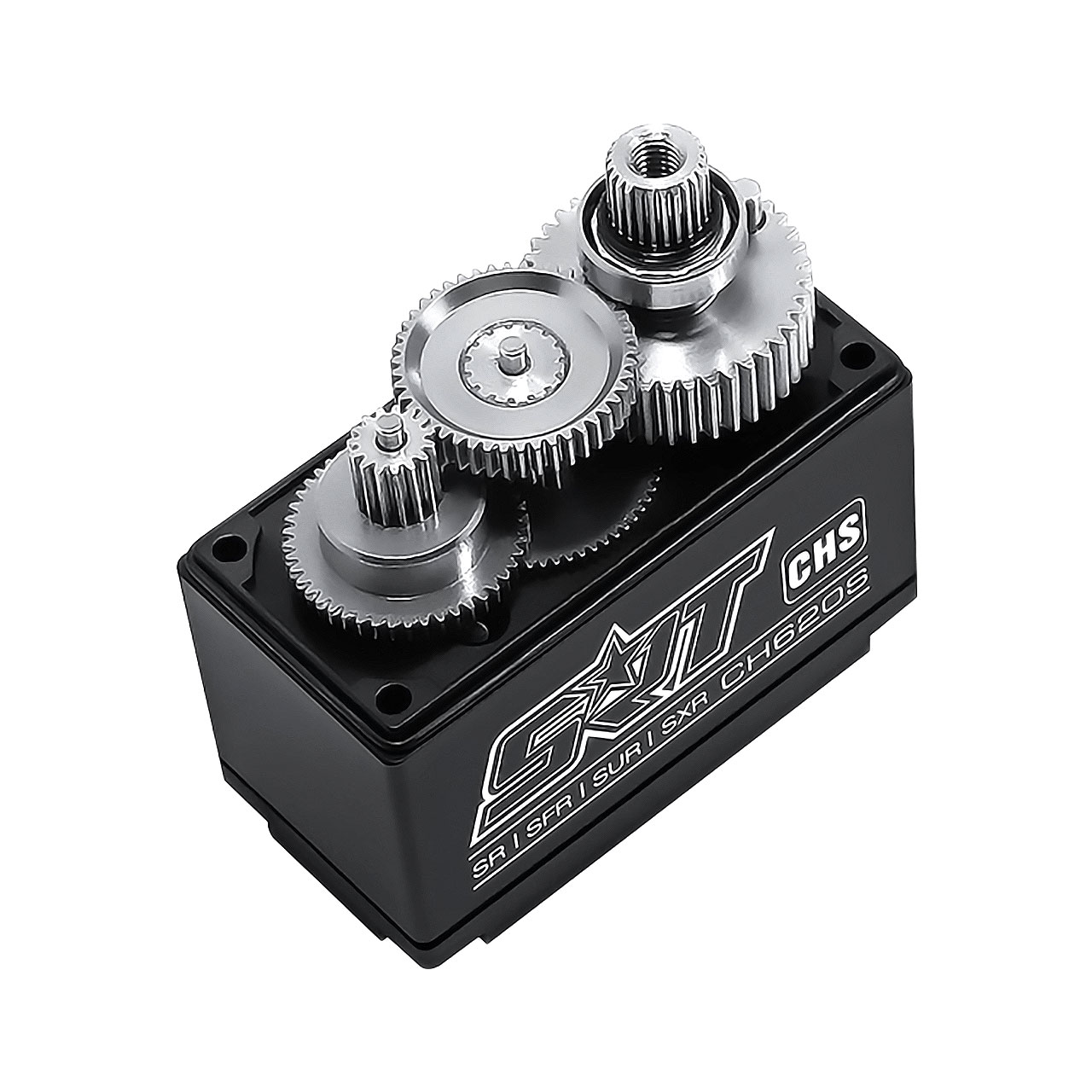

- Metal gears
Specifications
| Voltage | 6.0 V · 7.4 V · 8.4 V |
| Operating Speed | 0.12 s/60° (6.0 V) · 0.10 s/60° (7.4 V) · 0.09 s/60° (8.4 V) |
| Torque | 14.0 kgcm (6.0 V) · 18.0 kgcm (7.4 V) · 20.0 kgcm (8.4 V) |
| Motor | Coreless |
| Gears | Titanium / Aluminium |
| Type | Digital |
| Control Frequency | 330 Hz |
| Ball Bearing | Yes, dual |
| Dimensions | 41.3 × 20.5 × 38.3 mm |
| Weight | 69.0 g |
| Spline | n.A. |
| Application | 1/10 On-Road and 1/8 Off-Road, larger airplanes and jets |

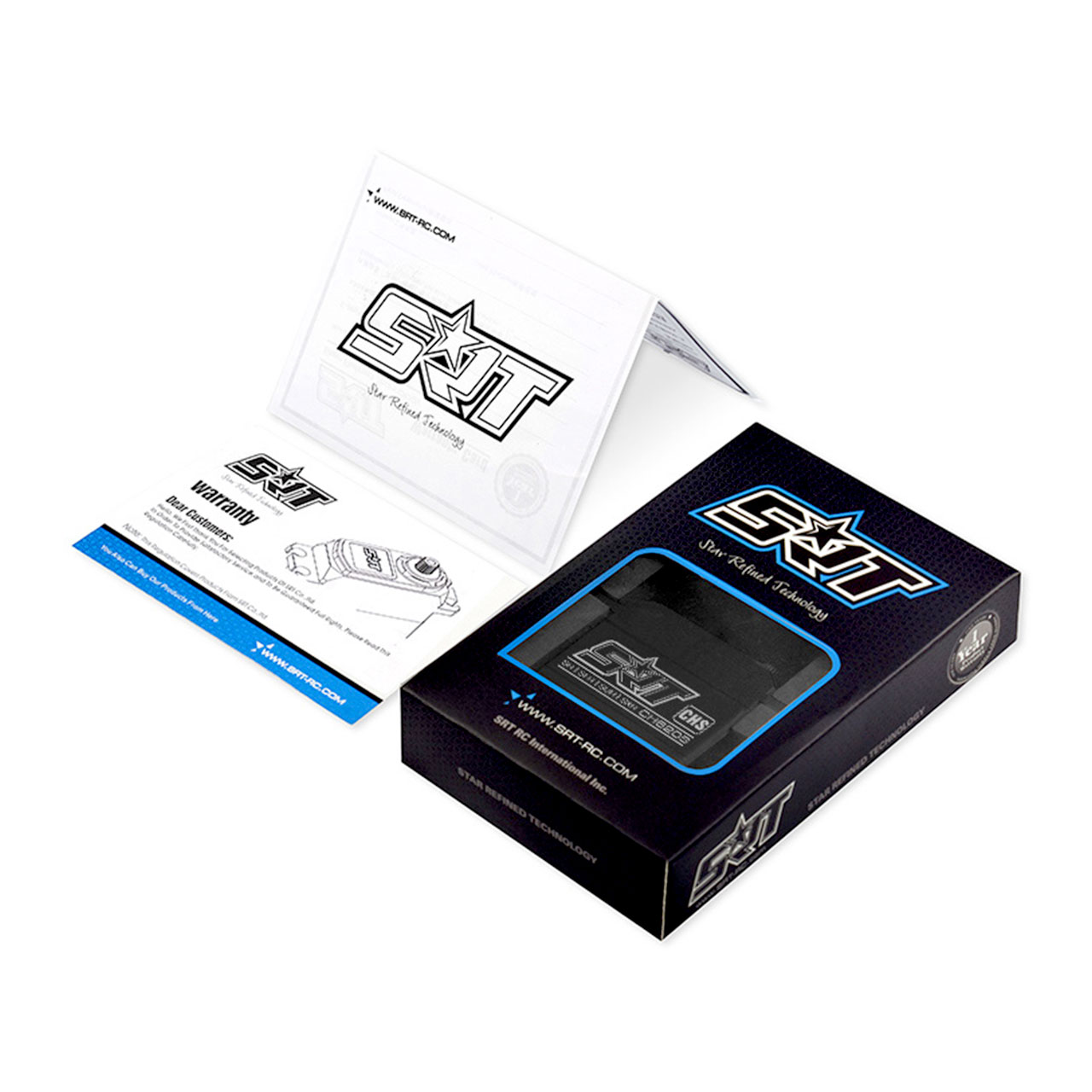

In the box
- 1× CH620S Servo
- 1× Sticker
