SkyRC B6DC V2 LiPo 1-6s 6A 60W Charger
- Part No: SK100161
- Retail: €37.90
- EAN: 6930460005922
- Notice: Ladegerät,SK-100161-01
DC charger and discharger with 60 W charging power and up to 6 A
The SkyRC B6 DC V2 is a microprocessor-based charger and discharger with battery management for major battery types. It charges at up to 6 A and max. 60 W. Its LCD shows a battery icon with a percentage display.
The ARM Cortex-M3 32-bit processor improves data processing. The source specifies a 2.5–5.5 V input voltage in connection with interference resistance and states that charging power is improved by 20%.
Highlights
- 10 saved settings for reuse
- Power supply function: 5–26 V, 1–6 A, 60 W
- DJI battery programme for up to 4 A
- AGM and Cold Charge for Pb batteries
- Balancing of individual cells during discharge
- Battery protection measures
Specifications
| Input Voltage DC | 11–18 V |
| Charge Wattage | 60 W |
| Discharge Wattage | 5 W |
| Charge Current | 0.1–6.0 A (NiMH, NiCd, LiPo, LiHV, LiFe, LiIon, Pb) / 4 A (DJI Mavic/TB4X) |
| Discharge Current | 0.1–2.0 A |
| Current Drain for Balancing Li-po | 300 mA |
| Cell Count LiPo/LiFe/LiIon/LiHV | 1–6 cells |
| Cell Count NiMH/NiCd | 1–15 cells |
| Pb Battery Voltage | 2–20 V |
| Net Weight | 238 g |
| Dimensions | 115 × 84 × 31 mm |

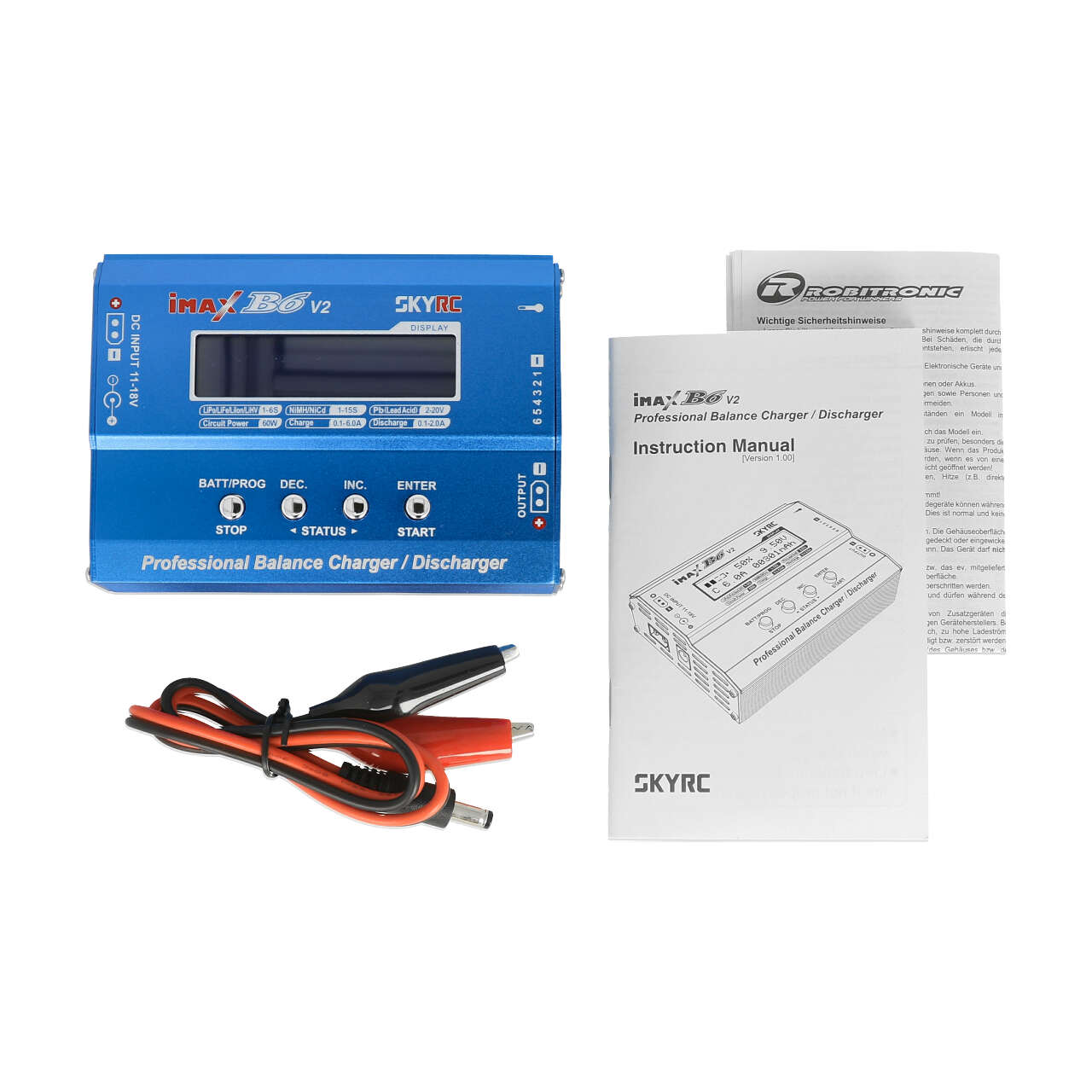

In the box
- 1× iMax B6 DC v2 Professional Balance Charger/Discharger
- 1× DC Input Cable
- 1× Manual
