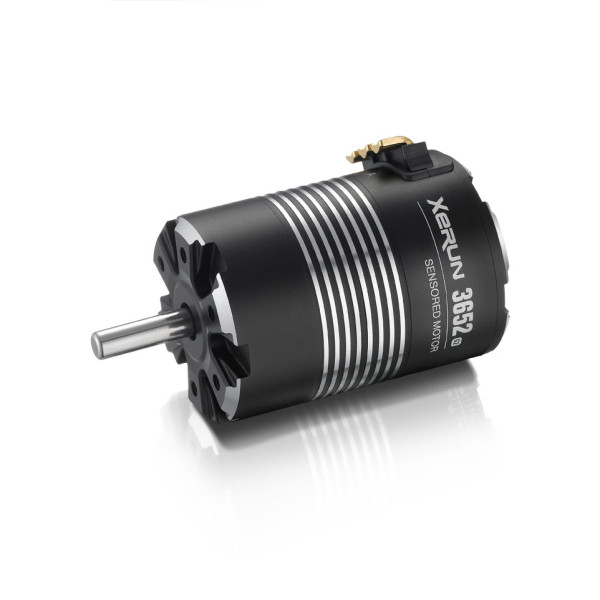

Hobbywing Xerun 3652SD Brushless Motor 6100kV Sensored 5mm Shaft
- Part No: HW30401061
- Retail: €96.90
- EAN: 6938994419048
- Notice: 30401061
Sensored Brushless motor with 6100kV and 5 mm shaft for 1/10
The Xerun 3652SD is a Sensored Brushless motor with an integrated chip that allows a controller from the XERUN XR8 series to recognise the Hobbywing motor. In this combination, the drive system operates in Sensor Mode continuously. The motor also works with other controllers, but not in Sensor Mode at all times.
Turbo Timing can be activated with a controller from the XERUN XR8 series; it is also used in 1/10 on-road models. Mechanical timing is adjustable in both directions of rotation, clockwise and anticlockwise.

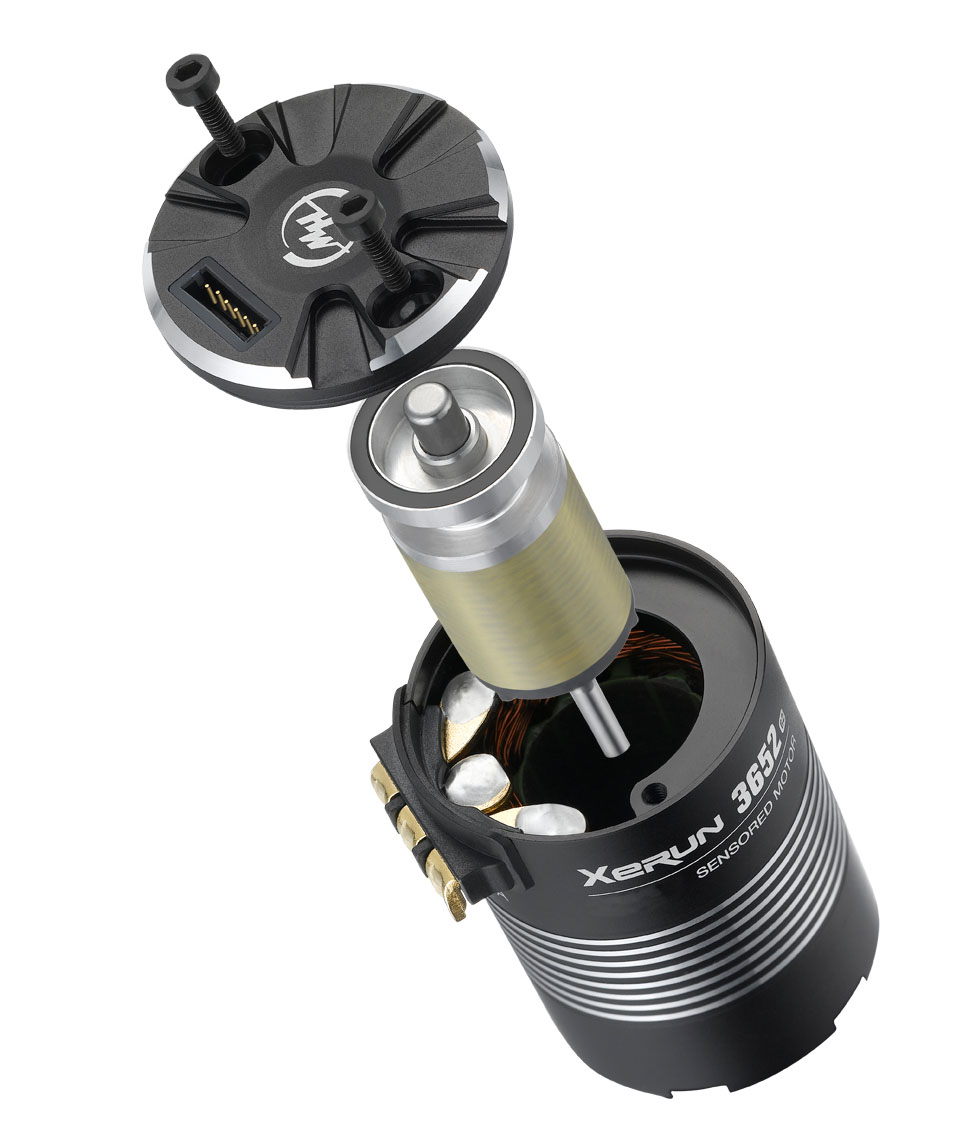

The Hall sensor system uses a separate encoder for a continuous sensor signal. The rotor with 4 poles and 8 magnets in a staggered-pole arrangement has up to 85% less cogging torque than typical 1/10 motors, as well as low torque ripple.
The motor uses double-insulated windings, Japanese NMB bearings, thin silicon steel sheets and adhesive for performance and long service life. A wheel-hub design on the front and rear end bells reduces the motor's weight.
Specifications
| Scale | 1/10 |
| Type | Brushless sensored |
| Poles | 4 |
| RPM/Volt | 6100kV |
| LiPo | 2S |
| No-Load Current | 5.9 A |
| Resistance | 2.9 Ohm |
| Timing | 20–40 degrees (adjustable) |
| Outer Diameter | 36 mm |
| Length | 52.5 mm |
| Shaft Diameter | 5 mm |
| Weight | 186 g |
