Brand:
XRotor 65A FPV 4in1 ESC
4-in-1 FPV ESC with four 65 A controllers and up to 120 MHz operating frequency
- Item number
- HW30902064
- EAN
- 6938994414777
RRP €97.90
Description

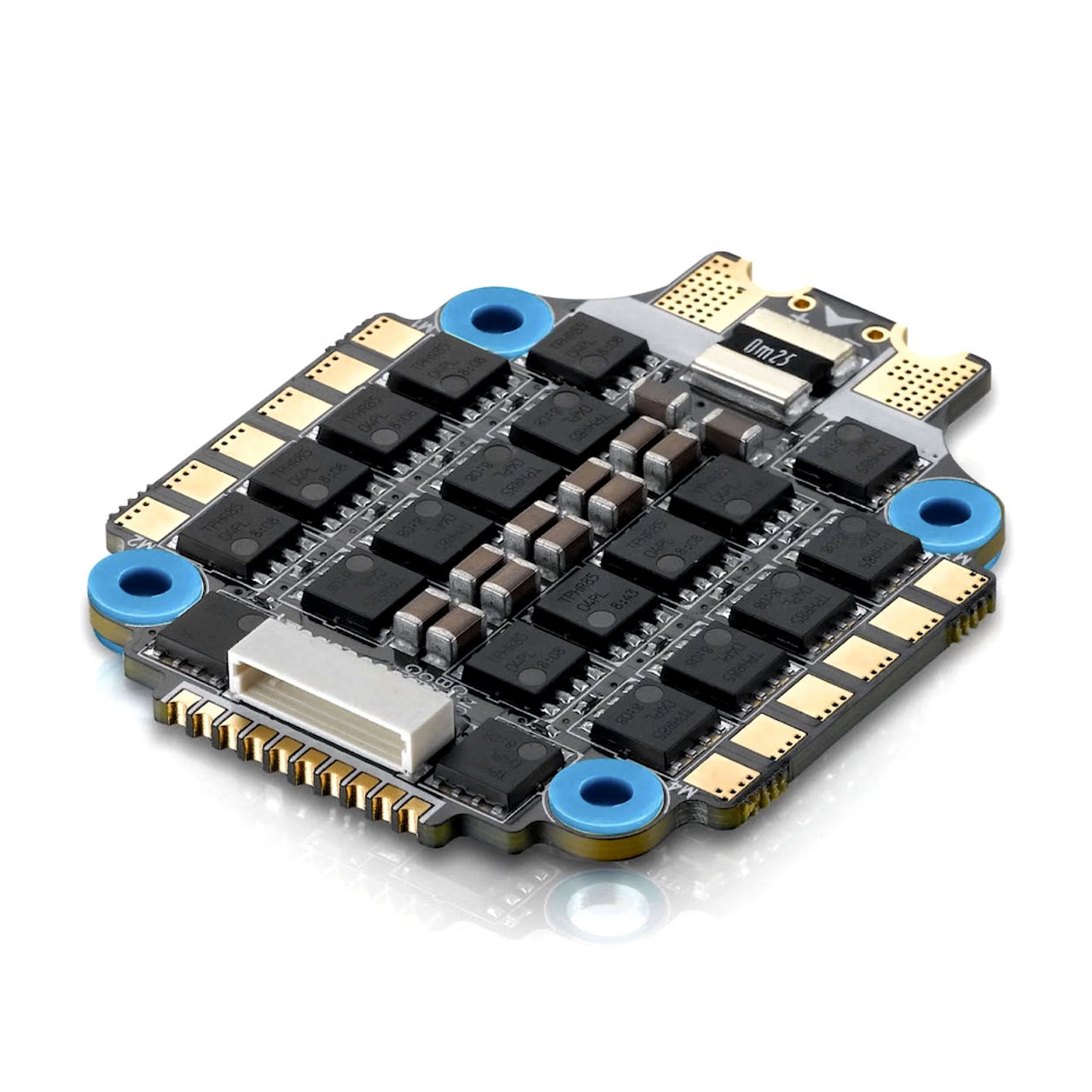

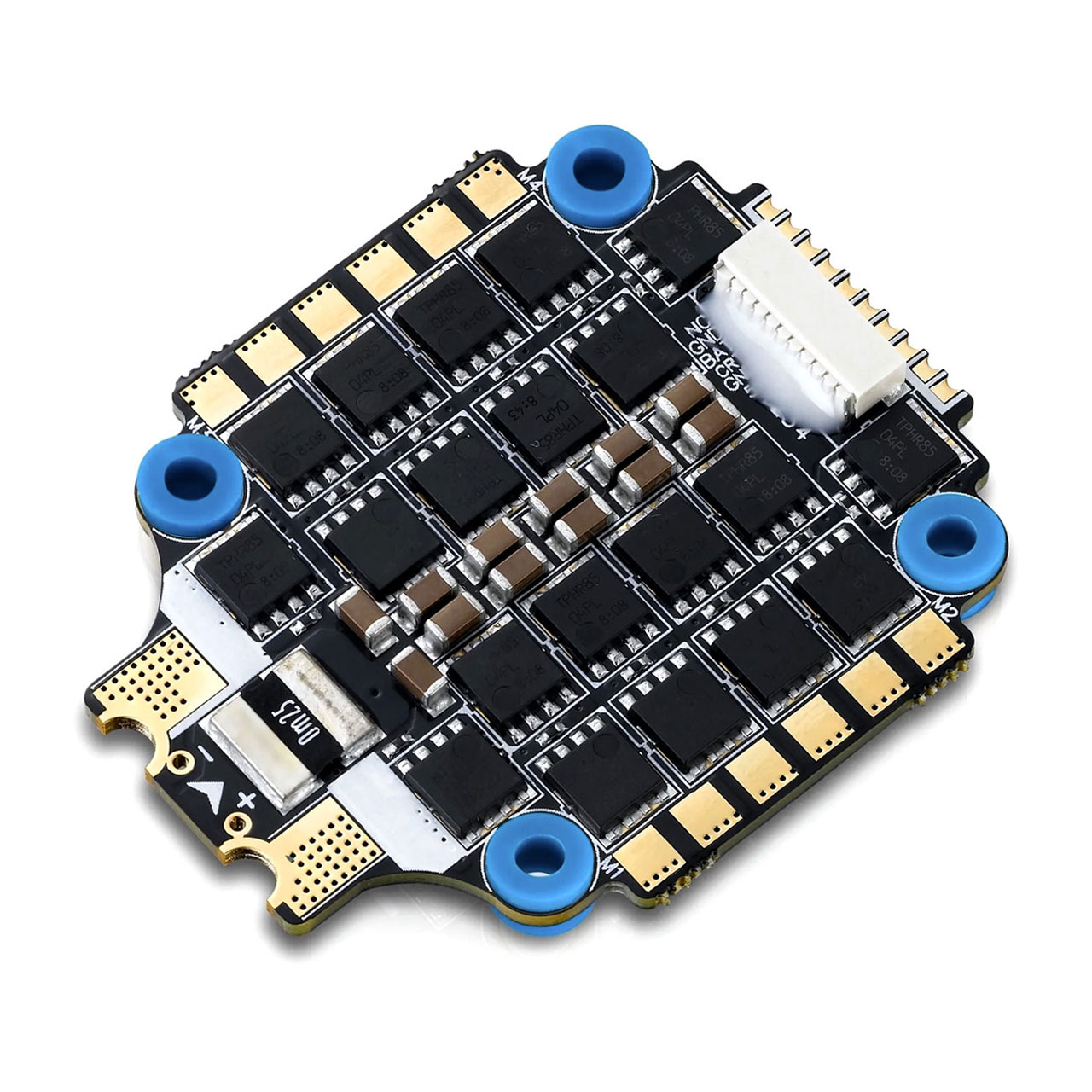

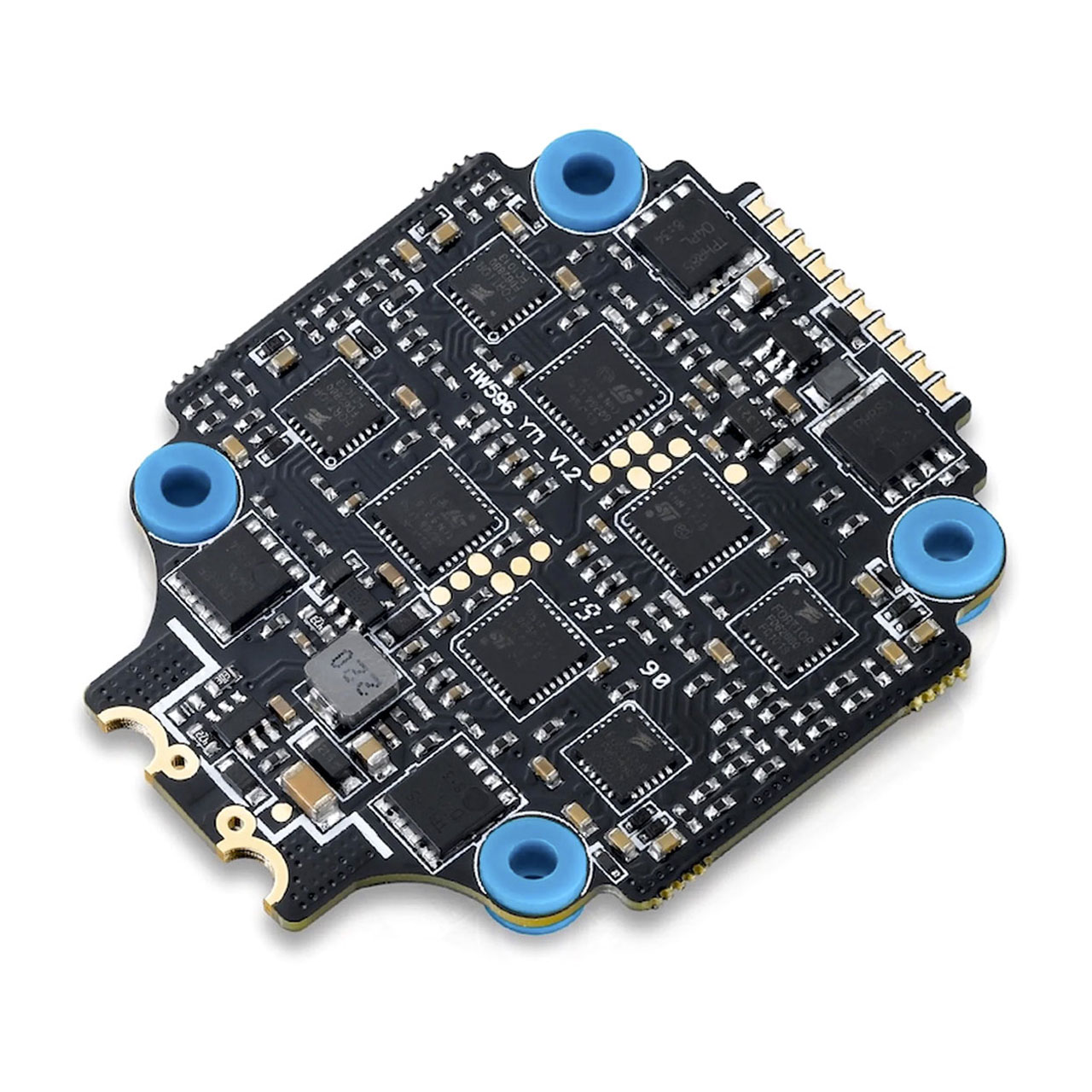

The XRotor Micro 65A 4IN1 ESC is similar in size to an FC and combines four 65 A BLHeli-32 ESCs with DShot1200, a 5 V BEC and real-time voltage and current monitoring. The XRotor FPV G2 operates at up to 120 MHz; the previous version had 60 A per controller.
The ESC uses large Japanese-made MOSFETs that ensure a long service life even at higher voltage levels, plus 32-bit microprocessors, 3-in-1 driver ICs and high-quality ceramic capacitors for higher efficiency, lower heat generation and faster response. Its third-generation BLHeli-32 firmware supports parameter adjustment and firmware updates in different ways. Hardware-generated motor PWM provides smooth throttle response and silent operation; Damped Light mode provides rapid motor deceleration and active freewheeling.
The controller is designed for FPV racing.
Highlights
- Operating frequency up to 120 MHz, compared with 48 MHz on the previous model
- 4 × 65 A controllers
- Compact design
- BLHeli-32 firmware ready
- Supports PWM, OneShot125, OneShot42, MultiShot and DShot
- Damped Light mode
Specifications
| Current (Cont./Peak) | 4 × 65 A/80 A |
|---|---|
| Cells | 3–6S LiPo |
| BEC | 5 V/0.6 A |
| Firmware | BLHeli-32 Firmware |
| Modes | OneShot125, OneShot42, MultiShot, DShot150/300/600/1200 |
| Mounting Holes | 30.5 × 30.5 mm |
|---|---|
| Dimensions | 52 × 42 × 6.6 mm |
| Weight | 15 g |
| Application | 130–300 mm FPV |
In the box
- 1 × Xrotor FPV 4in1 G2-ESC
- 1 × Manual
Documents
Safety & manufacturer
Manufacturer
Hobbywing
Item number: HW30902064
EAN: 6938994414777
Responsible person in the EU
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
