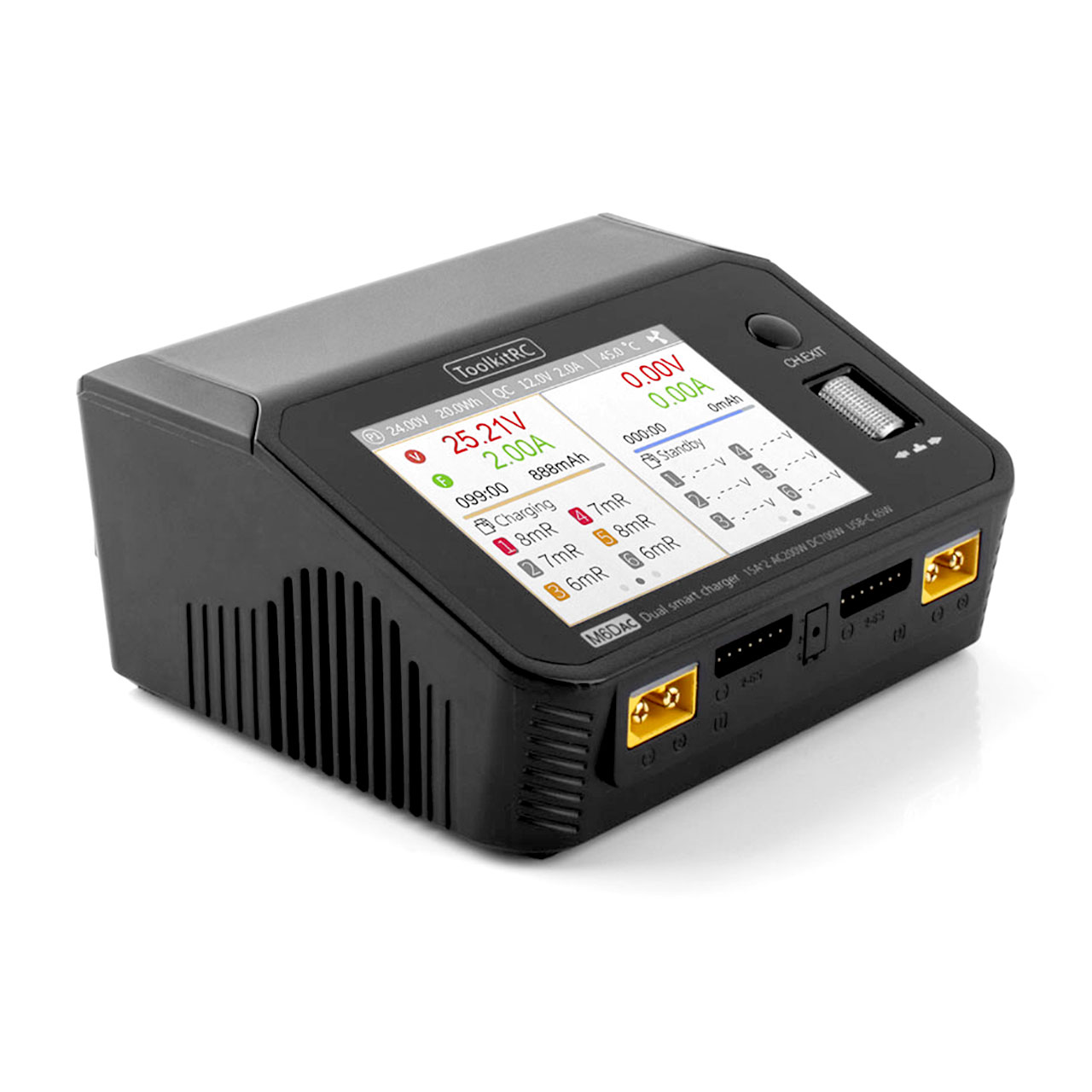

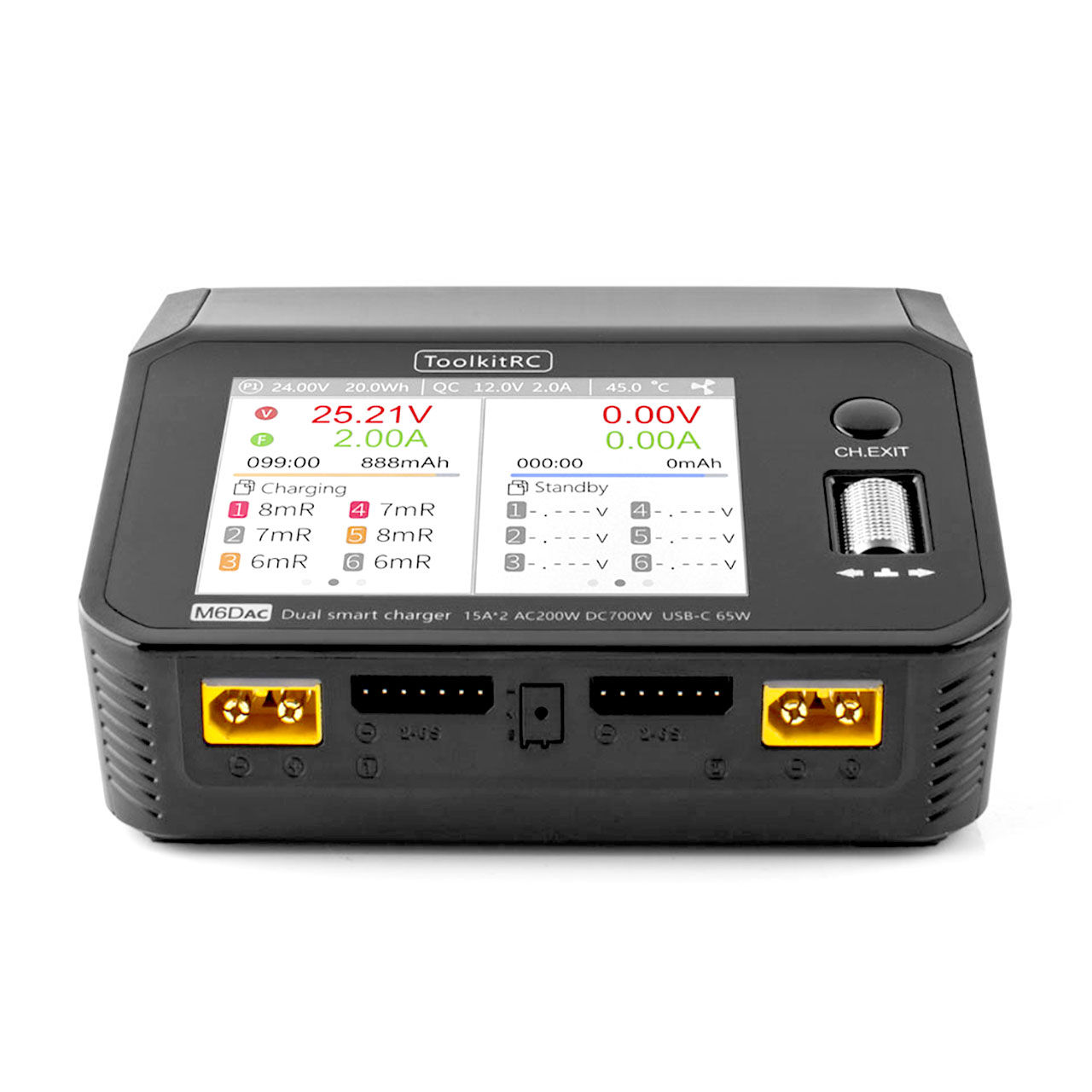

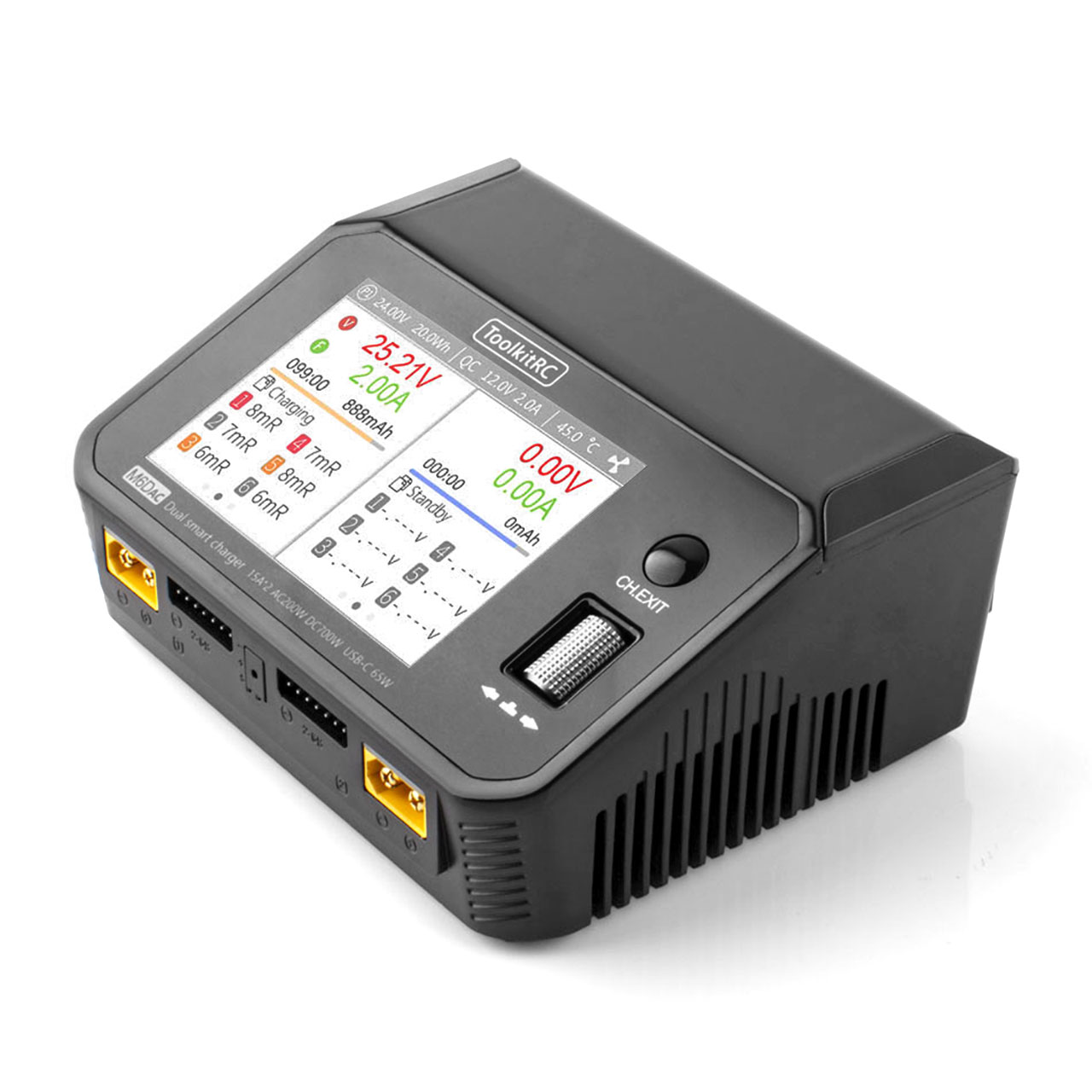

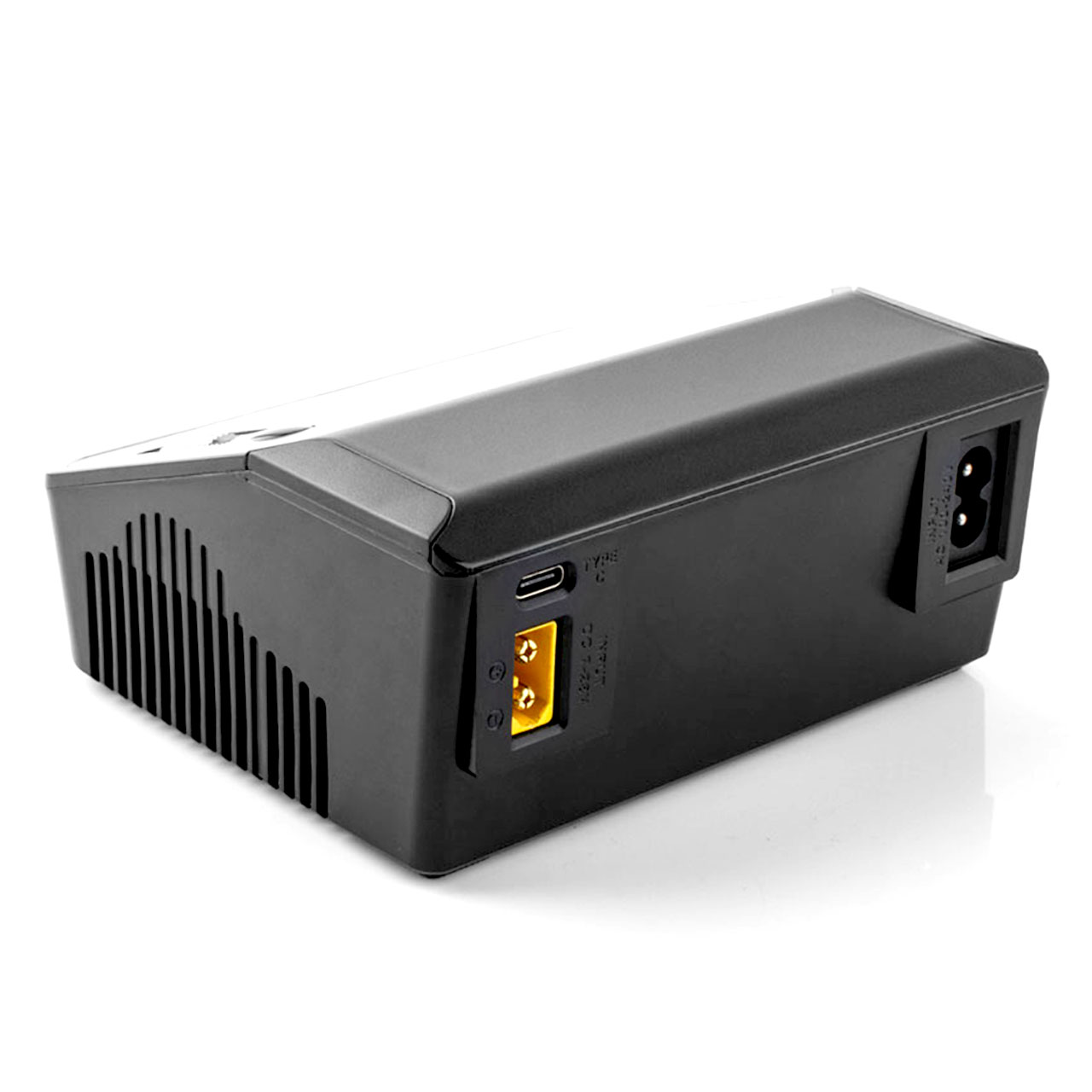

ToolkitRC M6DAC LiPo 1-6S 15A Duo Charger AC/DC
- Part No: TK11500
- Retail: €138.90
- EAN: 6927969830124
The M6DAC is a dual channel charger with some helpful discharging, cyclic charging and setting features. Due to the special design, the charger is not only able to simply supply two batteries with new energy. This loading process can take place synchronously as well as asynchronously with the M6DAC and that is what makes this charger so versatile. This means that if, for example, two batteries are charged in synchronous mode, the charge runs the same way and the charger can thus provide the maximum charging current of up to 25A. In asynchronous mode, on the other hand, both batteries are charged separately and therefore only a current of max. 15A is possible here. You can also enjoy short charging times thanks to the 65 watt fast charging output, which also supports many mobile devices such as smartphones, tablets and laptops.
Features:
- Up to 700W charging power and maximum 25A charging current
- Max. 350W discharge power
- Including DC (7-28V) and AC input (100-240V)
- Simple usage with scroll wheel and one button
- Multilingual user interface including voice output
- Upgradeable via USB
- Various security controls
Technical Specifications:
| Input Voltage: | AC 100-240V, max. 2.5A DC 7-28V, max. 30A |
| Charge Power: | 0.1-15A, 350W x2 (Asynchrone Mode) 0.1-25A, 700W (Synchrone Mode) |
| Discharge Power: | 0.1-15A, 350W x2 (Recycle Mode) 0.1-3A, 15W x2 (Normal Mode) |
| Charging Accuracy: | <0.005V |
| USB C: | 65W, 20V, 3.25A (or Upgrade) |
| Balance Current: | 1000mA, 2-6S |
| Cells LiPo/LiFe/LiIon/LiHV | 1-6S |
| Cells: NiMH/NiCd | 1-16S |
| Pb Battery Voltage: | 1-10S |
| Voltage: | 1.0V-5.0V, 1-6S |
| Display: | LCD, IPS 3.5'' 480x320px |
| Dimensions: | 127x106x57mm |
| Weight: | 520g |

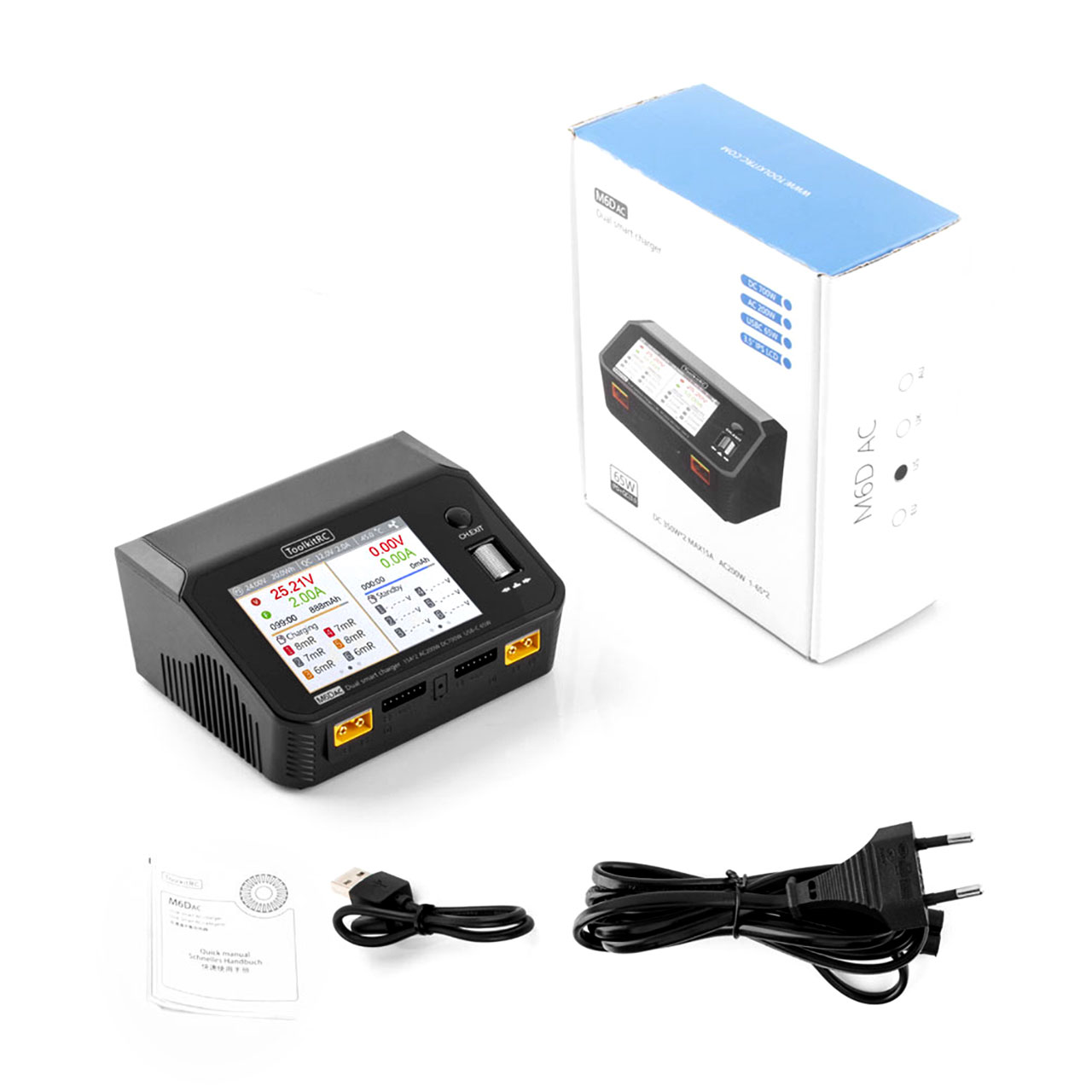

Delivery:
1x M6DAC Charger
1x Power cable
1x USB to USB-C cable
1x Display protection
1x Manual
