Platinum Pro 180A HV ESC V5 5-14s, 10 A BEC
180 A HV ESC for 550–700 helicopters and fixed-wing aircraft
- Item number
- HW30209103
- EAN
- 6938994423250
€326.90incl. VAT, plus shipping
RRP €326.90
Description

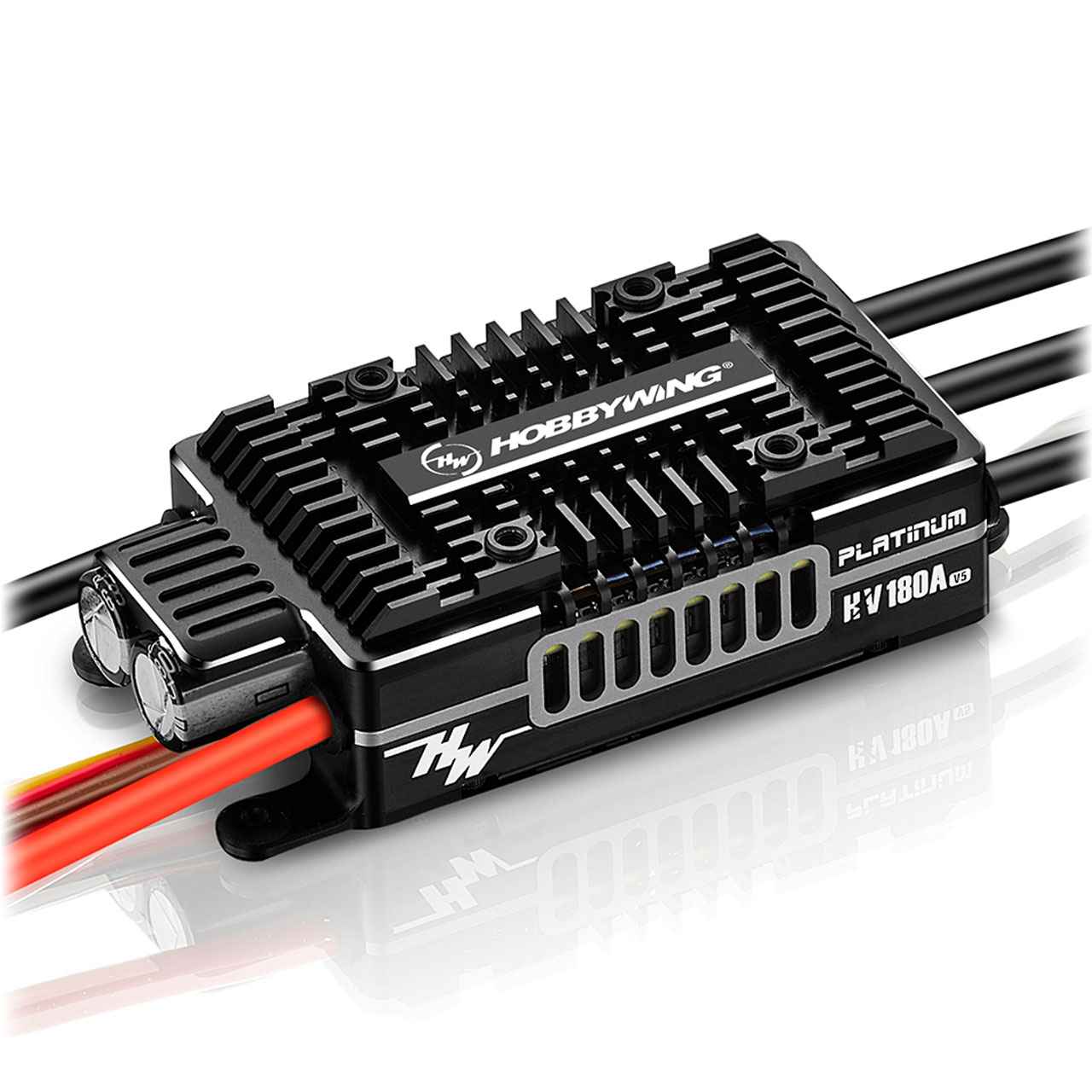

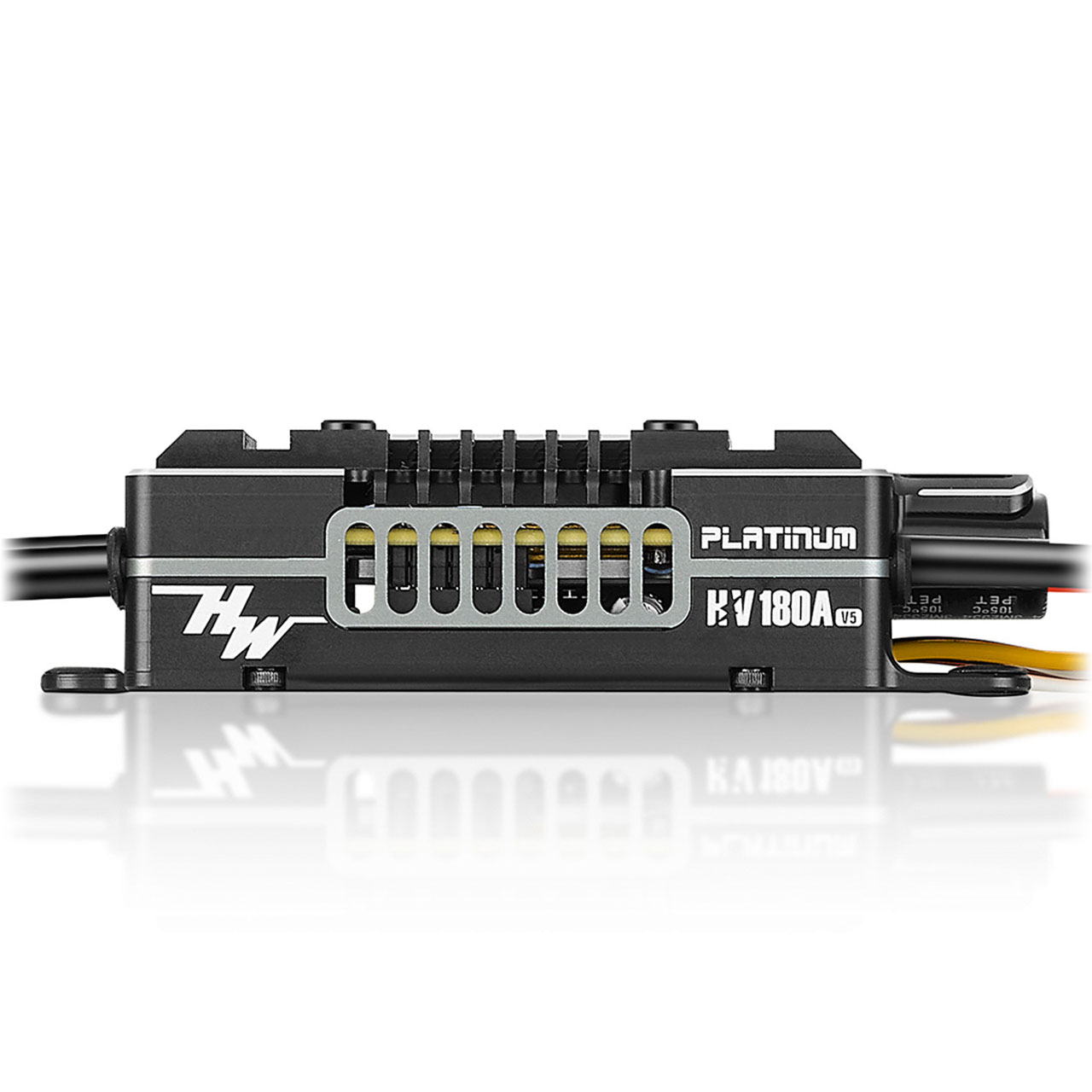

The Platinum Pro 180A HV V5 is a Brushless high-voltage ESC for 550–700 electric helicopters and fixed-wing aircraft. Its built-in 32-bit processor and RPM-control algorithm regulate motor speed. Data protocols allow compatible transmitter systems, including Mikado VBar and Futaba S.BUS2, to read ESC data.

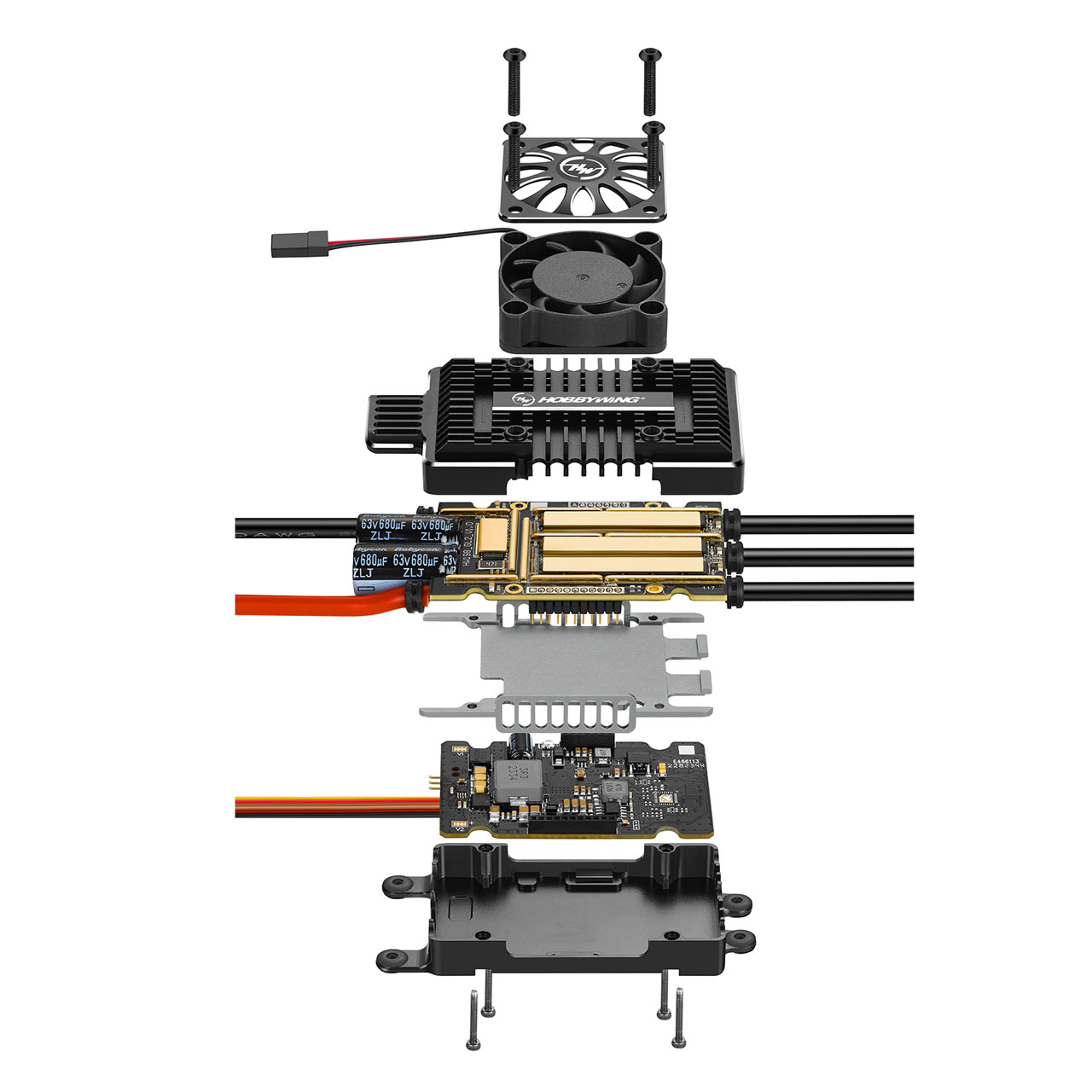

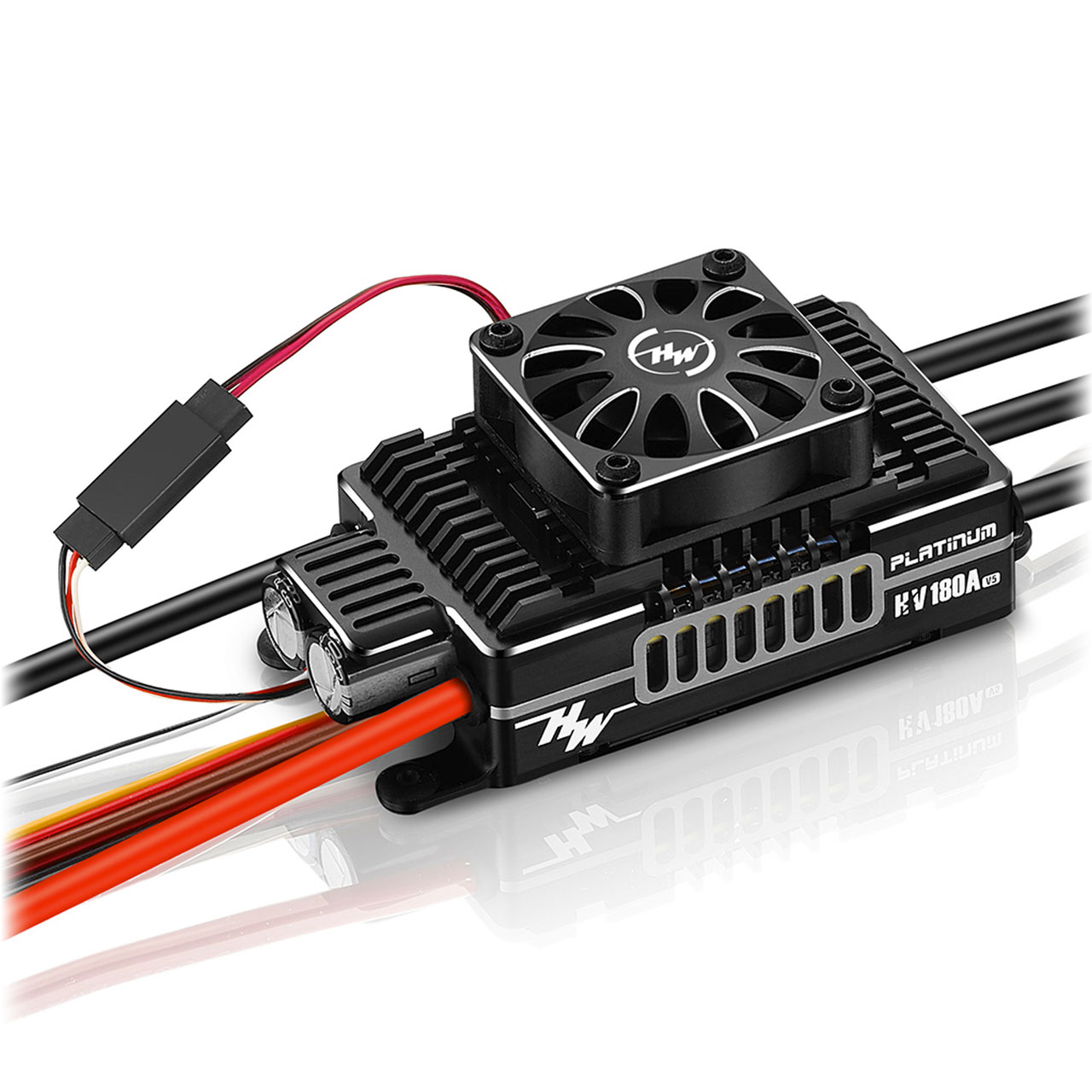

A double-sided heat sink with side ventilation allows air to flow through the ESC. Protection functions cover overheating of the ESC and capacitors.
Notes
- Optional accessories: HW30502001 LCD Programming Box; HW30850400 OTA Program Module.
Highlights
- Cooling chamber design
- Built-in switch-mode BEC, adjustable from 5–12 V
- Supports data protocols including Mikado VBar and Futaba S.BUS2
- Data recording accessible on a smartphone via Bluetooth
- Protection functions include reverse-current protection
- 16 adjustable parameters, including four flight modes: Fixed wing, Helicopter – External Governor, Helicopter – Eleven Governor and Helicopter – Store Governor
Specifications
| Type | Brushless High Voltage |
|---|---|
| Current (Cont./Peak) | 180 A/260 A |
| Cells | 6–14S LiPo |
| BEC | 5–12 V @ 10 A (Switch Mode) |
| Cables Battery/Motor | 1 × 10AWG (red, black) / 3 × 10AWG (black) |
| Programming | LCD Programming Box / OTA Program Module |
| Firmware Update | Yes |
|---|---|
| Telemetry | Mikado VBar; Futaba S.Bus2; etc. |
| Dimensions | 100.6 × 45.5 × 26.1 mm |
| Weight (incl. Cables) | 250.6 g |
| Application | 550–700 electric helicopters and fixed-wing |
In the box
- 1 × ESC Platinum V5 180A HV SBEC
- 1 × Manual
