Scorpion Sky Strider 280 FPV Racing Quad Copter Kit
- Part No: SP-F001
- Retail: €119.00
- EAN: 4046032075940
280-class FPV racing quadcopter kit with adjustable camera mount and replaceable arms

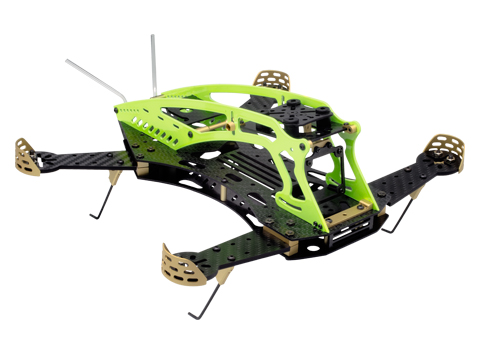

The Scorpion Sky Strider 280 is a 280-class FPV racing quadcopter kit. Its carbon-composite frame is aerodynamically shaped for stable straight-line flight and predictable manoeuvring.
The piano-wire undercarriage allows landing on rough surfaces without damaging the frame. Adjustable battery positions allow the centre of gravity to be set for different cameras and FPV transmitters. The top frames have a high-visibility green coating for visibility in sunlight and in the dark.
The FPV camera mount combines vibration damping with vertical angle adjustment. Its one-piece construction isolates the camera from vibration. The arms are replaceable in the field: removal requires taking out 1 retaining screw and loosening 2 screws on the arm clamp.
Specifications
| Diagonal (Motor to Motor) | 280 mm |
| Width (Arm to Arm) | 245 mm |
| Height without Landing Gear | 750 mm |
| Overall Length | 224 mm |
| Overall Height | 115 mm |
| Frame Thickness | 1.5 mm |
| Motor Arm Thickness | 3 mm |
| Motor Available Size | M-22 ~ M-25 |
| Net Weight | 238 g |
Notes
- The kit comes with a zero-degree angled arm clamp. Optional Angled arm clamps in 5-degree and 10-degree versions tilt the motor arms forward to increase propeller efficiency and flying speed.
