The Q4AC is a four-channel charger with balancer function and IPS display. Menu navigation via... more
Product information "ToolkitRC Q4AC LiPo 1-4S 5A Quad Charger AC/DC"

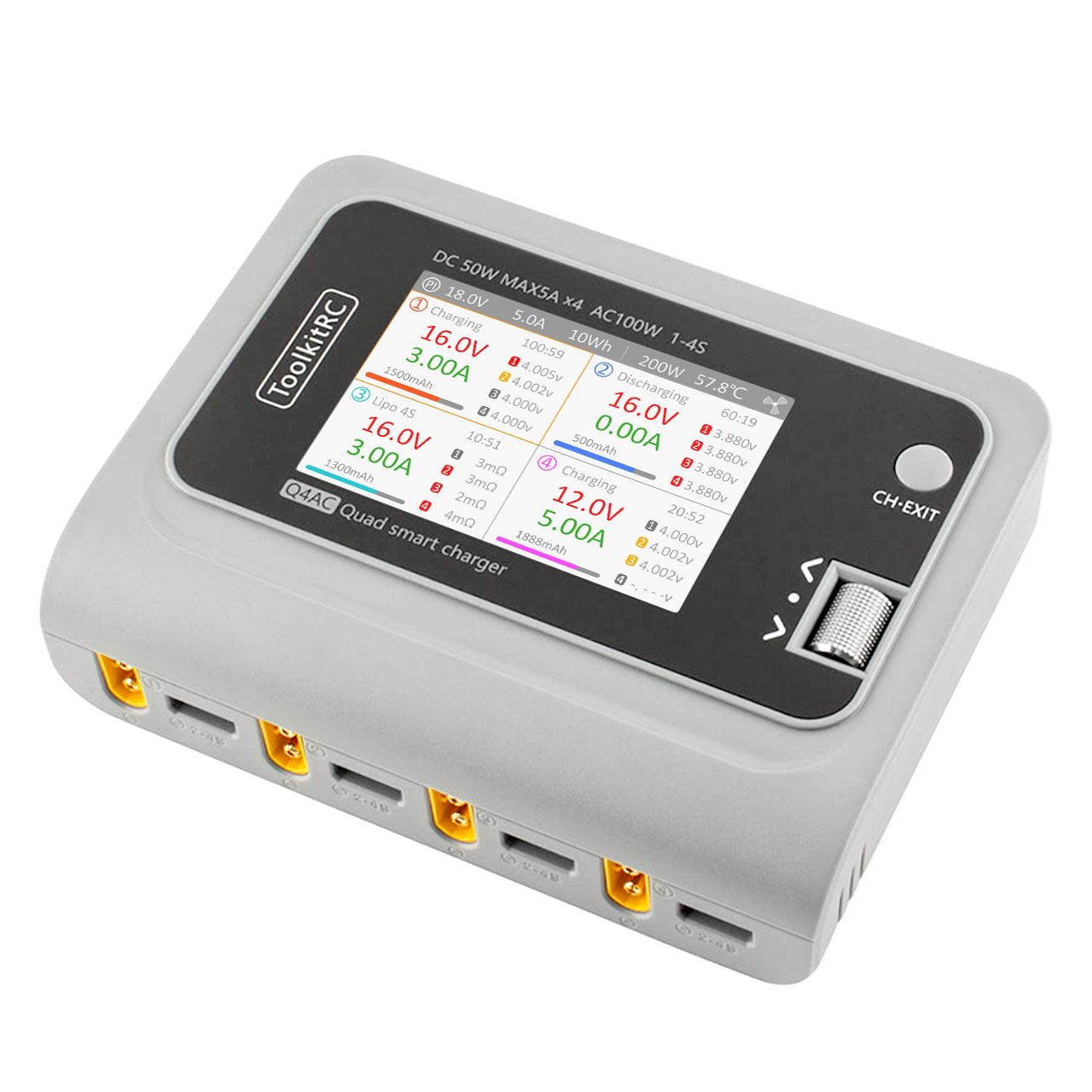

The Q4AC is a four-channel charger with balancer function and IPS display. Menu navigation via the roller makes operation simple and straightforward.
Features:
- Max. 50W charging power on all four channels and a maximum of 5A charging current
- Max. 5W discharge power per channel at around 2A
- Adjustable cut-off voltage for lithium batteries
- Store 5 battery information and 3 power supply information for faster handling
- Multilingual user interface
- Firmware upgrade via USB
Technical Specifications:
Input Voltage: | AC: 100-240V, max. 1.5A DC: 10-18V, max. 20A |
Charging Power: | DC: 0.1-5A, 50Wx4 AC: 0.1-5A, 50Wx2 AC: 0.1-5A, 25Wx4 |
Discharging Power: | 0.1-2A, 5Wx4 |
Charging Accuracy: | <0.005V |
Balance Current: | 240mA, 2-4S |
Cells: LiPo/LiFe/LiIon/LiHV | 1-4S |
Cells: NiMH/NiCd | 1-10S |
Pb Battery Voltage: | 1-8S |
Voltage: | 1.0V-5.0V, 1-4S |
Display: | IPS 3.5'' 480x320px |
Dimensions: | 150x112x36.5mm |
Weight: | 450g |

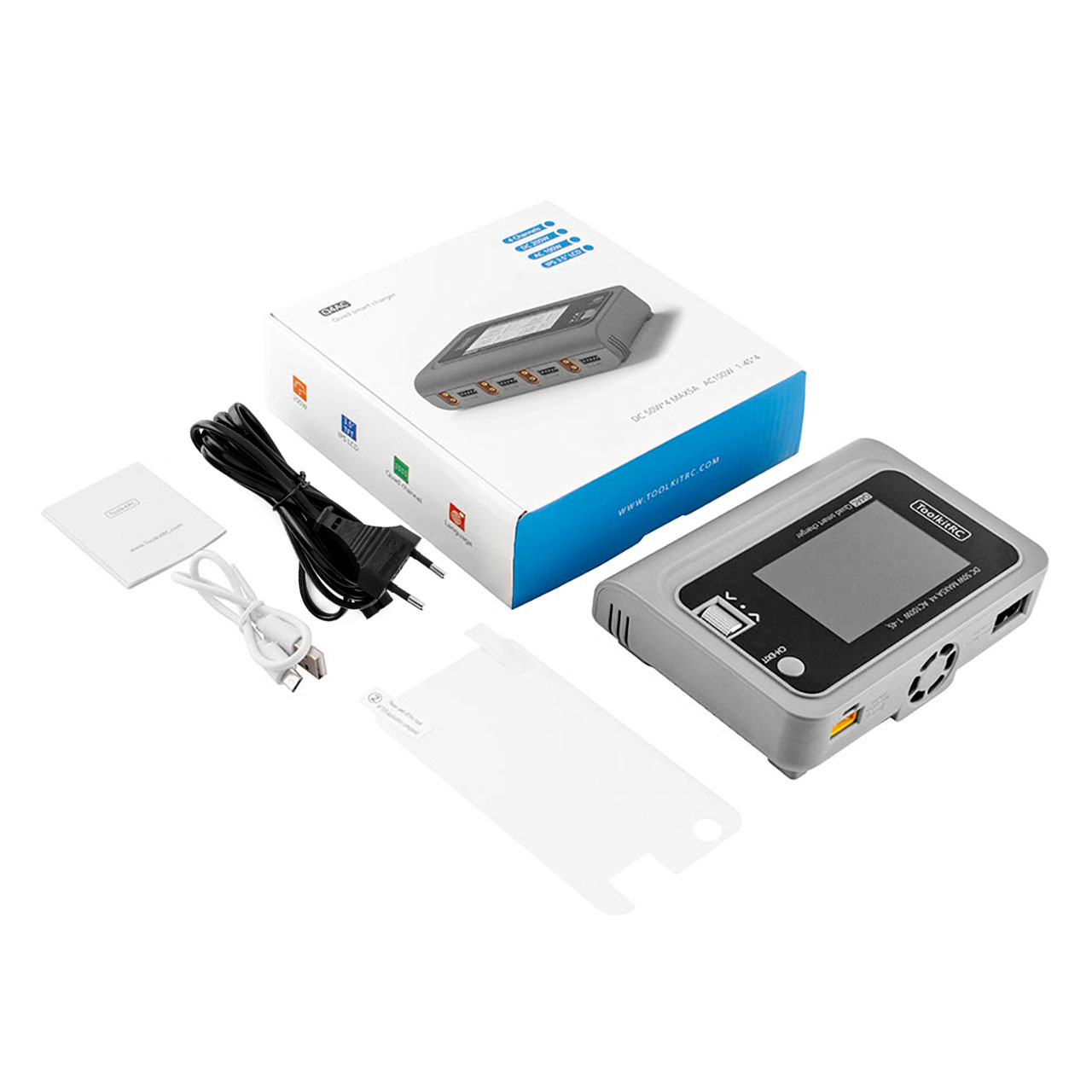

Delivery:
1x Q4AC Charger
1x Power cable
1x USB cable
1x Display protection
1x Manual
