Brand:
MC8 Multichecker

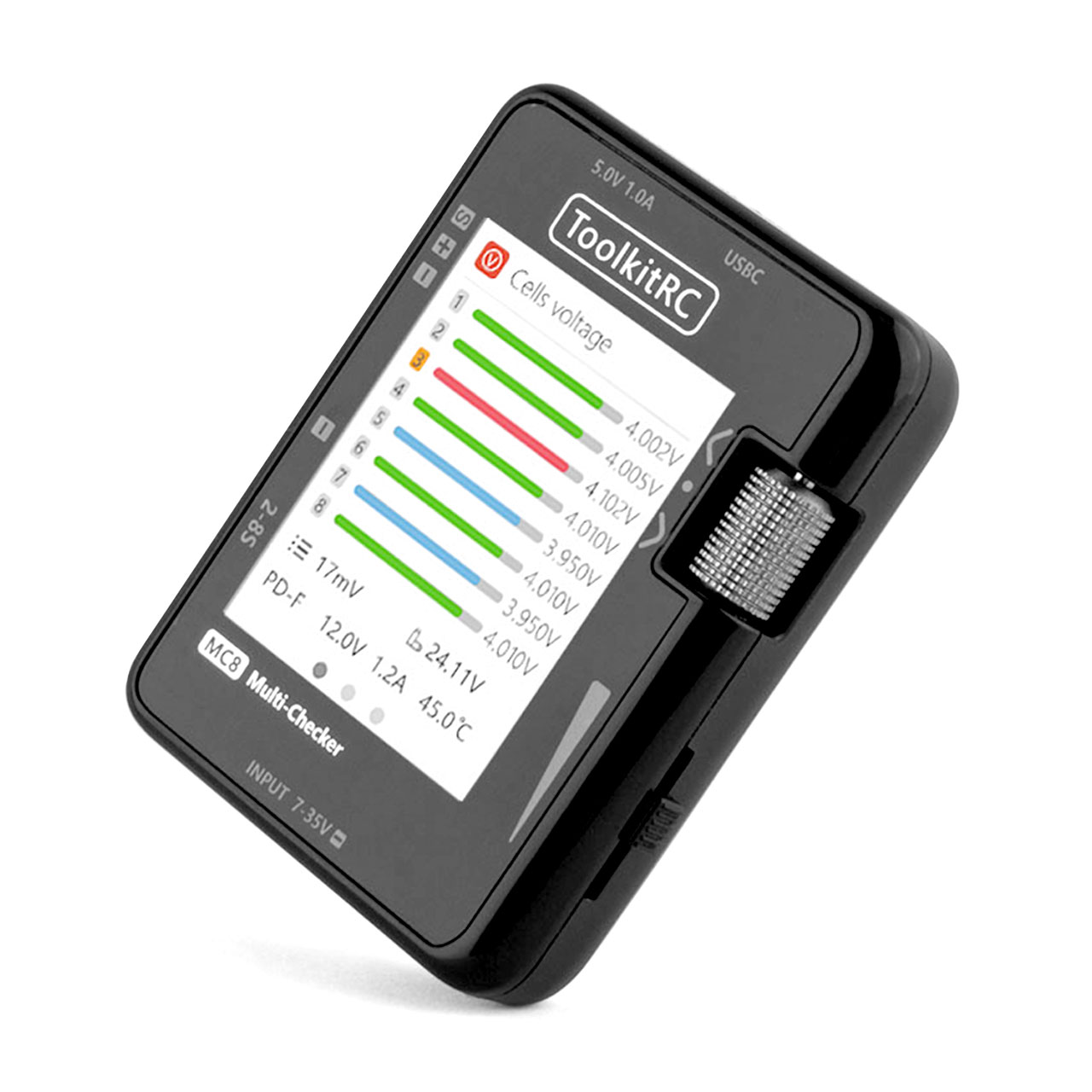

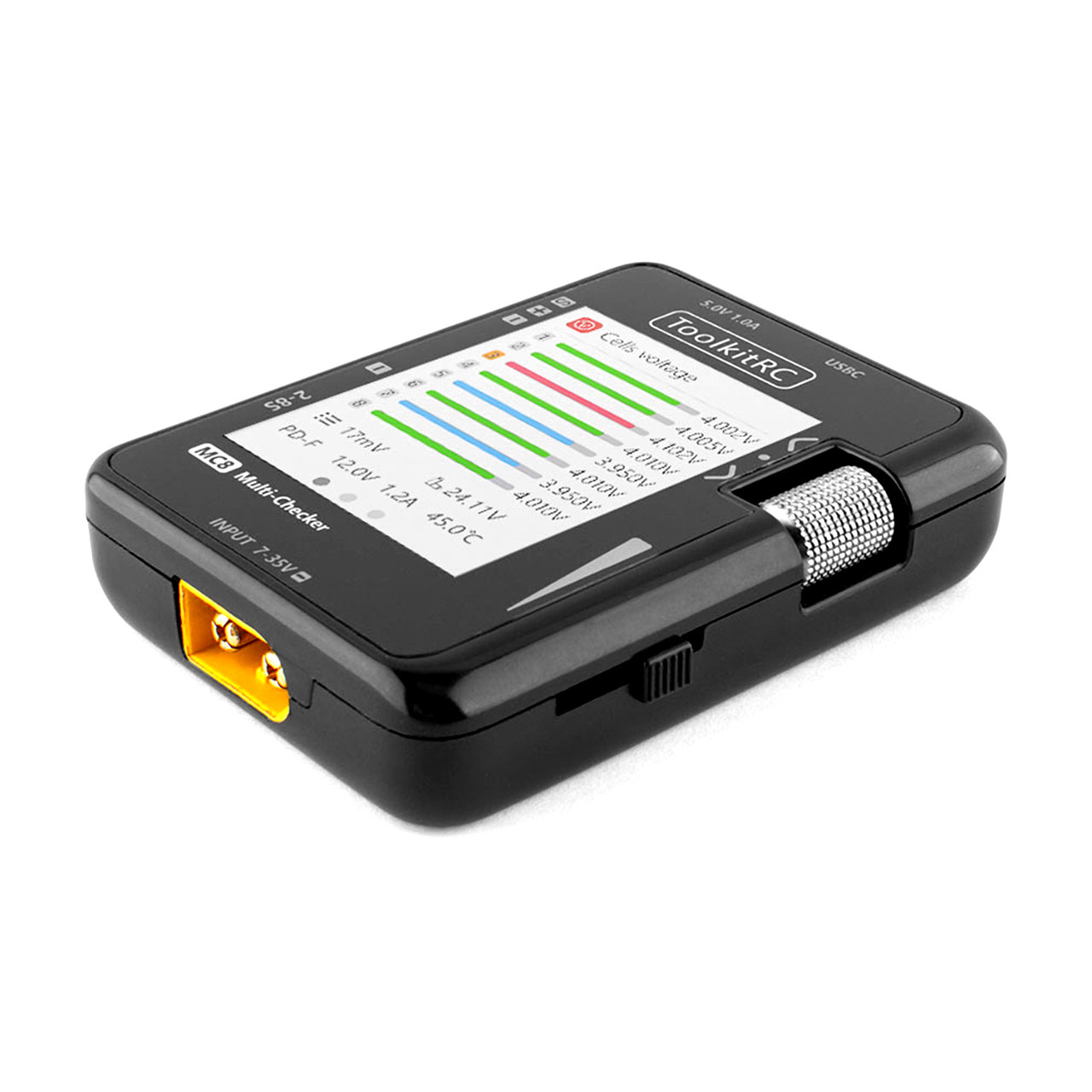

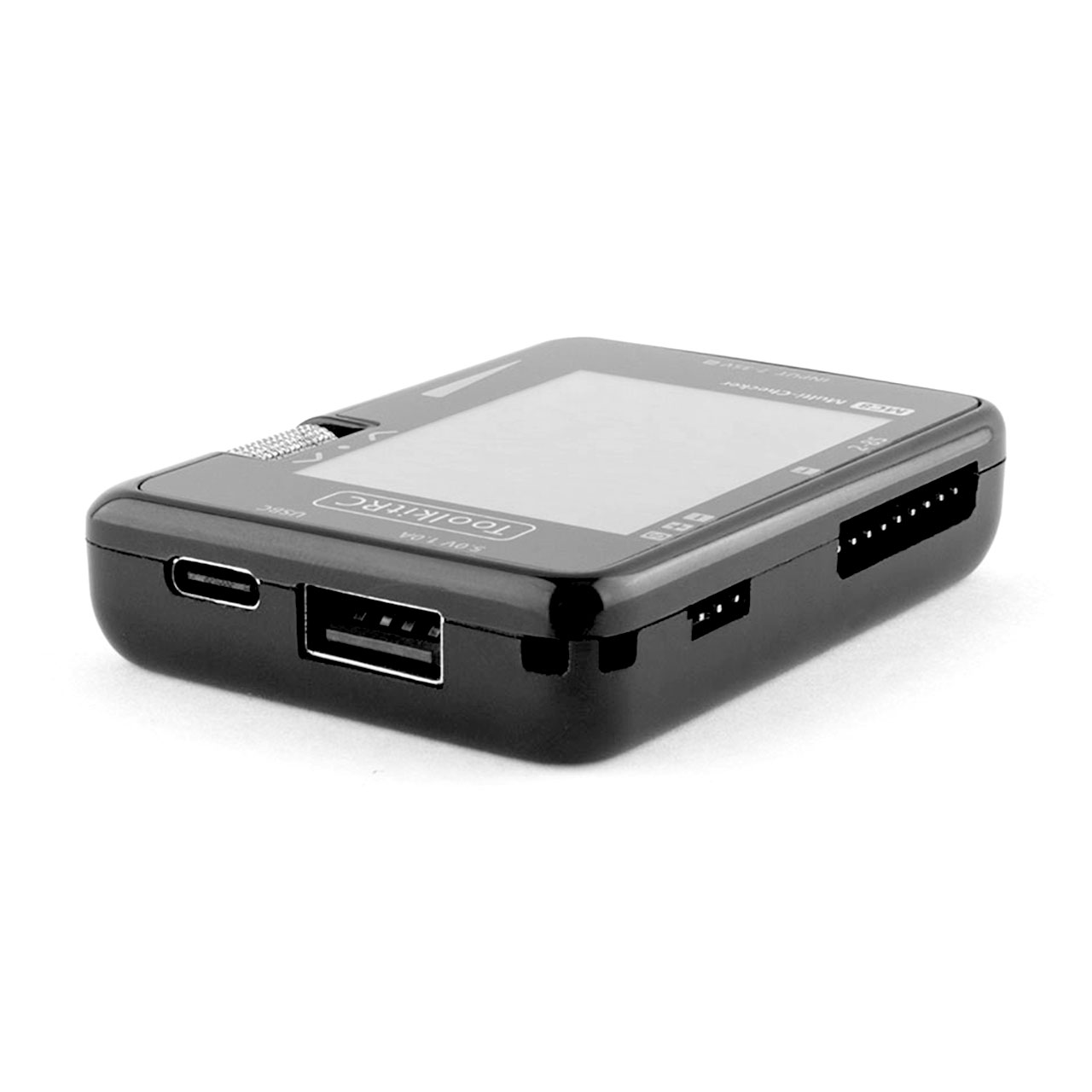

MC8 Multichecker for battery testing and signal measurement with an IPS display
- Item number
- TK31600
- EAN
- 6972969830148
€42.90incl. VAT, plus shipping
RRP €42.90
Description
The MC8 is a compact tool and measuring device for battery testing and monitoring. It has an IPS colour display and an accuracy down to 5 mV.
Highlights
- Measures and balances lithium batteries
- Measures and outputs PWM, PPM and SBUS signals
- Wide DC input voltage range: 7.0–35.0 V
- Main, balance and signal inputs
- USB-A and USB-C outputs
- USB-C 20 PD fast charging output
- Overcharge protection
Specifications
| Main Port | XT60 7.0–35.0 V |
|---|---|
| Signal Port | <6.0 V |
| Balancer Connector | 0.5–5.0 V Lixx, 2–8S |
| Balancing Current | max. 60 mA, 2–8S |
| Balancer-Accuracy | <0.005 V, 4.2 V |
| USB-A Output | 5.0 V, 1.0 A Firmware Upgrade |
| USB-C Output | 5.0–12.0 V, max. 20 W |
| USB-C Protocol | PD3.0, QC3.0, AFC, SCP, FCP |
| Display | LCD, IPS 2.0'', 240 × 240 px |
| Dimensions | 68 × 50 × 15 mm |
| Weight | 50 g |
| Measurement – PPM | 880 µs–2200 µs × 8 CH, 20–50 Hz |
| Measurement – SBUS | 880 µs–2200 µs × 16 CH, 20–100 Hz |
| Output – PWM | 1000 µs–2000 µs, 20–1000 Hz |
| Output – PPM | 880 µs–2200 µs × 8 CH, 50 Hz |
| Output – SBUS | 880 µs–2200 µs × 16 CH, 74 Hz |
| Measurement – PWM | 500 µs–2500 µs, 20–400 Hz |
|---|

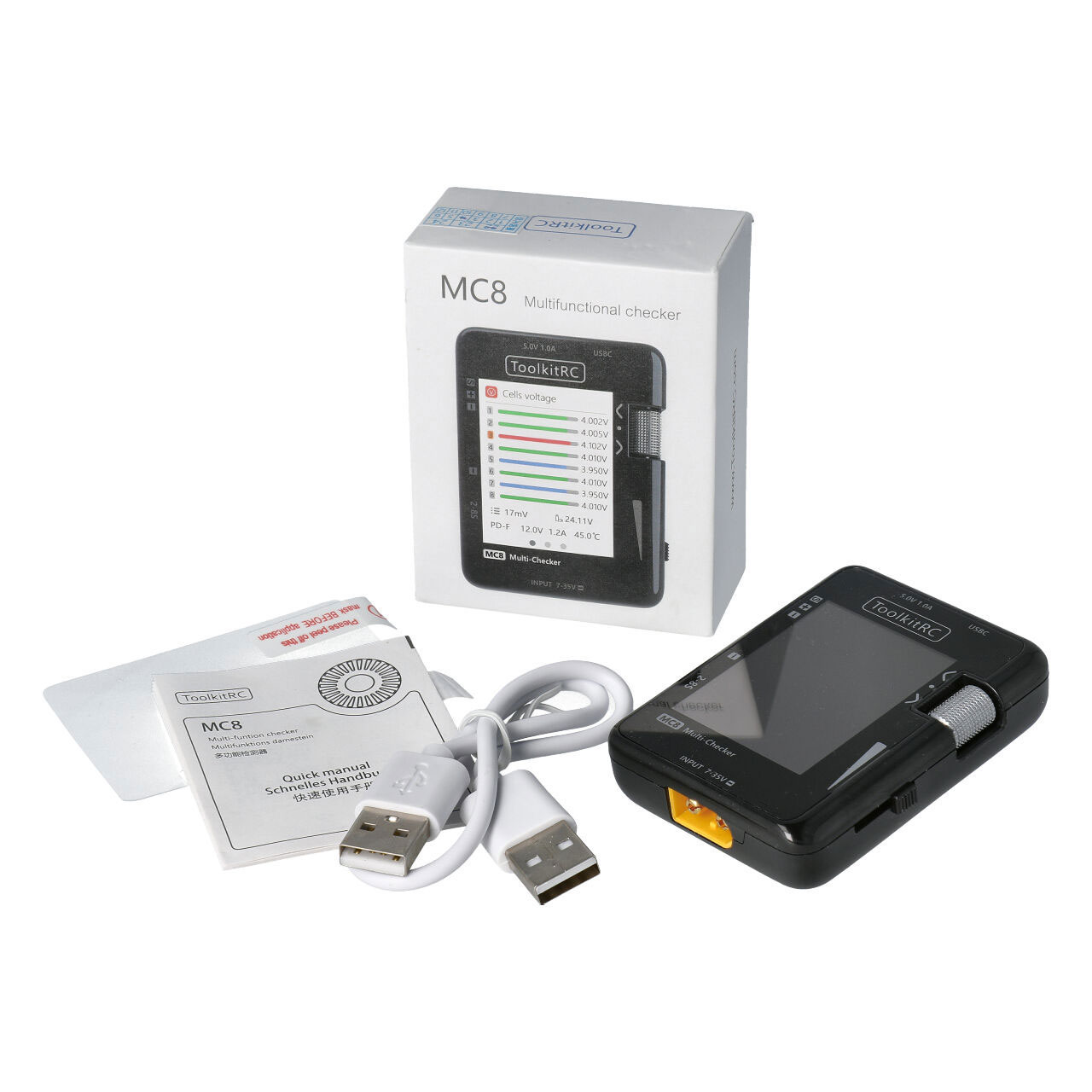

In the box
- 1 × MC8 Multichecker
- 1 × USB Cable
- 1 × Display protection
- 1 × Manual
