ToolkitRC M7 LiPo 1-6S 10A Charger DC 7-28V
- Part No: TK11400
- Retail: €48.90
- EAN: 6972969830063
DC charger with up to 200 W charging power and PWM/PPM/SBUS functions The ToolkitRC M7 is a... more
Product information "ToolkitRC M7 LiPo 1-6S 10A Charger DC 7-28V"
DC charger with up to 200 W charging power and PWM/PPM/SBUS functions
The ToolkitRC M7 is a charger with balance charging and discharging. It can also measure and output PWM, PPM and SBUS signals. Compared with the M7AC charger, it is smaller, lighter and almost as powerful.
Highlights
- Up to 200 W charging power and max. 10 A charging current
- Max. 200 W discharge power
- Charger; meter for voltage, resistance and PWM/PPM/SBUS signals; PWM/PPM/SBUS signal output
- Multilingual user interface with voice output
- Upgradeable via USB
- Various safety controls
Specifications
| Input Voltage | DC 7–28 V, max. 12 A |
| Charge Power | 0.1–10 A, 200 W |
| Discharge Power | 0.1–10 A, 200 W (Rec/Ext. Mode) / 0.1–3 A, 10 W (Intern. Mode) |
| Charging Accuracy | <0.005 V |
| USB A | 5.0 V @ 10 W (or Upgrade) |
| Balancing Current | 400 mA, 4.2 V |
| Cells LiPo/LiFe/LiIon/LiHV | 1–6S |
| Cells: NiMH | 1–16S |
| Pb Battery Voltage | 1–10S |
| Voltage | 1.0–5.0 V, 1–6S |
| Display | IPS 2.0'' 320 × 240 px LCD |
| TF Card | Supports 128 MB to 16 GB |
| Dimensions | 73 × 51 × 27 mm |
| Weight | 90 g |
| Measurement & Output | |
|---|---|
| Measurement PWM | 880–2200 µs, 20–400 Hz |
| Measurement PPM | 880–2200 µs × 8 CH, 20–50 Hz |
| Measurement SBUS | 880–2200 µs × 16 CH, 20–100 Hz |
| Output PWM | 500–2500 µs, 20–1000 Hz |
| Output PPM | 880–2200 µs × 8 CH, 50 Hz |
| Output SBUS | 880–2200 µs × 16 CH, 74 Hz |
| Power | 0.5–10 A, 1–28 V, Mode: CC+CV |

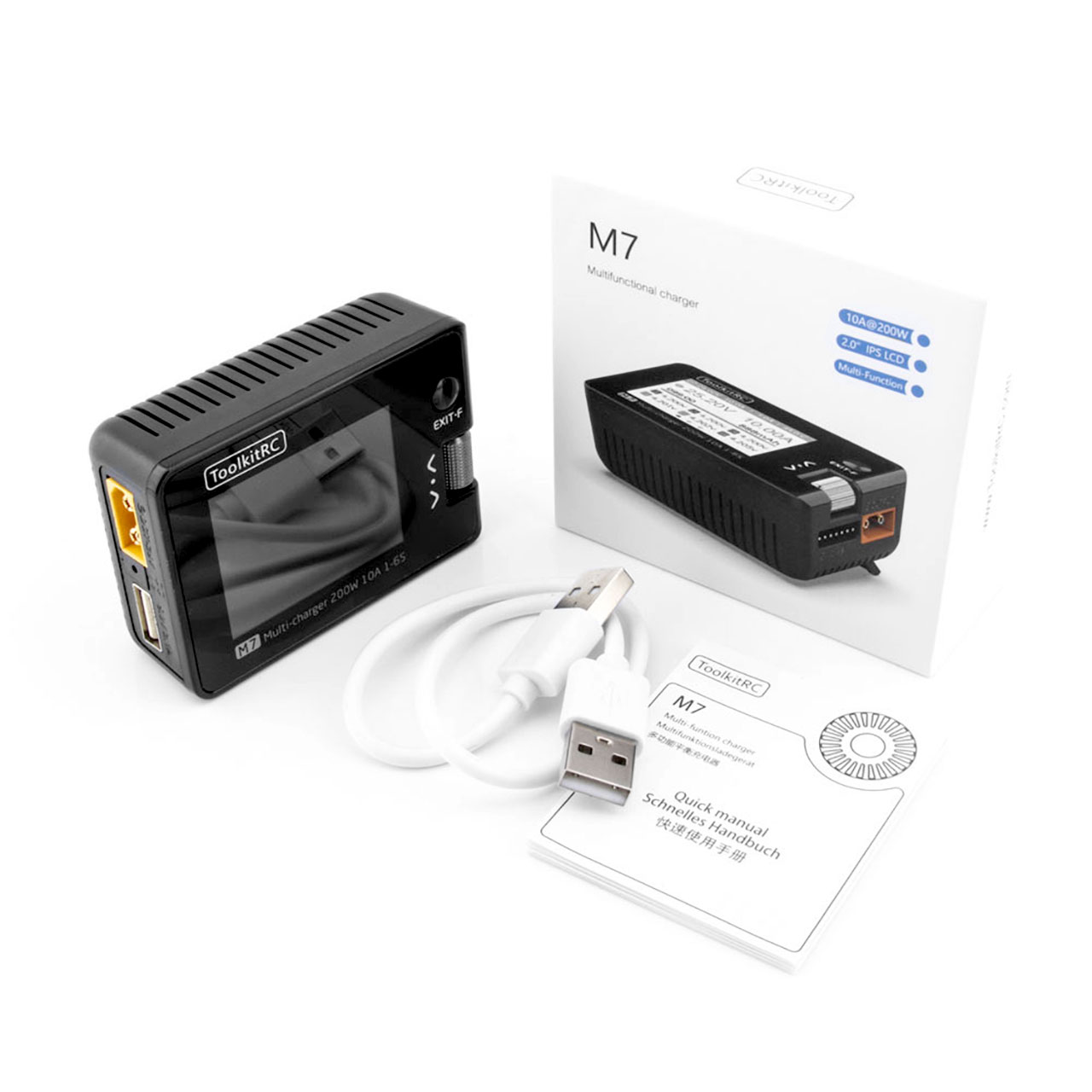

In the box
- 1× M7AC-Charger
- 1× USB cable
- 1× Manual
