Brand:
M6AC LiPo 1-6S 15A Charger AC/DC
AC/DC charger for 1–6S lithium batteries with up to 300 W DC charging power
- Item number
- TK13800
- EAN
- 6972969830650
€69.90incl. VAT, plus shipping
RRP €69.90
Description

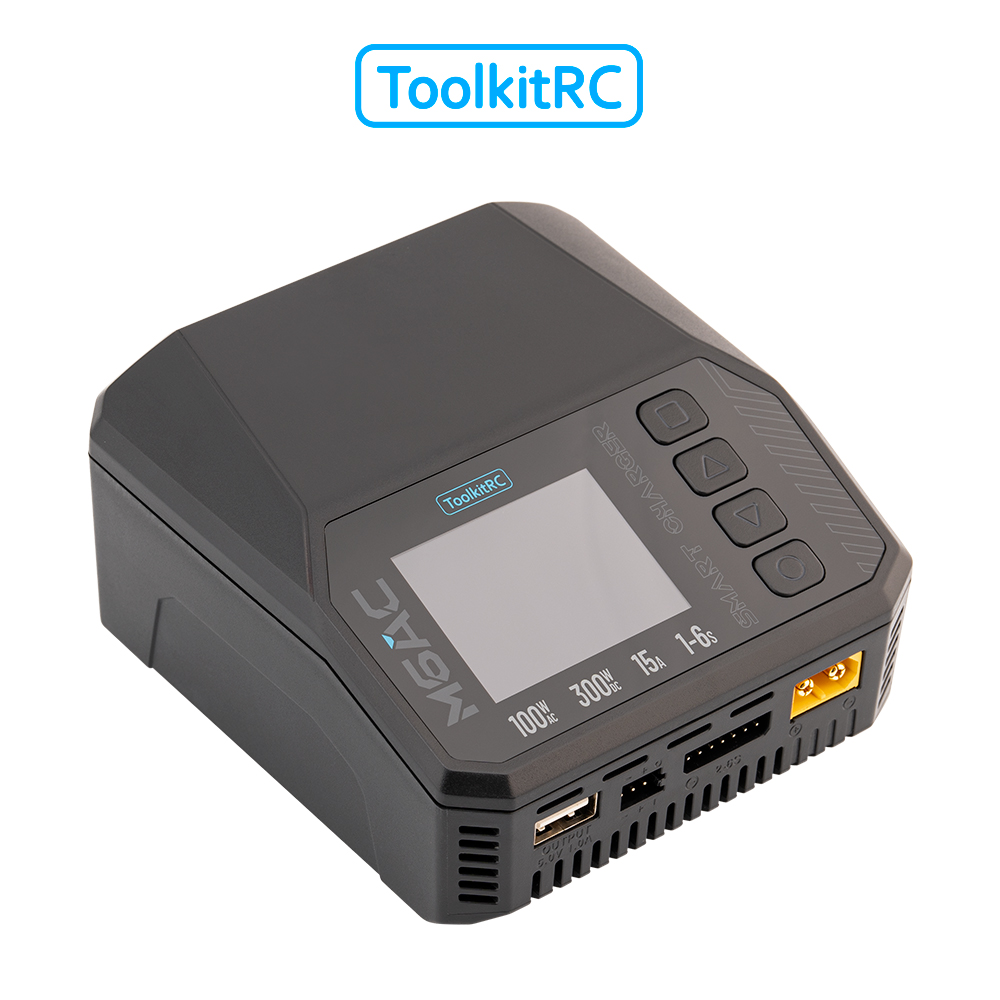

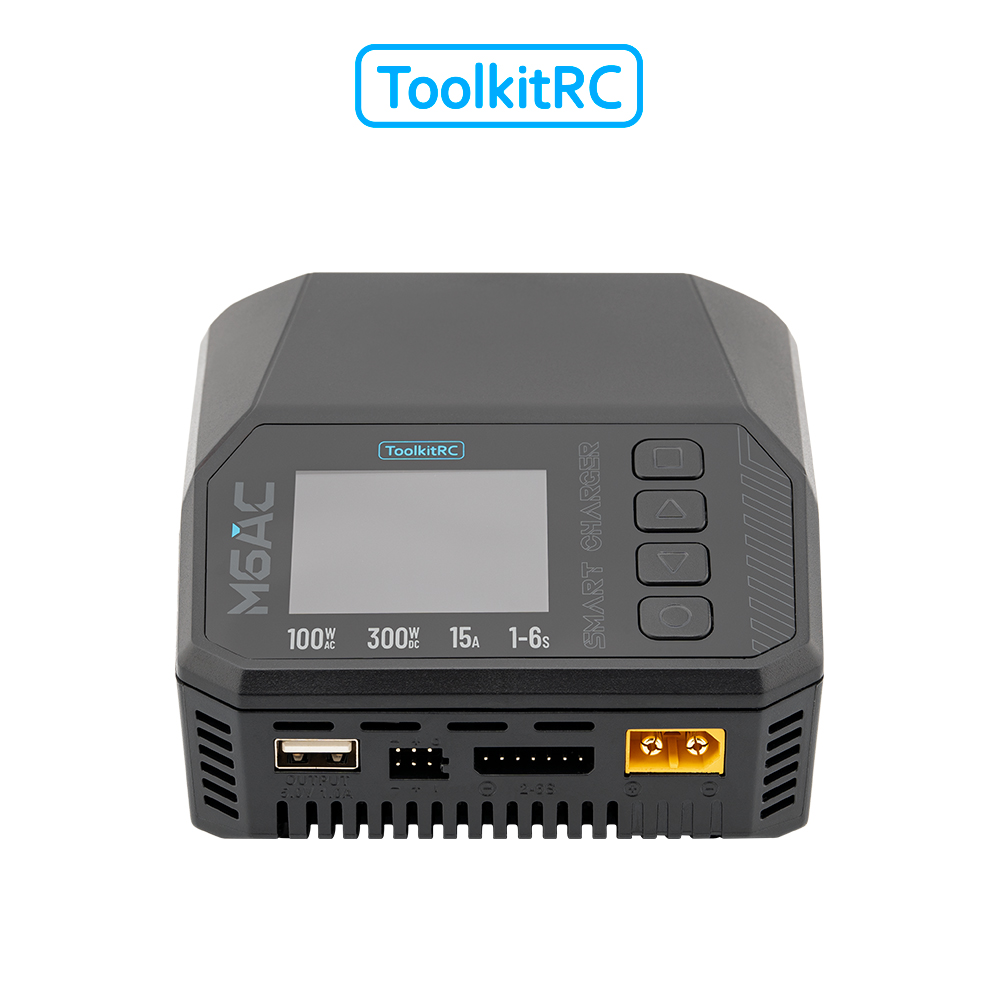

The ToolkitRC M6AC is an AC/DC charger for up to 6-cell lithium batteries. Its built-in AC power supply delivers up to 100 W charging power; an external DC source enables up to 300 W. The maximum charge/discharge current is 15 A. The charger also provides diagnostic tools and battery maintenance functions.
Highlights
- Up to 300 W (DC) or 100 W (AC) charging power
- Max. 15 A charge/discharge current
- Supports LiPo/LiHV/LiFe/Li-Ion/LTO (1–6S), NiMH (1–16S) and Pb (1–10S)
- Internal discharge up to 15 W; recycle discharge (external) up to 300 W
- Signal tester (PWM/PPM/SBUS), wattmeter and adjustable CC/CV power supply (1–28 V, 0.5–15 A)
- Battery voltage and internal resistance measurement; adjustable cutoff voltage (TVC)
- Multiple protection features and multi-language user interface
Specifications
| Input Voltage | AC 100–240 V @ max. 120 W; DC 7–35 V @ max. 30 A |
|---|---|
| Charging Power / Current | AC up to 100 W, DC up to 300 W; 0.1–15 A |
| Discharge (internal) | 0.1–3 A @ 15 W (Normal mode) |
| Discharge (Recycle) | 0.1–15 A @ 300 W (with external load) |
| Balancing Current / Accuracy | 1,000 mA @ 4.2 V; < 0.005 V |
| USB | USB-A 5 V / 1 A (10 W) or upgrade |
|---|---|
| Display | 2.0 IPS-LCD, 320 × 240 px |

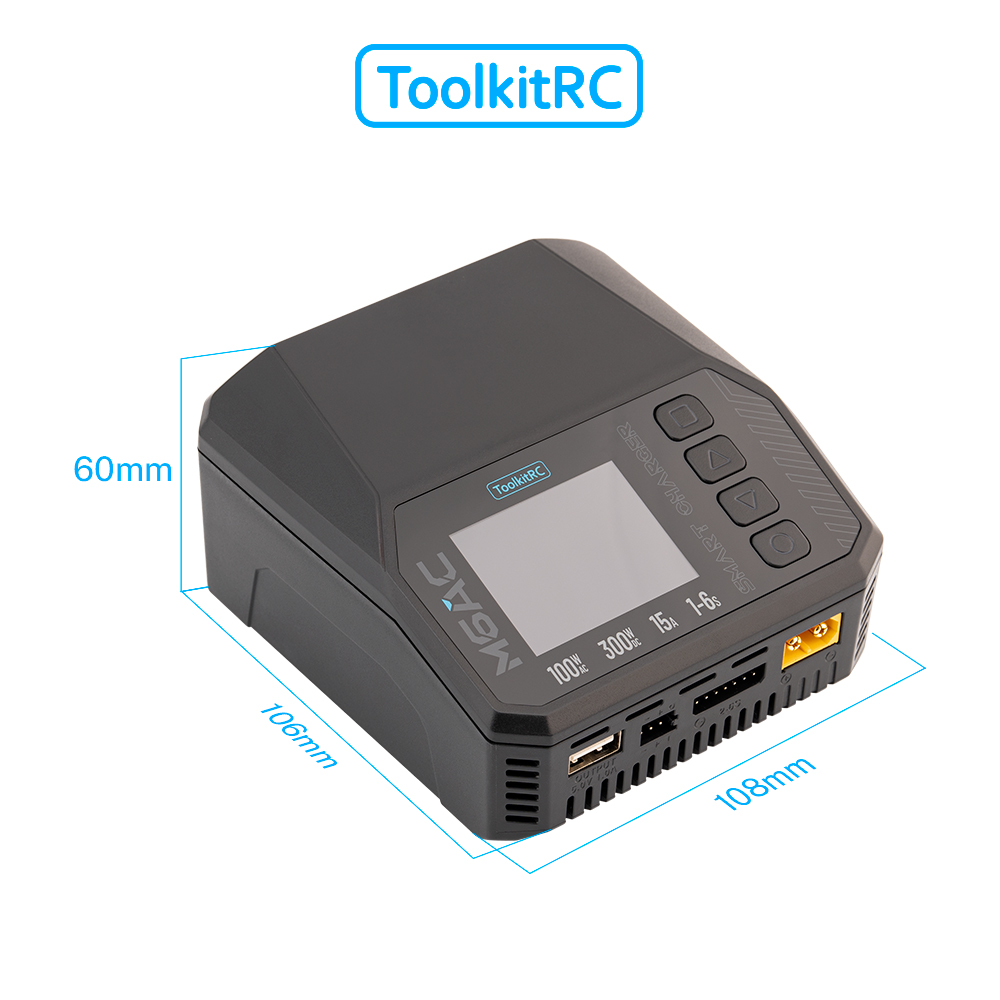

| Dimensions | 108 × 106 × 60 mm |
| Weight | approx. 350 g |

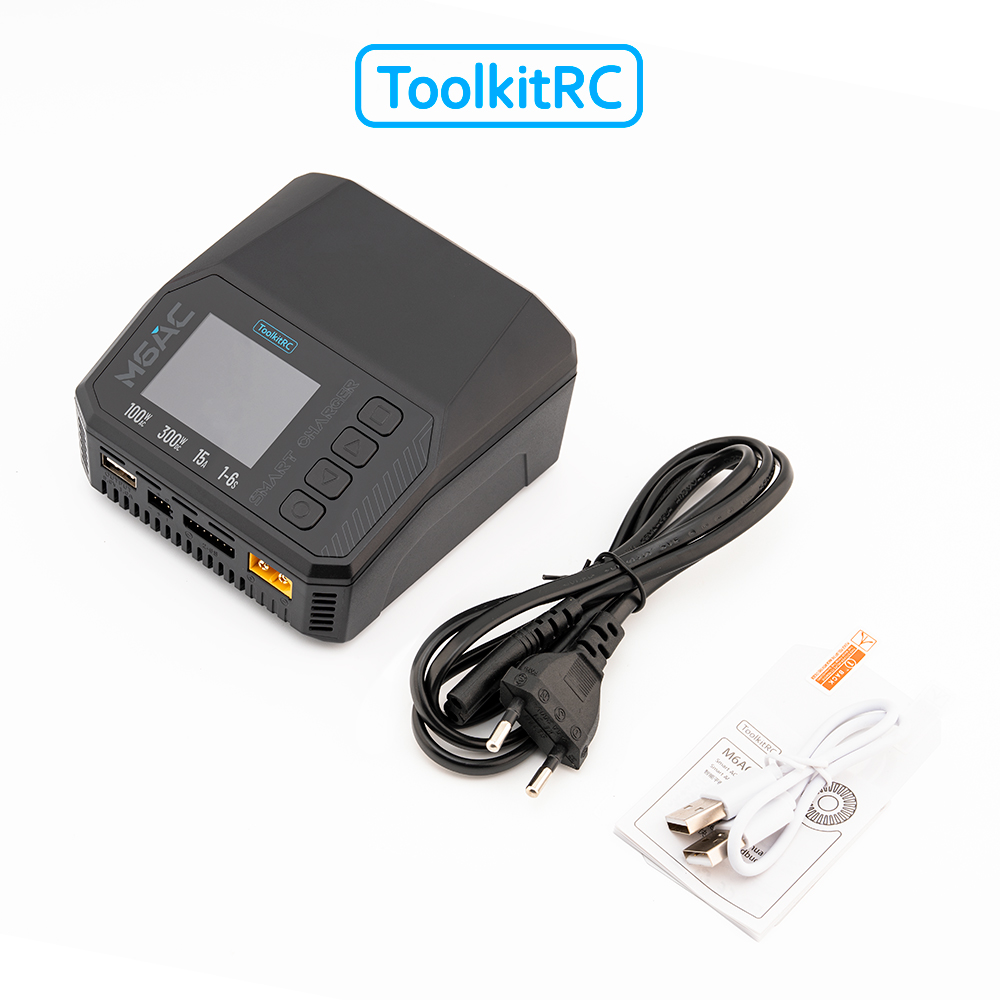

In the box
- 1 × M6AC charger
- 1 × AC input cable
- 1 × USB-A cable
- 1 × Quick start guide
- 1 × Screen protector
Safety & manufacturer
Manufacturer
ToolkitRC
Item number: TK13800
EAN: 6972969830650
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
