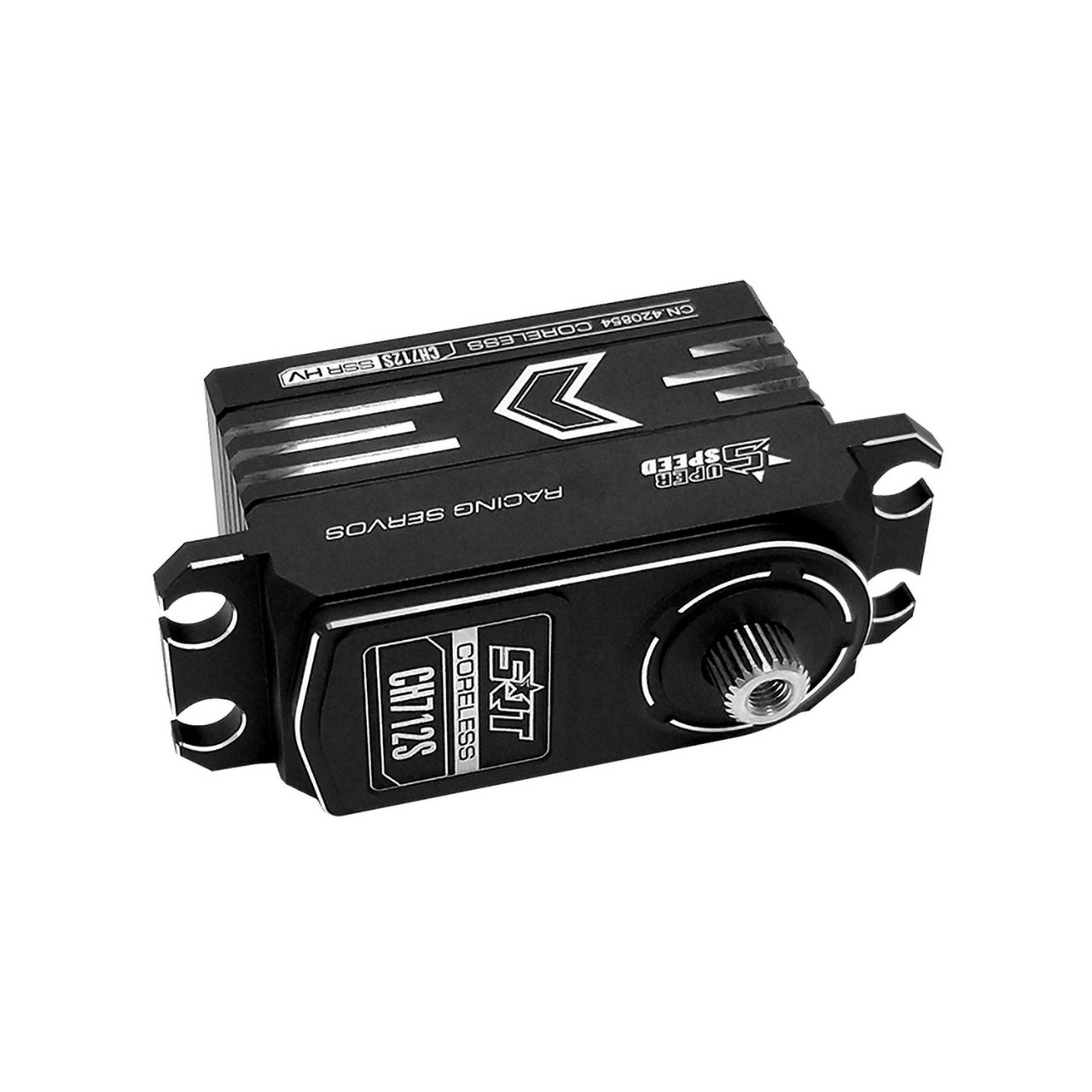

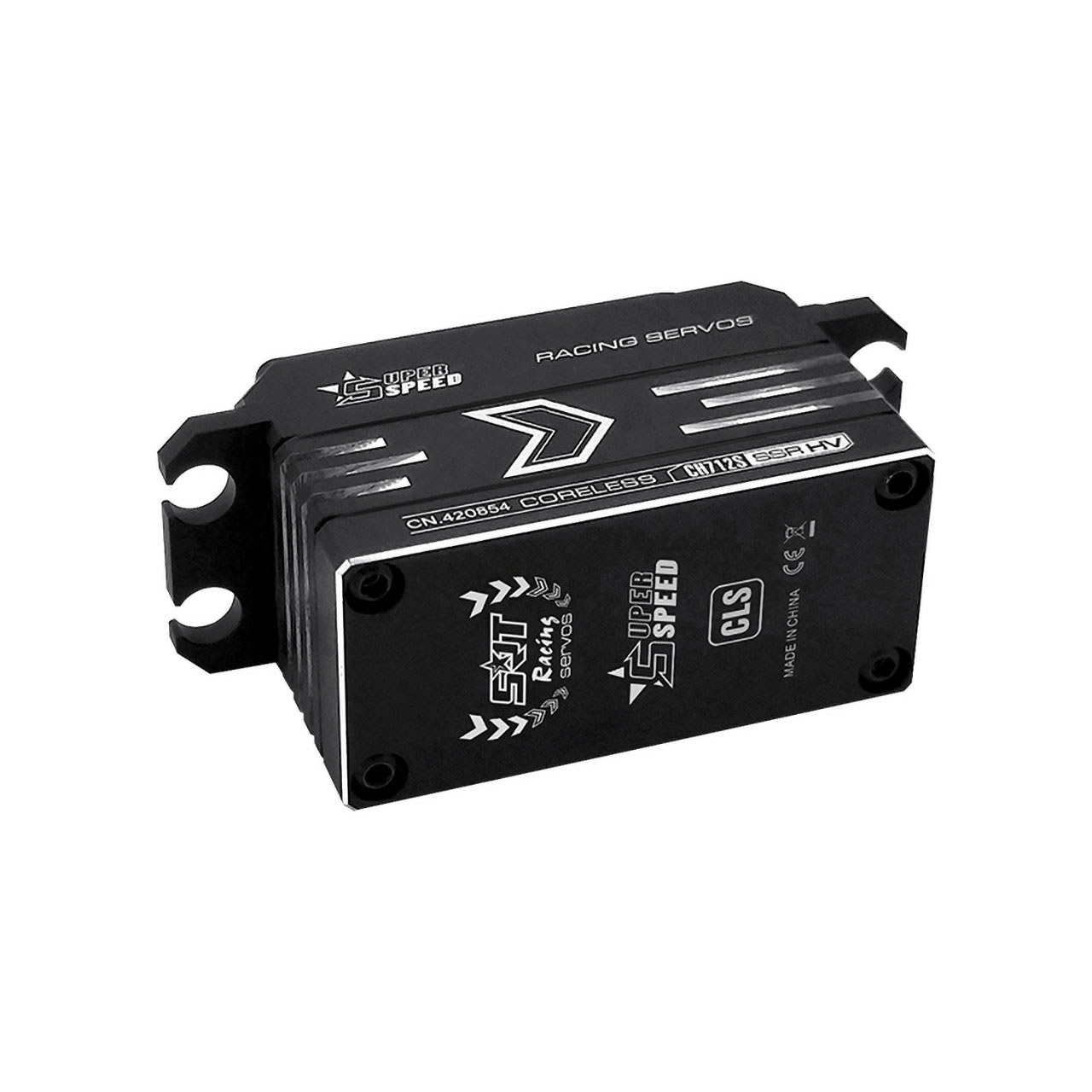

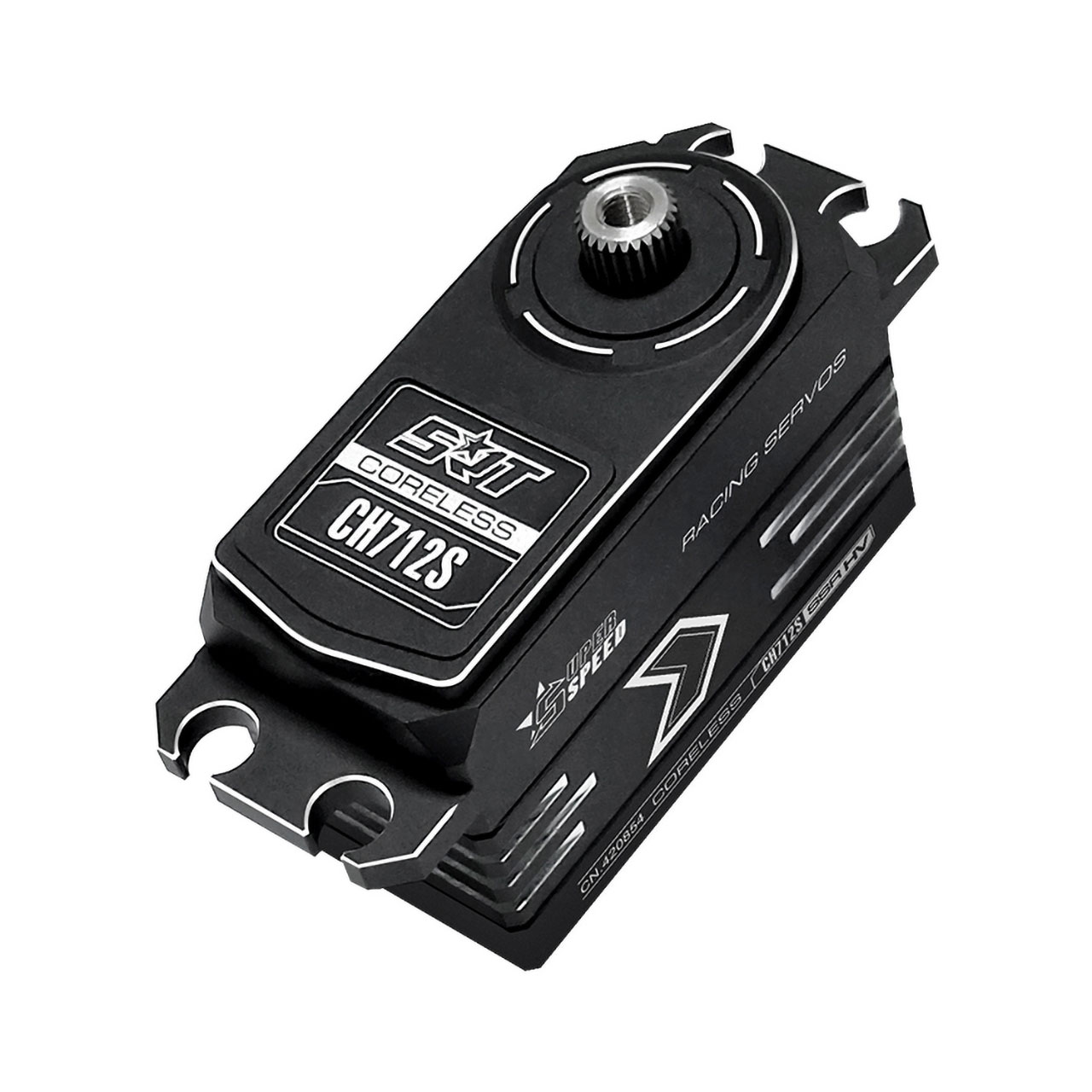

SRT Low Profile Coreless HV CNC aluminium case 11.8kg/0.052sec @7.4V
- Part No: CH712S
- Retail: €77.90
- EAN: 6969007120118
- Notice: CH712S
SRT-Racing - Servos for Profis! Features: Low profile Coreless motor... more
Product information "SRT Low Profile Coreless HV CNC aluminium case 11.8kg/0.052sec @7.4V"
SRT-Racing - Servos for Profis!
Features:
- Low profile
- Coreless motor
- CNC machined aluminum case
- Incredible efficiency and low power consumption
- 330Hz working frequence
- Superior holding and speed
- Metal gear
- 25T output shaft

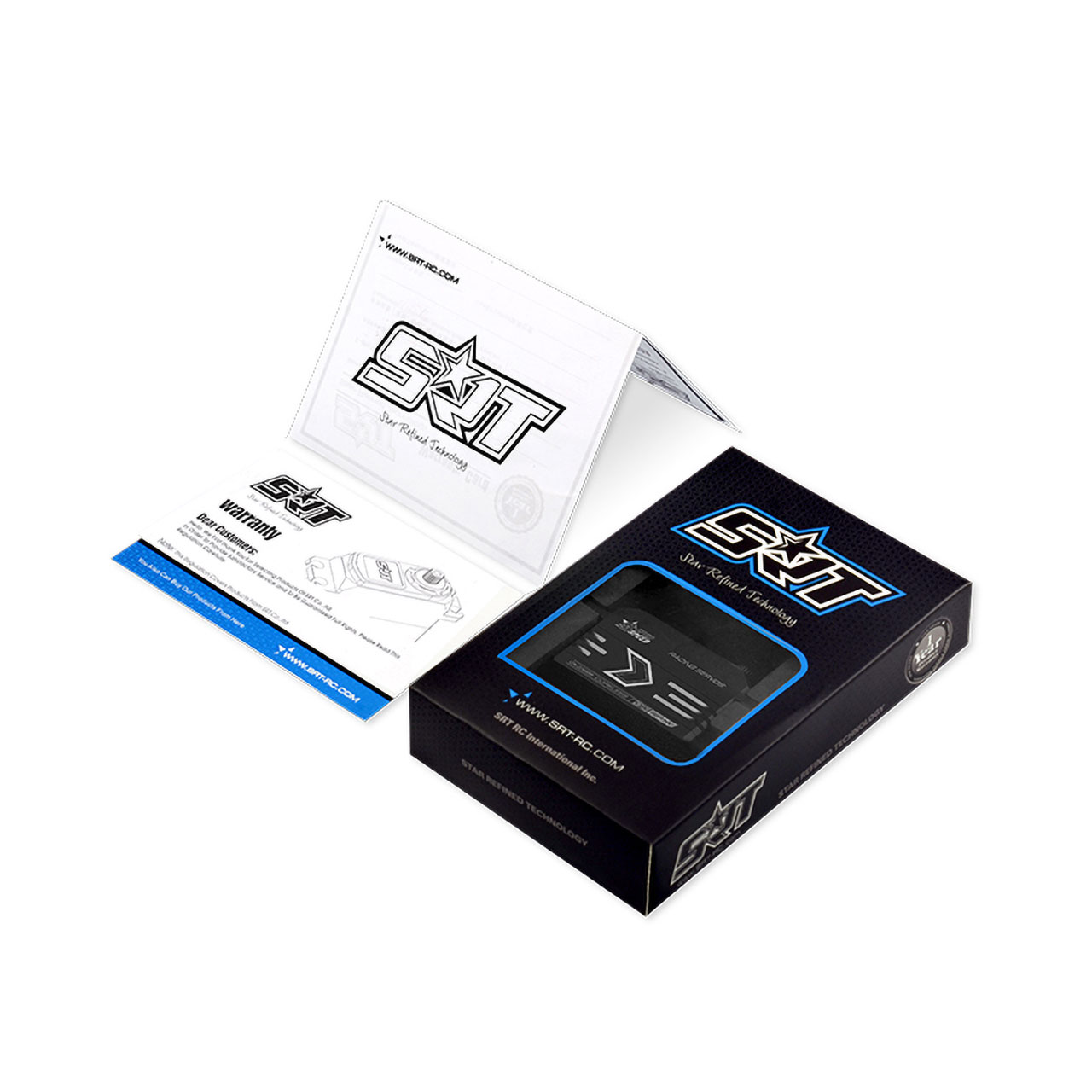

Delivery:
1x Servo
2x Servo horn
1x Sticker
Technical Specifications:
| Voltage: | 6.0V | 7.4V | 8.4V |
| Operating Speed: | 0.065 sec/60° | 0.052 sec/60° | 0.049 sec/60° |
| Torque: | 9.8 kgcm | 11.8 kgcm | 12.6 kgcm |
| Current min./max.: | 4mA/2600mA | 6mA/2950mA | 35mA/3100mA |
| Motor: | Coreless | ||
| Gear: | Titanium / Aluminium | ||
| Typ: | Digital | ||
| Frequence: | 330Hz | ||
| Ball Bearing: | Yes | ||
| Dimension: | 41x20x26.4 mm | ||
| Weight: | 52.0g | ||
| Horn Gear Spline: | 25T | ||
| Best for: | 1/10 On-road, 1/10 2WD or 4WD Off-Road | ||
