Image 1 of 4

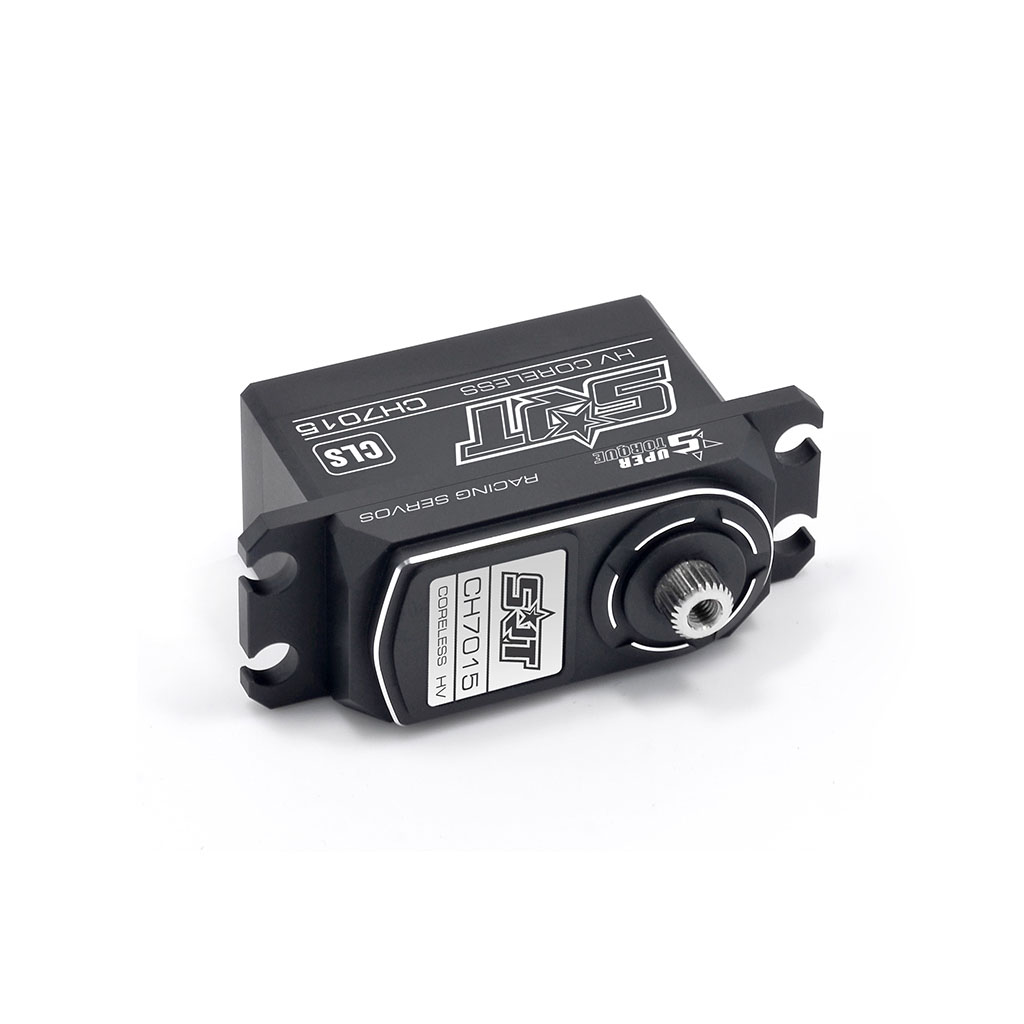

Coreless Servo HV Low Profile CNC aluminium case 13.0kg/0.08sec, image 1

Brand: SRT

Coreless Servo HV Low Profile CNC aluminium case 13.0kg/0.08sec

1 review

Low-profile HV Coreless Servo with CNC-machined aluminium case

Item number
CH7015
EAN
6969007001516
€74.90incl. VAT, plus shipping

RRP €74.90

In stock

Description

The SRT CH7015 is a low-profile HV Coreless Servo with a CNC-machined aluminium case.

Highlights

  1. Low-profile design
  2. Coreless motor
  3. CNC-machined aluminium case
  4. Efficient operation and low power consumption
  5. 330 Hz operating frequency
  6. Holding force and speed
  7. Metal gears
  8. 25T output shaft

Specifications

Voltage6.0 V · 7.4 V · 8.4 V
Operating Speed0.10 s/60° (6.0 V) · 0.08 s/60° (7.4 V) · 0.07 s/60° (8.4 V)
Torque12.0 kgcm (6.0 V) · 13.0 kgcm (7.4 V) · 15.0 kgcm (8.4 V)
Current min./max.4 mA/2600 mA (6.0 V) · 6 mA/2950 mA (7.4 V) · 9 mA/3100 mA (8.4 V)
MotorCoreless
GearsTitanium / Aluminium
TypeDigital
Control Frequency330 Hz
Ball BearingYes
Dimensions41 × 20 × 26.4 mm
Weight52.0 g
Spline25T
Application1/10 On/Off-Road

In the box

  • 1 × Servo
  • 2 × Servo horn
  • 1 × Sticker

Safety & manufacturer

Manufacturer

SRT

Item number: CH7015

EAN: 6969007001516

Responsible person in the EU

Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)

Safety information

  • Contains small parts.
  • Keep away from children.
  • Not suitable for children under 14 years of age.
