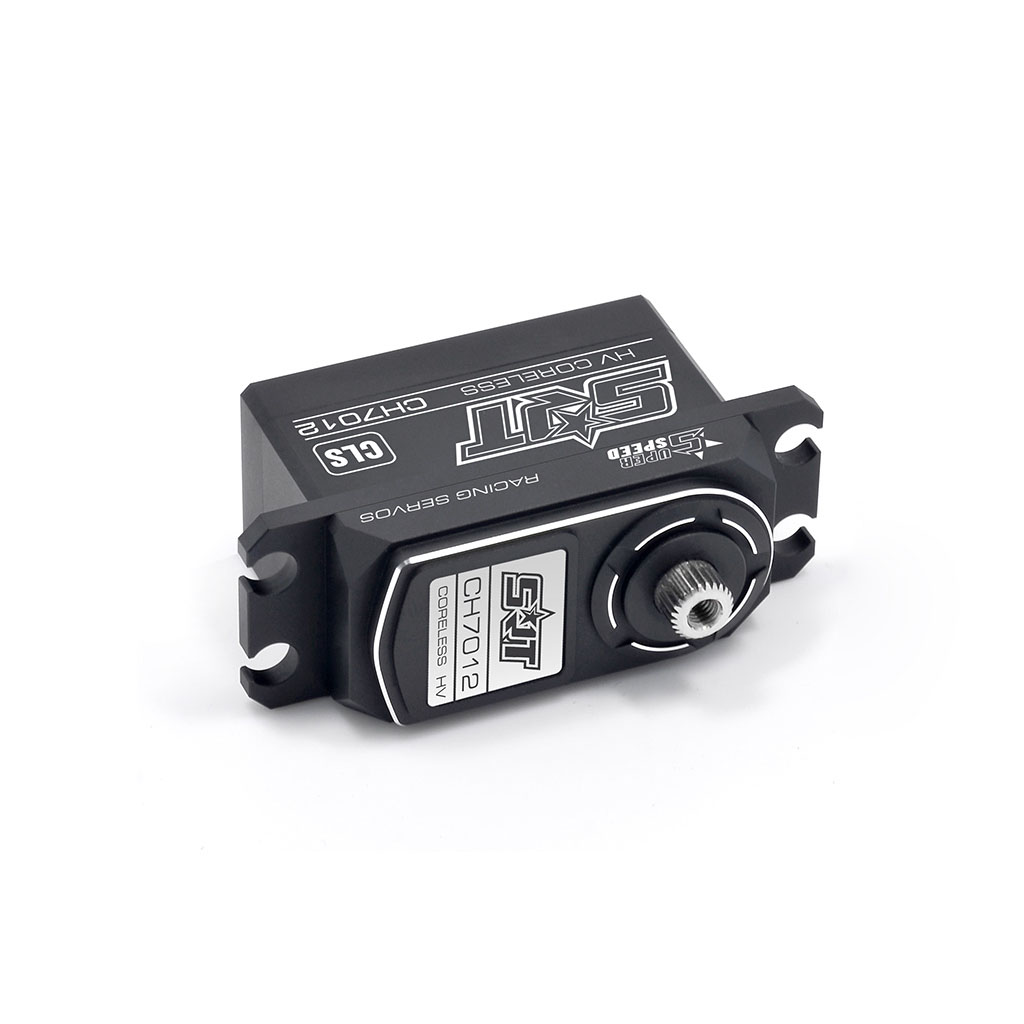

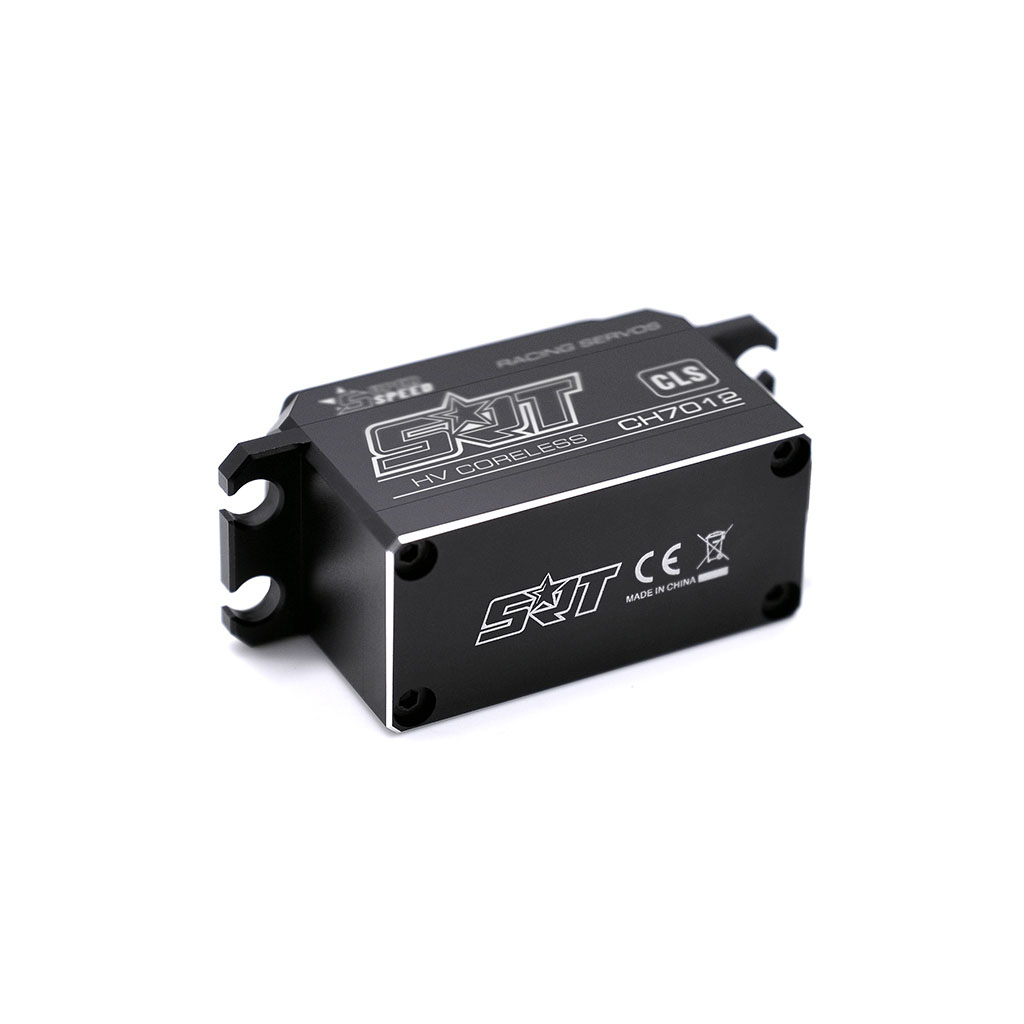

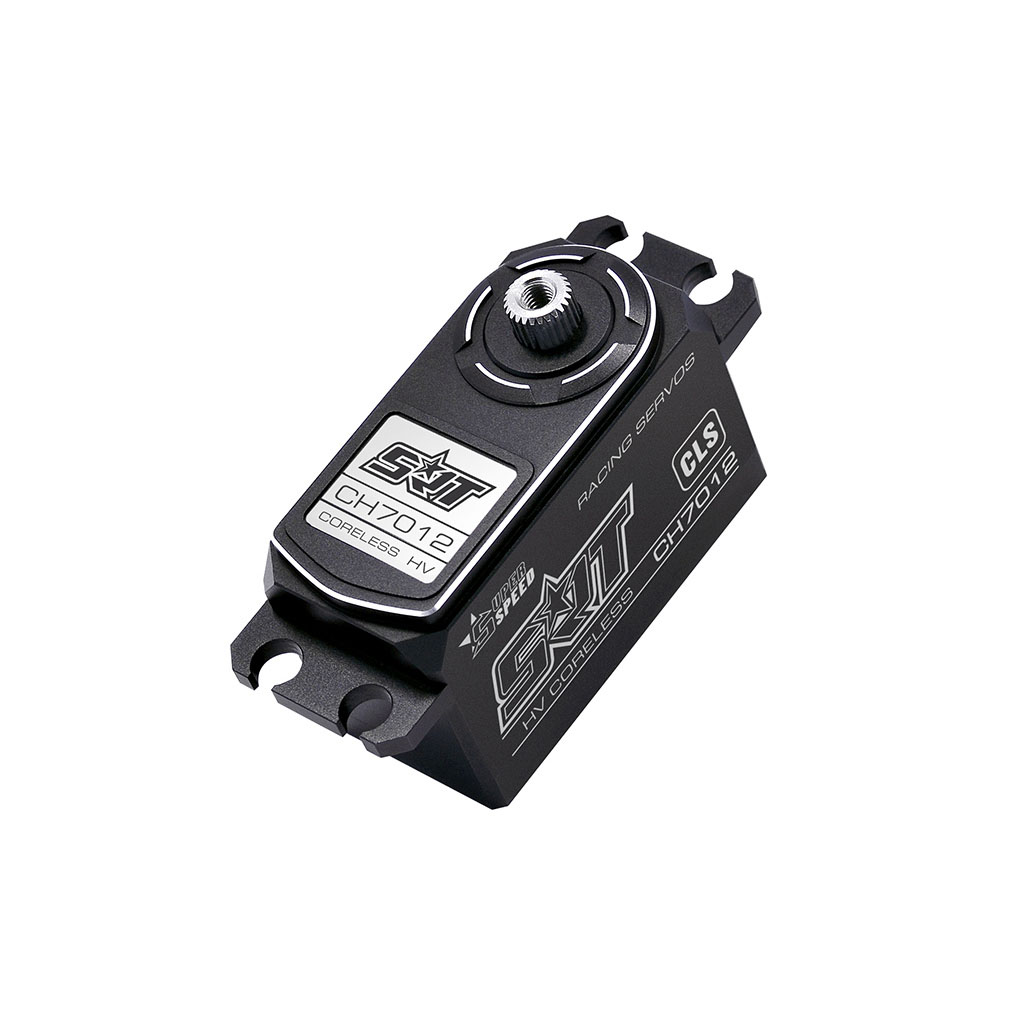

Coreless Servo HV Low Profile CNC aluminium case 11.0kg/0.06sec, image 1

Brand: SRT

Coreless Servo HV Low Profile CNC aluminium case 11.0kg/0.06sec

Low-profile HV Coreless Servo with CNC-machined aluminium case

Item number
CH7012
EAN
6969007001219
€72.90incl. VAT, plus shipping

RRP €72.90

In stock

Description

The SRT CH7012 is a low-profile HV Coreless Servo with a CNC-machined aluminium case.

Highlights

  1. Low-profile design
  2. Coreless motor
  3. CNC-machined aluminium case
  4. Efficient operation and low power consumption
  5. 330 Hz operating frequency
  6. Holding force and speed

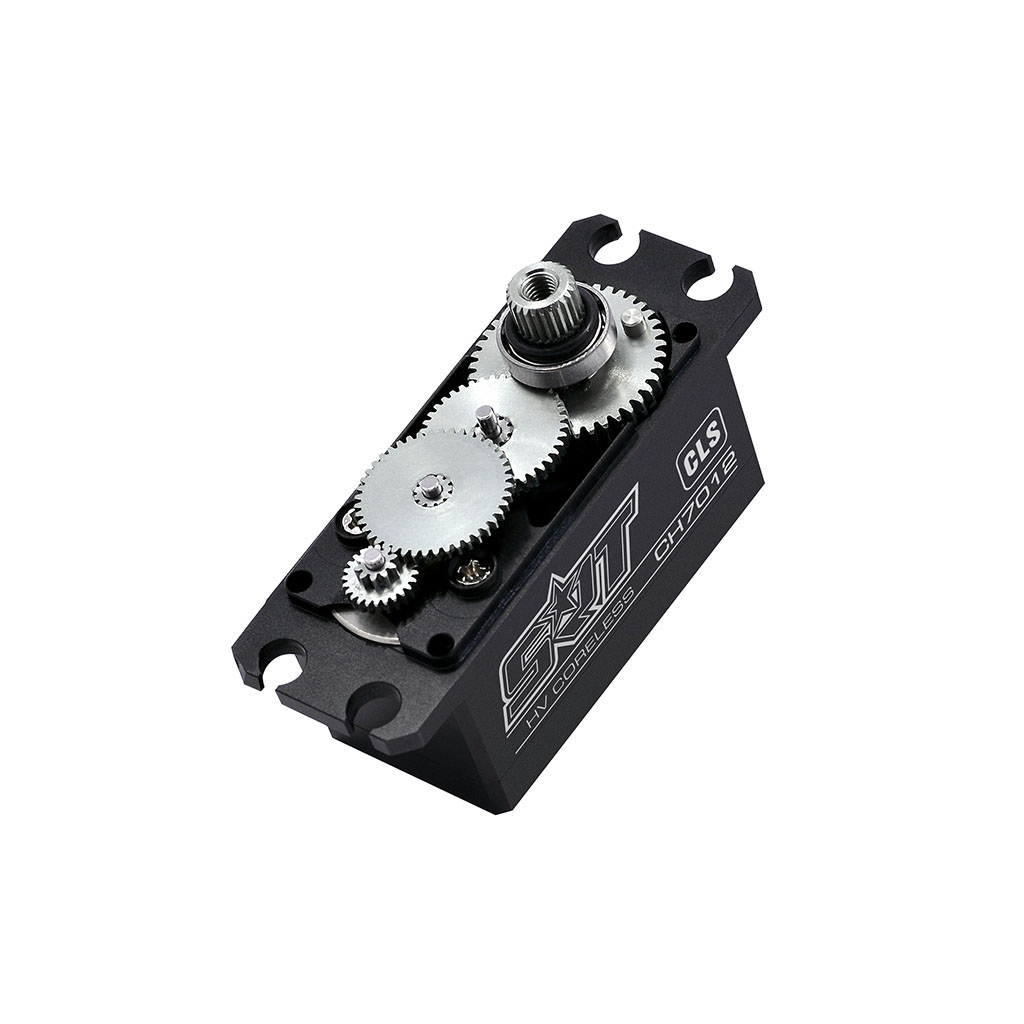

  7. Metal gears
  8. 25T output shaft

Specifications

Voltage6.0 V · 7.4 V · 8.4 V
Operating Speed0.07 s/60° (6.0 V) · 0.06 s/60° (7.4 V) · 0.057 s/60° (8.4 V)
Torque9.0 kgcm (6.0 V) · 11.0 kgcm (7.4 V) · 12.0 kgcm (8.4 V)
Current min./max.4 mA/2600 mA (6.0 V) · 6 mA/2950 mA (7.4 V) · 9 mA/3100 mA (8.4 V)
MotorCoreless
GearsTitanium / Aluminium
TypeDigital
Control Frequency330 Hz
Ball BearingYes
Dimensions41 × 20 × 26.4 mm
Weight52.0 g
Spline25T
Application1/10 On-road, 1/10 2WD Off-Road

In the box

  • 1 × Servo
  • 2 × Servo horn
  • 1 × Sticker
