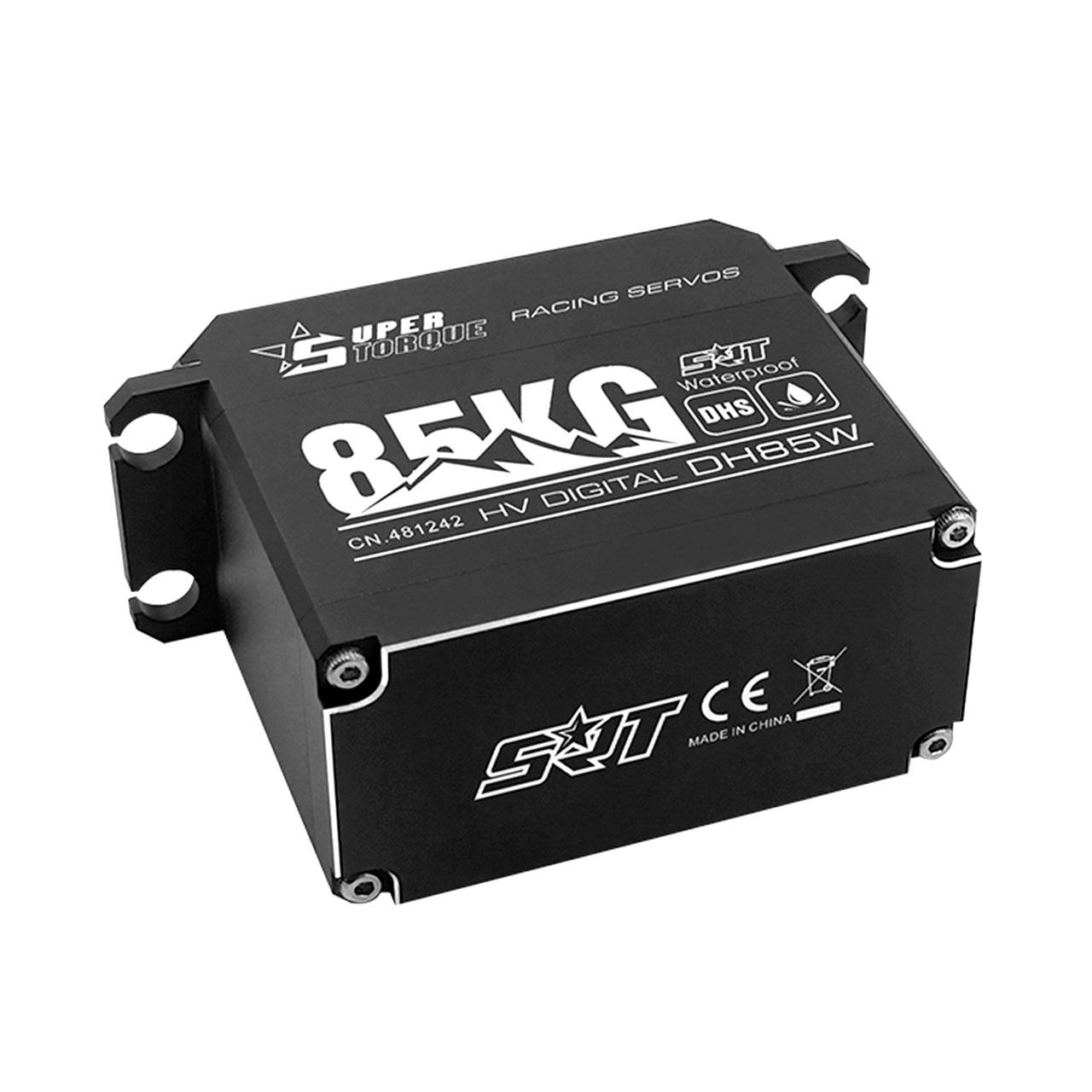

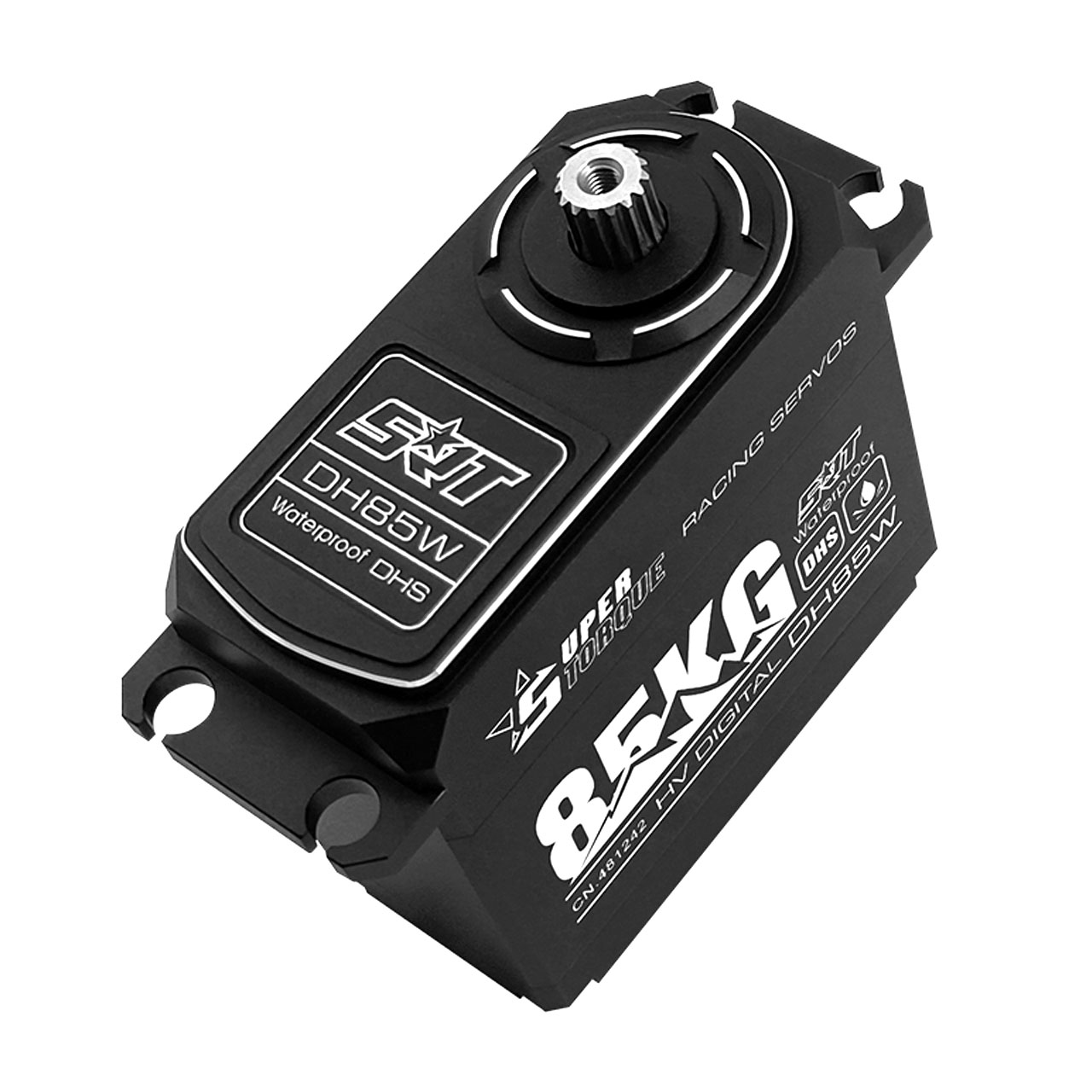

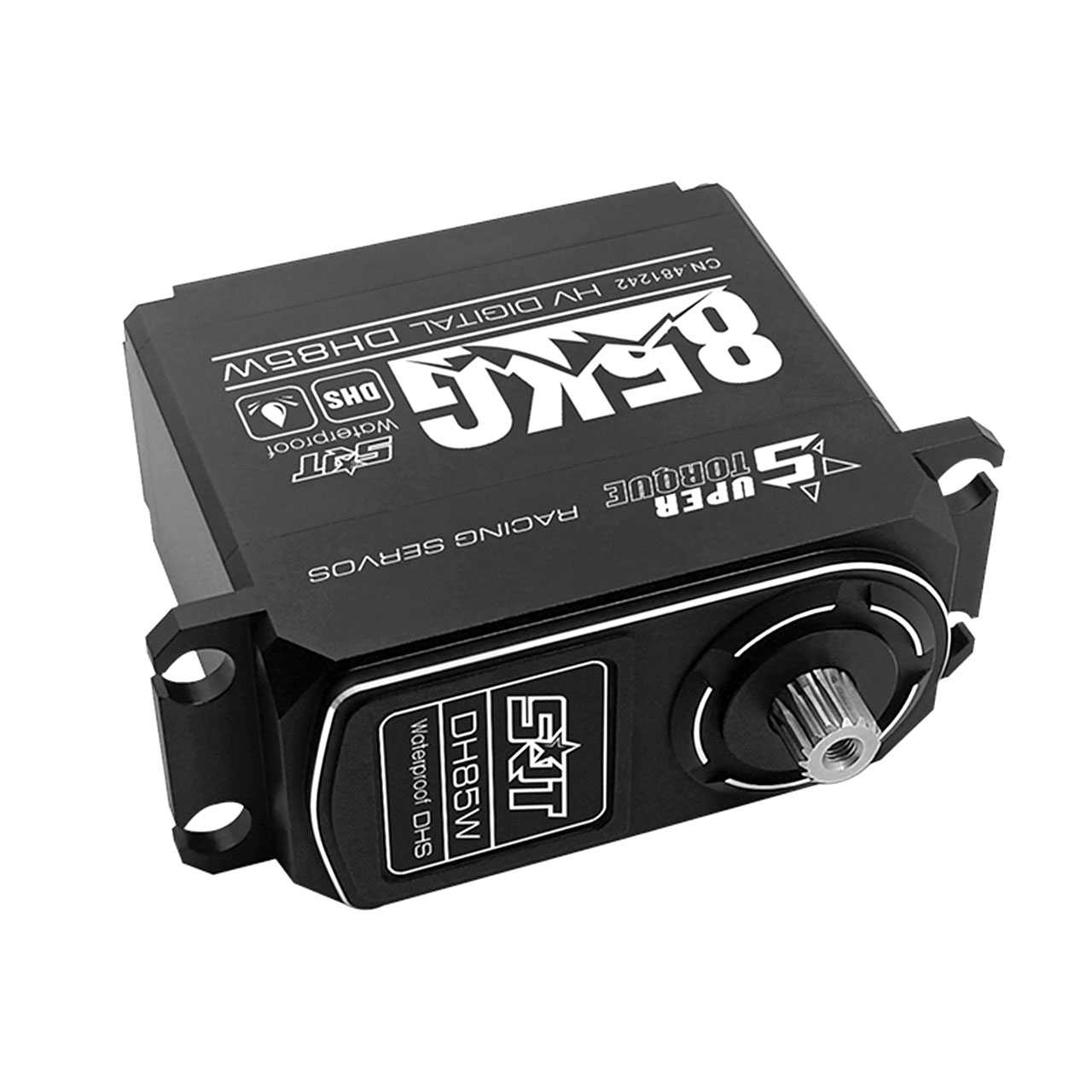

DH85W Big Scale 85.0kg/0.15sec @8,4V
Full-metal big-scale servo with up to 85.0 kg-cm torque at 8.4 V
- Item number
- DH85W
- EAN
- 6969008585008
€80.90incl. VAT, plus shipping
RRP €80.90
Description

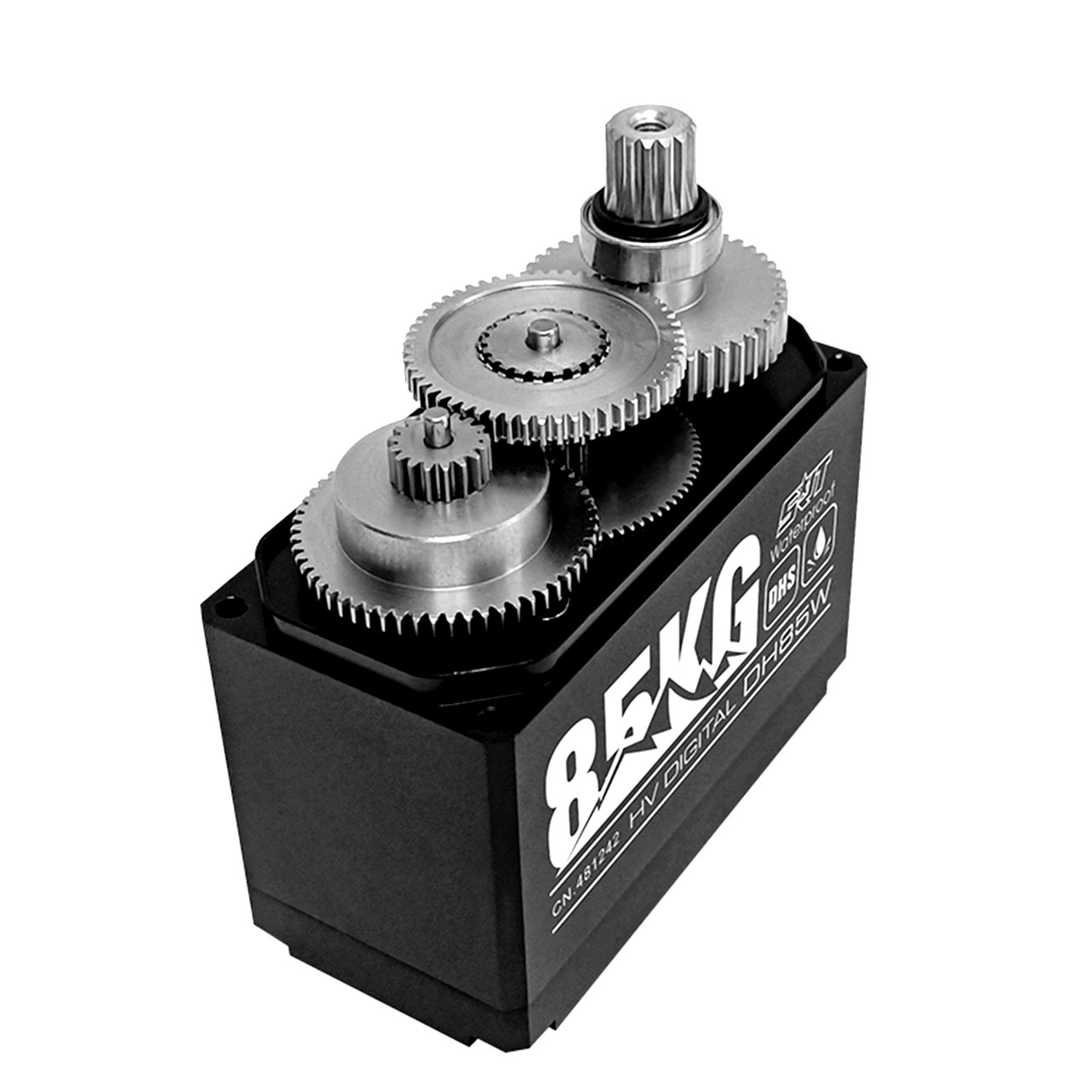

The DH85W is a full-metal servo for large-scale RC cars with two ball bearings and stainless steel gears. It delivers up to 85.0 kg-cm of torque at 8.4 V.
Specifications
| Torque (7.4 V) | 78.0 kg-cm / (1083.2 oz/in) |
|---|---|
| Torque (8.4 V) | 85.0 kg-cm / (1180.4 oz/in) |
| Speed | 0.17 s (7.4 V) / 0.15 s (8.4 V) |
| Operating Voltage | 7.4–8.4 V DC |
| Weight | 200 g (7.05 oz) |
| Bearing Type | 2 ball bearings |
| Horn Gear Spline | 15T |
|---|---|
| Gear Type | Steel |
| Operating Temperature | -20–60 °C |
| Working Frequency | 1520 µs / 330 Hz |
| Size | 59.5 × 29.5 × 54.5 mm (2.34 × 1.16 × 2.15 in) |
| Motor Type | DC |
Safety & manufacturer
Manufacturer
SRT
Item number: DH85W
EAN: 6969008585008
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
