SRT BH922S BL HV - High Speed CNC aluminium case 20.0kg/0.06sec
- Part No: BH922S
- Retail: €100.90
- EAN: 6969009220120
- Notice: BH922S
Brushless HV servo with CNC-machined aluminium case and 25T output shaft The SRT BH922S is a... more
Product information "SRT BH922S BL HV - High Speed CNC aluminium case 20.0kg/0.06sec"

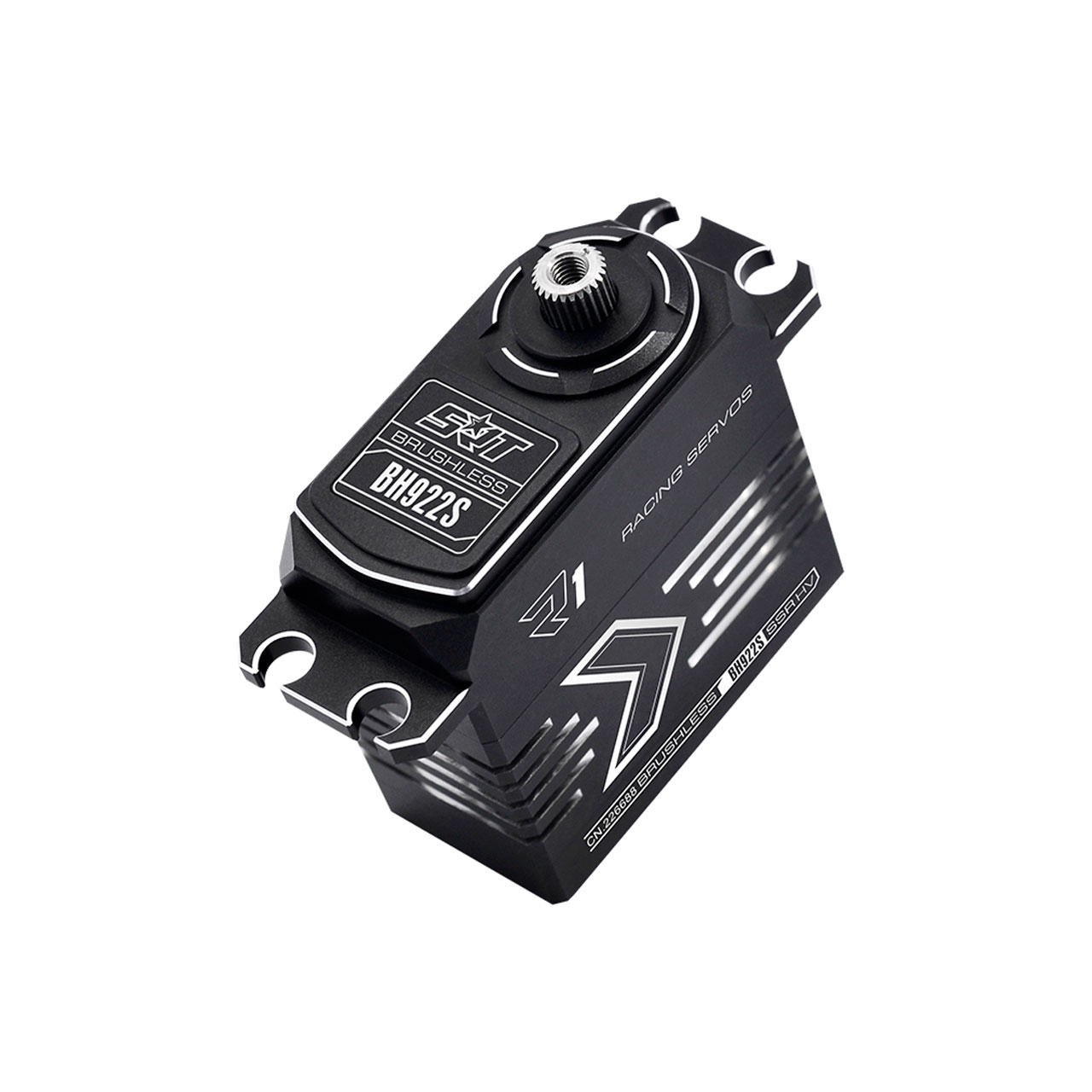

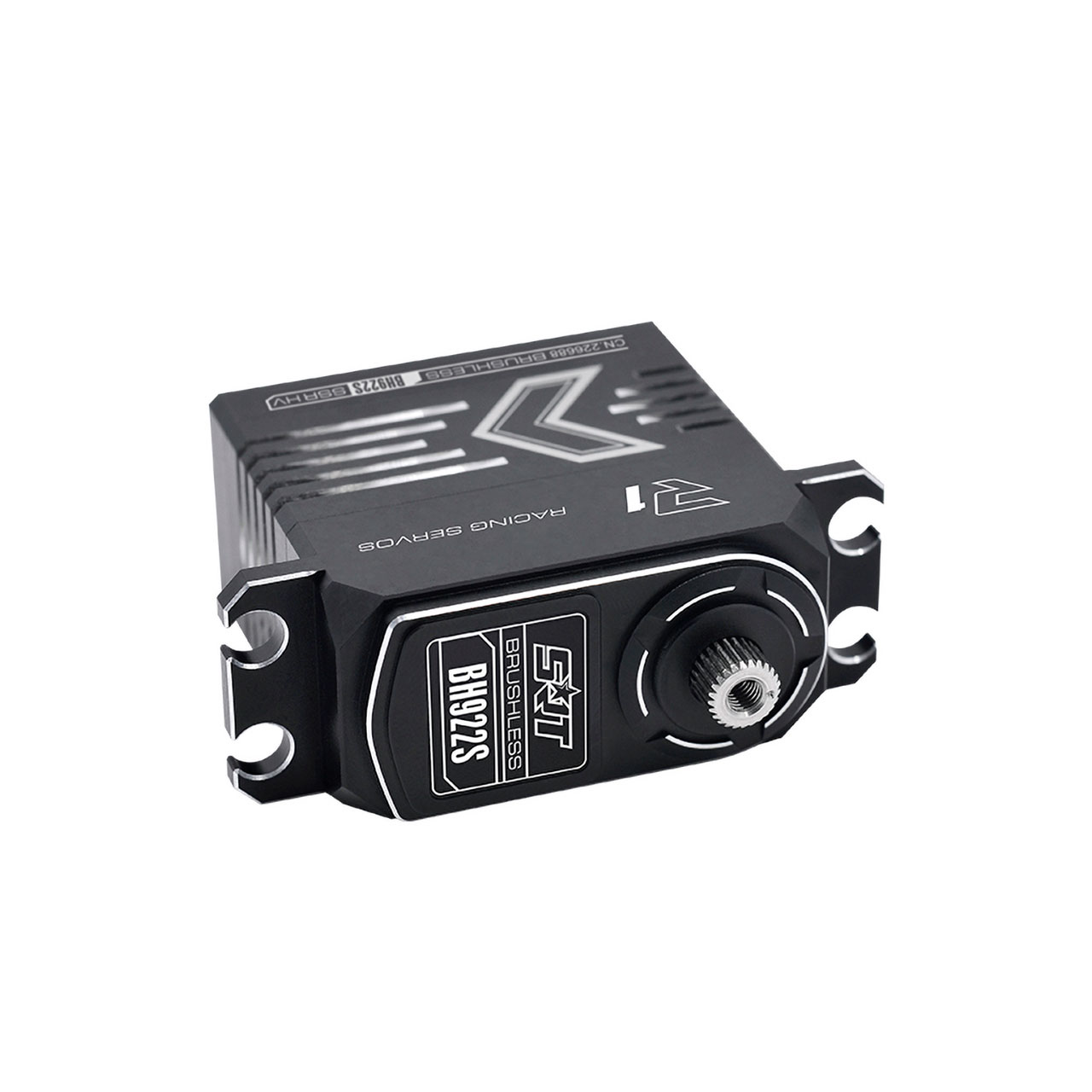

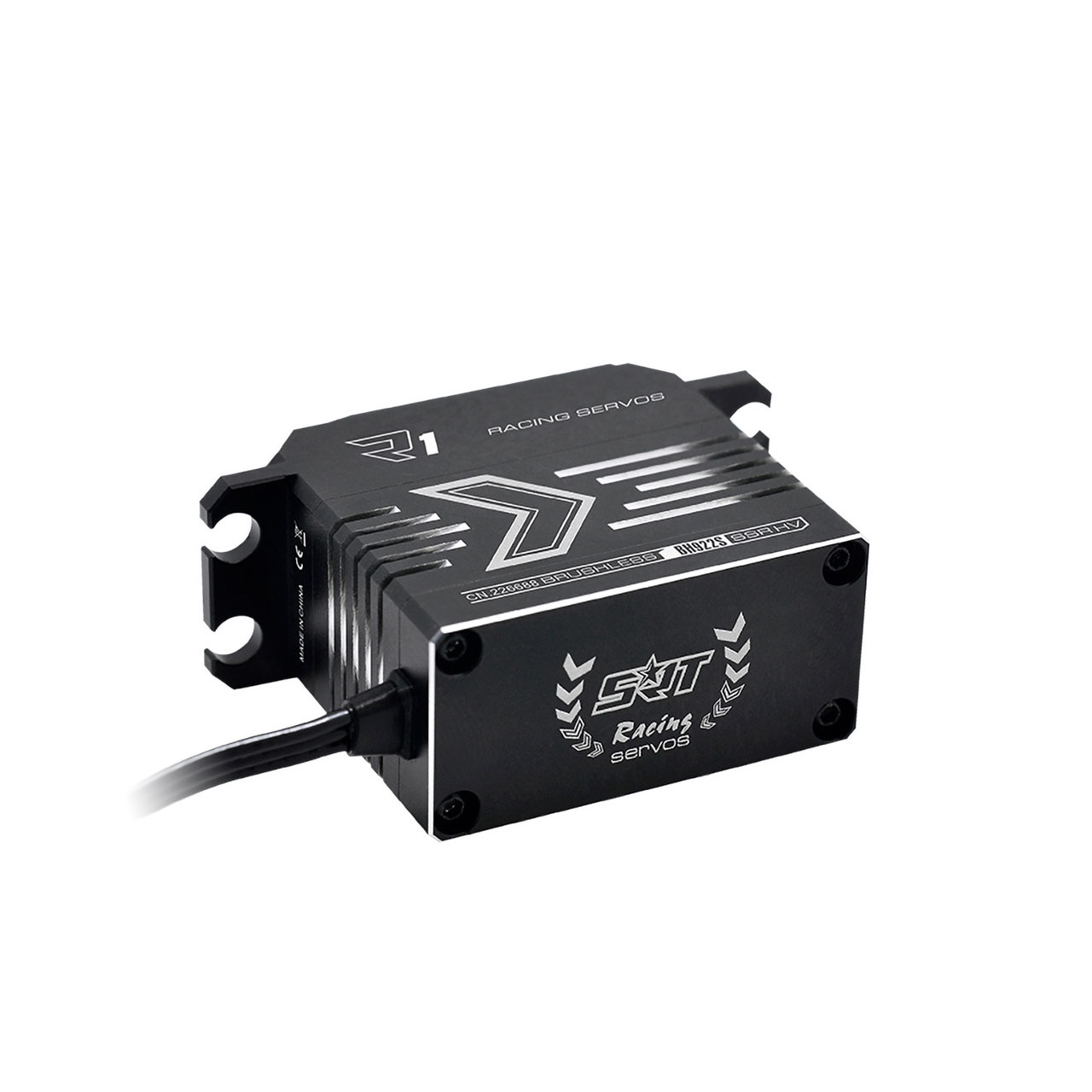

Brushless HV servo with CNC-machined aluminium case and 25T output shaft
The SRT BH922S is a brushless HV servo with a CNC-machined aluminium case and cooling fins.
Highlights
- Brushless motor
- CNC-machined aluminium case with cooling fins
- Low power consumption
- 330 Hz operating frequency
- Metal gears
- 25T output shaft
- SSR Mode compatible
Specifications
| Voltage | 6.0 V · 7.4 V · 8.4 V |
| Operating Speed | 0.08 s/60° (6.0 V) · 0.06 s/60° (7.4 V) · 0.055 s/60° (8.4 V) |
| Torque | 17.0 kgcm (6.0 V) · 20.0 kgcm (7.4 V) · 22.0 kgcm (8.4 V) |
| Current min./max. | – (6.0 V) · – (7.4 V) · – (8.4 V) |
| Motor | Brushless |
| Gears | Titanium / Steel |
| Type | Digital |
| Control Frequency | 330 Hz |
| Ball Bearing | Yes |
| Dimensions | 40 × 20 × 38 mm |
| Weight | 70.0 g |
| Spline | 25T |
| Application | 1/8 + 1/10 ON/Off-Road, Helicopter |
In the box
- 1× Servo
- 2× Servo horn
- 1× Sticker
