Brand: SRT

BH9032 Brushless Servo HV CNC aluminium case 30.0kg/0.12sec @7.4V

HV Brushless Servo with CNC-machined aluminium case and 30.0 kgcm at 7.4 V

Item number
BH9032
EAN
6969009003211
€98.90incl. VAT, plus shipping

RRP €98.90

In stock

Description

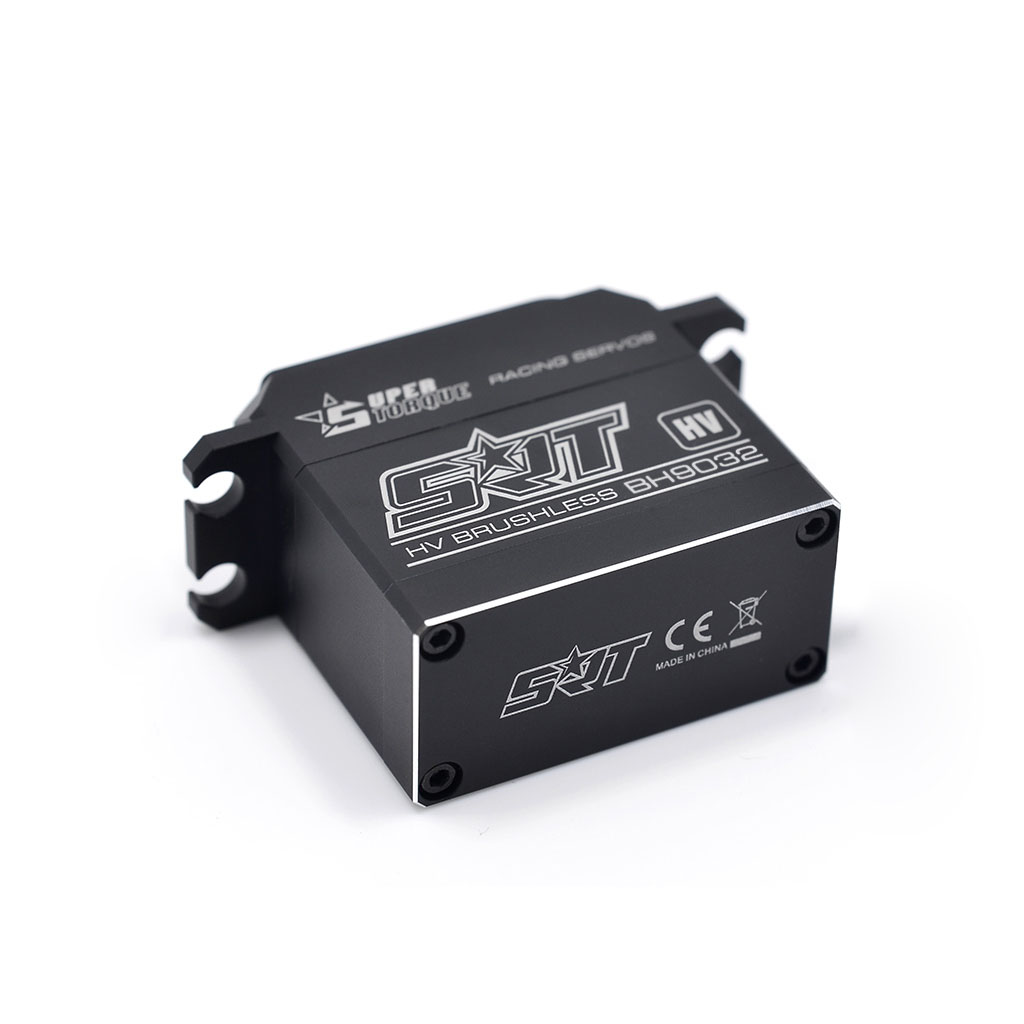

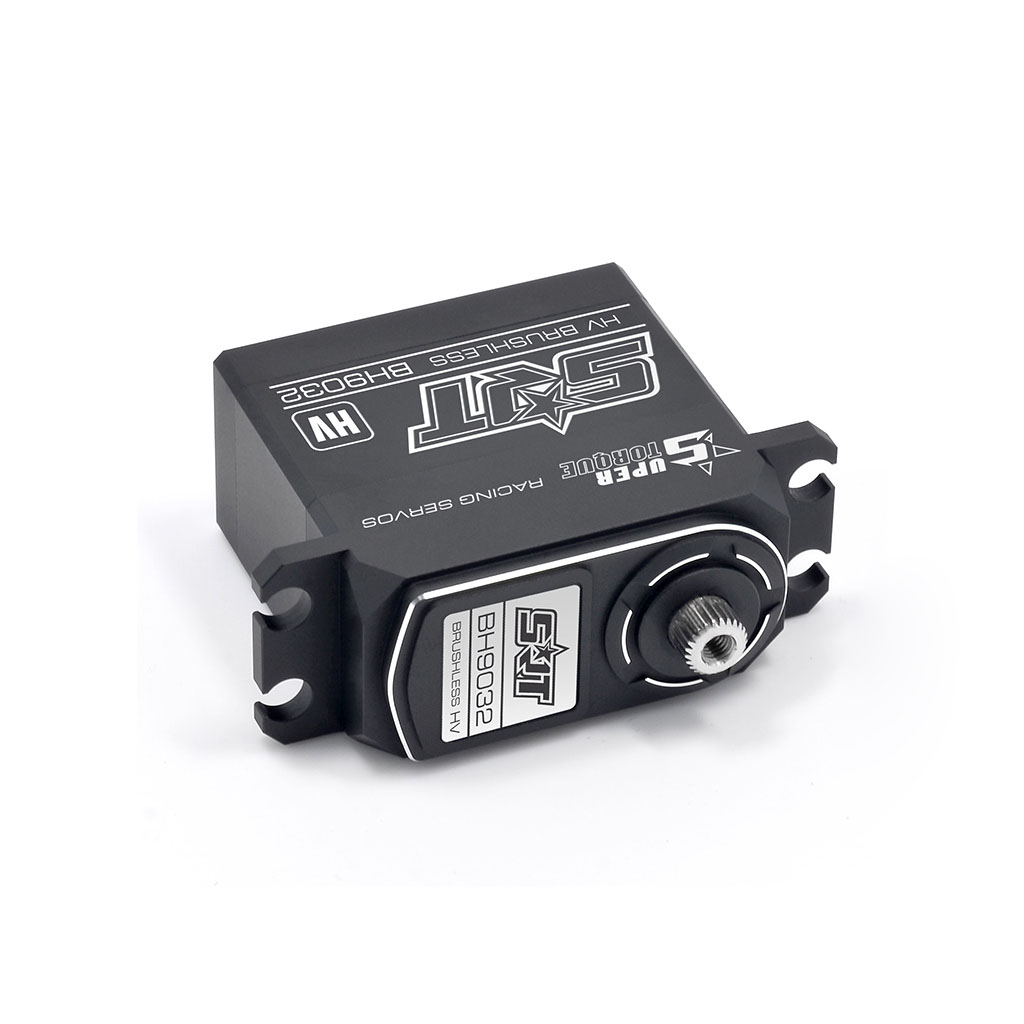

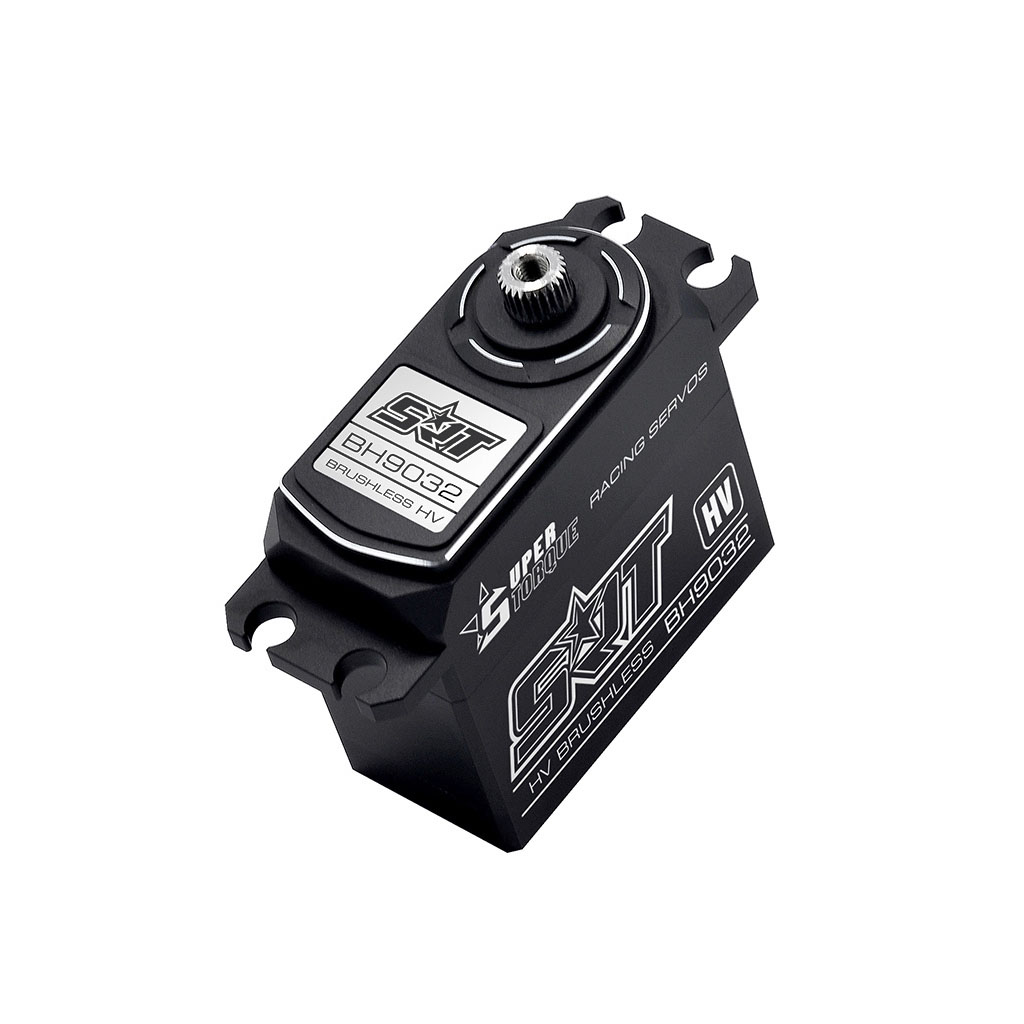

The SRT BH9032 is an HV Brushless Servo with a CNC-machined aluminium case.

Highlights

  1. Brushless motor
  2. CNC-machined aluminium case
  3. Efficient operation and low power consumption
  4. 333 Hz operating frequency
  5. Holding force and speed

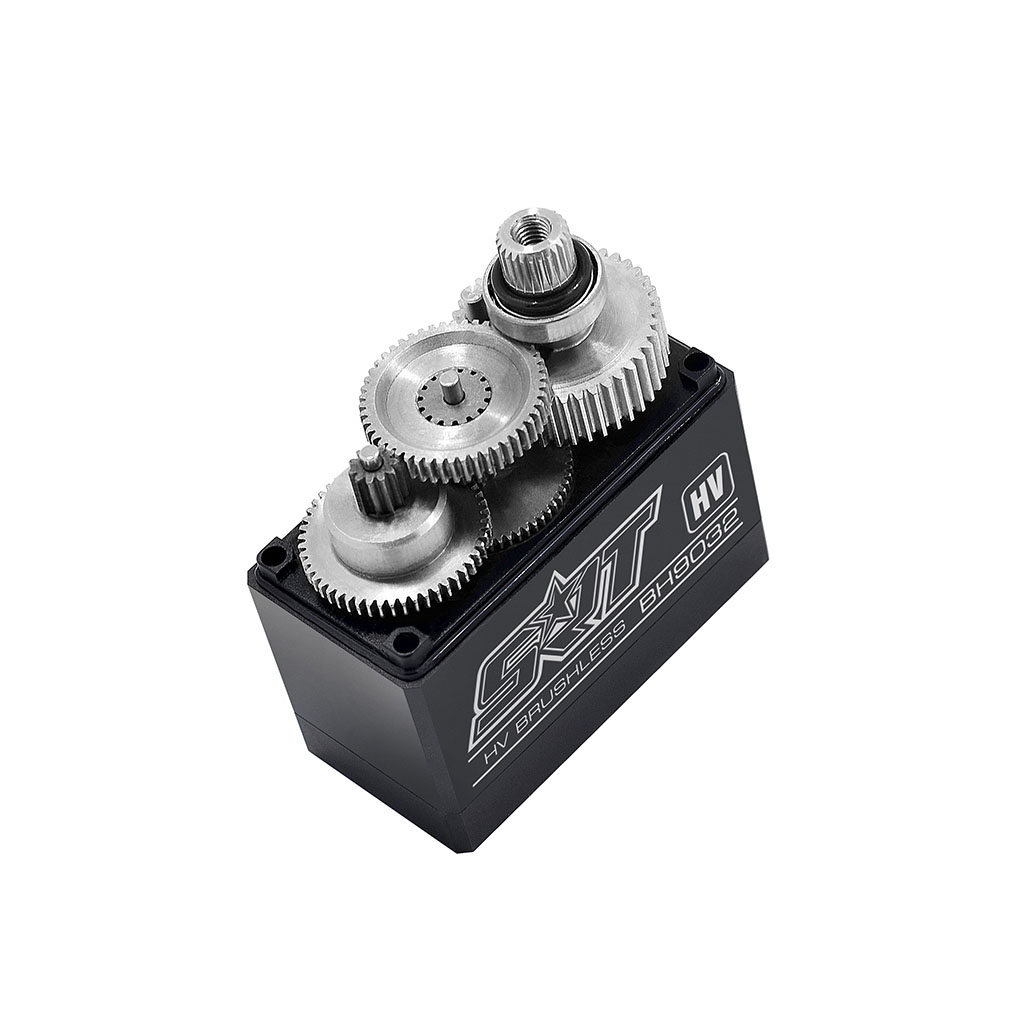

  6. Metal gears
  7. 25T output shaft

Specifications

Voltage6.0 V · 7.4 V · 8.4 V
Operating Speed0.14 s/60° (6.0 V) · 0.12 s/60° (7.4 V) · 0.11 s/60° (8.4 V)
Torque27.0 kgcm (6.0 V) · 30.0 kgcm (7.4 V) · 32.0 kgcm (8.4 V)
Current min./max.29 mA/3200 mA (6.0 V) · 35 mA/3600 mA (7.4 V) · 37 mA/3700 mA (8.4 V)
MotorBrushless
GearsTitanium / Steel
TypeDigital
Control Frequency333 Hz
Ball BearingYes
Dimensions40 × 20 × 39.3 mm
Weight70.0 g
Spline25T
Application1/5 On Road, 1/8 On/Off Road, Aircraft

In the box

  • 1 × Servo
  • 2 × Servo horn
  • 1 × Sticker

Safety & manufacturer

Manufacturer

SRT

Item number: BH9032

EAN: 6969009003211

Responsible person in the EU

Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)

Safety information

  • Contains small parts.
  • Keep away from children.
  • Not suitable for children under 14 years of age.
