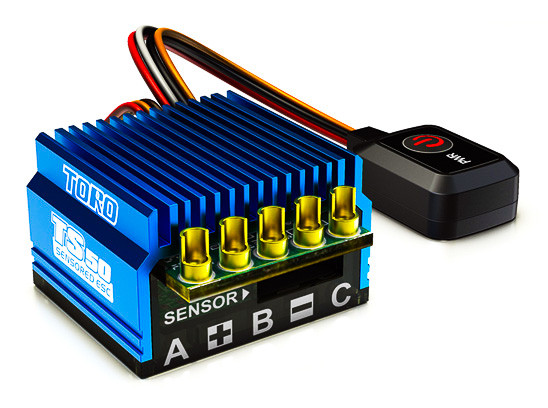

SkyRC Toro TS50 2s LiPo

Toro TS50 Sensored ESC

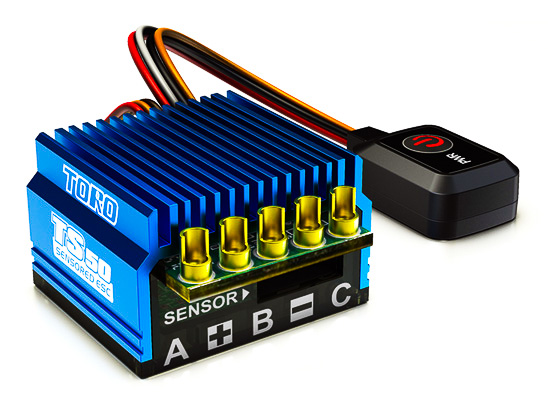

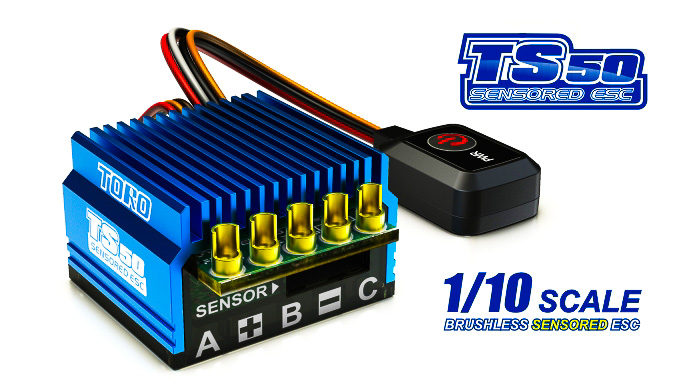

Toro TS50 ESC is a brushless sensored ESC with small size, light weight, and electronic power switch, which is designed for 1/10 Buggy and Touring car. It accepts 4-6S NimH or 2S LiPo battery, and its BEC is 6V/2A.
It comes with well-performed throttle and brake control function. Racers could set punch/brake control rate by point or customize the throttle/brake curve to meet the request for linear and power.
It also supports firmware update and can be programmed by program box, and SkyLink via PC.

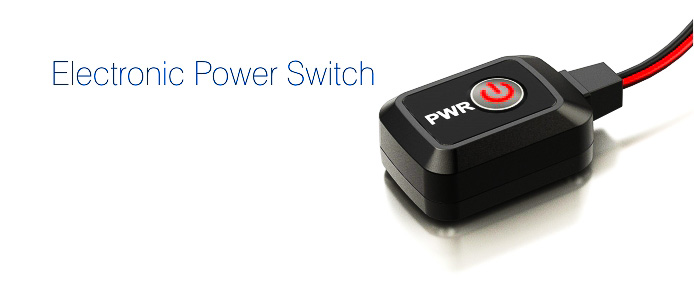

• Electronic Power Switch:
  A simple push button operates the switch meaning to eliminate the problems associated with intermittent contact of an ordinary mechanical switch.


• Less Resistance, Less Heat, More Effective


• 10 User Modifiable Profiles:
  The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.


• Safety Features:
  Low voltage protection
  Motor and ESC overheat protection
  Signal lost protection.


• Firmware Update:
  The firmware can be updated by connecting the ESC with PC .


• Programming Method:

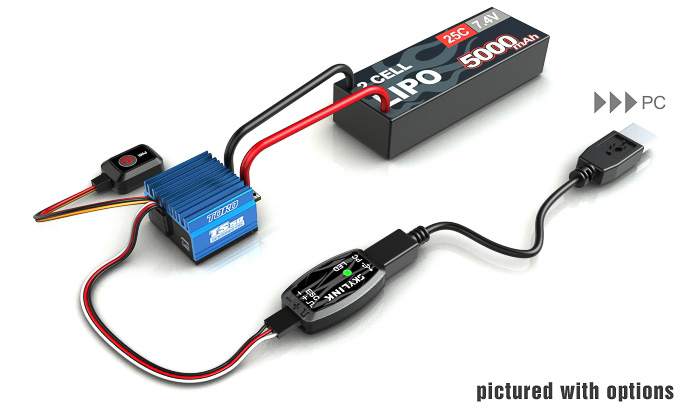

  It can be programmed by PC connected with
  1. SKYLINK (SK600013)

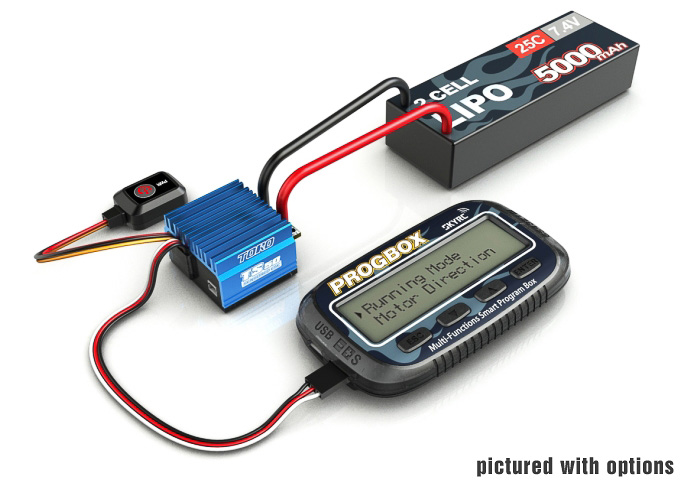

  2. PROGBOX (SK300046)


• Well-performed Throttle & Brake Control Function:
  Users could set the punch/brake control rate by point or custom the throttle/brake curve by themselves,and different customers' request for linear and power all can be met.
  Throttle Control Setting
  Throttle Curve Custom
  Brake Control Setting
  Brake Curve Custom

Technical Data:

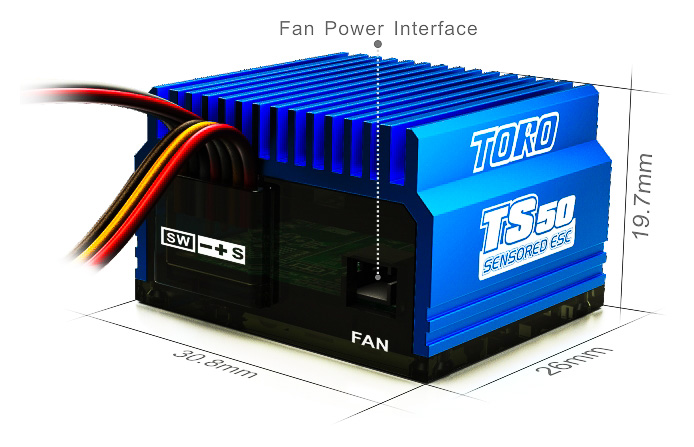

• Size (LxWxH): 30,8 x 26 x 19,7mm
• Constant/Burst Current: 50A/300A
• Motor Compatible: Brushless Sensor & Sensorless ESC
• Car Compatible: 1/10 Buggy and Touring Car
• Motor Limits: 4-6S NiMH or 2S LiPo--=8.5T(1/10 Touring Car),=11.5T(1/10 Buggy)
• Resistance: 0.0006ohm
• Battery Cell Count: 4-6S NiMH or 2S LiPo
• BEC Output: 6V@2A
• Weight: 60g
• FAN: Optional part
