T120 Pico AC LiPo 2-4s 6A 2x60W Charger
Dual-channel AC charger with 60 W per channel and adjustable DC output
- Item number
- SK100236-01
- EAN
- 6930460009692
RRP €57.90
Description
The SkyRC T120 Pico is an AC charger with two independent charging circuits. It can charge batteries of different chemistries simultaneously, each with its own settings. Both channels have a front-mounted XT60 output and balance socket. It supports LiPo, LiHV, Li-ion and LiFe batteries with 2–4 cells, NiMH and NiCd with 6–8 cells, and Pb batteries with 3 or 6 cells.
An Arm Cortex-M3 processor keeps the selected charging values stable under full load. The main output and balance port work together to monitor every cell's voltage throughout charging. During charging, the plus button can be used to view each cell's internal resistance.

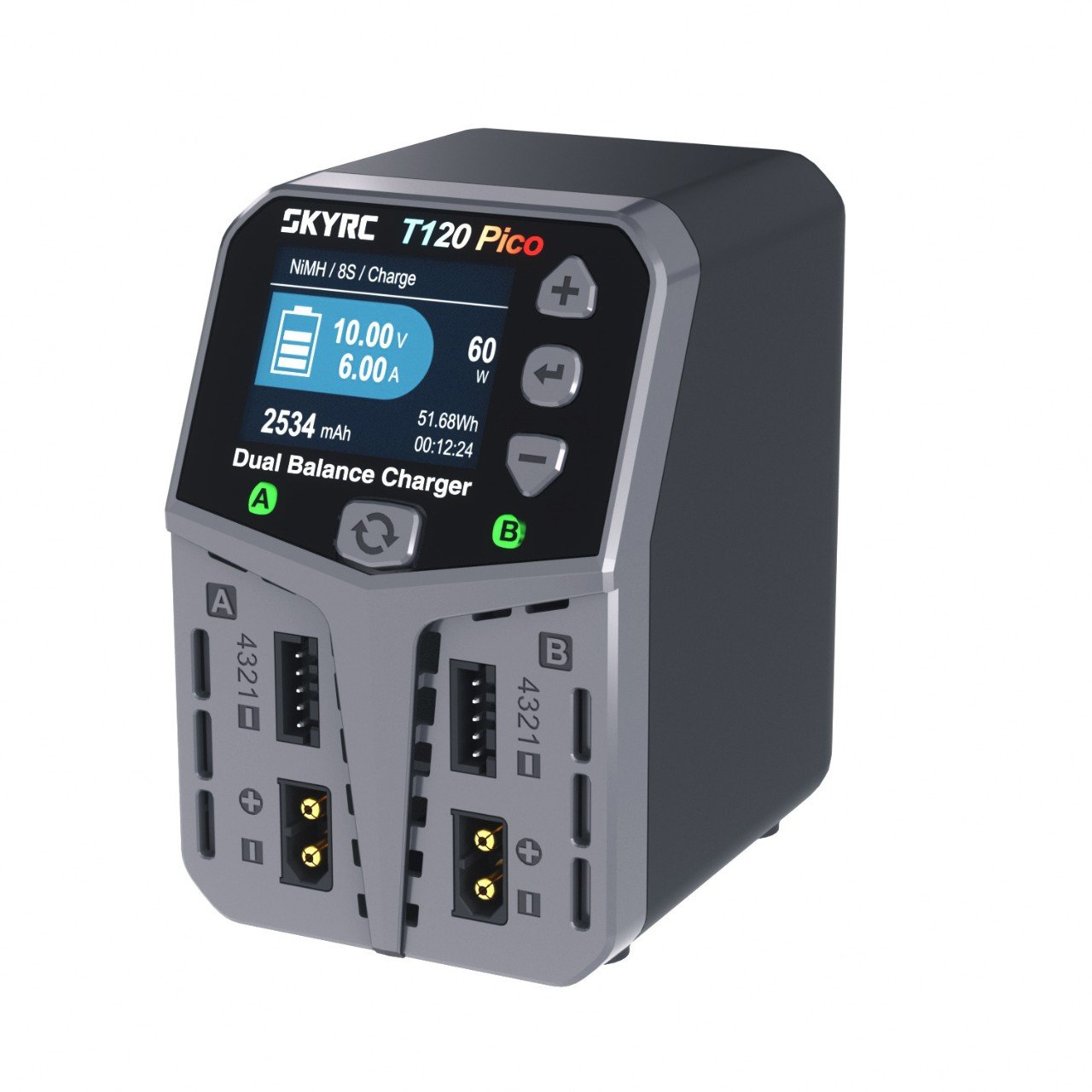

The ColorX interface uses a light cyan and green colour scheme and a Web2.0 menu. Plus, enter and minus buttons control the menus; a dedicated button switches between channels A and B. English is the factory-set menu language. At low currents, the temperature-controlled fan runs quietly.
Each port can also supply adjustable DC power for RC accessories such as a pit light, tyre warmer or tyre sander. Capacitive loads such as chargers or power supplies must not be connected, and batteries must not be charged in DC mode.
Notes
- DC mode is intended as a supplementary output for RC accessories. Do not connect capacitive loads such as chargers or power supplies, or charge batteries in DC mode.
Highlights
- Two independent charging circuits at 60 W each, 120 W in total; charge current up to 6 A and balance current up to 500 mA

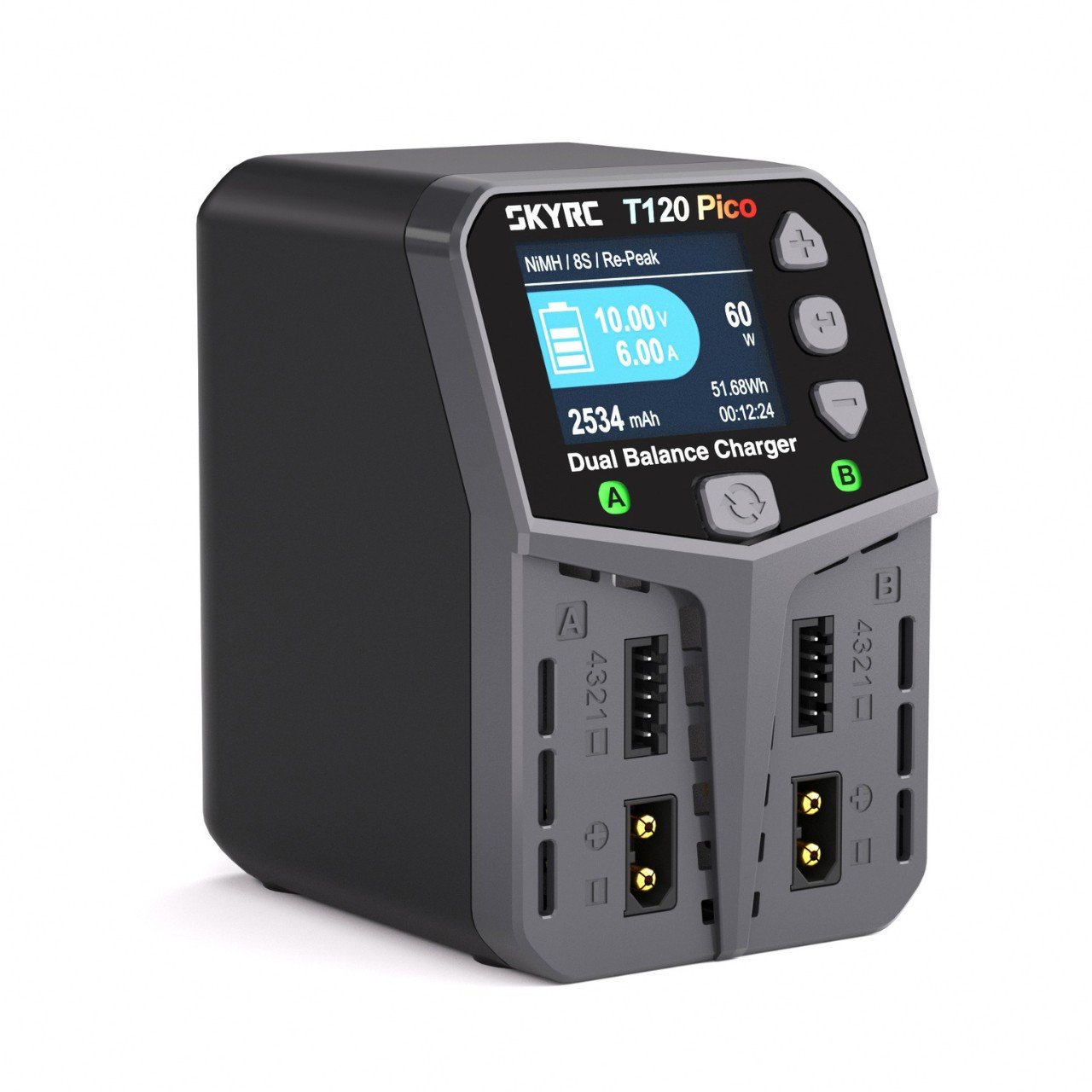

- XT60 output and balance socket per channel, accessible from the front
- Modes: Balance Charge, Charge and Storage (lithium); Charge and Re-Peak (NiMH/NiCd); Normal, AGM Charge and Cold Charge (Pb)
- Battery Meter for total pack voltage, individual cell voltages and internal resistance
- Adjustable DC power supply: 6–17 V and 0.5–6 A per port
- ColorX colour interface with selectable menu language; temperature-controlled fan
- Adjustable safety cut-off by time and capacity, switchable trickle charge and float mode for Pb batteries
- Short-circuit, reverse-polarity, over-voltage, overload, over-temperature, capacity and time-limit protection; flame-retardant chassis

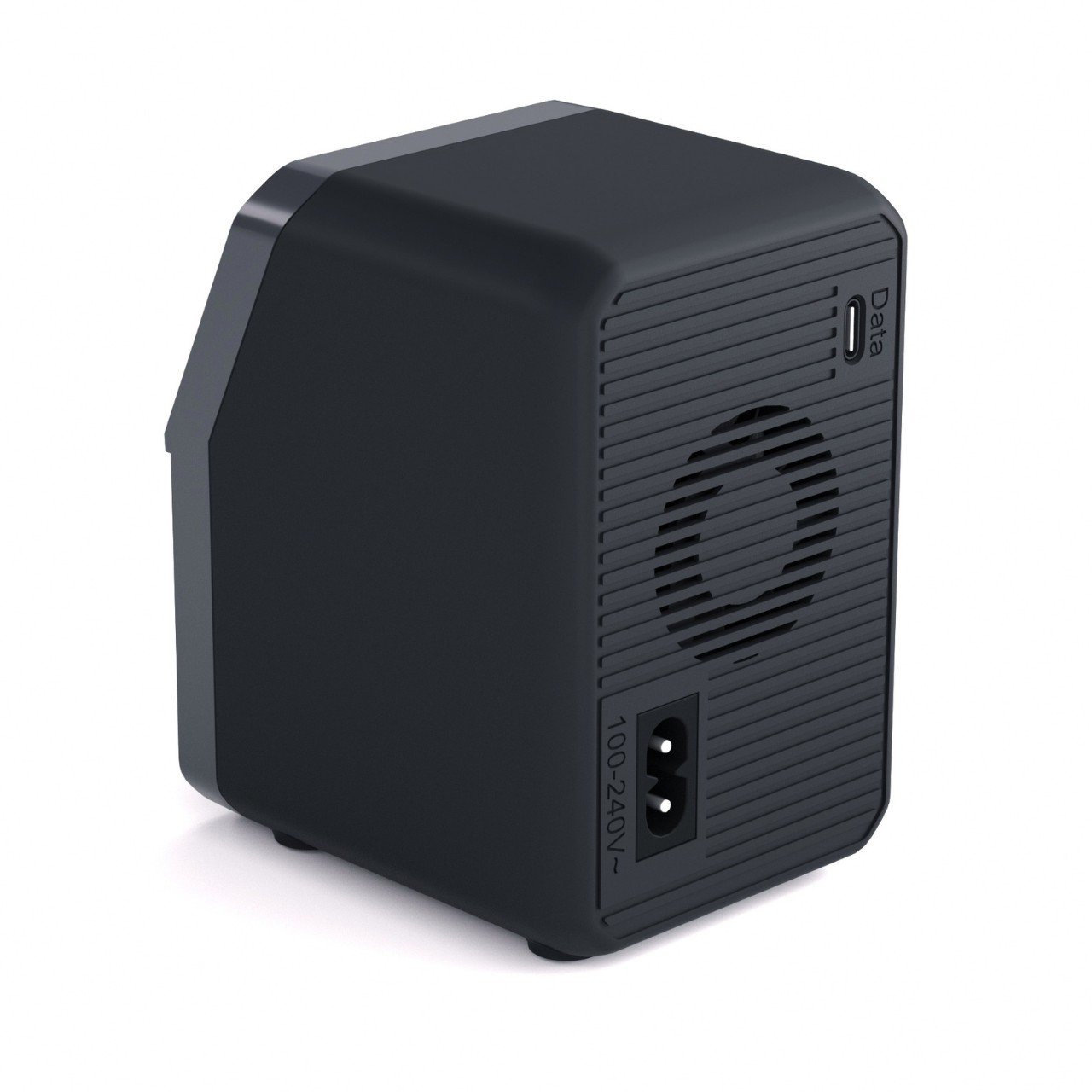

- Firmware updates over USB-C with SkyRC Charger Master PC software
Specifications
| Input Voltage AC | 100–240 V (50/60 Hz) |
|---|---|
| Charge Power | 60 W × 2 (±10%) |
| Charge Current LiHV/LiPo/Li-ion/LiFe/NiMH/NiCd | 0.1–1 A (±0.15 A), 1.1–6 A (±10%) |
| Charge Current Pb | 0.8–1 A (±0.15 A), 1.1–6 A (±10%) |
| Balancing Current | max. 500 mA |
| Storage Mode Discharge | max. 500 mA, via balance port only (up to 9 W) |
| Cell Count LiHV/LiPo/Li-ion/LiFe | 2–4 cells |
| Cell Count NiMH/NiCd | 6–8 cells |
| Cell Count Pb | 3 or 6 cells |
|---|---|
| DC Power Supply Output | 6–17 V (±0.2 V), 0.5–6 A |
| Connectors | 2x XT60, 2x balance, USB-C (firmware) |
| Menu Languages | English, German, French, Spanish, Chinese, Japanese |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions | 90 × 70 × 106 mm |
| Weight | 355 g |
In the box
- 1 × SkyRC T120 Pico charger
- 1 × power cord
- 1 × instruction manual
