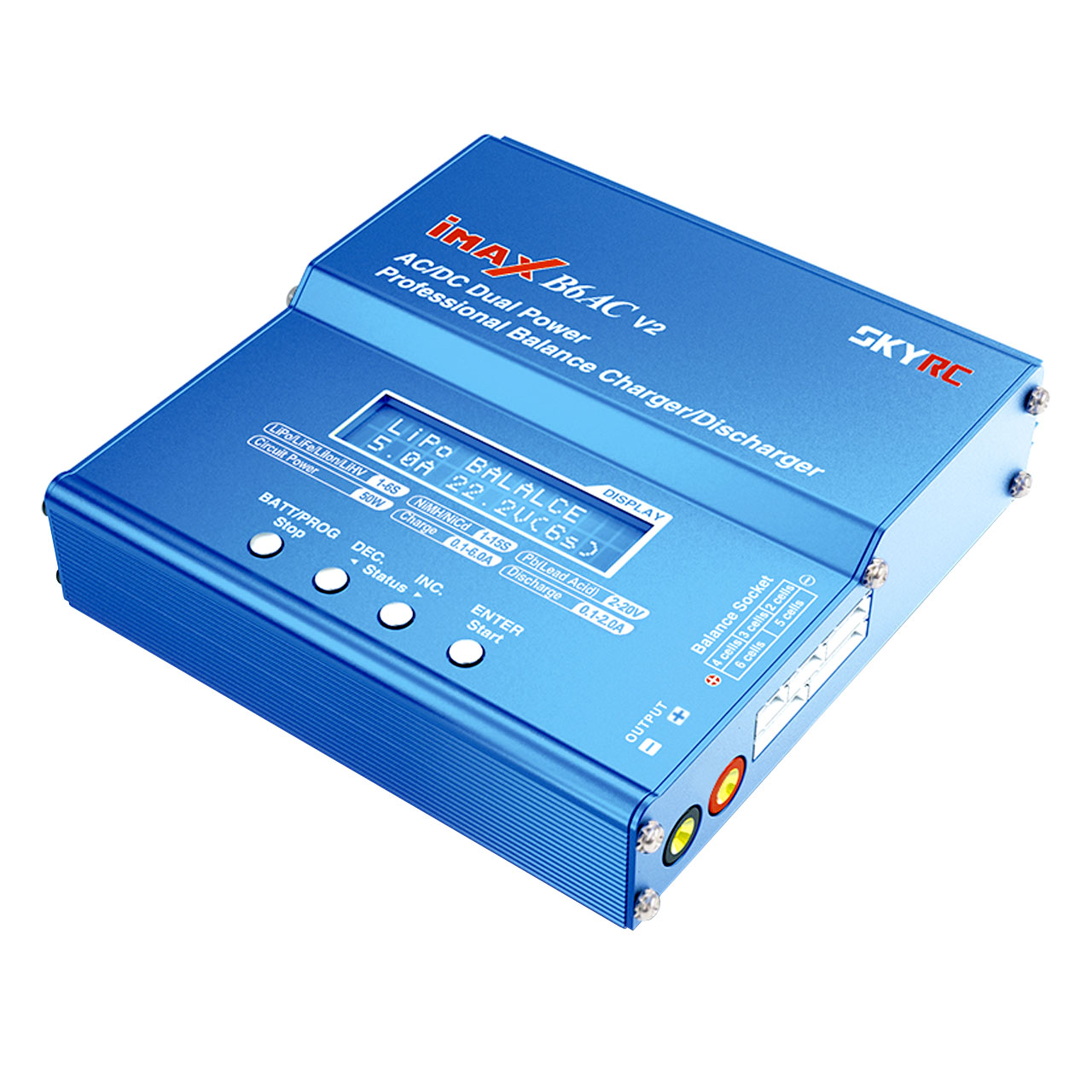

SkyRC B6AC V2 LiPo 1-6s 5A 50W Charger

SKYRC B6AC v2 is the upgraded version for well-known IMAX B6AC v1. Compared with B6AC v1, it is more accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. What's more, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safer than v1.

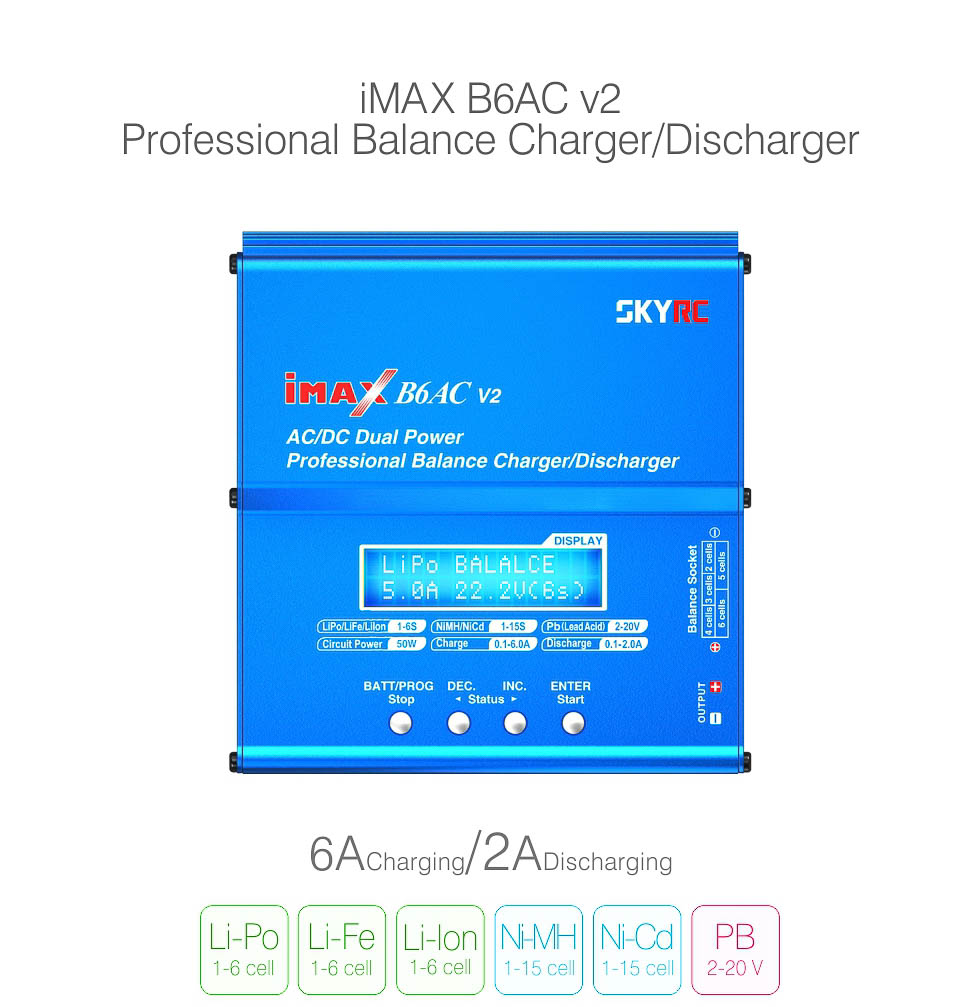

SKYRC B6AC v2 is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium iron phosphate(LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 50W charge power.


Features:

• LIHV Mode Available
  The additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.35 V.

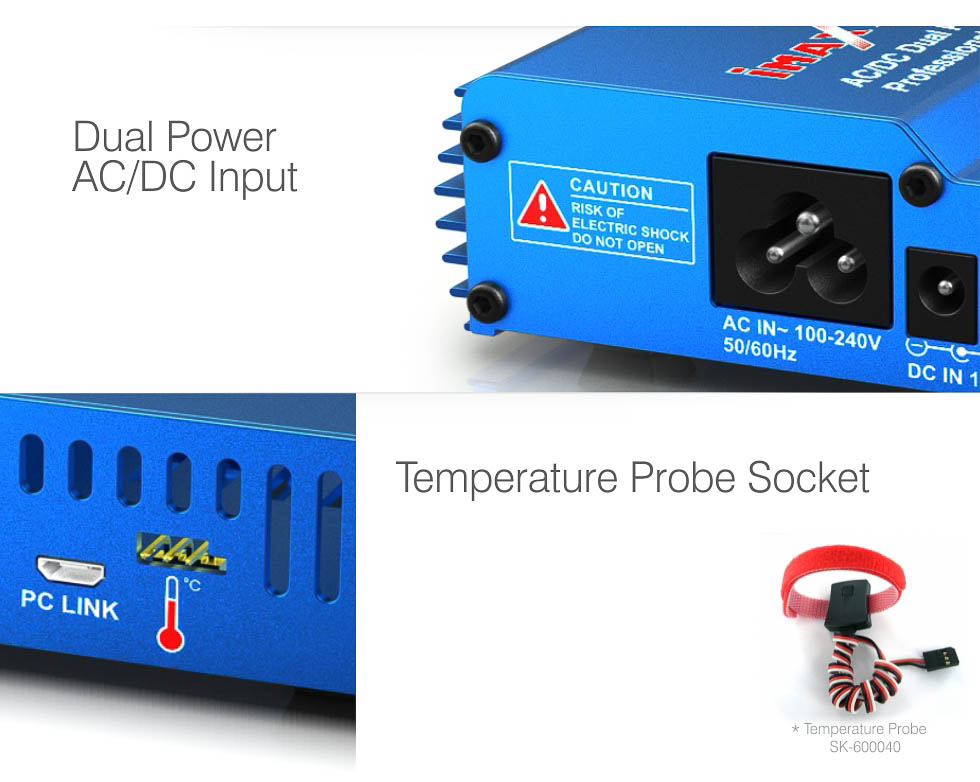

• Dual Power AC/DC Input
  You can run the Charger with AC input from 100-240V and also with DC input from 11-18V
• Temperature Probe Socket
  If the temperature limit is reached, the process will be terminated.
  (This function is available by connecting optional temperature probe, which is not included in the package)

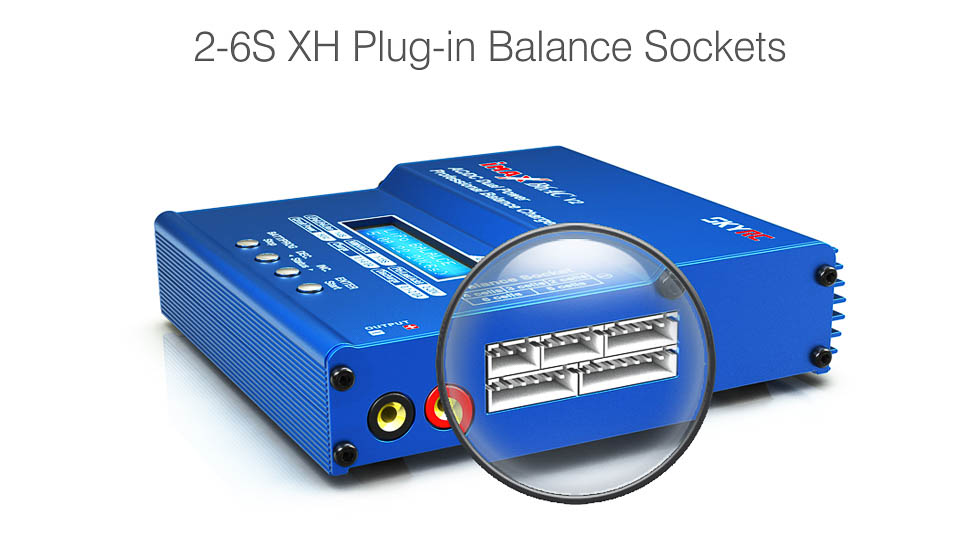

• Balancer Sockets
  The B6AC v2 has a 2-6S XH Balancer Board included in the case
• Built-In Cooling Fan
  With cooling fan built-in, it has better heat transfer function.
• Different Charging Modes
  Depending on different kinds of batteries, there are different charging modes to meet users request.
  • LiPo / LiFe / LiIon Batteries
    • Normal Charge
    • Balance Charge
    • Fast Charge
    • Discharge
    • Storage
  • NiCd/NiMH Batteries
    • Normal Charge
    • Auto Charge
    • Discharge
    • Cycle
    • Re-Peak
  • PB Battery
    • Normal Charge
    • Discharge
• Lithium Battery Balancer
  SKYRC B6AC v2 employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.
• Program Data Store/Load
  The charger can store up to 10 different charge/discharge profiles for your convenience. Users can call out these data at any time without any special program setting.
• Battery Meter
  The user can check battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage by this charger.
• Battery Resistance Meter
  The user can check battery's total resistance, the highest resistance, the lowest resistance and each cell's resistance.
• Maximum Safety
  The Maximum Safety makes the charger safer than B6AC v1
  • Automatic Charging Current Limit
  • Capacity Limit
  • Temperature Threshold
  • Processing Time Limit
• Termin Voltage Control
  The charger allows user to set the charge/ discharge end voltage.

PC Control
The user can monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs, and can also control charging and update firmware from "Charge Master".

Smart Phone Control & Monitor Via Wi-Fi Module
This charger can be controlled and operated by smart phones via Wi-Fi module (both iOS and Android ).


Technical Data:

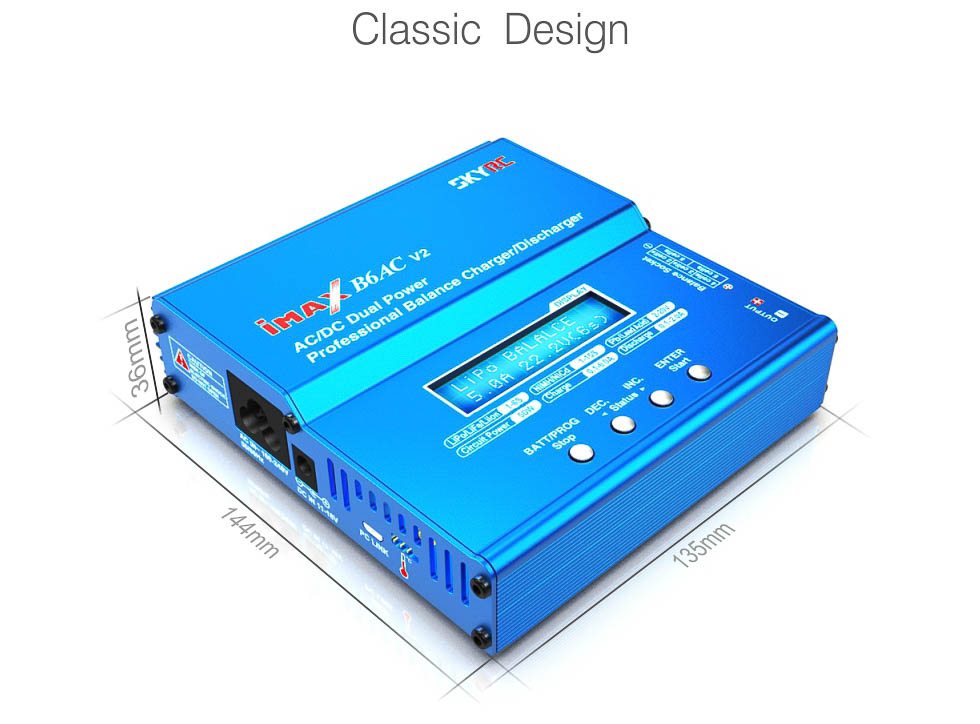

• Dimersions (HxBxL): 36 x 135 x 144mm
• Net Weight: 632g
• Input Voltage:
  • AC: 100-240V
  • DC: 11-18V
• Circuit Power:
  • Max Charge: 50W
  • Max Dischage: 5W
• Charge Current Range: 0.1-6.0A
• Discharge Current Range: 0.1-2.0A
• LiPo/LiFe/LiIon Cells: 1-6S
• NiMH/NiCd Cells: 1-15S
• Pb battery Voltage: 2-20V
