Description

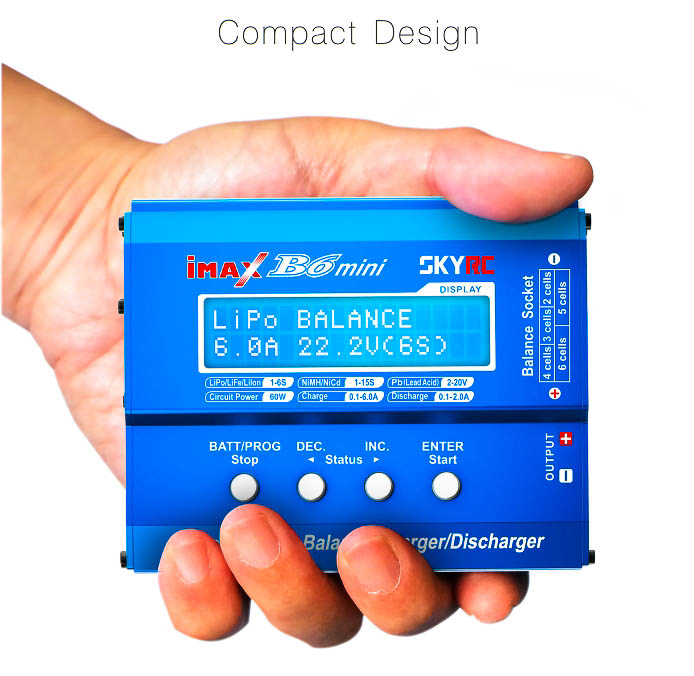

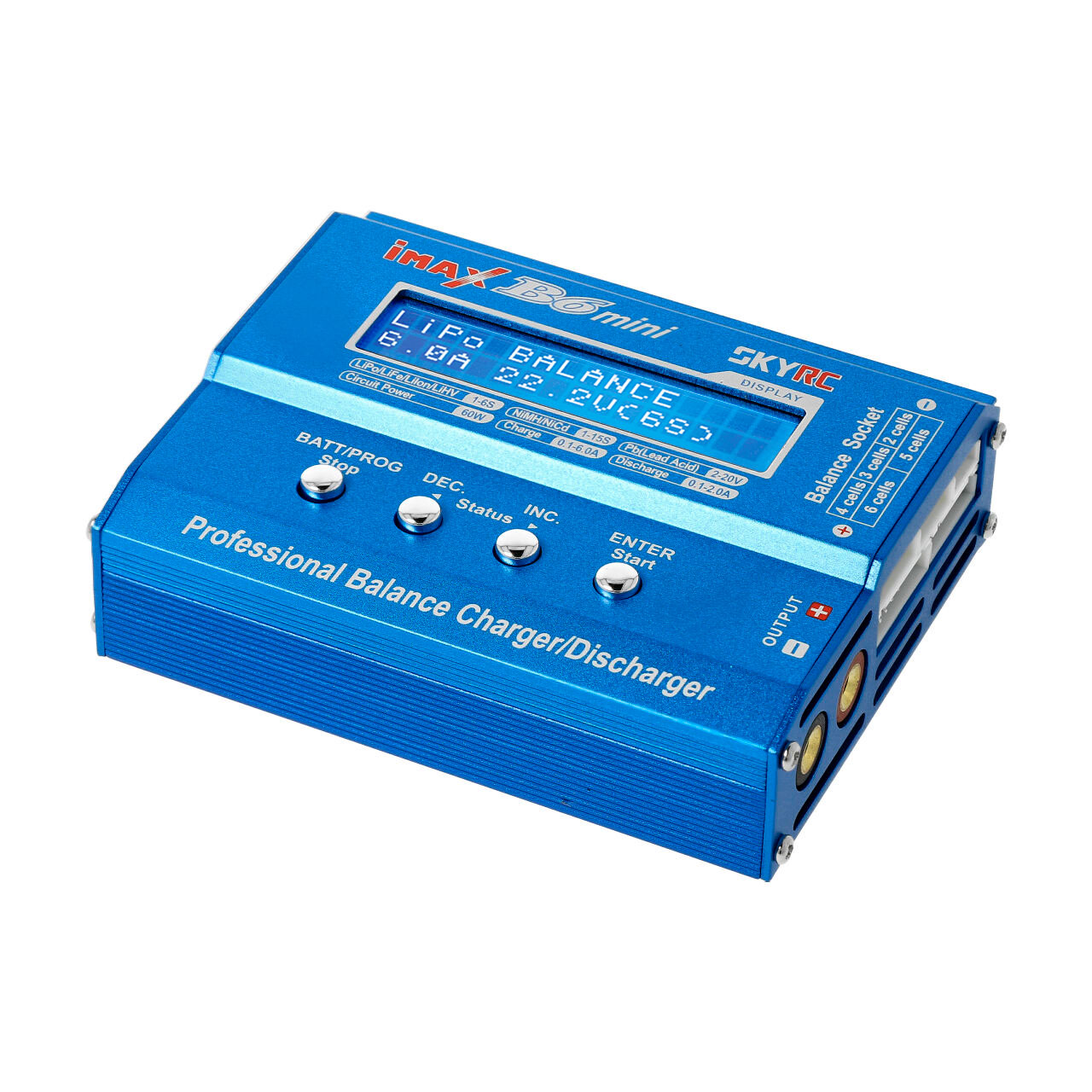

The SKYRC B6 mini is a compact, upgraded version of the IMAX B6. Compared with the B6, its power and charge current are 20% higher. It connects to a PC for control and firmware updates and can be used as a lithium battery meter and battery internal resistance meter.
The microprocessor-controlled charge/discharge station has battery management and an integrated balancer for up to six LiPo, LiFe or LiIon cells. Maximum charge current is 6 A and maximum charge power is 60 W.
Charge Master software allows charging to be controlled from a PC, with pack voltage, cell voltage and other data monitored during charging and charge data displayed in real-time graphs. The charger can also be controlled and monitored from iOS and Android smartphones via a Wi-Fi module.
Highlights
- Temperature threshold stops the process when the limit is reached; requires an optional temperature probe, not included

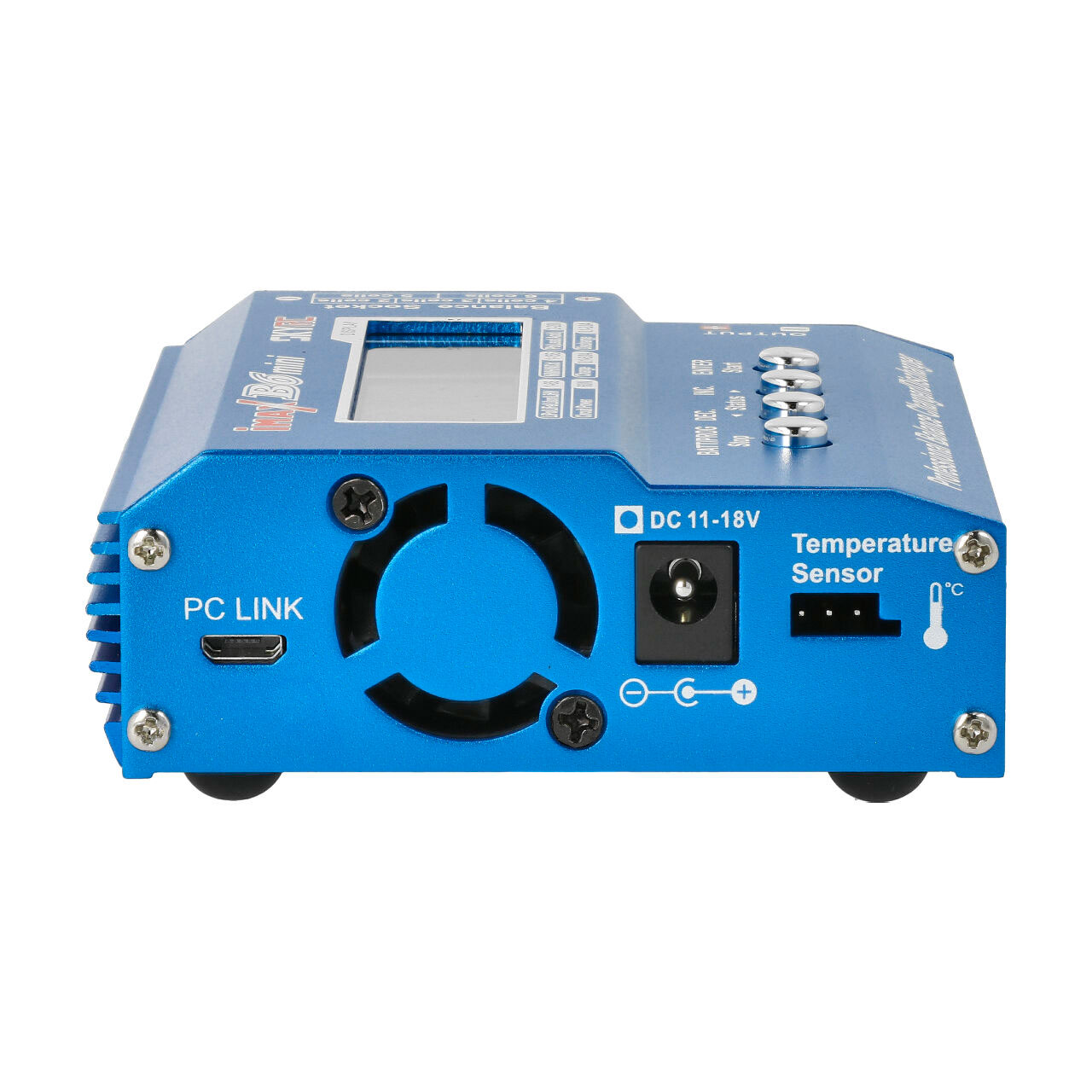

- Built-in cooling fan
- LiPo, LiFe and LiIon modes: normal charge, balance charge, fast charge, discharge and storage
- NiCd and NiMH modes: normal charge, auto charge, discharge, cycle and re-peak; Pb modes: normal charge and discharge

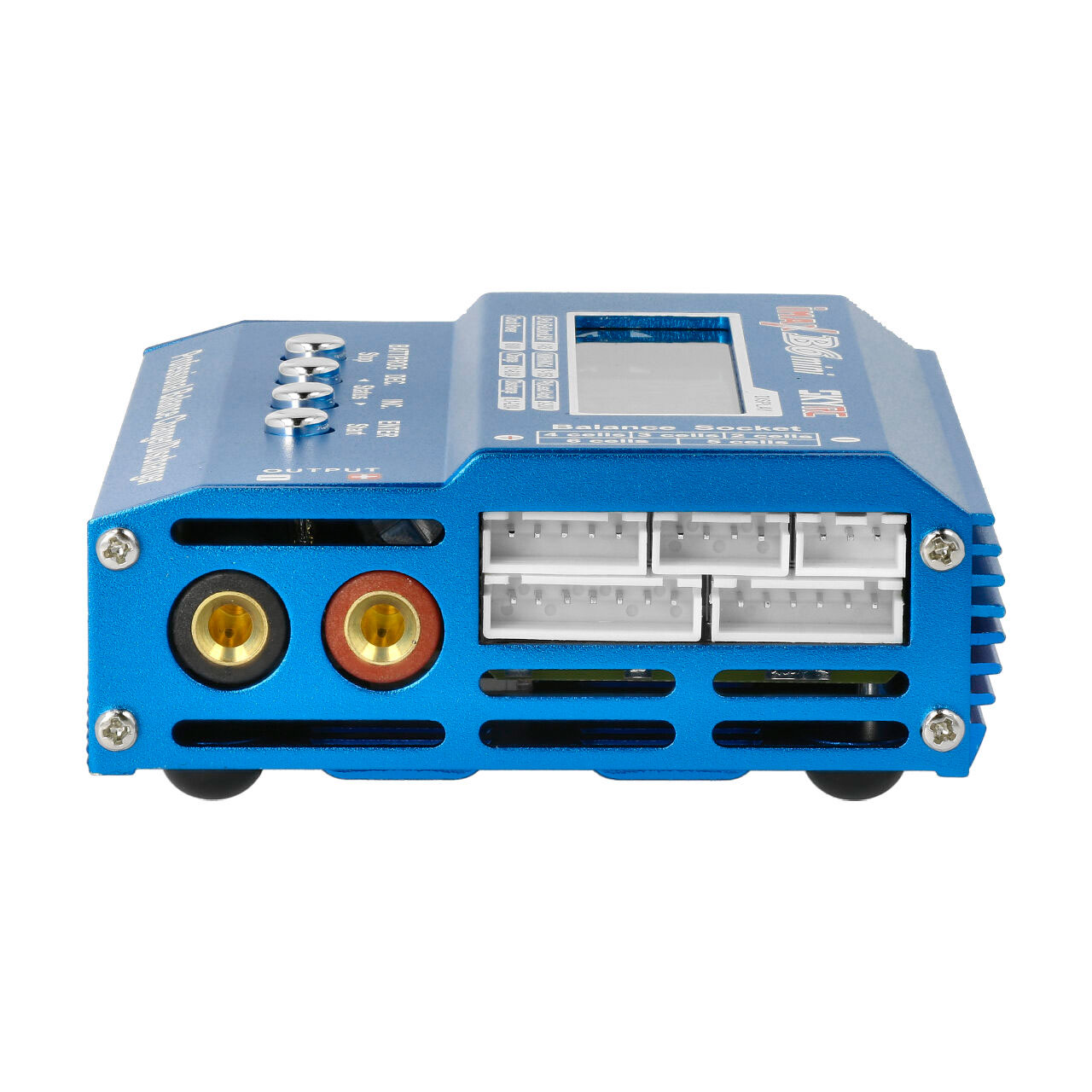

- Individual-cell-voltage balancer; no external balancer required for balance charging
- Stores up to 10 charge/discharge profiles for later use
- Battery meter shows total, highest, lowest and individual cell voltages; resistance meter shows total, highest, lowest and individual cell resistances
- Automatic charge current limit, capacity limit, temperature threshold and processing time limit; adjustable charge/discharge end voltage
Specifications
| Dimensions (HxBxL) | 29 × 84 × 102 mm |
|---|---|
| Net Weight | 233 g |
| Input Voltage | DC 11–18 V |
| Max Discharge | 5 W |
| Charge Current | 0.1–6.0 A |
| Discharge Current | 0.1–2.0 A |
| LiPo/LiFe/LiIon Cells | 1–6S |
| NiMH/NiCd Cells | 1–15S |
| Pb Battery Voltage | 2–20 V |
| Max Charge | 60 W |
|---|
Documents
Safety & manufacturer
Manufacturer
SkyRC
Item number: SK100084
EAN: 6930460000798
Responsible person in the EU
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
