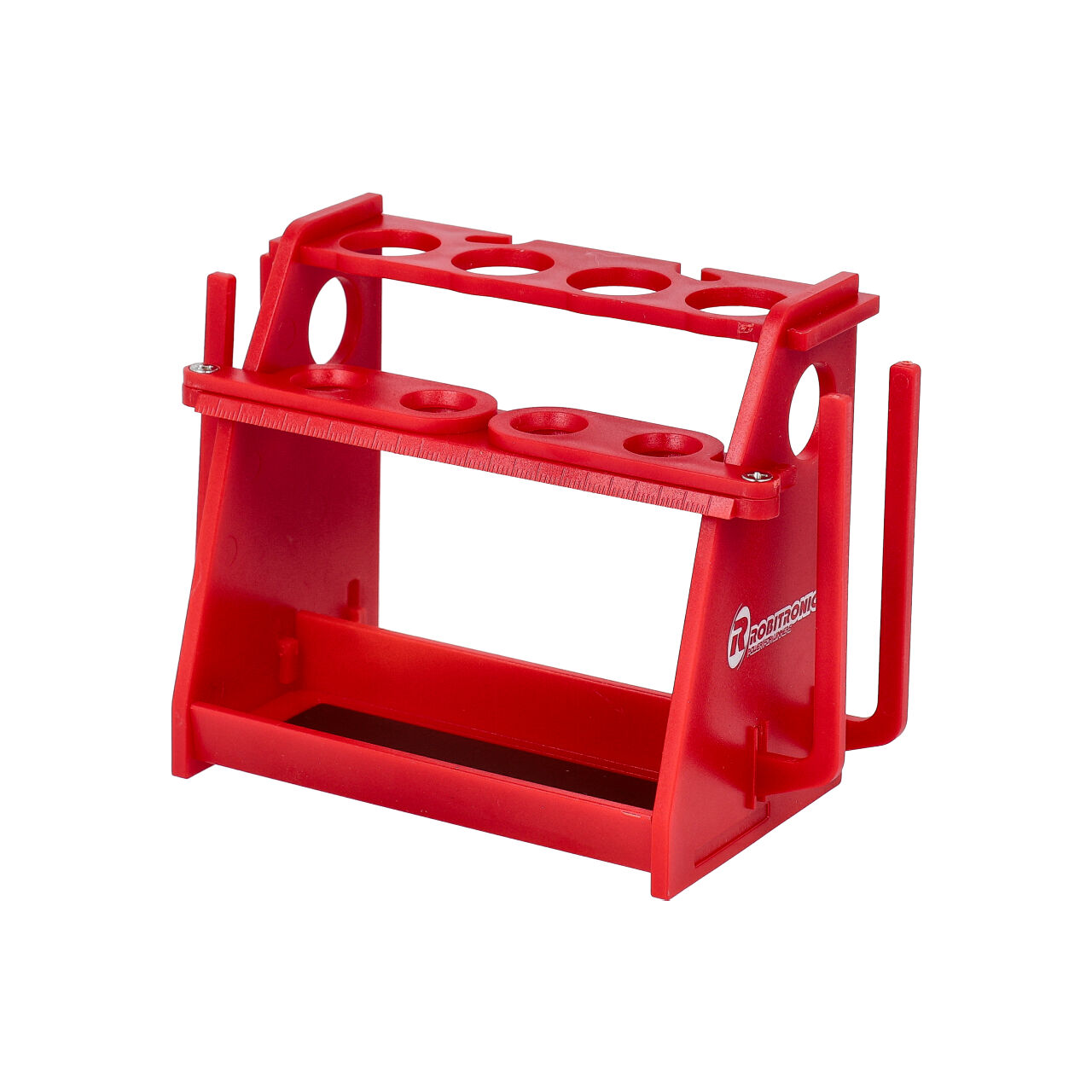

Robitronic Shock Absorber Pits Holder V2 Red

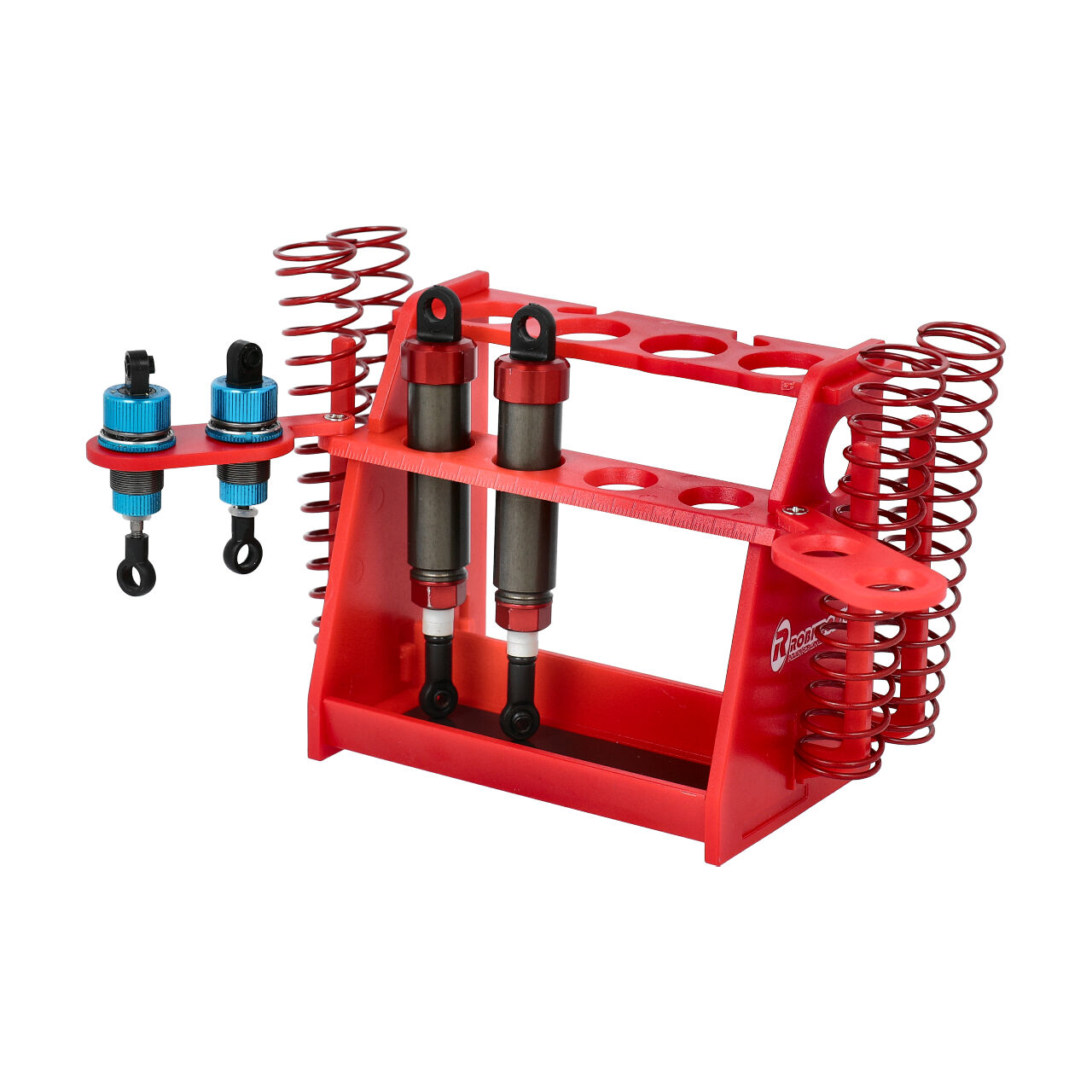

This multifunctional talent from Robitronic is primarily used as an aid for filling shock absorbers - ideal for the 1/10 scale.

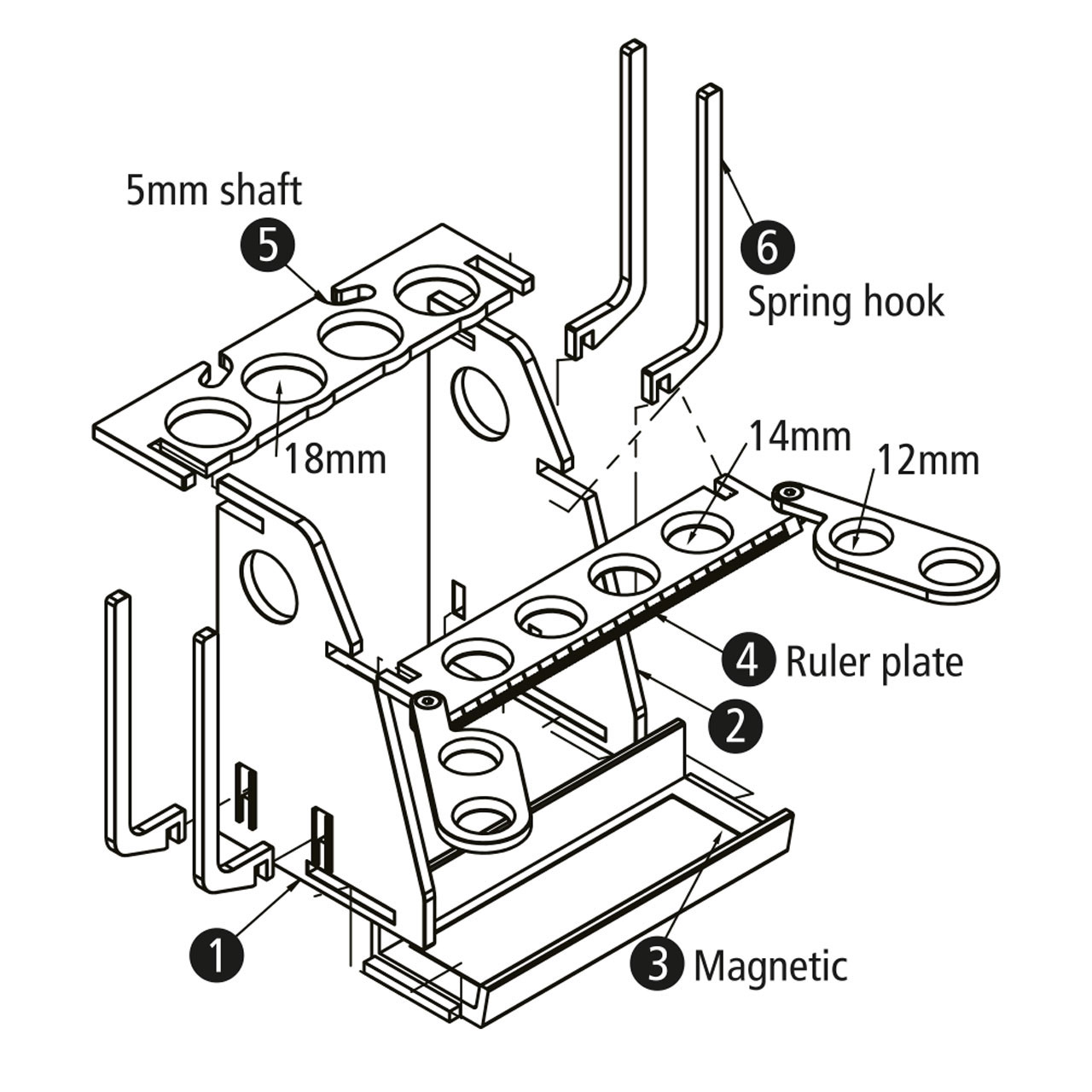

The stand consists of 9 individual parts that just have to be plugged into each other. On the bottom there is a practical magnetic board to hold screws, split pins or the like. For this purpose, the stand offers 12 hole spaces that have to be filled, with 4 additional rods, for hanging up e.g. feathers.

The four holes on the upper floor have a diameter of 18.4mm, the upper edge of the upper floor measures approx. 96mm to the floor. The holes on the lower level are conical downwards and have a diameter of 17mm and are reduced to 14.2mm. The upper edge measures approx. 72mm to the floor wpp And with the 4 stands that can be opened at the side, YOU have even more space available. Here, too, taper holes (14.2mm-12.5mm) are drilled.

Technical Specifications:

• Thickness of the plastic parts 3.5mm
• The wave-shaped (lateral) incisions on the upper floor are approx. 4mm wide
• The magnetic field measures approx. 27mm x 84.5mm
• Dimensions (H x W x D): approx. 100 x 141 x 68mm
