Scorpion M-2212-930kv

Scorpion M-2212-930kv
€58.70 *

Prices incl. VAT plus shipping costs

Ready to ship, Stock Amount: 11 pcs

  • SP-M2212-0930
  • €58.70
  • 4046032077104
Scorpion M-2212-930kv has been specifically constructed to perform less vibration overall, and to... more
Product information "Scorpion M-2212-930kv"

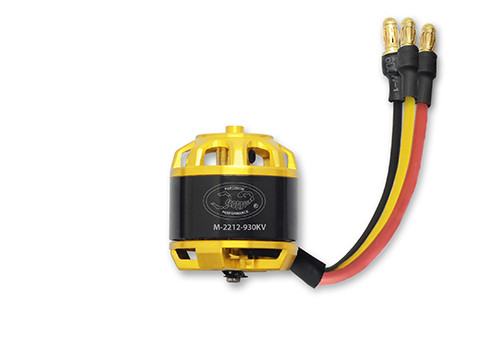

Scorpion M-2212-930kv has been specifically constructed to perform less vibration overall, and to give a more stable and efficient performance as the result of longer flight time eventually. This makes the Scorpion M-2212-930kv one of the best choices for aerial photography. The motor can be powered by 3 cells, and up to 4. There are no modifications necessary to replace the original motor. Each package includes 1 motor, mounting plate, standard bolt-on propeller adapter, securing collar, and a set of screws.

Technical Data:

Stator Diameter22 mm(0.866 in)
Stator Thickness12 mm(0.472in)
No. of Stator Arms12
Magnet Poles14
Motor Wind24 Turn Delta
Motor Wire3-Strand 0.21 mm
Motor Kv930KV RPM/Volt
No-Load Current (Io/10V)0.35Amps
Motor Resistance (Rm)0.169 Ohms
Max Continuous Current13 Amps
Max Continuous Power218 Watts
Weight51.8 Grams (1.83 oz)
Outside Diameter27.9 mm (1.097 in)
Shaft Diameter2.98 mm (0.11 in)
Body Length31.5mm (1.24in)
Ovrall Shaft Length33.7mm (1.33 in)
Max Lipo Cell4cells
Motor Timing5deg
Drive Frequency8kHz


Recommend flight weight:

3-Arm Model: 3S | DJI 9450 = 825g
4-Arm Modele (Quadcopter): 3S | DJI 9450 = 1100g
6-Arm Modele (Hexacopter): 3S | DJI 9450 = 1650g
X-Arm Model (Multicopter): 3S | DJI 9450 = 2200g
