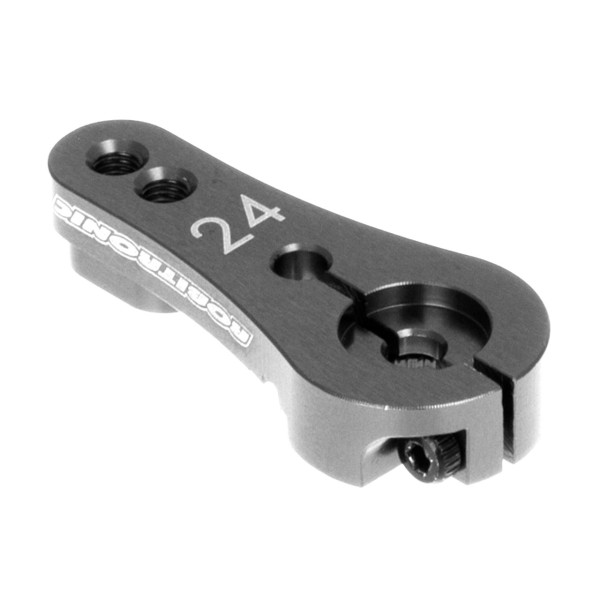

Servo Arm Alu 24Z Grey (Hitec)
This CNC-machined, grey-anodised aluminium servo arm with 24 teeth is clamped onto the output shaft for maximum hold using the mounting screw from above and an additional side hex socket screw. This creates a play-free connection to the servo, enables more direct linkage and reduces the load on the gears. The 35 mm long, single-arm servo horn has two M3 mounting holes at distances of 20 mm and 24 mm from the centre and is suitable for servos with a 24-tooth output shaft, such as Hitec servos.
- Item number
- R17002G
- EAN
- 4046032065705
RRP €12.90
Description
The CNC-machined aluminium servo arm is attached to the servo with the mounting screw from above and a side hex socket screw. The side screw clamps the servo arm onto the output shaft. The play-free connection enables more direct linkage and reduces the load on the gears.
Suitable for servos with a 24-tooth gear spline / output shaft, e.g. Hitec.
Specifications
| Overall Servo Arm Length | 35 mm |
|---|---|
| Arm Thickness | 4 mm |
| Arm Thickness on Servo Side | 6 mm |
| Insertion Depth for Servo Gear | 3 mm |
| Arm Thickness on Linkage Side | 7 mm |
| Mounting Holes | M3 (2 pcs.) |
| Distance from Mounting Holes to Centre | 20 mm (hole 1) / 24 mm (hole 2) |
In the box
- 1 × Anodised single-arm servo arm, 24 teeth
- 2 × Hex socket screws
Safety & manufacturer
Manufacturer
Robitronic
Item number: R17002G
EAN: 4046032065705
Responsible person in the EU
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
