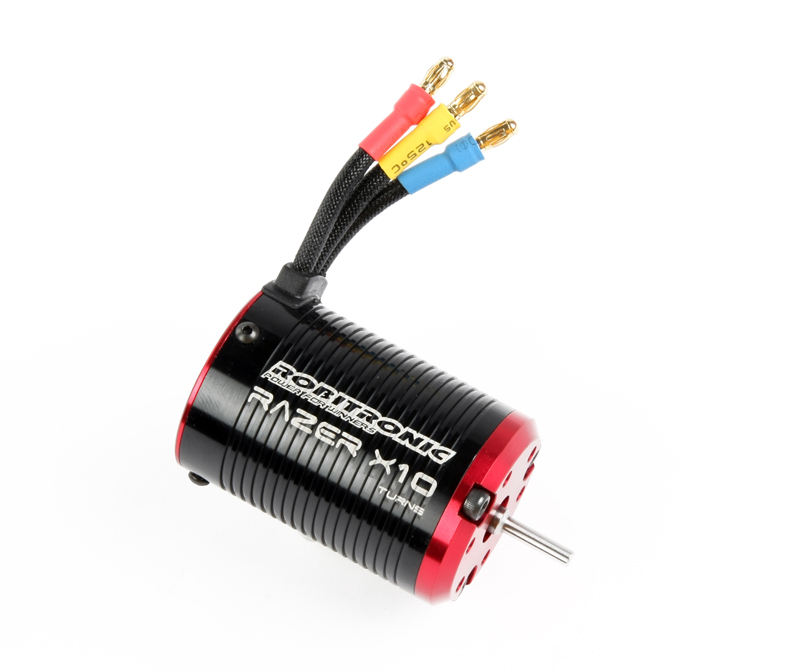

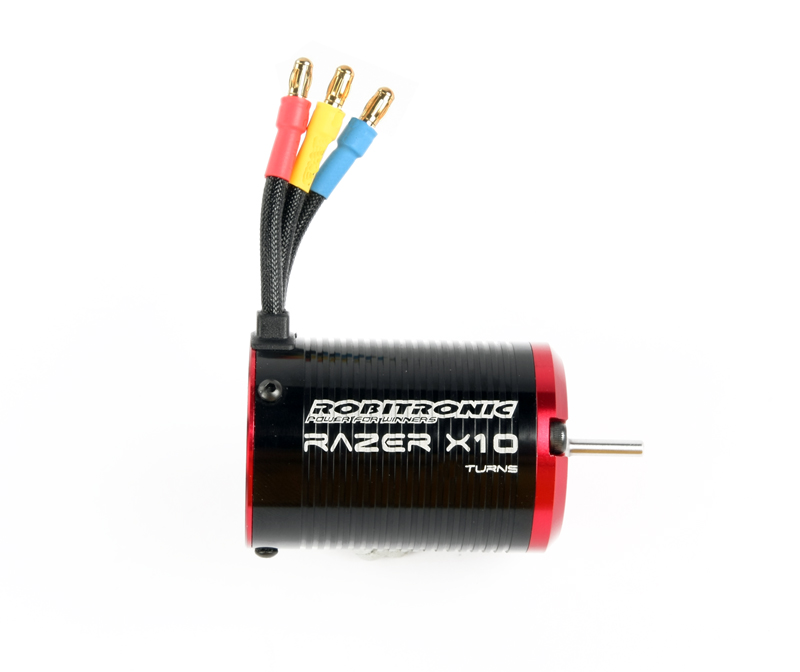

Robitronic Razer X10 Brushless Motor 8 Turn

RAZER X10 brushless car motors are specially developed to supply stable and strong power for R/C model cars like you expected.
The casing adopts high quality aluminium material which is high strength and light weight.
The special design of the rotor provides highest level of speed durability.

• 1.000 Watt power
• Sensorless
• Motorcan with cooling fins
• 3,17mm shaft diameter
• 3,5mm connector

Ordernumber	RD1520-8T	RD1520-10T	RD1520-12T
Sensortype	Sensorless	Sensorless	Sensorless
RPM/V (kV)	5.820	4.680	3.940
Max cells (LiPo)	3	4	5
Max. Current (A)	155	120	100
Number of Pole	4	4	4
Max. RPM	81.480	84.240	82.740
Max. Power (W)	1.000	1.000	1.000
Weight (g)	170	170	170
Diameter (mm)	36	36	36
Length (mm)	52,5	52,5	52,5
Shaft (mm)	3,175	3,175	3,175
