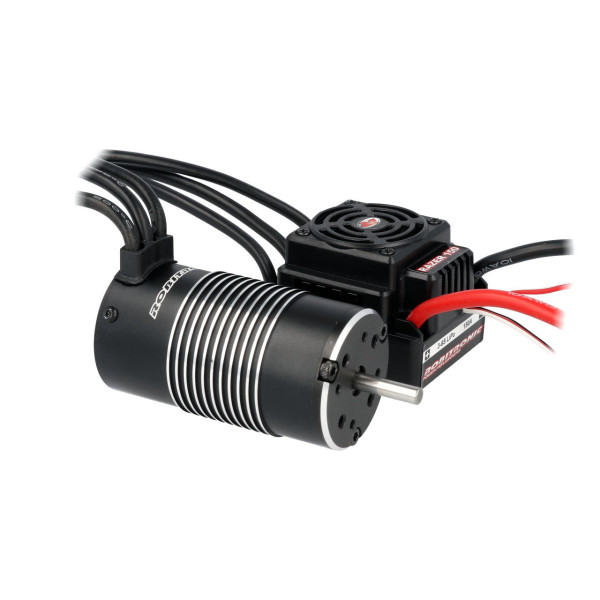

Robitronic Razer eight Brushless Combo 150A 4274 2200kV
Please inform me as soon as the product is available again.
- Part No: R01264
- Retail: €165.00
- EAN: 4046032087417
Brushless combo with 150 A ESC and sensorless 4274 motor with 2200kV The Razereight... more
Product information "Robitronic Razer eight Brushless Combo 150A 4274 2200kV"
Brushless combo with 150 A ESC and sensorless 4274 motor with 2200kV
The Razereight Brushless combo consists of a 150 A ESC and a sensorless 4274 motor with 2200kV for 1/8 models. The cables on the ESC are wired and ready to connect; soldering is not required.
The ESC battery connection is a T-plug, and the motor connection uses 4 mm sockets. The sensorless motor offers high torque.
Highlights
- ESC fully waterproof and dustproof; this does not apply to the motor
- ON/OFF switch with setup button; programming via the button
- S-BEC with 6 V and 5 A peak current
- Battery and motor connectors already soldered
- Low-voltage cut-off, thermal protection and signal-loss protection
- Separate programming port for an optional LED programming card
- Motor with 4-pole rotor design for high torque and fast response
- CNC-machined aluminium housing for heat dissipation; winding made from pure, double-insulated copper wire
- Precision ball bearings; flexible silicone connection cables with soldered 4 mm connectors
- Polished 5 mm steel rotor shaft
Specifications
| Razereight 150A ESC | |
|---|---|
| Continuous/Peak Current | 150 A / 950 A |
| Type | Sensorless |
| Motor Limit | 4S LiPo: 4274 motor, ≤3000kV / 6S LiPo: 4274 motor, ≤2400kV |
| Internal Resistance | 0.00035 Ohm |
| LiPo / NiMH Battery Pack | 3–6S LiPo / 8–18 MiMH cells |
| S-BEC | 6 V/5 A |
| Programming Port | Yes |
| Dimensions LxWxH | 59.5 × 48 × 42 mm |
| Weight | 178 g |
| Application | 1/8 on- and off-road |
| Razereight Motor 4274 with 2200kV | |
| Item No. | R01244 |
| No-Load Speed | 2200kV |
| LiPo Cells | 2S–6S |
| Poles | 4 |
| Shaft Diameter/Length | 5 mm/18 mm |
| Dimensions D/L | 42 mm/68 mm |
| Weight (incl. Cables) | 400 g |
| Application | 1/8 Truck, 1/8 Monster Truck |
In the box
- 1× ESC pre-wired with battery connector and motor connection
- 1× Motor ready to connect with 4 mm connector
- 1× Instructions
Notes
- Optional accessories: R01269 Razer LED programming box.
