Brand:
WT35 WP Digital Servo 3.8KG/0.075sec@7.4V
High-voltage waterproof mini servo for 1/18 crawlers with a brass housing
- Item number
- PHD091
- EAN
- 6929180050503
€48.90incl. VAT, plus shipping
RRP €48.90
Description

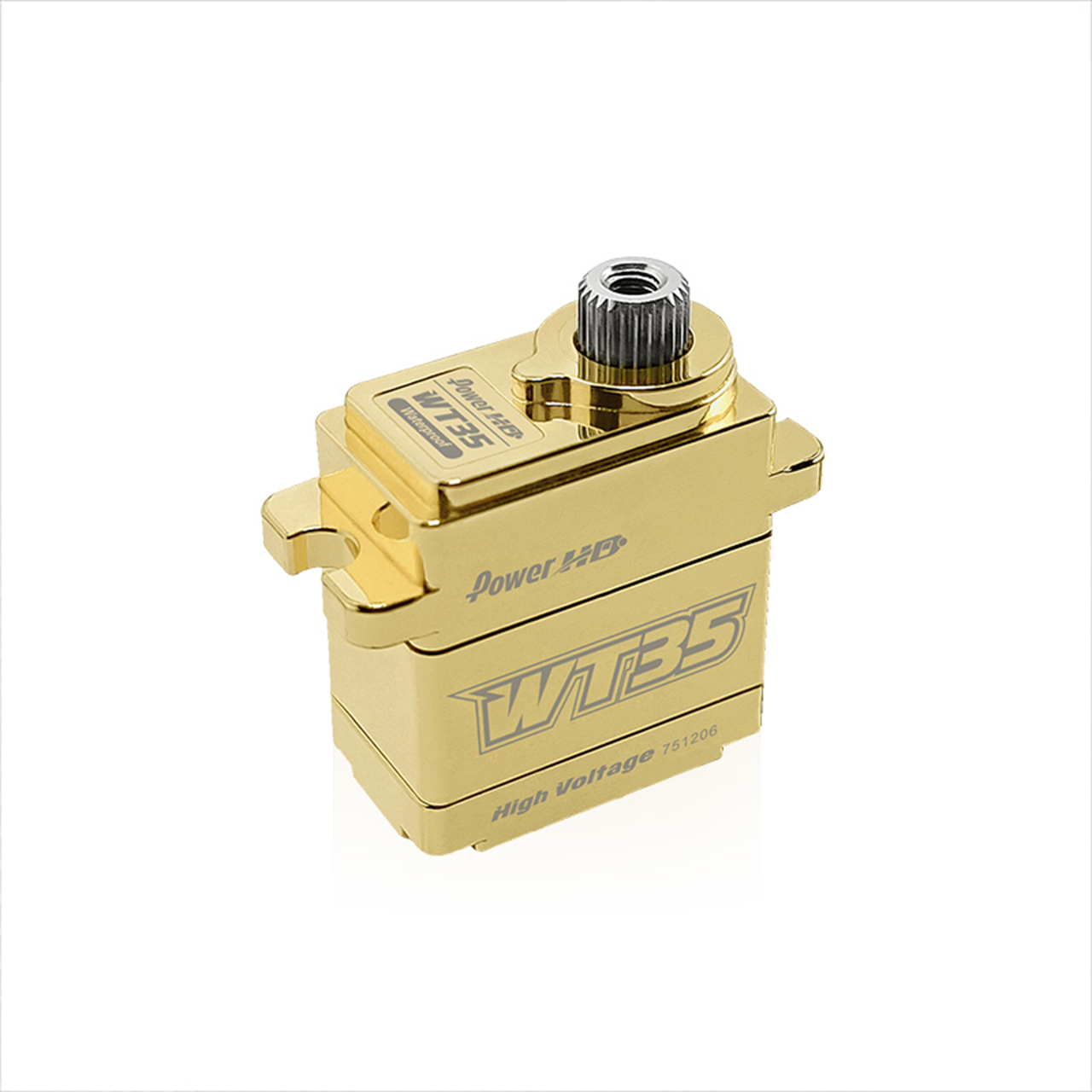

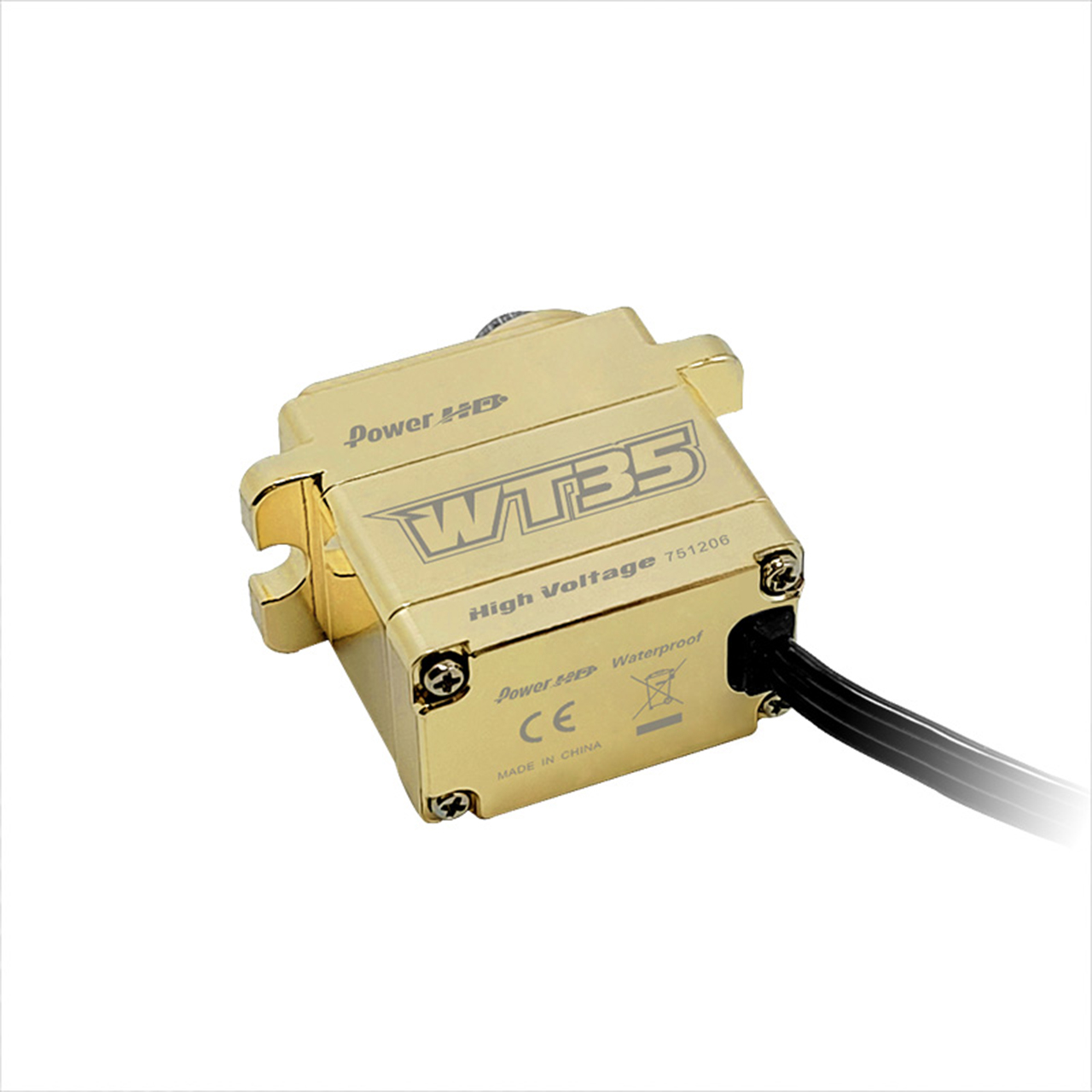

The Power HD WT35 is a high-voltage mini servo for 1/18 crawlers such as the Traxxas TRX-4M. Its copper/aluminium gears and solid brass housing provide protection and precise control. The brass housing also acts as a counterweight to improve crawler balance and driving stability. The WT35 has a waterproof design for outdoor use.
Highlights
- Solid brass housing for protection, cooling and additional counterweight
- Copper/aluminium gears for long service life
- Operating voltage range of 4.8–7.4 V
- Fast response for crawling and steering manoeuvres
- Waterproof mini design for off-road use
Specifications
| Torque (4.8 V) | 3.0 kg-cm (41.7 oz/in) |
|---|---|
| Torque (6.0 V) | 3.5 kg-cm (48.6 oz/in) |
| Torque (7.4 V) | 3.8 kg-cm (52.8 oz/in) |
| Speed | 0.10 s (4.8 V) ? 0.085 s (6.0 V) ? 0.075 s (7.4 V) |
| Operating Voltage | 4.8–7.4 V DC |
| Weight | 35.0 g (1.23 oz) |
|---|---|
| Gear Type | Copper & Aluminium |
| Operating Temperature | ?10 °C to 60 °C |
| Operating Frequency | 1520 μs / 50 Hz |
| Dimensions | 22.5 × 12.9 × 24.5 mm (0.89 × 0.51 × 0.96 in) |
Safety & manufacturer
Manufacturer
Power HD
Item number: PHD091
EAN: 6929180050503
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
