Power HD WT120 HV 4-pole Brushless Digital Servo 50.0KG/0.08sec@8,4V
- Part No: PHD085
- Retail: €126.90
- EAN: 6929188012015
- Notice: WT120
WT120 brushless digital servo with a brass case and FlySky i-BUS2 support The WT120 has a... more
Product information "Power HD WT120 HV 4-pole Brushless Digital Servo 50.0KG/0.08sec@8,4V"

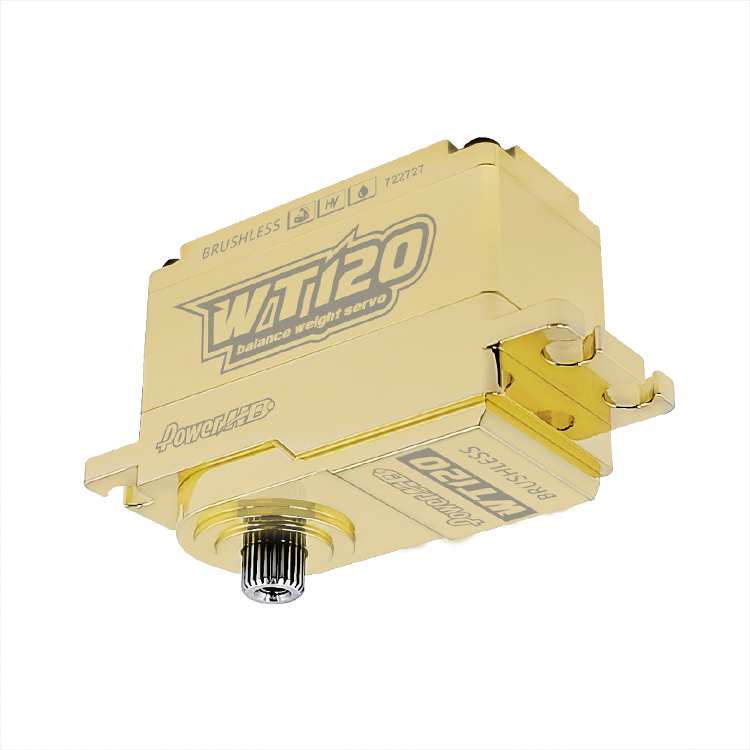

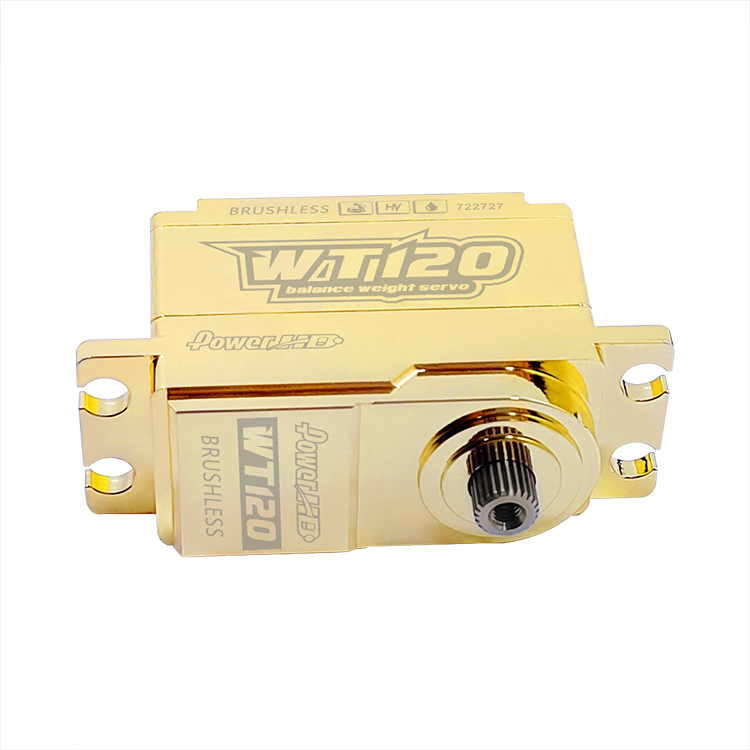

WT120 brushless digital servo with a brass case and FlySky i-BUS2 support
The WT120 has a pure brass case that can also serve as a balance weight. Like the WT162, it uses a brushless motor and supports the FlySky i-BUS2 protocol. Its status can be viewed in real time on a FlySky NB4 series radio, where its parameters can also be programmed.
Specifications
| Torque (6.0 V) | 36.0 kg-cm / (499.9 oz/in) |
| Torque (7.4 V) | 42.0 kg-cm / (583.3 oz/in) |
| Torque (8.4 V) | 50.0 kg-cm / (694.4 oz/in) |
| Speed | 0.11 s (6.0 V) 0.09 s (7.4 V) |
| Speed | 0.08 s (8.4 V) |
| Operating Voltage | 6.0–8.4 DC Volts |
| Weight | 120 g (4.23 oz) |
| Bearing Type | Ball Bearing × 2 |
| Motor Type | Brushless Motor |
| Gear Type | Steel |
| Operating Temperature | -10–60 °C |
| Operating Frequency | 1520 s / 50–1500 Hz |
| Dimensions | 41.0 × 20.0 × 29.0 mm (1.61 × 0.79 × 1.14 in) |
