WH-80V1 1/5 WP HV Stahl Digital Servo 80.0KG/0.16sec@8.4V
This waterproof, high-voltage 1/5 scale digital servo with steel gears and two ball bearings delivers a torque of up to 80.0 kg-cm at a speed of 0.16 sec@8.4V. It features a 15T horn gear spline, weighs 200 g, and measures 59.4 x 29.5 x 54.4 mm.
- Item number
- PHD033
- EAN
- 6929188088003
€89.90incl. VAT, plus shipping
RRP €89.90
Description

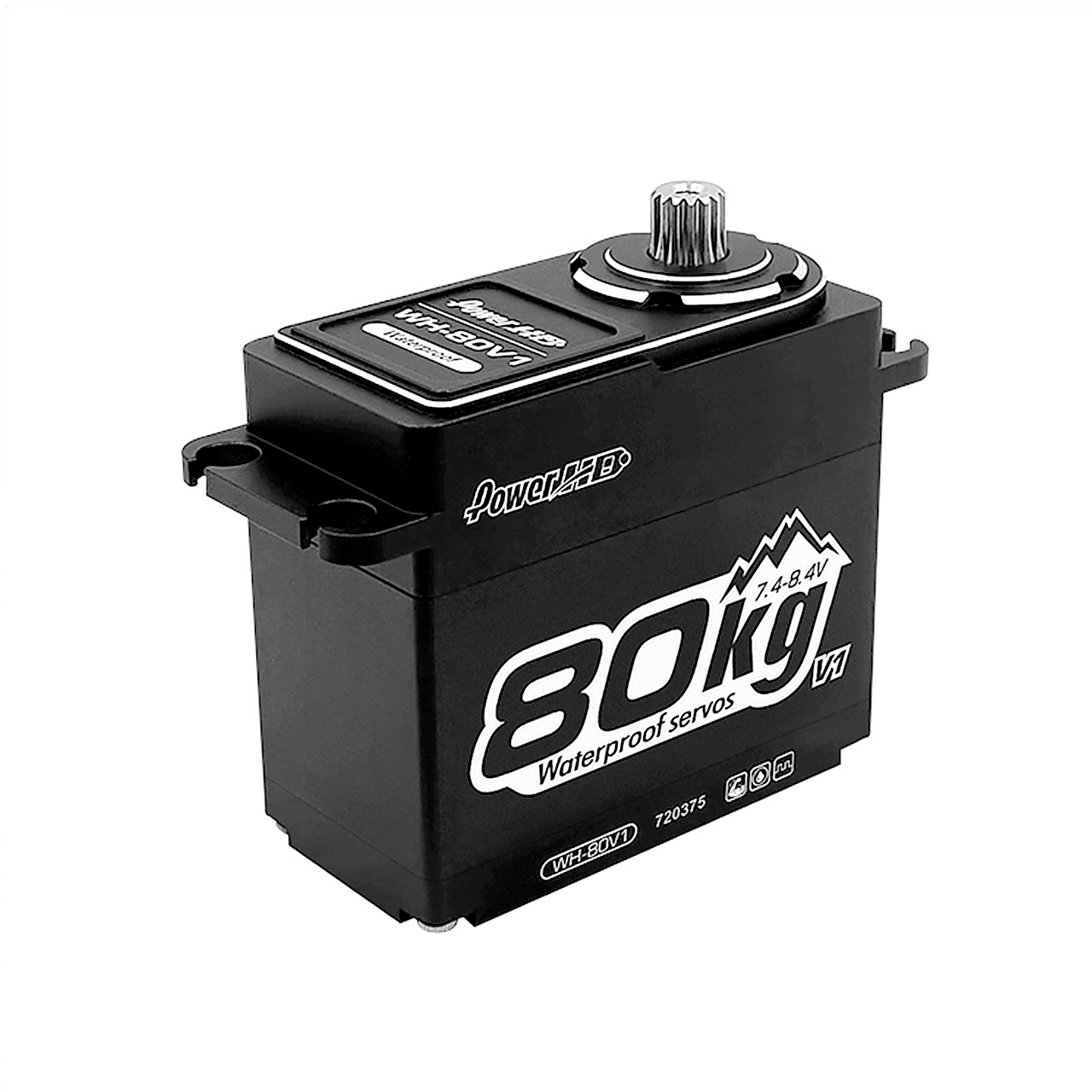

The Power HD WH-80V1 is a 1/5-scale waterproof HV digital servo with steel gears.
Specifications
| Torque (7.4 V) | 75.0 kg-cm / (1041.6 oz/in) |
|---|---|
| Torque (8.4 V) | 80.0 kg-cm / (1111.0 oz/in) |
| Speed | 0.18 sec (7.4 V) · 0.16 sec (8.4 V) |
| Operating Voltage | 7.4–8.4 DC Volts |
| Weight | 200 g (7.05 oz) |
| Spline | 15T |
| Bearing Type | Ball Bearing x 2 |
|---|---|

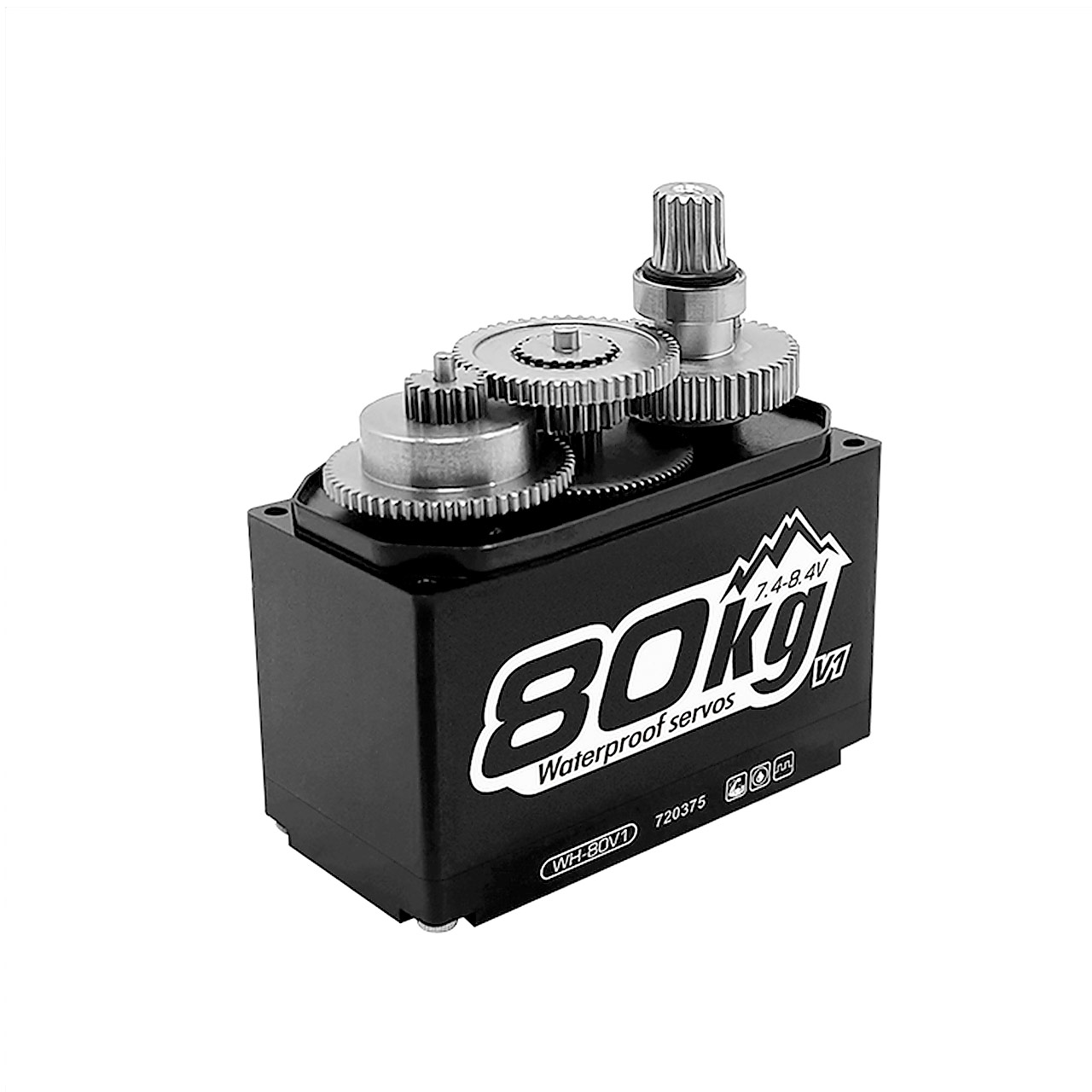

| Gear Type | Steel |
| Operating Temperature | -20–60 °C |
| Operating Frequency | 1520 µs / 333 Hz |
| Dimensions | 59.4 × 29.5 × 54.4 mm (2.34 × 1.16 × 2.14 in) |
Safety & manufacturer
Manufacturer
Power HD
Item number: PHD033
EAN: 6929188088003
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
