Brand:

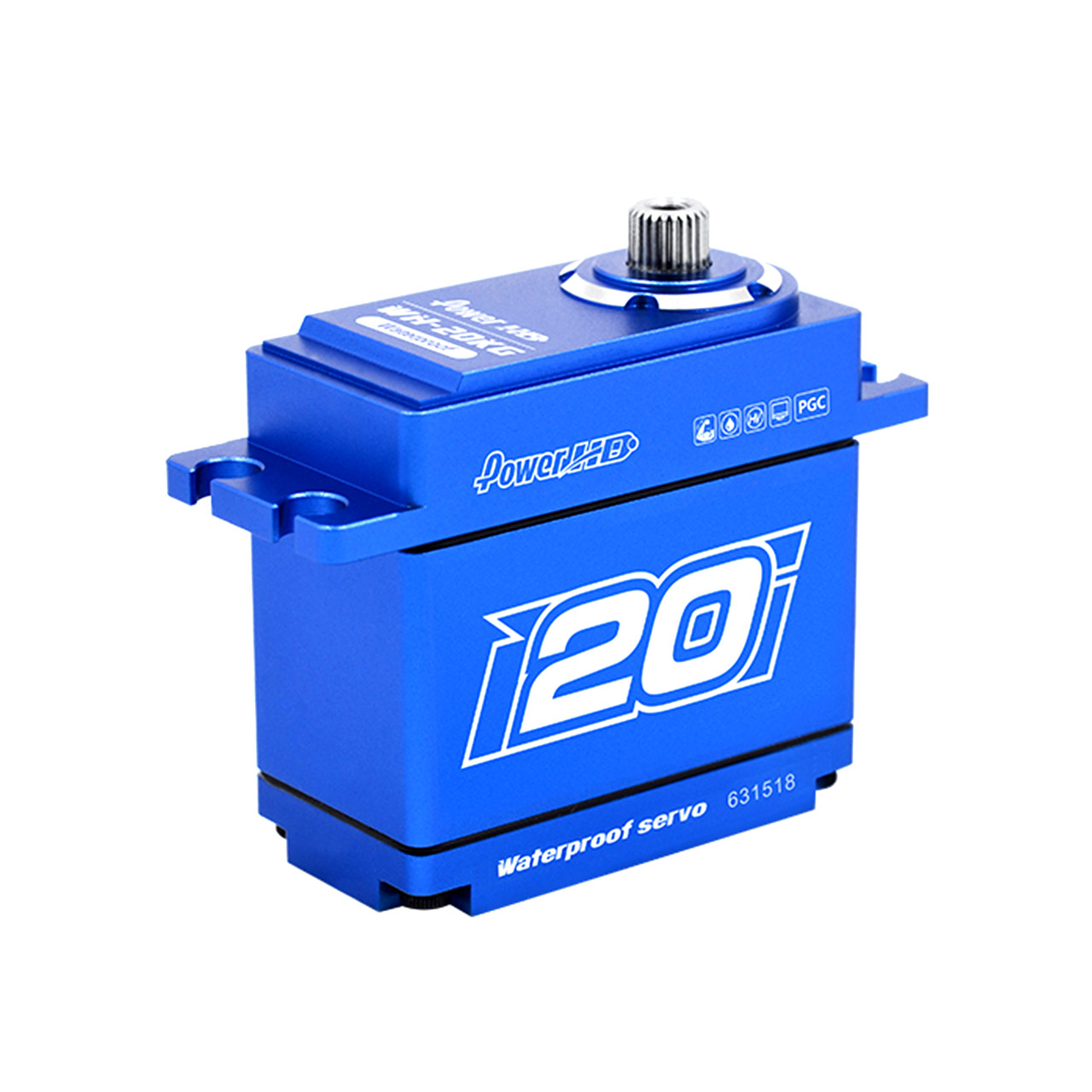

WH-20KG WP HV Titanium Digital Servo 20.0KG/0.08sec@8.4V

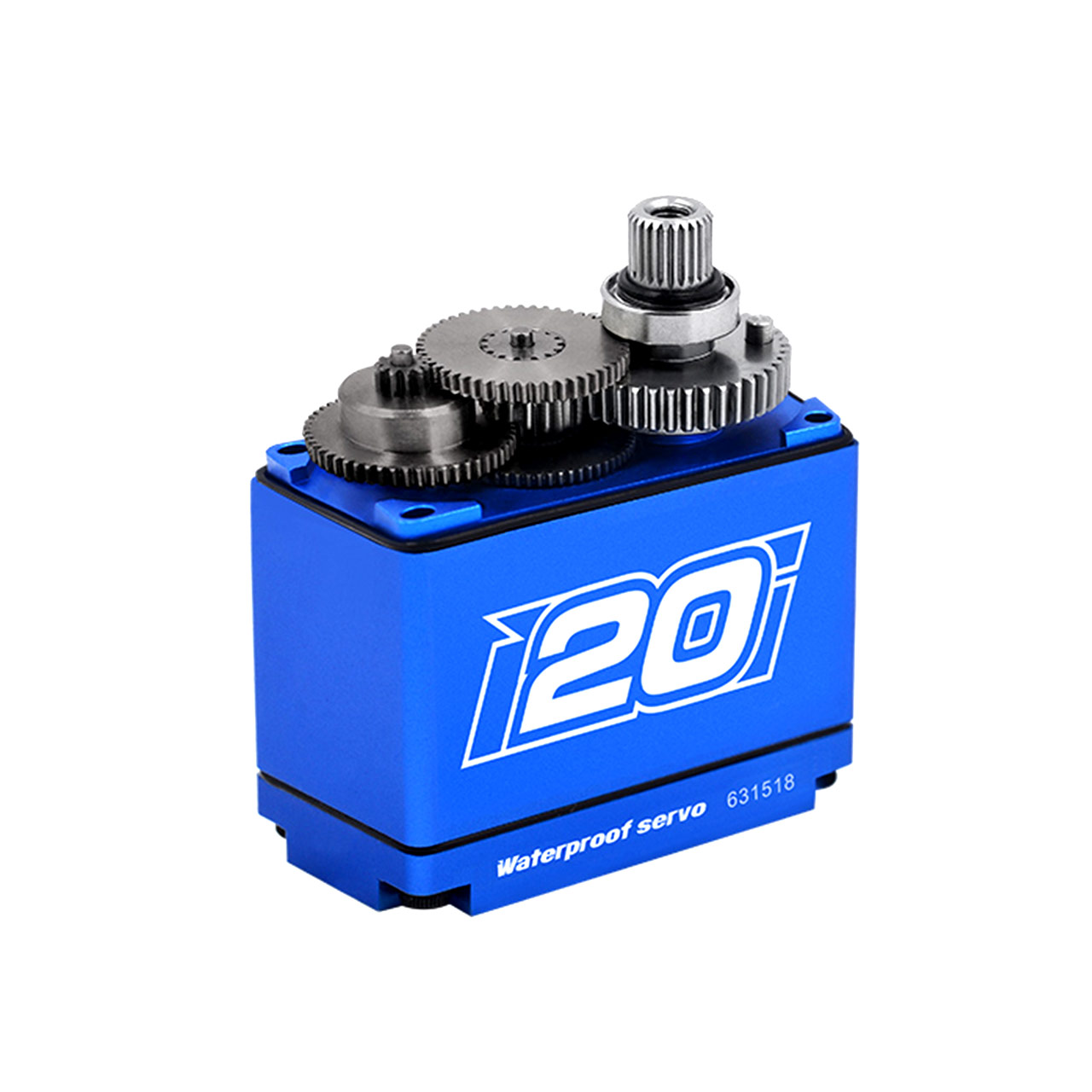

This high-voltage digital servo features a coreless motor, dual ball bearings, and a durable steel and aluminum gear train. It operates at 6.0 to 8.4V DC, delivering up to 20.0 kg-cm of torque and a speed of 0.08 sec at 8.4V within a compact 40.7 x 20.5 x 38.5 mm housing.
- Item number
- PHD029
- EAN
- 6929130020204
€72.90incl. VAT, plus shipping
RRP €72.90
Description
The Power HD WH-20KG is a WP HV Titanium digital servo.
Specifications
| Torque (6.0 V) | 15.0 kg-cm (208.3 oz/in) |
|---|---|
| Torque (7.4 V) | 18.0 kg-cm (250.0 oz/in) |
| Torque (8.4 V) | 20.0 kg-cm (277.7 oz/in) |
| Speed | 0.11 sec (6.0 V) · 0.09 sec (7.4 V) |
| Speed | 0.08 sec (8.4 V) |
| Operating Voltage | 6.0–8.4 DC Volts |
| Weight | 82.0 g (2.89 oz) |
| Bearing Type | Ball Bearing x 2 |
|---|---|
| Motor Type | Coreless Motor |
| Gear Type | Steel & Aluminum |
| Operating Temperature | -20–60 °C |
| Operating Frequency | 1520 µs / 333 Hz |
| Dimensions | 40.7 × 20.5 × 38.5 mm (1.60 × 0.81 × 1.52 in) |
Safety & manufacturer
Manufacturer
Power HD
Item number: PHD029
EAN: 6929130020204
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
