Brand:

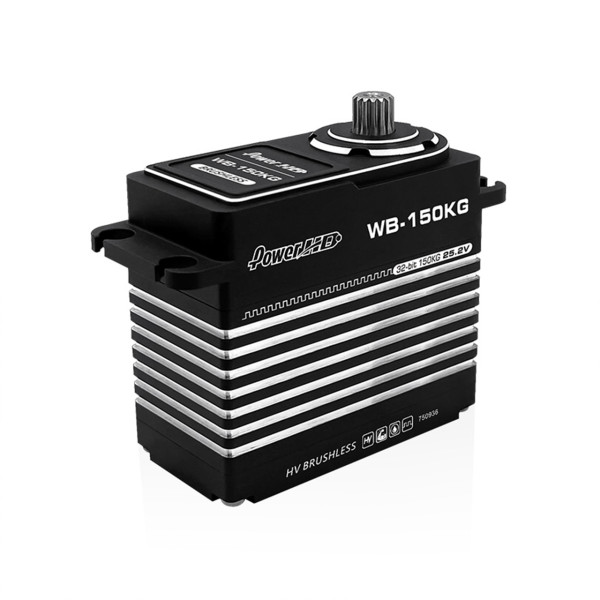

WB-150KG HV Brushless Digital Servo 150kg/0.10s@25.2V
HV brushless servo for 1/5 and 1/6 RC models with up to 150 kg-cm torque
- Item number
- PHD094
- EAN
- 6929180015007
€174.90incl. VAT, plus shipping
RRP €174.90
Description
The Power HD WB-150KG is an HV brushless servo in the WB series for large 1/5 and 1/6 scale RC models. It has an aluminium heat-sink case, steel gear train and brushless motor. Applications include monster trucks, large-scale buggies and crawlers.
Highlights
- Torque up to 150 kg-cm at 25.2 V for 1/5 and 1/6 RC models
- HV operation: 16.8–25.2 V
- Steel gears with 15T spline output
- Brushless motor
- Operating temperature range: ?10 °C to 60 °C
Specifications
| Torque (16.8 V) | 100.0 kg-cm (1388.7 oz/in) |
|---|---|
| Torque (21.0 V) | 122.0 kg-cm (1694.3 oz/in) |
| Torque (25.2 V) | 150.0 kg-cm (2083.1 oz/in) |
| Speed | 0.13 s (16.8 V) · 0.11 s (21.0 V) · 0.09 s (25.2 V) |
| Operating Voltage | 16.8–25.2 V DC |
| Weight | 213 g (7.51 oz) |
| Output Spline | 15T (large spline) |
| Motor Type | Brushless Motor |
|---|---|
| Gear Type | Steel |
| Max. Current | 6 A |
| Operating Temperature | ?10 °C to 60 °C |
| Operating Frequency | 1520 µs / 333 Hz |
| Dimensions | 59.5 × 29.5 × 54.4 mm (2.34 × 1.16 × 2.14 in) |
Safety & manufacturer
Manufacturer
Power HD
Item number: PHD094
EAN: 6929180015007
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
