Power HD WB-120KG HV Brushless Digital Servo 120kg/0.10s@16.8V
- Part No: PHD093
- Retail: €155.90
- EAN: 6929180012006
- Notice: WB-120KG
HV brushless servo for 1/5 and 1/6 RC models with up to 120 kg-cm torque The Power HD... more
Product information "Power HD WB-120KG HV Brushless Digital Servo 120kg/0.10s@16.8V"
HV brushless servo for 1/5 and 1/6 RC models with up to 120 kg-cm torque

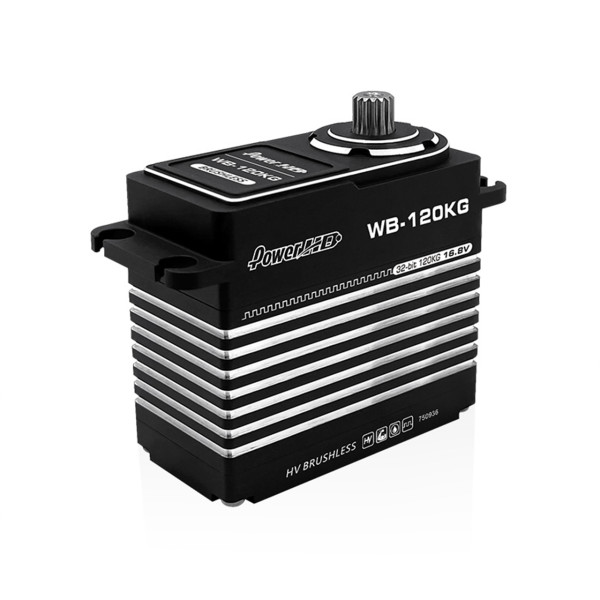

The Power HD WB-120KG is an HV brushless servo for large-scale RC models in 1/5 and 1/6 scale, including monster trucks, buggies and crawlers. It has an aluminium heat-sink case and a steel gear train.
Highlights
- Torque up to 120 kg-cm (16.8 V) for 1/5 and 1/6 RC models
- HV compatible: 12.6–16.8 V operating voltage
- Steel gears and 15T spline output
- Brushless motor with high efficiency
- Operating temperature range: ?10 °C to 60 °C
Specifications
| Torque (12.6 V) | 80.0 kg-cm (1111.0 oz/in) |
| Torque (14.8 V) | 98.0 kg-cm (1360.9 oz/in) |
| Torque (16.8 V) | 120.0 kg-cm (1666.5 oz/in) |
| Speed | 0.14 s (12.6 V) · 0.12 s (14.8 V) · 0.10 s (16.8 V) |
| Operating Voltage | 12.6–16.8 V DC |
| Weight | 212 g (7.48 oz) |
| Output Spline | 15T (large spline) |
| Motor Type | Brushless Motor |
| Gear Type | Steel |
| Max. Current | 8 A |
| Operating Temperature | ?10 °C to 60 °C |
| Operating Frequency | 1520 µs / 333 Hz |
| Dimensions | 59.5 × 29.5 × 54.4 mm (2.34 × 1.16 × 2.14 in) |
