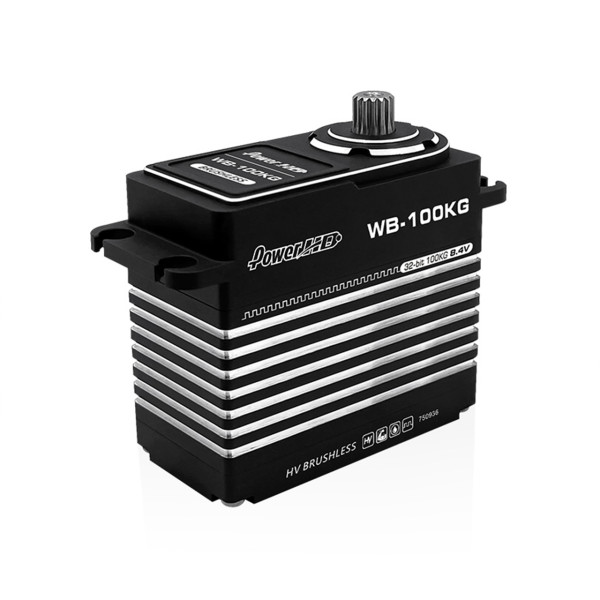

Brand:
WB-100KG HV Brushless Digital Servo 100kg/0.08s@8.4V
HV brushless servo for large-scale RC models with 100.0 kg-cm torque at 8.4 V
- Item number
- PHD092
- EAN
- 6929180010002
€144.90incl. VAT, plus shipping
RRP €144.90
Description
The Power HD WB-100KG is an HV brushless servo for large-scale RC models, such as 1/5 monster trucks and large-scale crawlers. It has an aluminium heat-sink case, steel gears and a brushless motor for steering response.
Highlights
- Torque up to 100 kg-cm (8.4 V)
- HV-compatible: 6.0–8.4 V operating voltage
- Steel gears and 15T spline output
- Up to 15 A peak current
- Operating temperature: ?10 °C to 60 °C
Specifications
| Torque (6.0 V) | 65.0 kg-cm (902.7 oz/in) |
|---|---|
| Torque (7.4 V) | 80.0 kg-cm (1111.0 oz/in) |
| Torque (8.4 V) | 100.0 kg-cm (1388.7 oz/in) |
| Speed | 0.12 s (6.0 V) ? 0.10 s (7.4 V) ? 0.08 s (8.4 V) |
| Operating Voltage | 6.0–8.4 V DC |
| Weight | 208 g (7.34 oz) |
| Output Spline | 15T (large spline) |
| Motor Type | Brushless Motor |
|---|---|
| Gear Type | Steel |
| Max. Current | 15 A |
| Operating Temperature | ?10 °C to 60 °C |
| Operating Frequency | 1520 µs / 333 Hz |
| Dimensions | 59.5 × 29.5 × 54.4 mm (2.34 × 1.16 × 2.14 in) |
Safety & manufacturer
Manufacturer
Power HD
Item number: PHD092
EAN: 6929180010002
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
