Brand:
TR-5 WP HV Digital Servo 8.0KG/0.07sec@7.4V
This waterproof, high-voltage digital servo features a metal gear, a 25T spline, and weighs 35.0 g with dimensions of 29.5 x 14.0 x 31.4 mm. Operating on a voltage range of 4.8 to 8.4 DC Volts, it delivers a torque of up to 8.8 kg-cm and a speed of up to 0.06 sec at 8.4V.
- Item number
- PHD027
- EAN
- 6929138005050
€48.90incl. VAT, plus shipping
RRP €48.90
Description

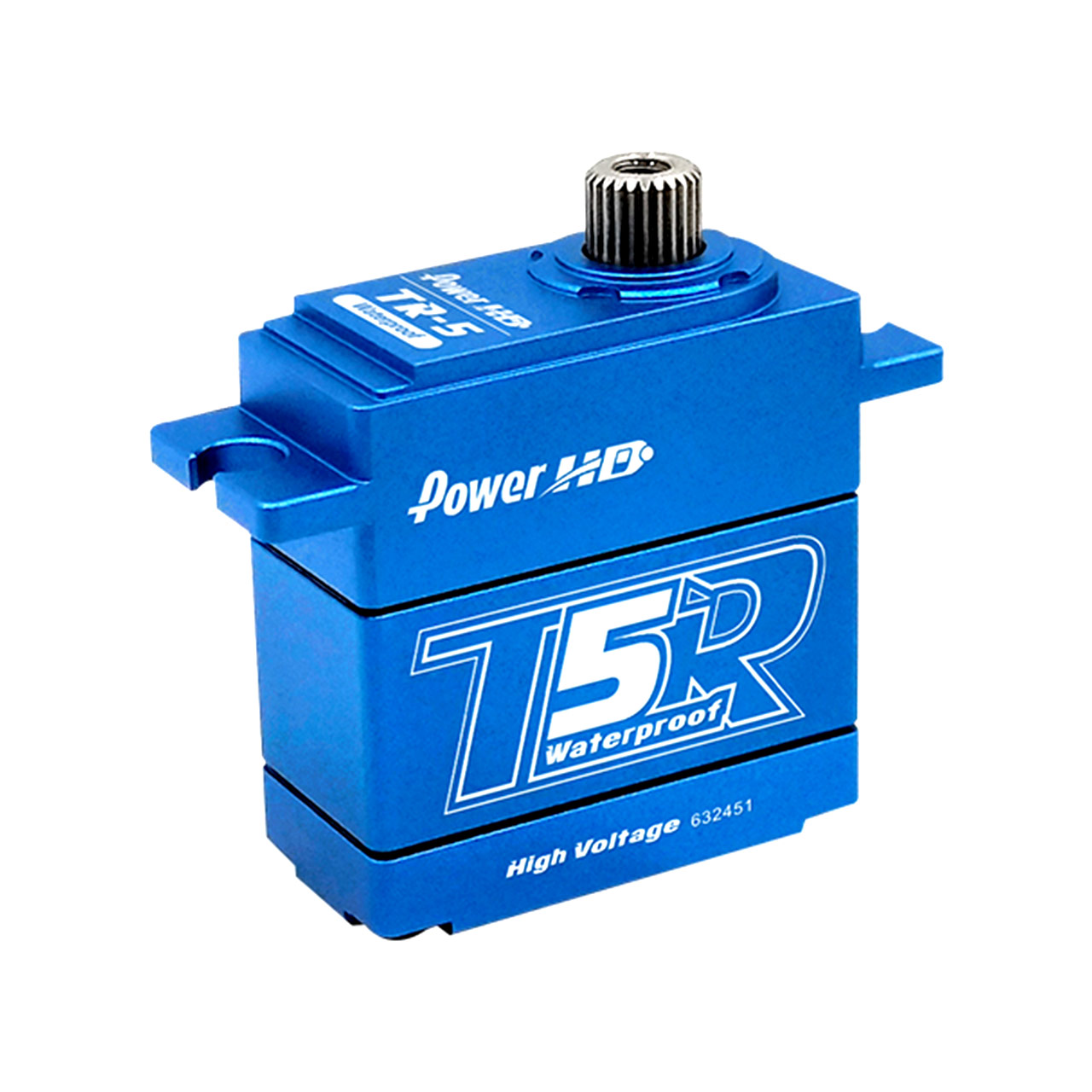

The Power HD TR-5 WP HV is a digital Servo with a 25T spline and metal gears.
Specifications
| Torque (4.8 V) | 3.8 kg-cm (52.8 oz/in) |
|---|---|
| Torque (6.0 V) | 6.0 kg-cm (83.3 oz/in) |
| Torque (7.4 V) | 8.0 kg-cm (111.1 oz/in) |
| Torque (8.4 V) | 8.8 kg-cm (122.2 oz/in) |
| Speed | 0.11 s (4.8 V) · 0.09 s (6.0 V) |
| Speed | 0.07 s (7.4 V) · 0.06 s (8.4 V) |
| Operating Voltage | 4.8–8.4 V DC |
|---|---|
| Max. Current | 2.0 A at 7.4 V |

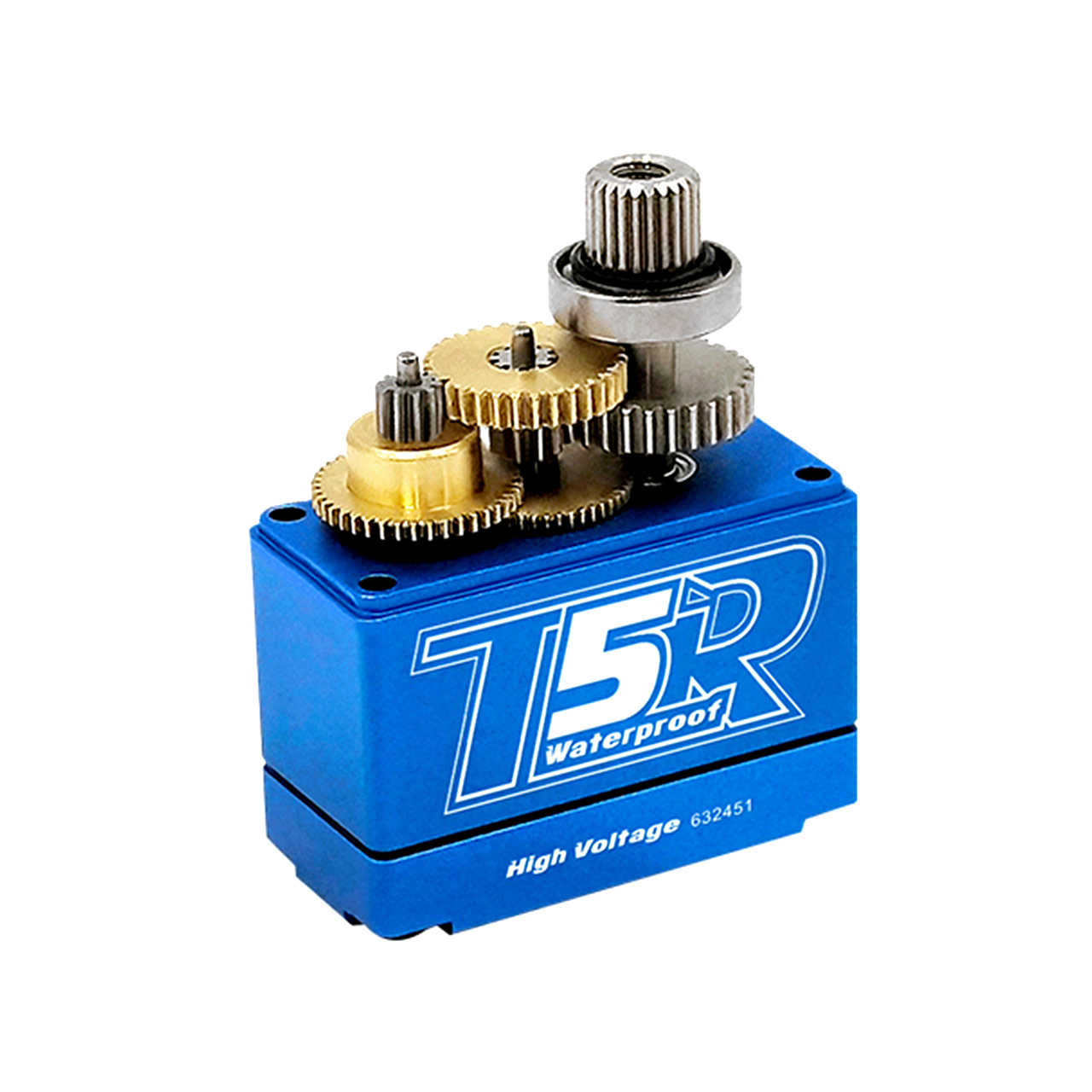

| Gear Type | Metal |
| Spline | 25T |
| Weight | 35.0 g (1.23 oz) |
| Dimensions | 29.5 × 14.0 × 31.4 mm (1.16 × 0.55 × 1.24 in) |
Safety & manufacturer
Manufacturer
Power HD
Item number: PHD027
EAN: 6929138005050
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
