Brand:
TR-4 WP HV Digital Servo 2.6KG/0.10sec@7.4V

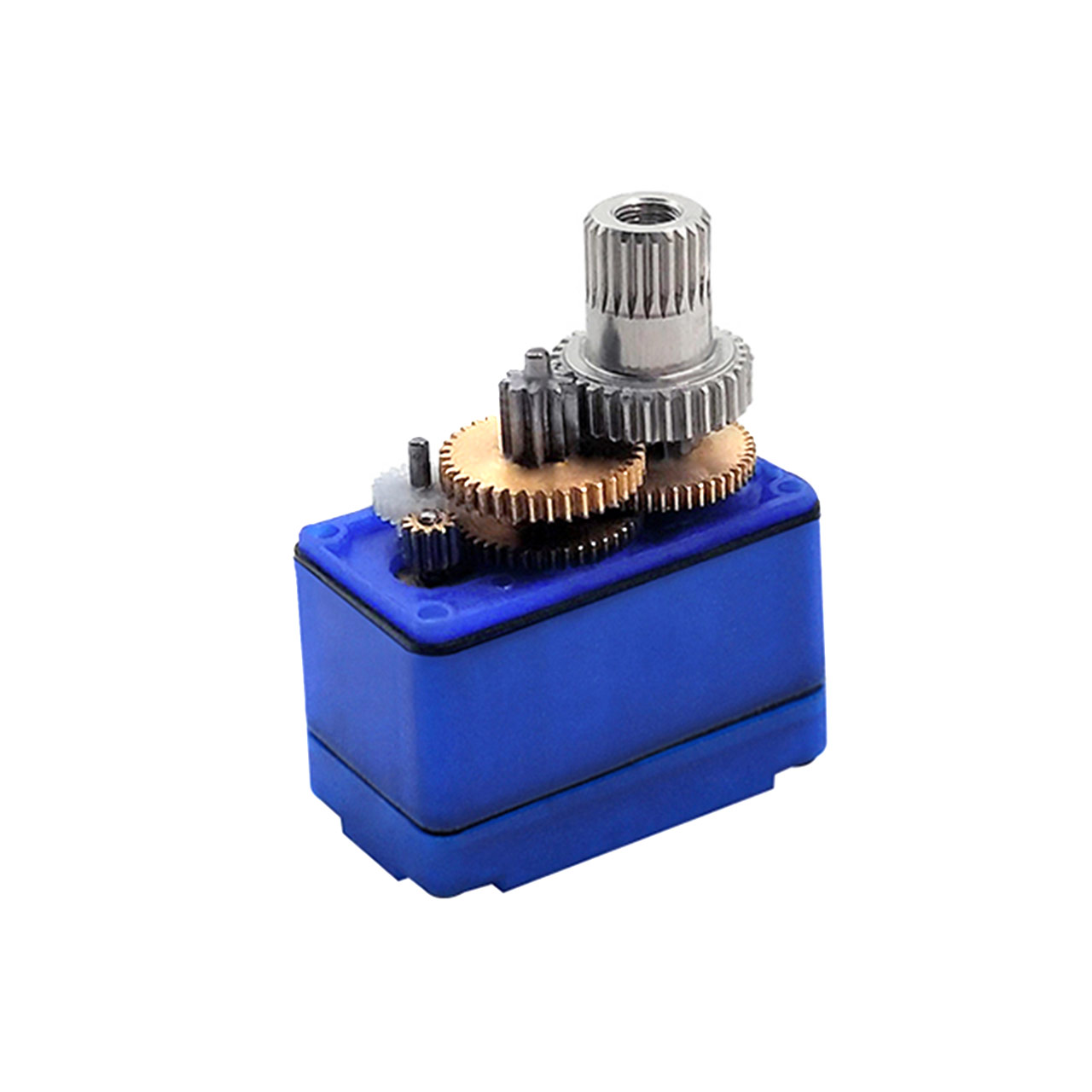

Waterproof high-voltage digital mini servo featuring durable copper and aluminum gears. Weighing 16.0 g and measuring 22.5 x 12.5 x 24.0 mm, it operates at 4.8 to 7.4 V, delivering up to 2.6 kg-cm of torque and speeds down to 0.10 sec at 7.4V.
- Item number
- PHD026
- EAN
- 6929138004008
€24.90incl. VAT, plus shipping
RRP €24.90
Description

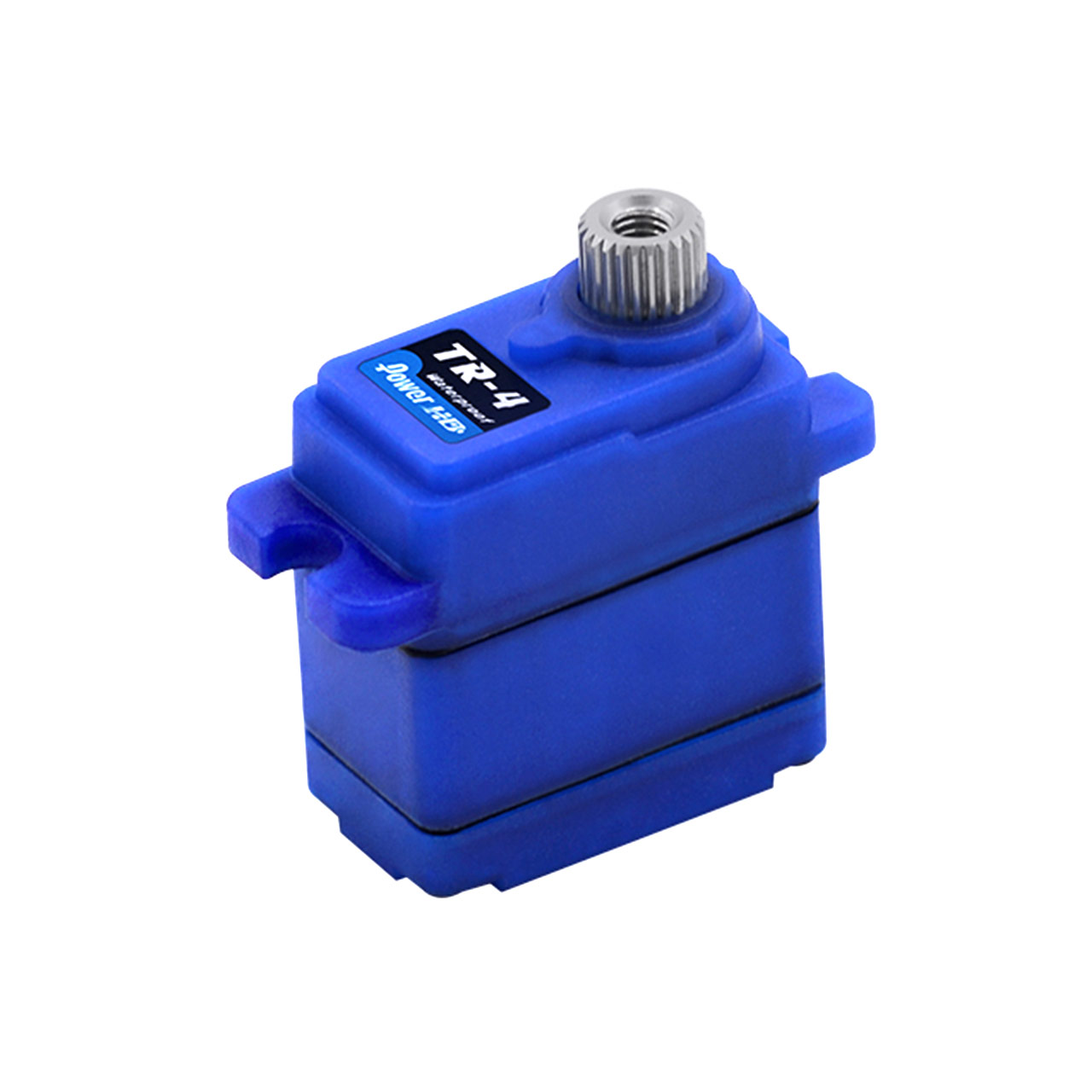

The Power HD TR-4 WP HV is a digital Servo.
Specifications
| Torque (4.8 V) | 1.8 kg-cm (25.0 oz/in) |
|---|---|
| Torque (6.0 V) | 2.2 kg-cm (30.6 oz/in) |
| Torque (7.4 V) | 2.6 kg-cm (36.1 oz/in) |
| Speed | 0.15 s (4.8 V) · 0.12 s (6.0 V) · 0.10 s (7.4 V) |
| Operating Voltage | 4.8–7.4 V DC |
| Weight | 16.0 g (0.56 oz) |
|---|---|
| Gear Type | Copper and aluminium |
| Operating Temperature | −20–60 °C |
| Operating Frequency | 1520 µs / 50 Hz |
| Dimensions | 22.5 × 12.5 × 24.0 mm (0.89 × 0.49 × 0.94 in) |
Safety & manufacturer
Manufacturer
Power HD
Item number: PHD026
EAN: 6929138004008
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
