Power HD T50 HV CNC Brushless Digital Servo 50.0KG/0.065sec@8.4V
- Part No: PHD063
- Retail: €117.90
- EAN: 6929188050505
- Notice: T50
The Power HD T50 is an HV CNC Brushless digital servo. Specifications Torque (6.0 V)... more
Product information "Power HD T50 HV CNC Brushless Digital Servo 50.0KG/0.065sec@8.4V"

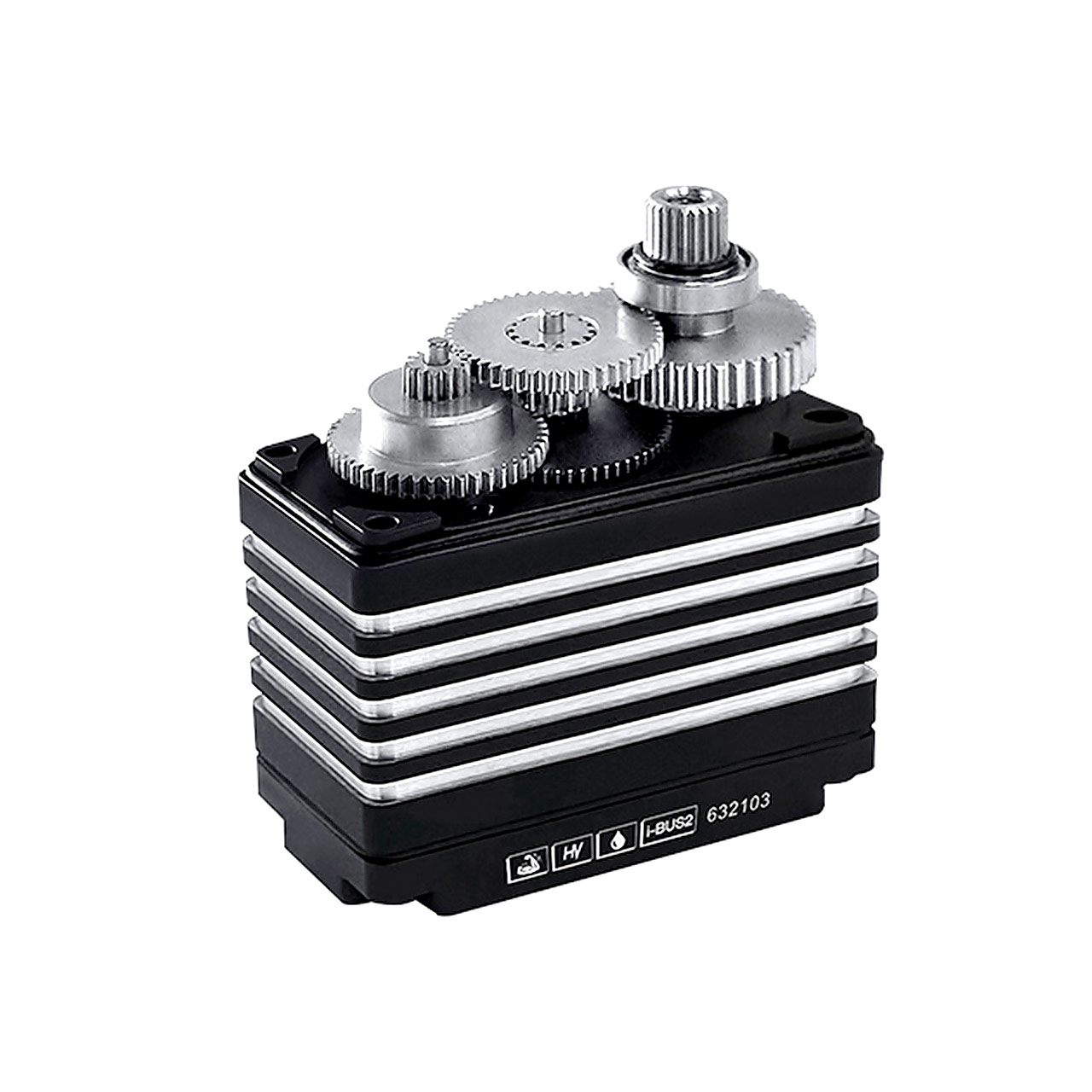

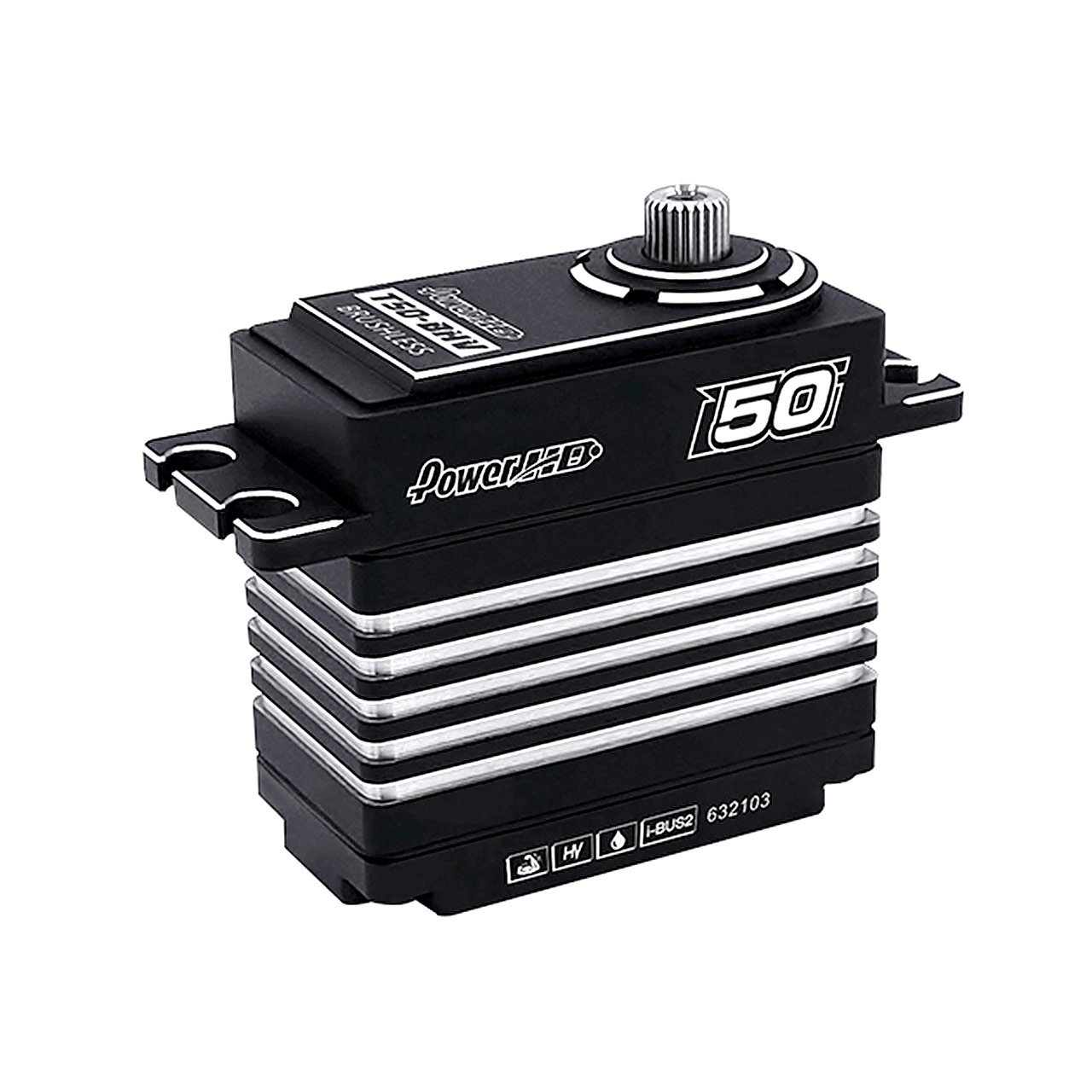

The Power HD T50 is an HV CNC Brushless digital servo.
Specifications
| Torque (6.0 V) | 39.0 kg-cm / (541.6 oz/in) |
| Torque (7.4 V) | 40.0 kg-cm / (555.5 oz/in) |
| Torque (8.4 V) | 50.0 kg-cm / (694.4 oz/in) |
| Speed | 0.092 sec (6.0 V) · 0.074 sec (7.4 V) |
| Speed | 0.065 sec (8.4 V) |
| Operating Voltage | 6.0–8.4 DC Volts |
| Weight | 83 g (2.93 oz) |
| Bearing Type | Ball Bearing x 2 |
| Motor Type | Brushless Motor |
| Gear Type | Steel |
| Operating Temperature | -20–60 °C |
| Operating Frequency | 1520 µs / 333 Hz |
| Stall Current (at locked) | 6.0–9.0 A |
| Dimensions | 40.7 × 20.5 × 38.7 mm (1.60 × 0.81 × 1.52 in) |
