S15-Y HV CNC Brushless Digital Servo 16.5KG/0.05sec@8.4V
This high-voltage CNC brushless digital servo delivers a torque of up to 16.5 kg-cm and speeds down to 0.050 sec at 8.4V. Featuring dual ball bearings, titanium and steel gears, and a compact 41.0 x 20.0 x 26.0 mm housing, it weighs 56.5 g and operates between 6.0 and 8.4V.
- Item number
- PHD055
- EAN
- 6929188015214
€142.90incl. VAT, plus shipping
RRP €142.90
Description

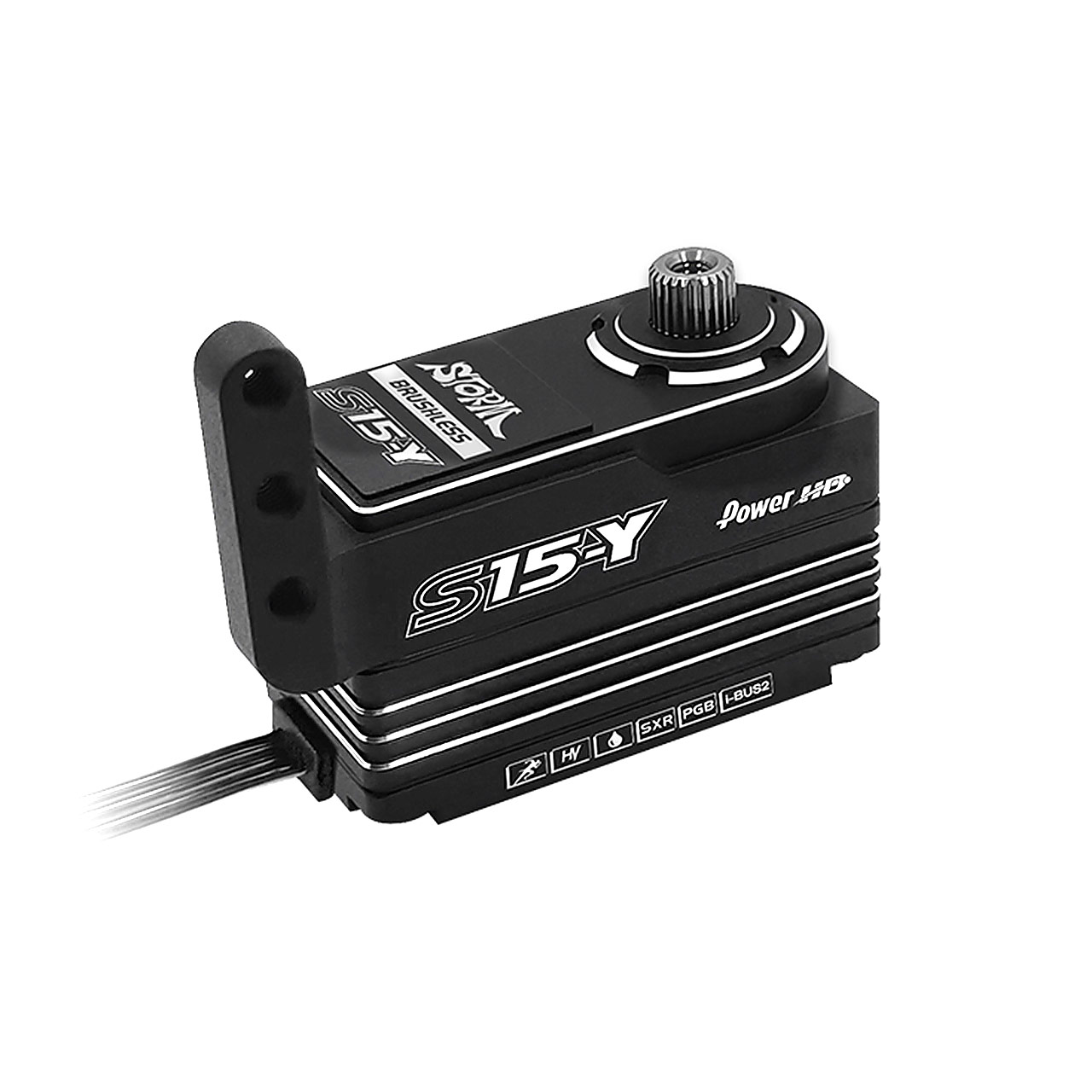

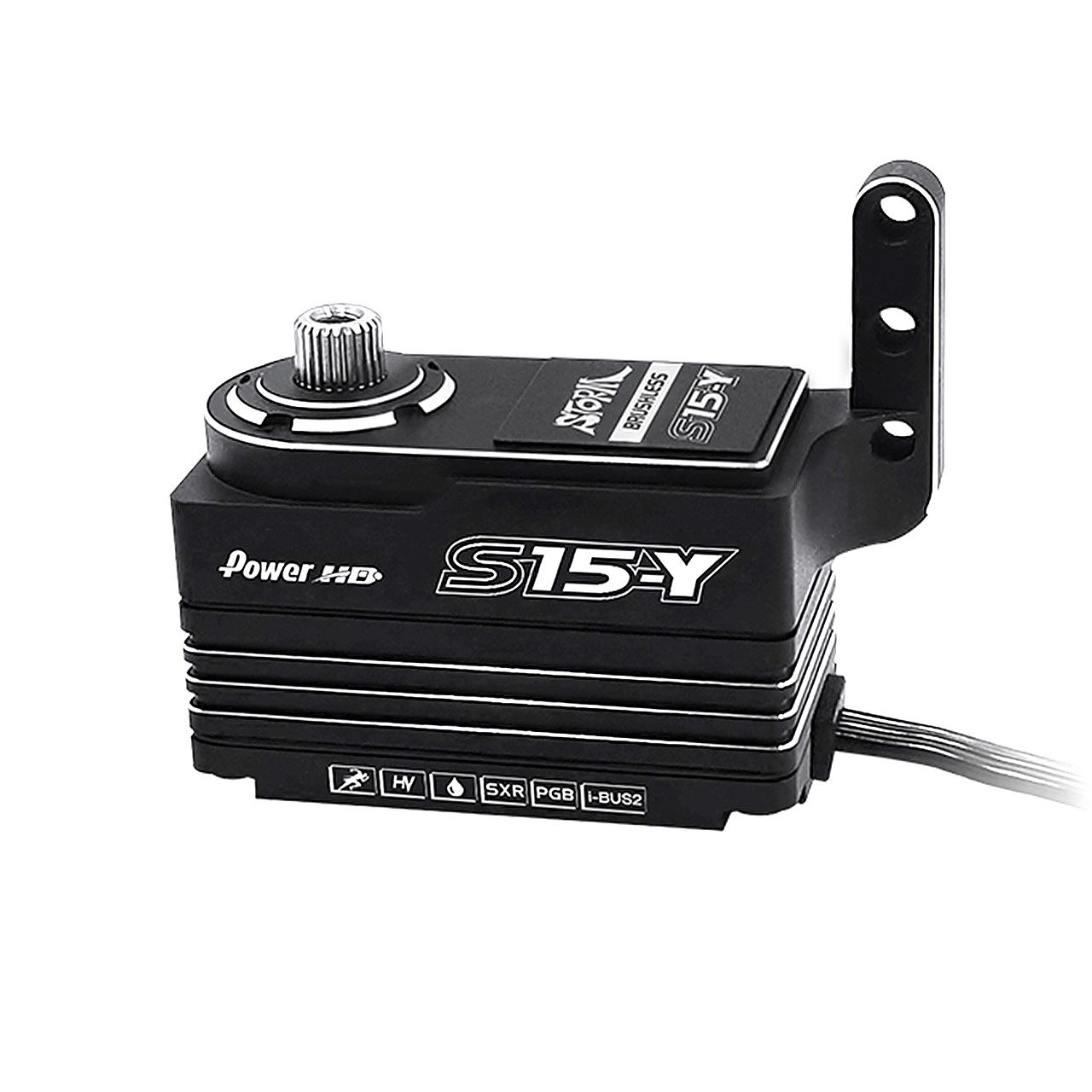

The Power HD S15-Y is an HV CNC Brushless digital servo.
Specifications
| Torque (6.0 V) | 11.5 kg-cm (159.7 oz/in) |
|---|---|
| Torque (7.4 V) | 15.0 kg-cm (208.3 oz/in) |
| Torque (8.4 V) | 16.5 kg-cm (229.1 oz/in) |
| Speed | 0.072 sec (6.0 V) · 0.060 sec (7.4 V) |
| Speed | 0.050 sec (8.4 V) |
| Operating Voltage | 6.0–8.4 DC Volts |
| Weight | 56.5 g (2.0 oz) |
| Bearing Type | Ball Bearing x 2 |
|---|---|
| Motor Type | Brushless Motor |

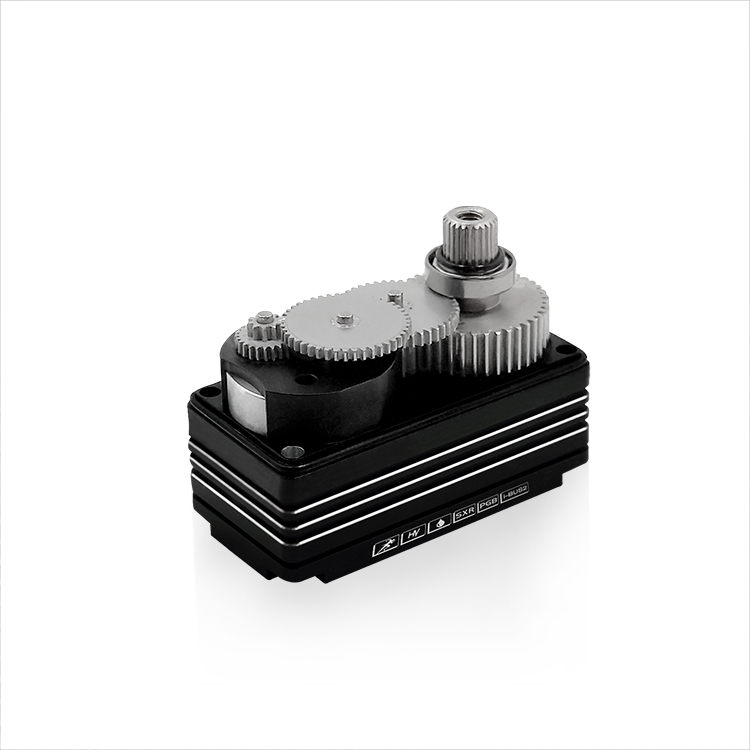

| Gear Type | Titanium & Steel |
| Operating Temperature | -20–60 °C |
| Operating Frequency | 1520 µs / 333 Hz |
| Dimensions | 41.0 × 20.0 × 26.0 mm (1.61 × 0.79 × 1.02 in) |
