M8H HV CNC Coreless Digital Servo 8.5KG/0.065sec@8.4V
The M8H is a digital mini servo featuring a full plastic case, a coreless motor, and titanium and steel gears. Operating at 4.8 to 8.4V, it weighs 18.0 g and measures 27.2 x 12.1 x 28.2 mm, delivering up to 8.5 kg-cm of torque and speeds down to 0.065sec@8.4V.
- Item number
- PHD045
- EAN
- 6929188080809
€72.90incl. VAT, plus shipping
RRP €72.90
Description

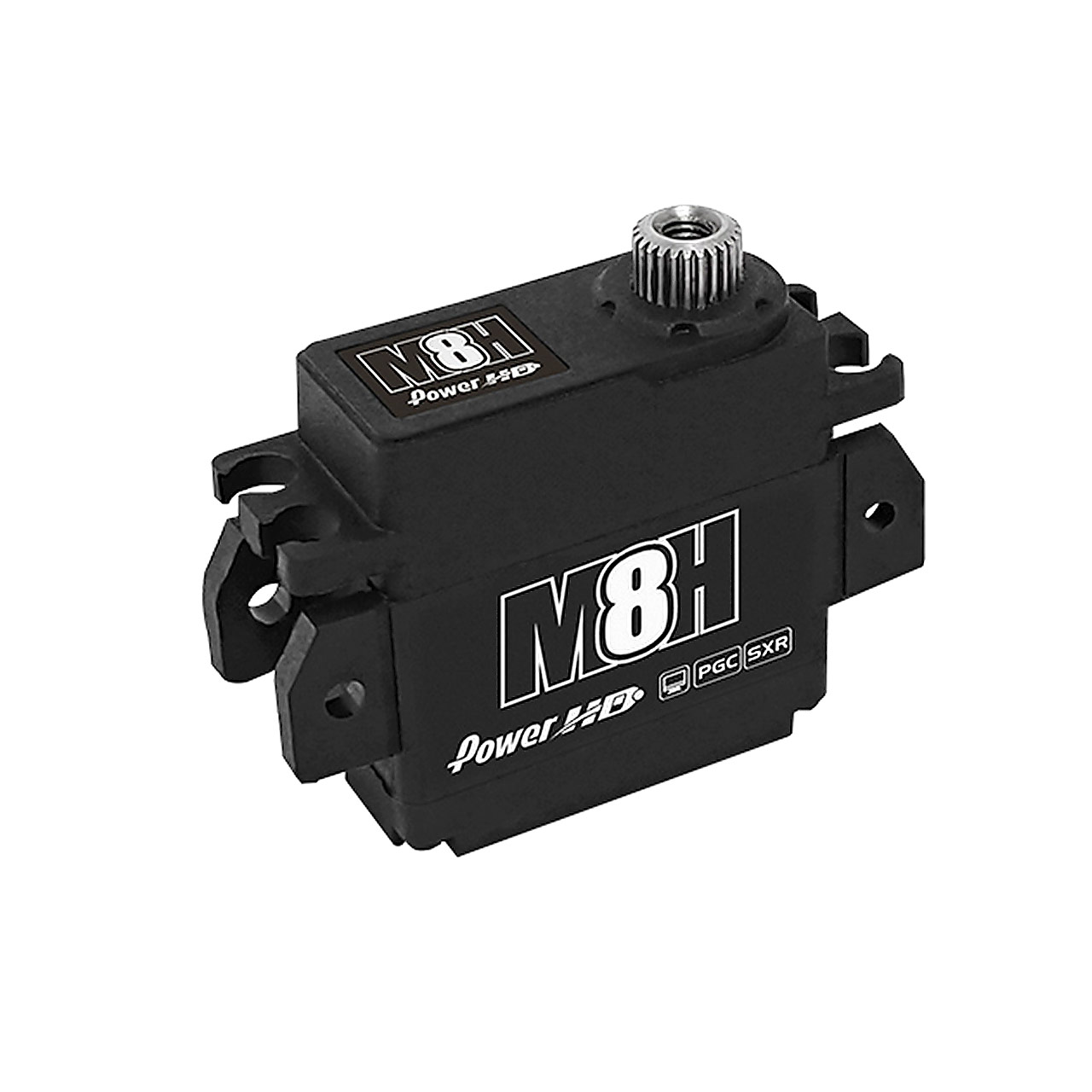

The Power HD M8H is an HV Coreless digital servo with a full plastic case.
Specifications
| Torque (4.8 V) | 4.5 kg-cm (62.5 oz/in) |
|---|---|
| Torque (6.0 V) | 6.3 kg-cm (87.5 oz/in) |
| Torque (7.4 V) | 7.5 kg-cm (104.2 oz/in) |
| Torque (8.4 V) | 8.5 kg-cm (118.0 oz/in) |
| Speed | 0.110 sec (4.8 V) · 0.085 sec (6.0 V) |
| Speed | 0.073 sec (7.4 V) · 0.065 sec (8.4 V) |
| Operating Voltage | 4.8–8.4 DC Volts |
|---|---|
| Weight | 18.0 g (0.63 oz) |
| Motor Type | Coreless Motor |

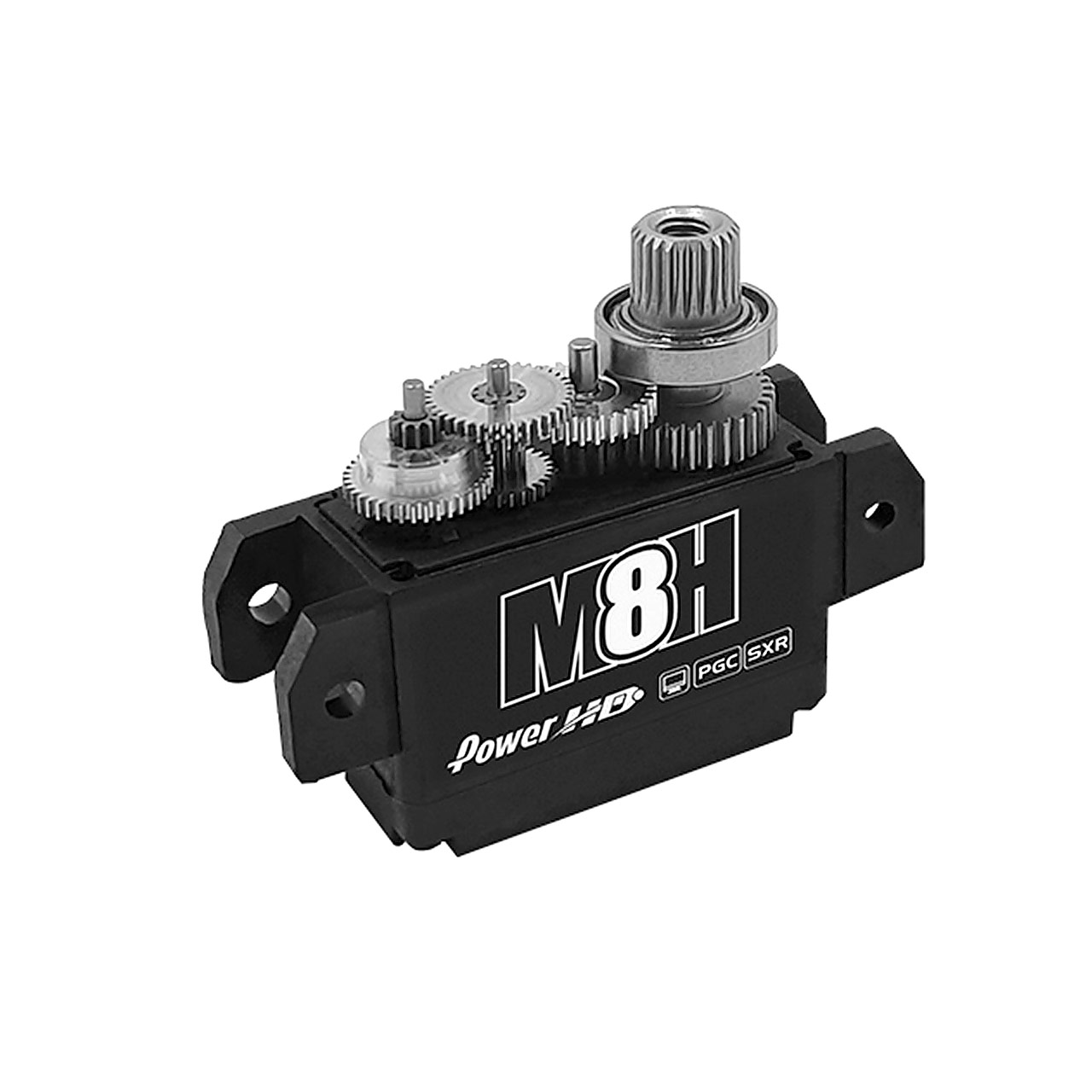

| Gear Type | Titanium & Steel |
| Dimensions | 27.2 × 12.1 × 28.2 mm (1.07 × 0.48 × 1.11 in) |
Safety & manufacturer
Manufacturer
Power HD
Item number: PHD045
EAN: 6929188080809
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
