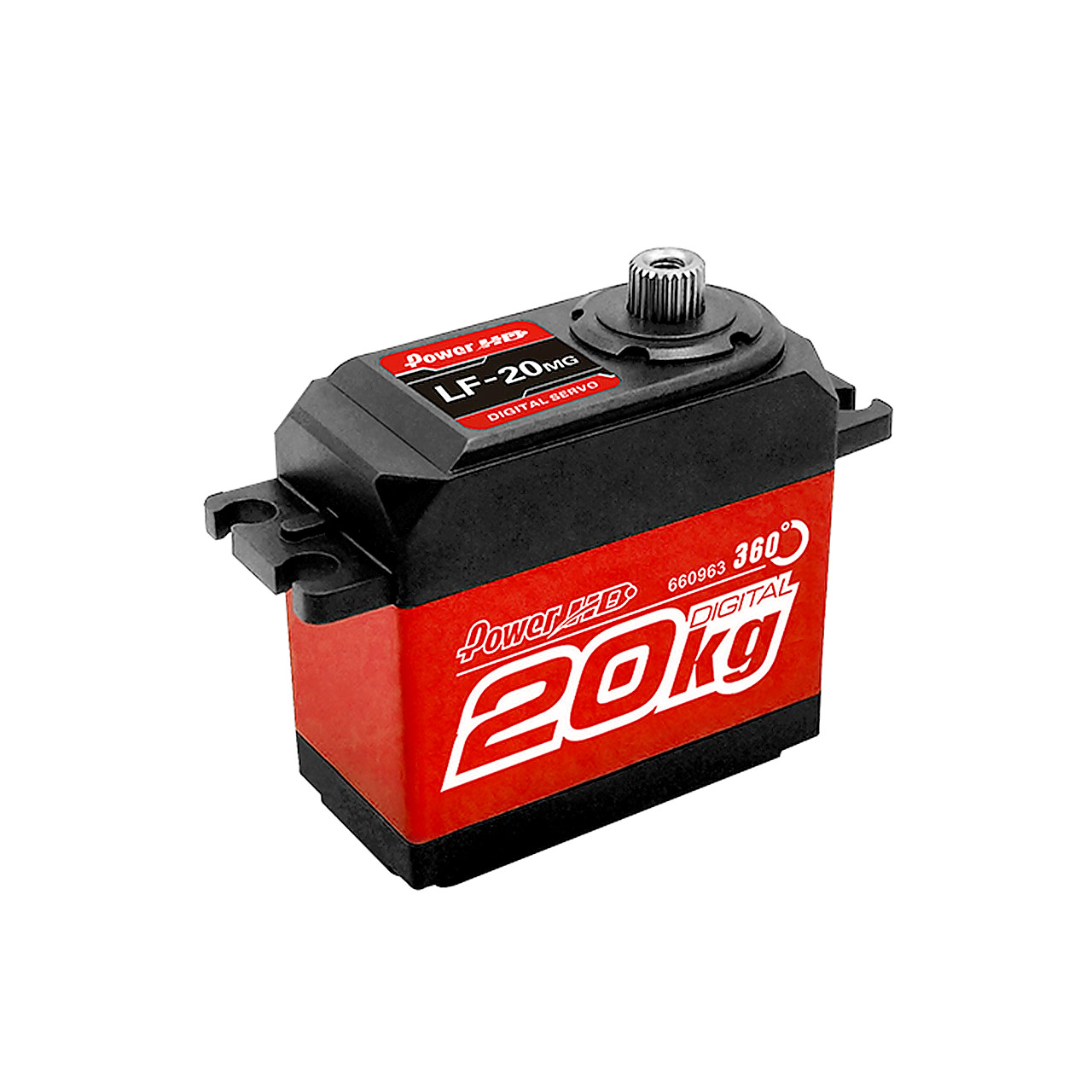

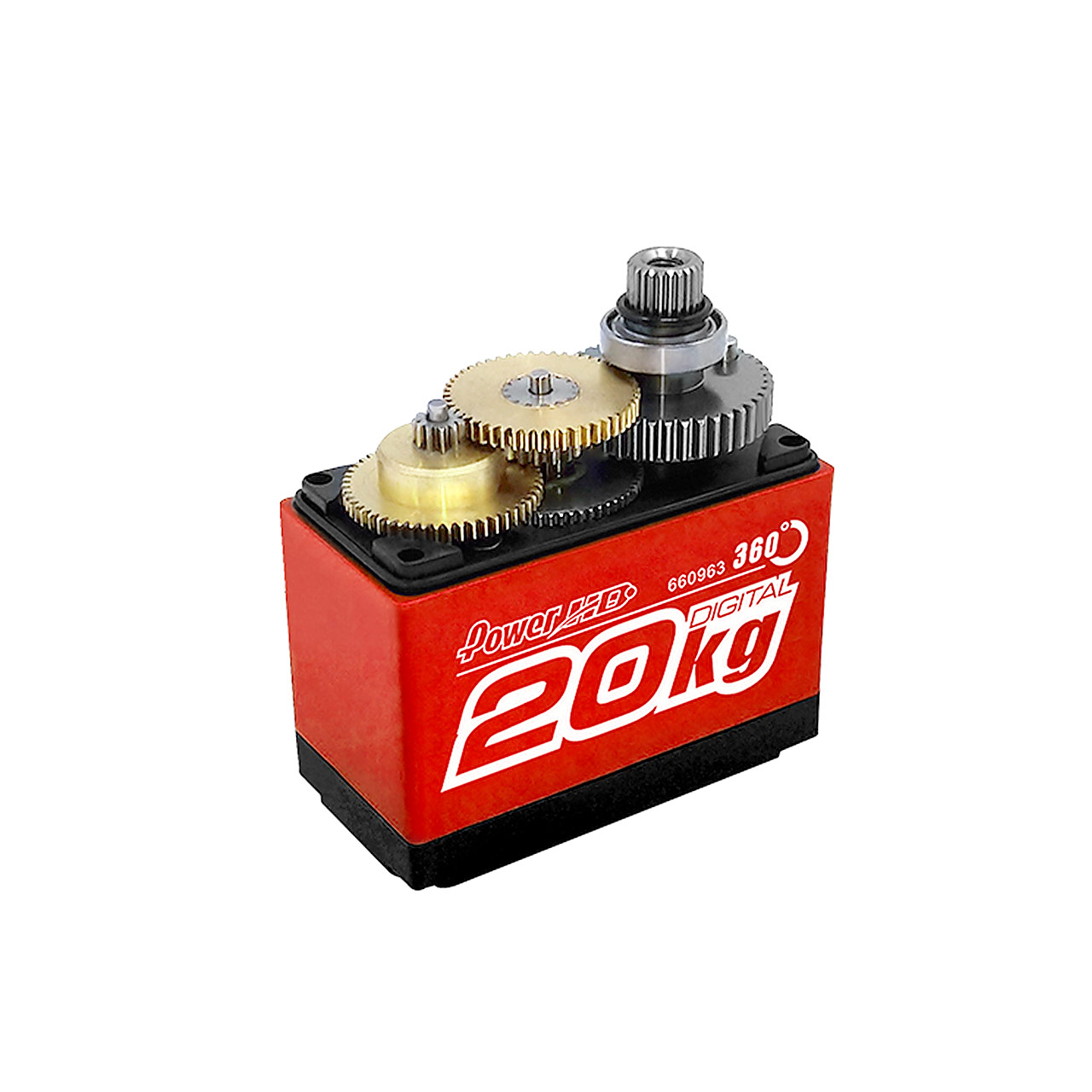

Power HD LF-20MG 360° Robot Servo 20.0KG/0.16sec@6.0V
- Part No: PHD013
- Retail: €28.90
- EAN: 6939670203609
- Notice: LF-20MG (360°)
The Power HD LF-20MG is a 360° robot servo. Specifications Torque (4.8 V) 16.5 kg-cm... more
Product information "Power HD LF-20MG 360° Robot Servo 20.0KG/0.16sec@6.0V"
The Power HD LF-20MG is a 360° robot servo.
Specifications
| Torque (4.8 V) | 16.5 kg-cm (229.1 oz/in) |
| Torque (6.6 V) | 20.0 kg-cm (277.7 oz/in) |
| Speed | 0.18 sec (4.8 V) · 0.16 sec (6.6 V) |
| Operating Voltage | 4.8–6.6 DC Volts |
| Weight | 60 g (2.12 oz) |
| Bearing Type | Ball Bearing x 2 |
| Motor Type | DC Motor |
| Gear Type | Copper & Aluminum |
| Operating Temperature | -20–60 °C |
| Operating Frequency | 1520 µs / 333 Hz |
| Dimensions | 40.7 × 20.5 × 39.5 mm (1.60 × 0.80 × 1.55 in) |
| Rotation Degree | 360° |
