Power HD GTS-5 HV CNC Brushless Digital Servo 50.0KG/0.08sec@8.4V
- Part No: PHD047
- Retail: €146.90
- EAN: 6929188055005
- Notice: GTS-5

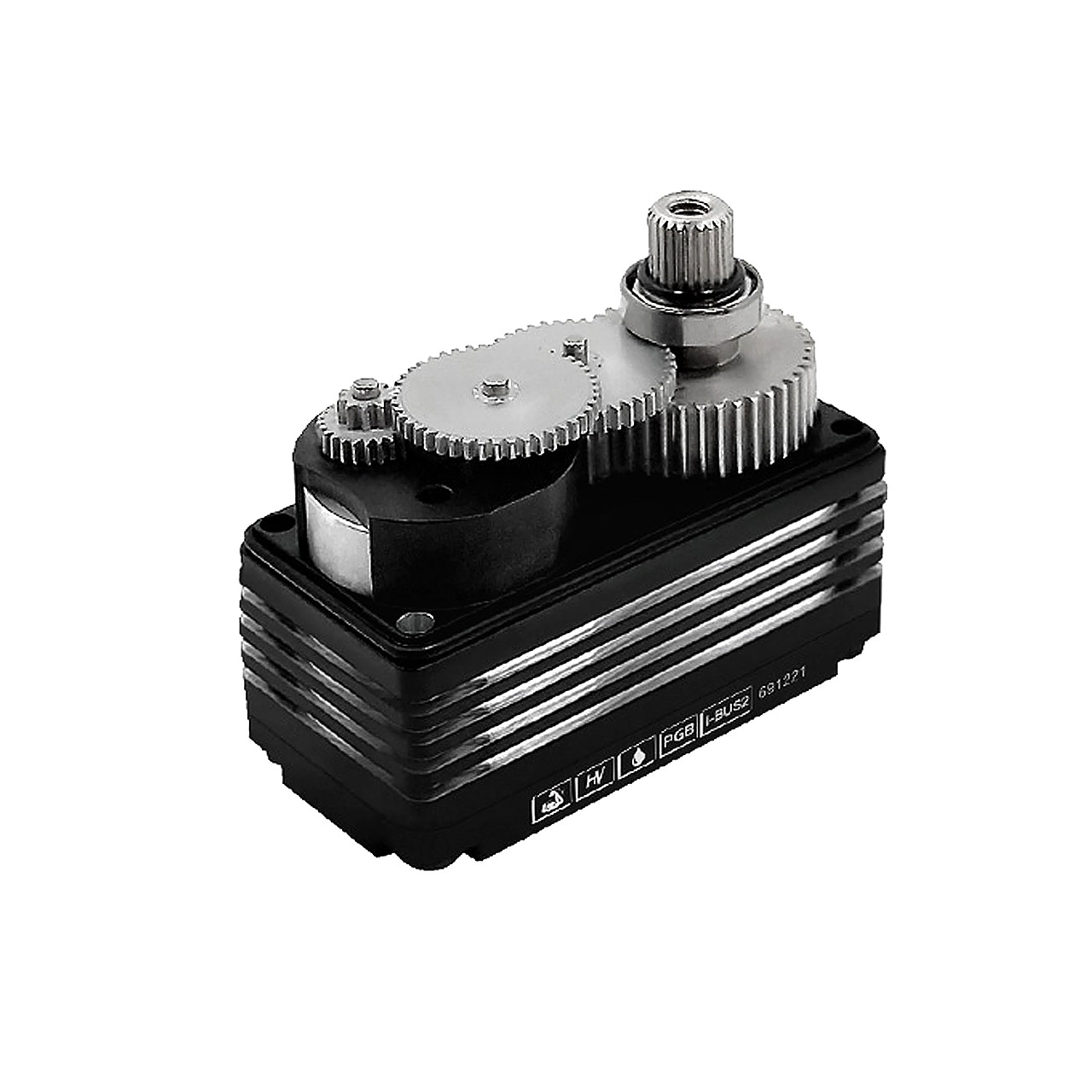

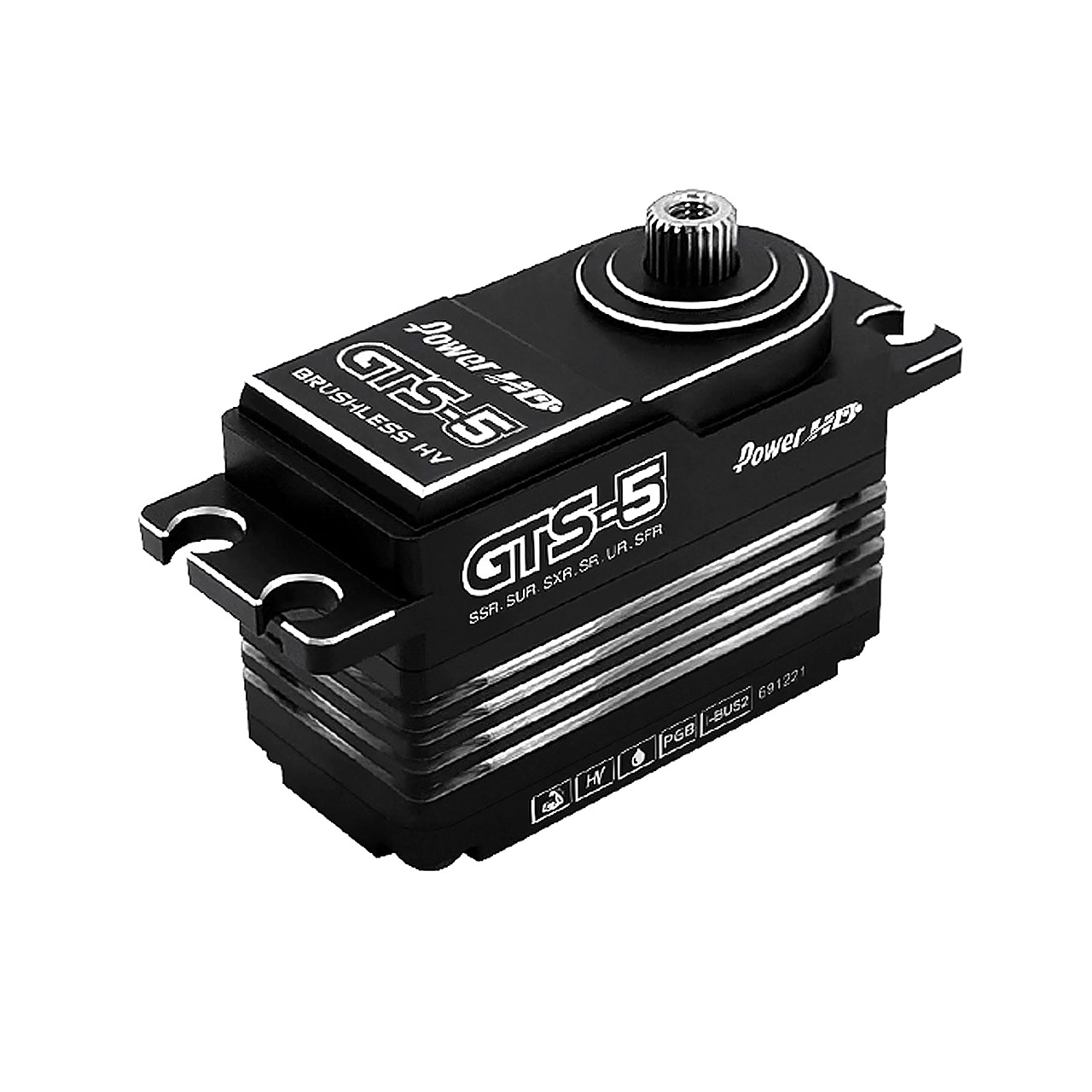

HV Brushless digital Servo with 50.0 kg-cm torque at 8.4 V
The Power HD GTS-5 HV is a CNC Brushless digital Servo with a four-pole Brushless motor, long life-span, heat resistance and fast response. It supports the FLYSKY i-BUS2 protocol for Servo parameter setup, data logging and warnings.
The Servo supports radio high-speed modes: NOR / SR / SFR on the Noble NB4 Pro, NOR / SR / UR on Futaba radios, and NOR / SHR / SSR / SUR / SXR on SANWA radios.
Compatible with the Power HD PG-CB63 program box.
Specifications
| Torque (6.0 V) | 36.0 kg-cm / (499.9 oz/in) |
| Torque (7.4 V) | 42.0 kg-cm / (583.3 oz/in) |
| Torque (8.4 V) | 50.0 kg-cm / (694.4 oz/in) |
| Speed | 0.11 s (6.0 V), 0.09 s (7.4 V) |
| Speed | 0.08 s (8.4 V) |
| Operating Voltage | 6.0–8.4 V DC |
| Weight | 63 g (2.22 oz) |
| Bearing Type | Ball Bearing × 2 |
| Motor Type | Brushless Motor |
| Gear Type | 7075+Steel |
| Operating Temperature | -20–60 °C |
| Working Frequency | 1520 / 1666 Hz |
| Dimensions | 41.0 × 20.0 × 29.0 mm (1.61 × 0.79 × 1.14 in) |
| Max. Current | 7.5 A |
