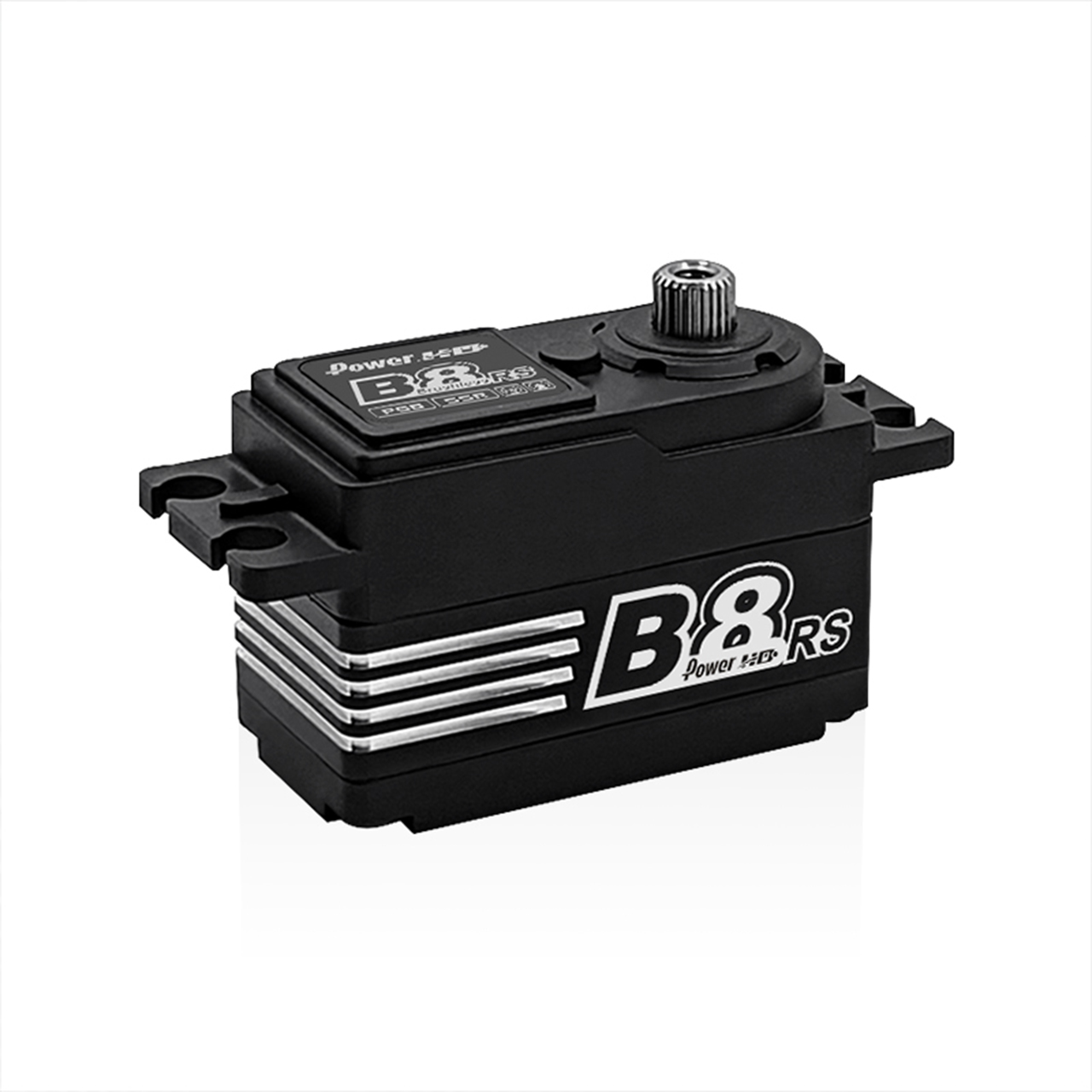

Power HD B8-RS HV Brushless Digital Servo 30.0KG/0.055sec@7.4V
- Part No: PHD095
- Retail: €83.90
- EAN: 6929188008889
- Notice: B8-RS
HV brushless servo for 1/10 on-road and electric buggies, programmable response The Power HD... more
Product information "Power HD B8-RS HV Brushless Digital Servo 30.0KG/0.055sec@7.4V"
HV brushless servo for 1/10 on-road and electric buggies, programmable response

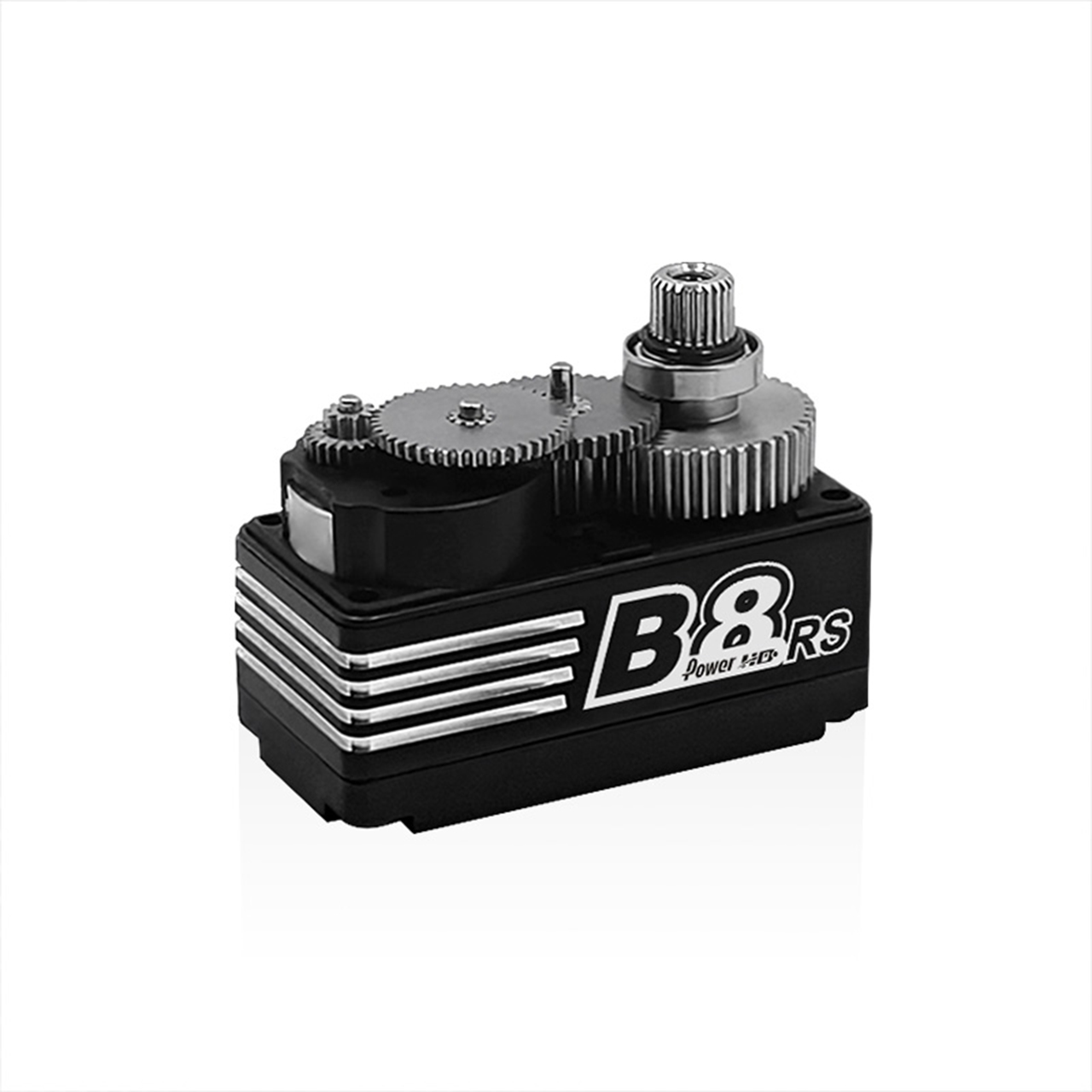

The Power HD B8-RS is a lightweight HV brushless servo for 1/10 on-road and electric buggy applications. Its CNC aluminium case provides cooling, while the steel/7075 gear combination provides durability. The servo is programmable to adjust its response behaviour.
Specifications
| Torque (6.0 V) | 20.0 kg-cm (277.7 oz/in) |
| Torque (7.4 V) | 26.0 kg-cm (361.1 oz/in) |
| Torque (8.4 V) | 30.0 kg-cm (416.6 oz/in) |
| Speed | 0.097 s (6.0 V) · 0.085 s (7.4 V) · 0.075 s (8.4 V) |
| Operating Voltage | 6.0–8.4 V DC |
| Weight | 55 g (1.94 oz) |
| Bearing Type | Ball Bearing × 2 |
| Motor Type | Brushless Motor |
| Gear Type | 7075 + Steel |
| Max. Current | 3.0 A |
| Operating Frequency | 1520 ?s / 333 Hz |
| Dimensions | 41.0 × 20.0 × 29.0 mm (1.61 × 0.79 × 1.14 in) |
