Power HD B5s HV Brushless Digital Servo 20.0KG/0.05sec@8.4V
- Part No: PHD073
- Retail: €83.90
- EAN: 6929188005000
- Notice: B5s
The Power HD B5s is an HV Brushless digital servo. Specifications Torque (6.0 V) 16.0... more
Product information "Power HD B5s HV Brushless Digital Servo 20.0KG/0.05sec@8.4V"

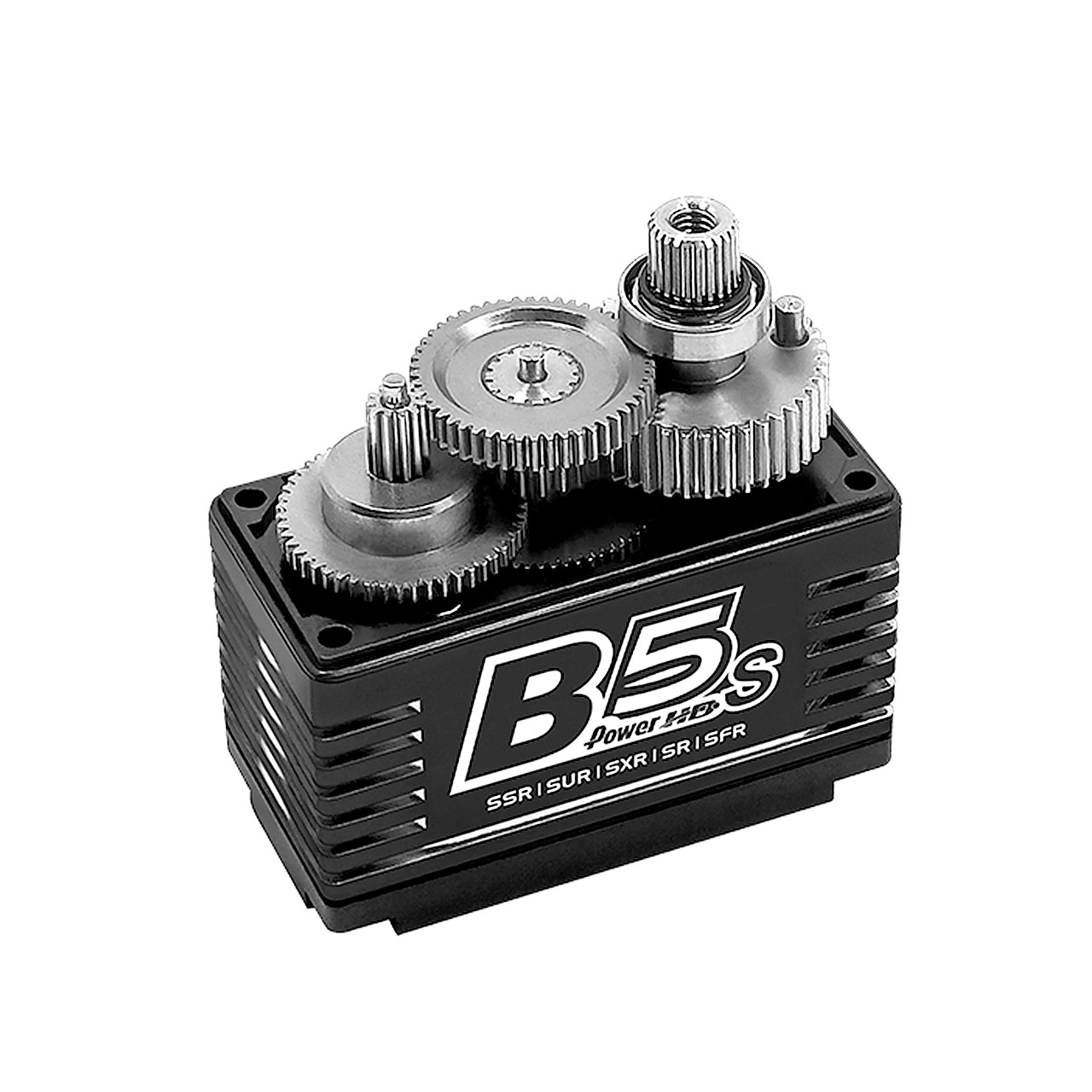

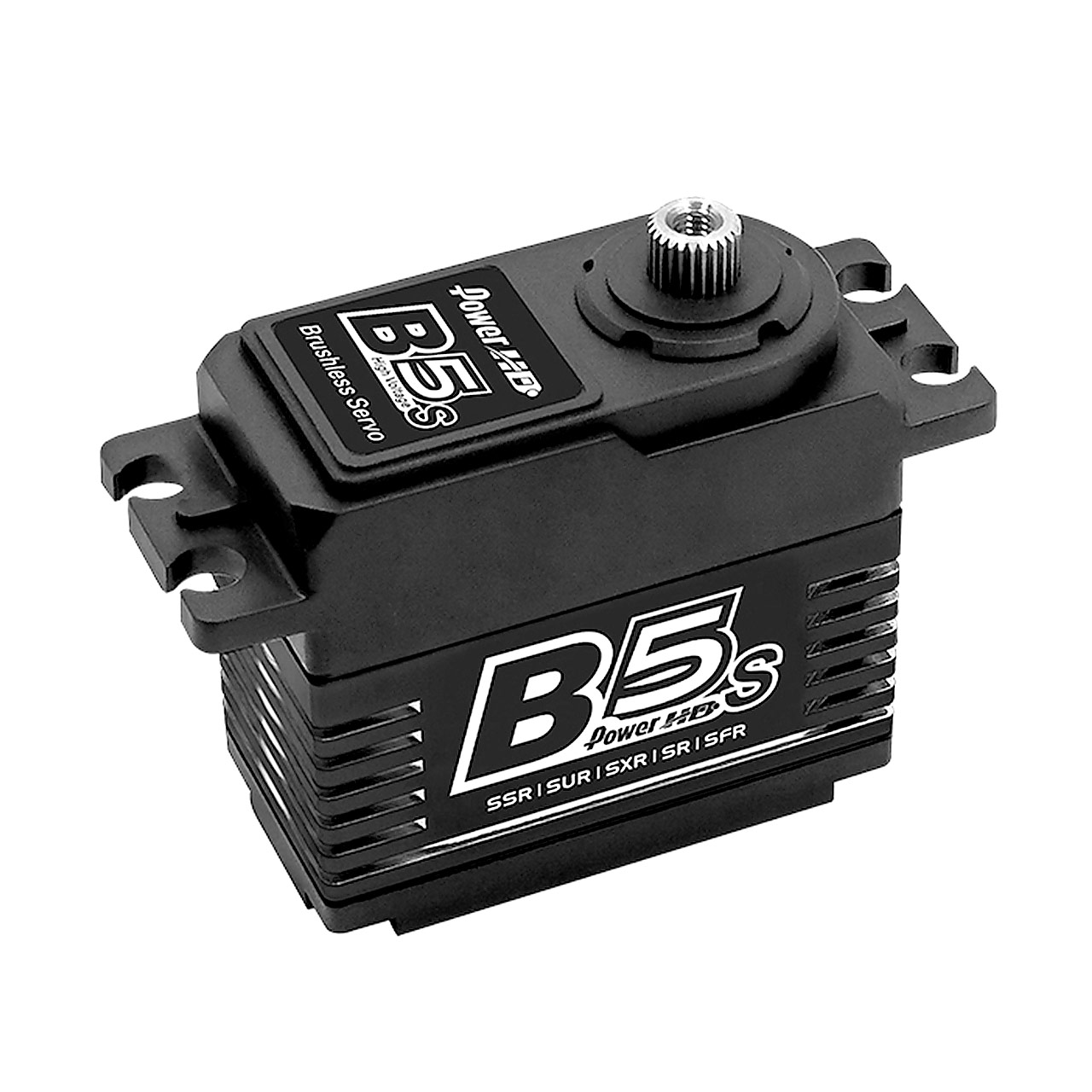

The Power HD B5s is an HV Brushless digital servo.
Specifications
| Torque (6.0 V) | 16.0 kg-cm (222.2 oz/in) |
| Torque (7.4 V) | 18.0 kg-cm (250.0 oz/in) |
| Torque (8.4 V) | 20.0 kg-cm (277.7 oz/in) |
| Speed | 0.065 sec (6.0 V) · 0.055 sec (7.4 V) |
| Speed | 0.05 sec (8.4 V) |
| Operating Voltage | 6.0–8.4 DC Volts |
| Weight | 67.0 g (2.36 oz) |
| Bearing Type | Ball Bearing x 2 |
| Motor Type | Brushless Motor |
| Gear Type | Titanium & Steel |
| Operating Temperature | -20–60 °C |
| Operating Frequency | 1520 µs / 333 Hz |
| Dimensions | 41.0 × 20.5 × 38.3 mm (1.61 × 0.81 × 1.51 in) |
