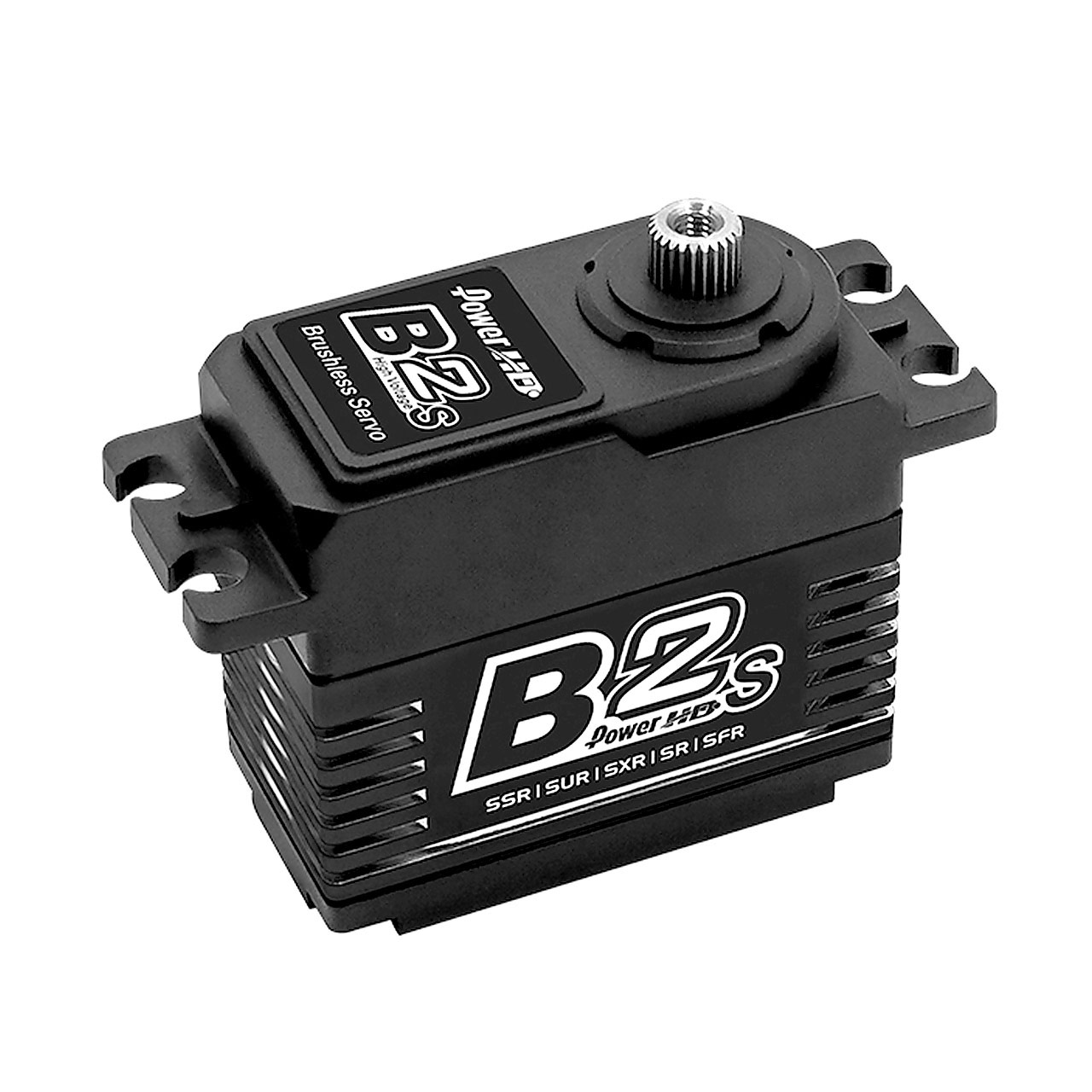

Power HD B2s HV Brushless Digital Servo 50.0KG/0.10sec@8.4V
- Part No: PHD070
- Retail: €85.90
- EAN: 6929188002009
- Notice: B2s
The Power HD B2s is an HV Brushless digital servo. Specifications Torque (6.0 V) 38.0... more
Product information "Power HD B2s HV Brushless Digital Servo 50.0KG/0.10sec@8.4V"
The Power HD B2s is an HV Brushless digital servo.
Specifications
| Torque (6.0 V) | 38.0 kg-cm (527.7 oz/in) |
| Torque (7.4 V) | 45.0 kg-cm (624.9 oz/in) |
| Torque (8.4 V) | 50.0 kg-cm (694.4 oz/in) |
| Speed | 0.15 sec (6.0 V) · 0.12 sec (7.4 V) |
| Speed | 0.10 sec (8.4 V) |
| Operating Voltage | 6.0–8.4 DC Volts |
| Weight | 67.0 g (2.36 oz) |
| Bearing Type | Ball Bearing x 2 |
| Motor Type | Brushless Motor |

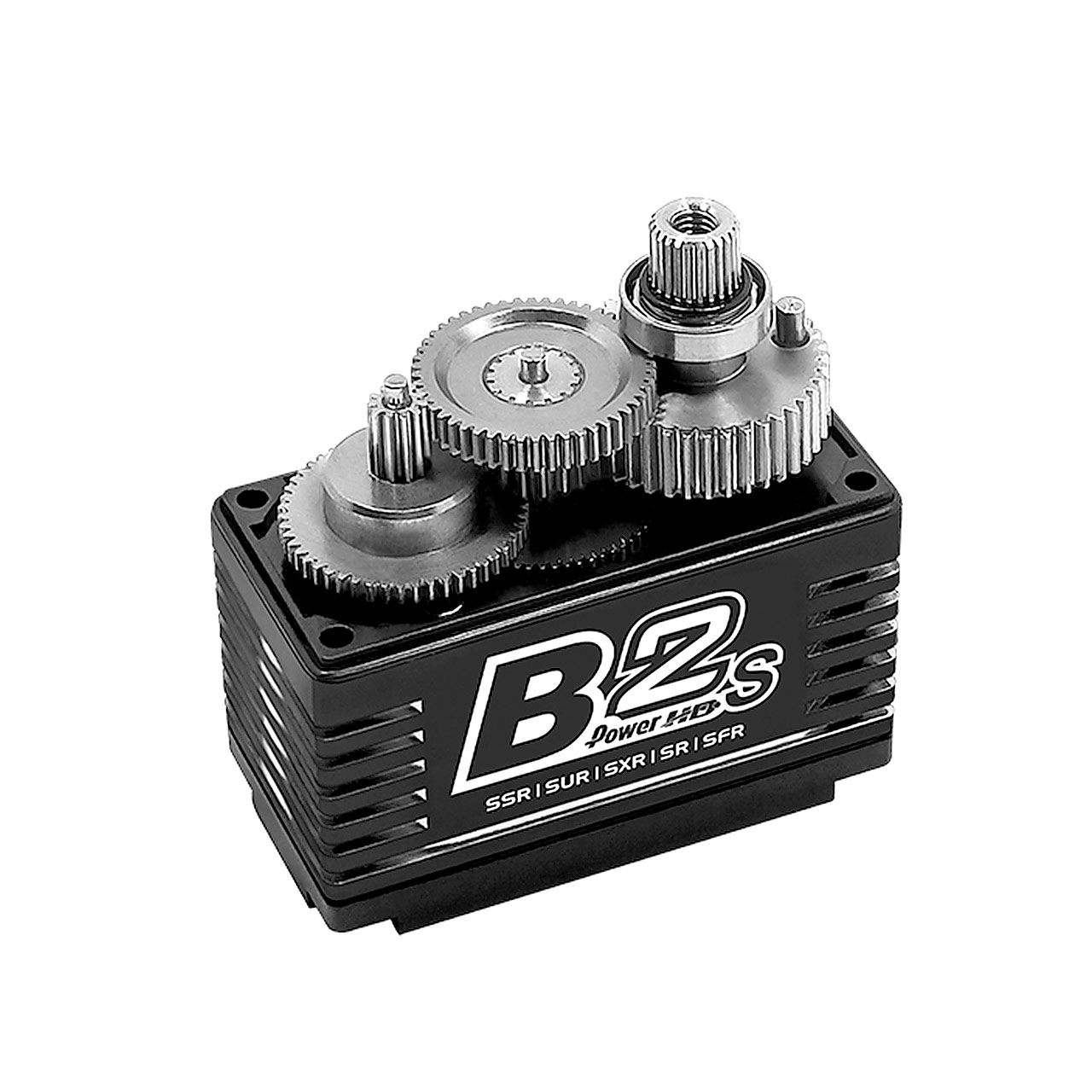

| Gear Type | Titanium & Steel |
| Operating Temperature | -20–60 °C |
| Operating Frequency | 1520 µs / 333 Hz |
| Dimensions | 41.0 × 20.5 × 38.3 mm (1.61 × 0.81 × 1.51 in) |
