Brand:
S15-S HV CNC Brushless Digital Servo 16.5KG/0.05sec@8.4V
Direct-mount Brushless digital Servo for the Schumacher Mi9, with 16.5 kg-cm torque at 8.4 V
- Item number
- PHD077
- EAN
- 6929188015320
€136.90incl. VAT, plus shipping
RRP €136.90
Description

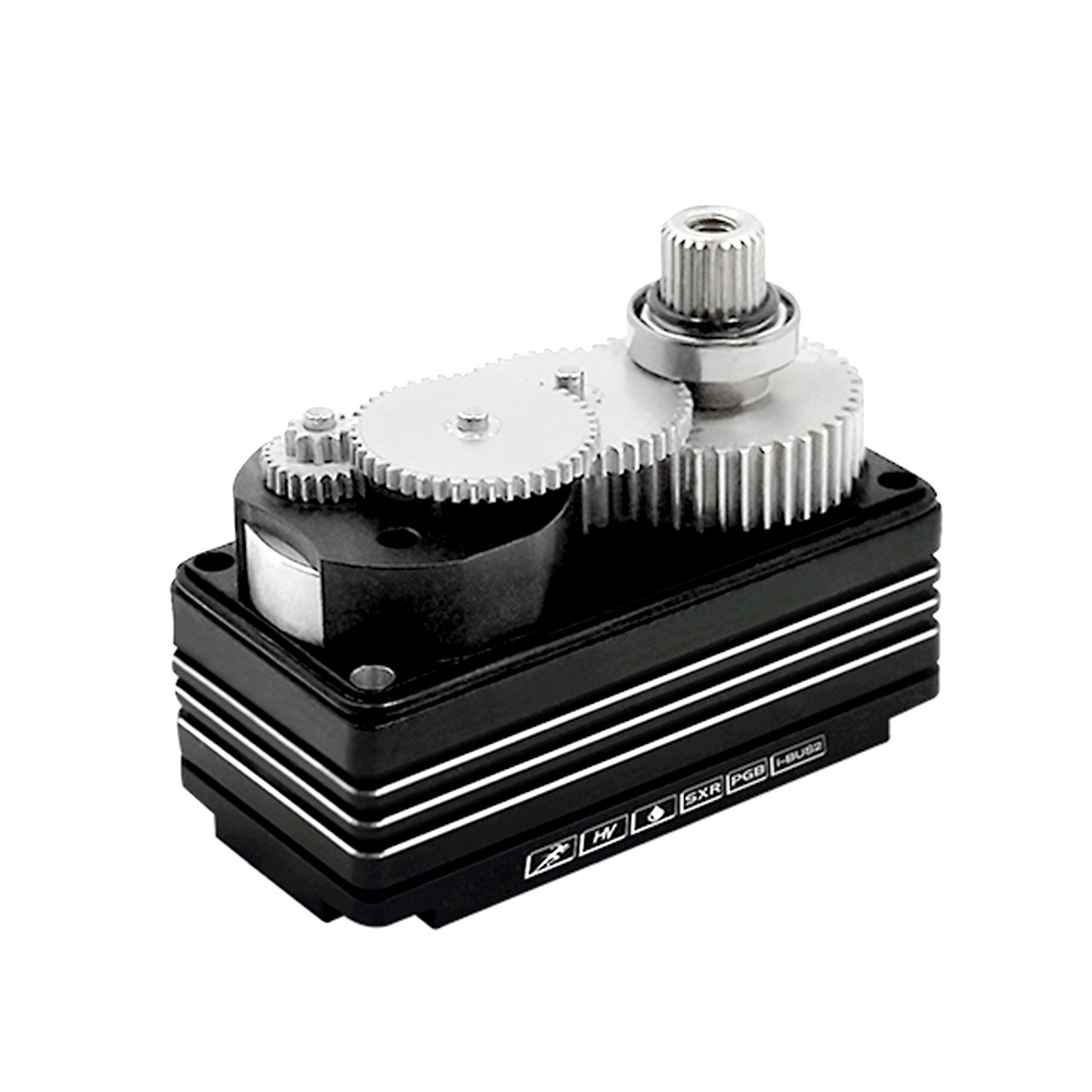

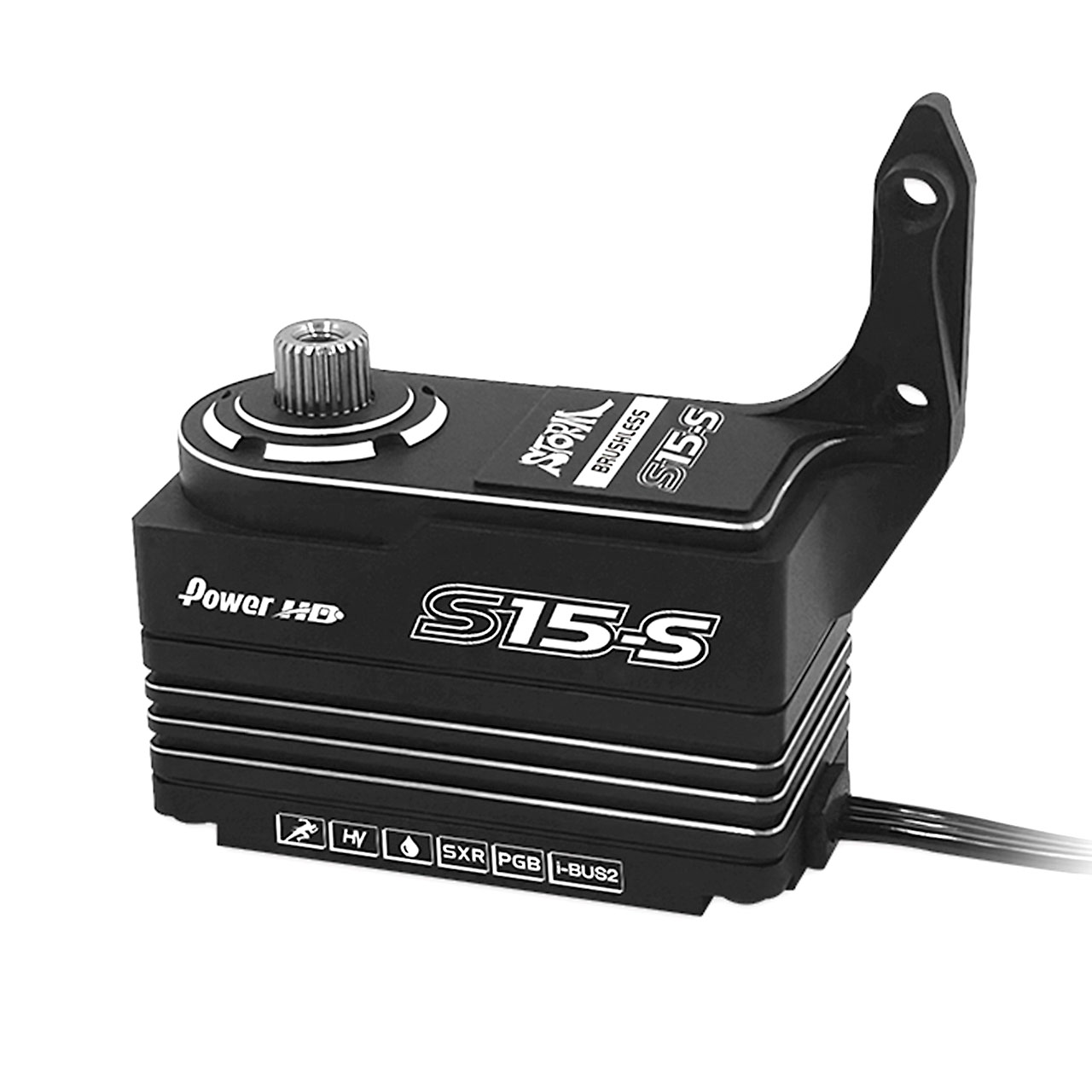

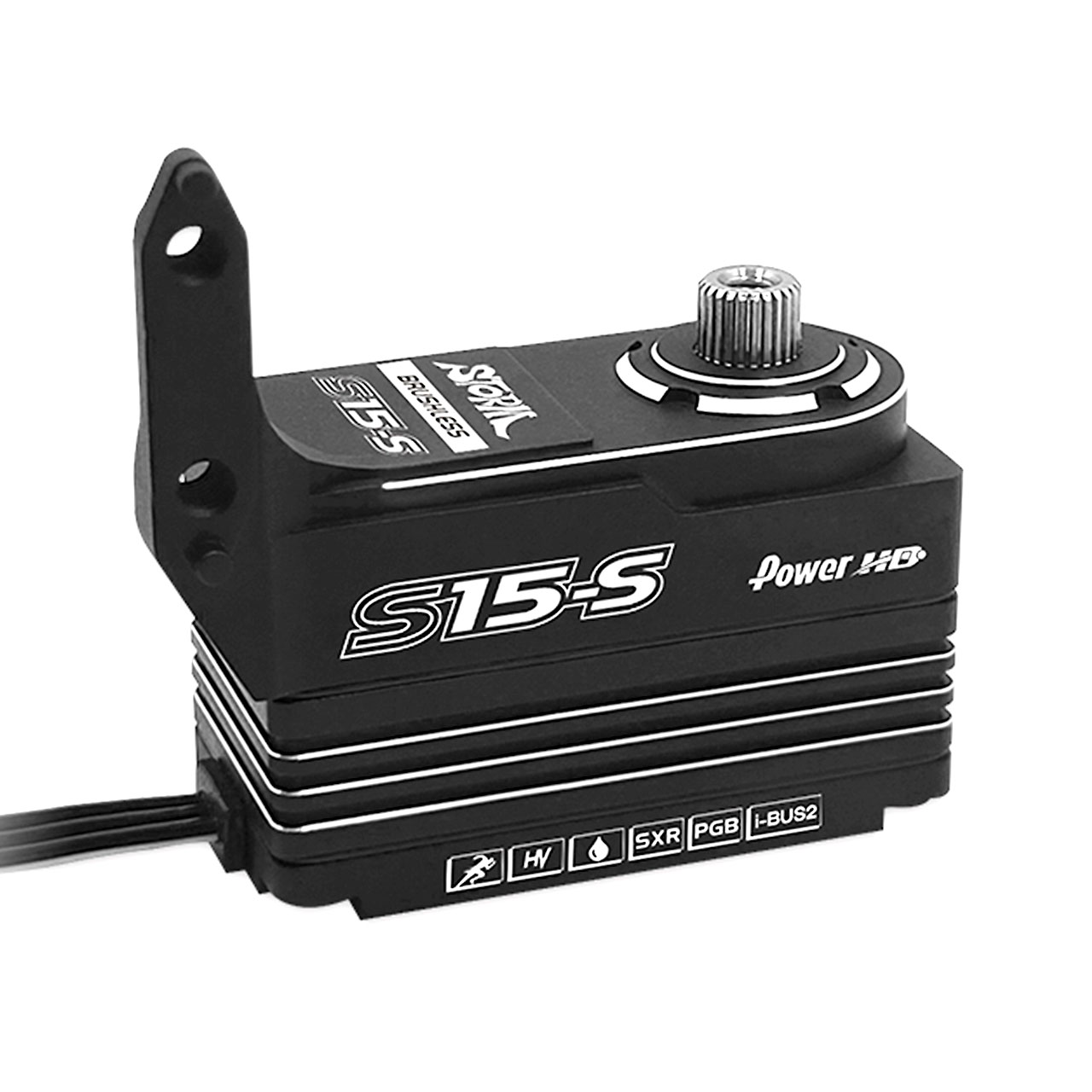

The Power HD S15-S is a direct-mount Servo for the Schumacher Mi9.
Specifications
| Torque (6.0 V) | 11.5 kg-cm (159.7 oz/in) |
|---|---|
| Torque (7.4 V) | 15.0 kg-cm (208.3 oz/in) |
| Torque (8.4 V) | 16.5 kg-cm (229.1 oz/in) |
| Speed | 0.072 sec (6.0 V) ? 0.060 sec (7.4 V) ? |
| Speed | 0.050 sec (8.4 V) |
| Operating Voltage | 6.0–8.4 DC Volts |
| Weight | 56.5 g (2.0 oz) |
| Bearing Type | Ball Bearing × 2 |
|---|---|
| Motor Type | Brushless Motor |
| Gear Type | Titanium & Steel |
| Operating Temperature | -20?~60? |
| Working Frequency | 1520 µs / 333 Hz |
| Size | 41.0 × 20.0 × 26.0 mm (1.61 × 0.79 × 1.02 in) |
