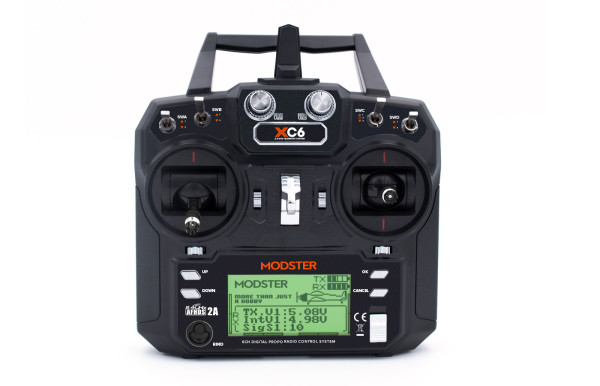

MODSTER XC6 6-channel remote control incl. MR6 receiver

MODSTER XC6 - Versatile in use!

This remote control system offers you the possibility to fly motorised aircraft, gliders or helicopters by means of special programmes.

Despite the numerous programming options, this remote control system is also very well suited as a beginner's system and will accompany you in your hobby for a long time.

We have decided to let you choose to extend the control capabilities to 10 channels by entering them in the menu. This means you buy a 6-channel transmitter, but it can manage and control 10 channels.

The beginner will be satisfied with the setting for 6 channels - the advanced user will probably then switch the transmitter to 10-channel support.

The AFHDS 2A transmission protocol supports frequency hopping as well as the transmission of telemetry data.

In addition to the two stick units, 4 switches and 2 rotary knobs can be used for channel control.

The programming is shown in English on the backlit display. A German language manual is included.

The transmitter is delivered in mode 2 (throttle left), but can be converted to the other modes.

Technical data of the XC6:

- Channels: 6-10

- For powered aircraft, model gliders or helicopters

- Transmission frequency: 2.4GHz

- Transmission protocol: AFHDS 2A

- Range: 500-500m (in clear view)

- Resolution steps: 4096

- Power supply: 1.5V AA x 4

- Undervoltage alarm: < 4.2V

- Dual antenna system

- Display: STN, LCD

- Programme software: English

- Data port: PS / 2 (PPM)

- Temperature range: -10 ? to + 60 ?

- Humidity range: 20% - 95%

- Firmware updateable

- Dimensions: 174x89x190mm

- Weight: 392g

Technical data of the MR6 receiver:

- Channels: 6

- Transmission frequency: 2.4GHz

- Transmission protocol: AFHDS 2A

- Range: 500-1500m (in clear view)

- Dual antenna system (150mm * 2)

- Working voltage: 4.0 - 8.4V

- Supports RSSI

- Data ports: PWM / PPM / i.bus / s.bus

- Temperature range: -10 ? to + 60 ?

- Humidity range: 20% - 95%

Scope of delivery:

- MODSTER XC6 Remote Control Transmitter

- MODSTER MR6 Receiver

- Binding cable

- Instructions in German and English
