ToolkitRC M7AC LiPo 1-6S 15A Charger AC/DC
Please inform me as soon as the product is available again.
- Part No: TK12200
- Retail: €96.90
- EAN: 6972969830186
AC/DC charger with up to 300 W charging and PWM, PPM and SBUS functions The M7AC is an AC/DC... more
Product information "ToolkitRC M7AC LiPo 1-6S 15A Charger AC/DC"

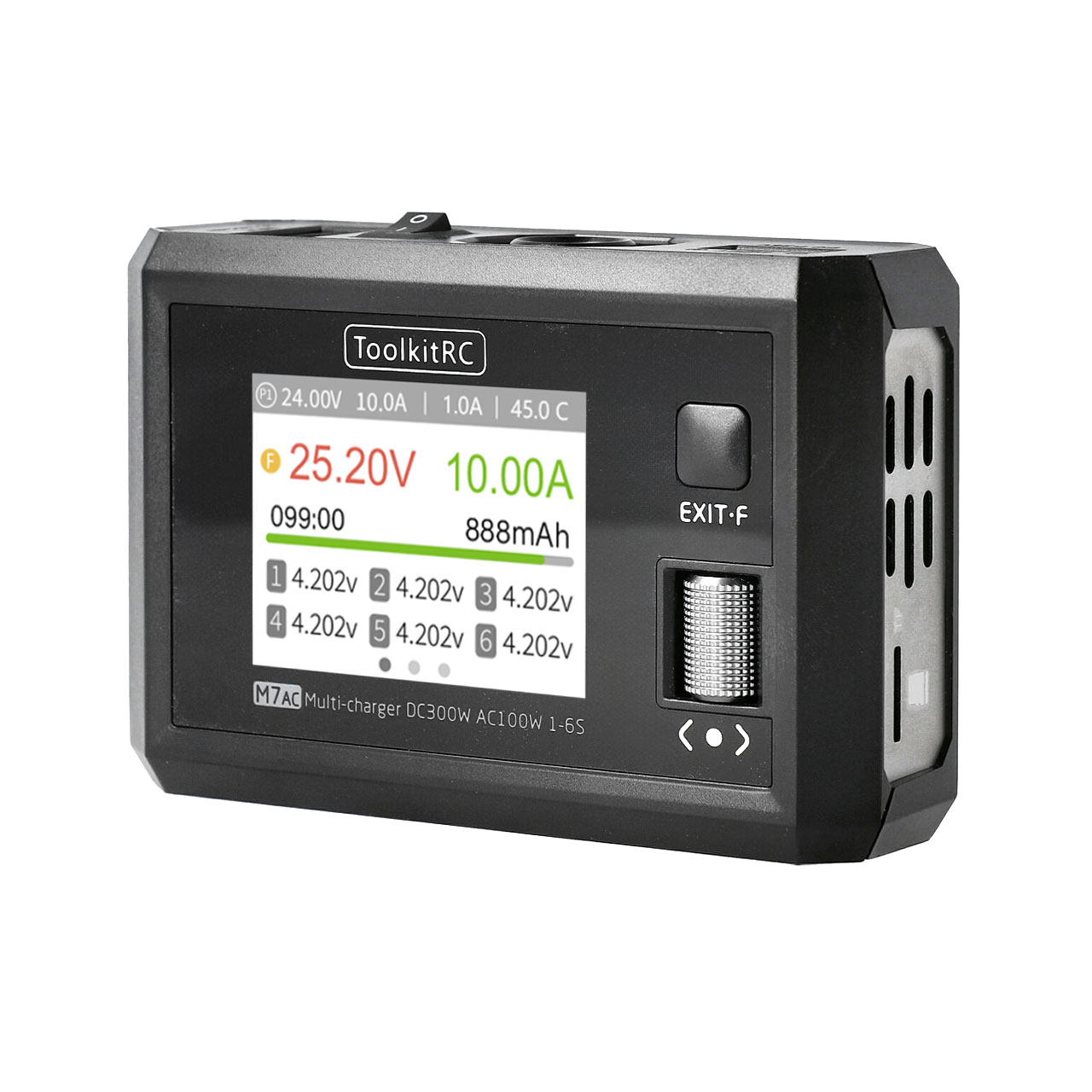

AC/DC charger with up to 300 W charging and PWM, PPM and SBUS functions
The M7AC is an AC/DC charger for balance charging and discharging. It also measures signals and can act as a signal source for PWM, PPM and SBUS.
Highlights
- Up to 300 W charging power and maximum 15 A charging current
- Max. 300 W discharge power
- Meter for voltage, resistance and PWM/PPM/SBUS signals; playback of PWM/PPM/SBUS signals
- Multilingual user interface with voice output
- Upgradeable via USB
- Various security controls
Specifications
| Input Voltage | AC 100–240 V, max. 100 W / DC 7–28 V, max. 20 A |
| Charge Power | 0.1–15 A, 300 W |
| Discharge Power | 0.1–15 A, 300 W (Rec/Ext. Mode) / 0.1–3 A, 15 W (Intern. Mode) |
| Charging Accuracy | <0.005 V |
| USB A | 5.0 V, 10 W (or Upgrade) |
| Balancing Current | 800 mA, 4.2 V |
| Cells LiPo/LiFe/LiIon/LiHV | 1–6S |
| Cells NiMH/NiCd | 1–16S |
| Pb Battery Voltage | 1–10S |
| Voltage | 1.0–5.0 V, 1–6S |
| Display | LCD, IPS 2.4'', 320 × 240 px |
| TF Card | Supports 128 MB to 16 GB |
| Dimensions | 112 × 73 × 38 mm |
| Weight | 245 g |
| Measurement & Output | |
|---|---|
| Measurement PWM | 880–2200 µs, 20–400 Hz |
| Measurement PPM | 880–2200 µs × 8 CH, 20–50 Hz |
| Measurement SBUS | 880–2200 µs × 16 CH, 20–100 Hz |
| Output PWM | 500–2500 µs, 20–1000 Hz |
| Output PPM | 880–2200 µs × 8 CH, 50 Hz |
| Output SBUS | 880–2200 µs × 16 CH, 74 Hz |
| Power | 0.5–15 A, 1–28 V, mode: CC+CV |

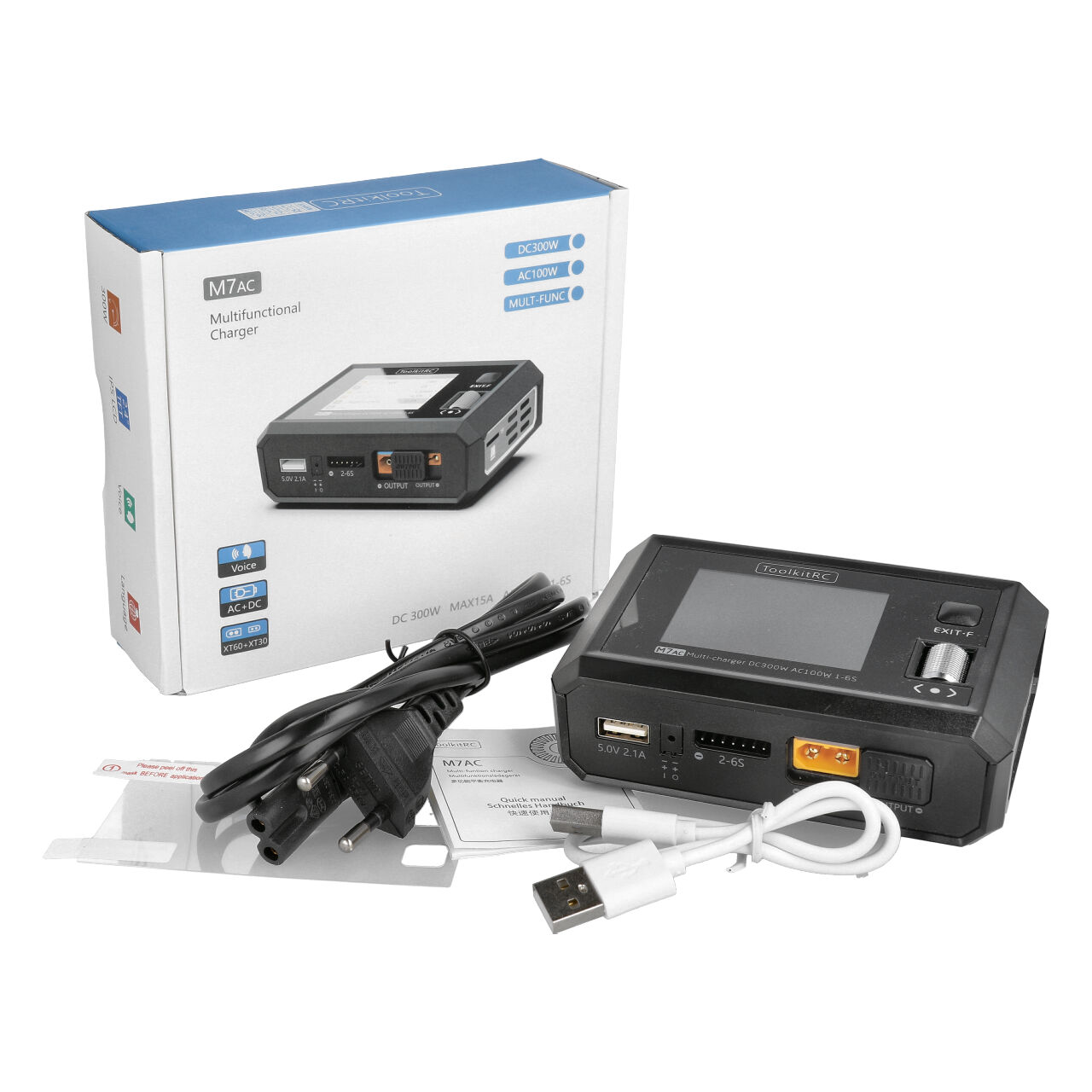

In the box
- 1× M7AC Charger
- 1× Power cable
- 1× USB cable
- 1× Display protection
- 1× Manual
